ROSSLARE
INSTRUCTION MANUAL
MODE
1
3
3
5
7
9

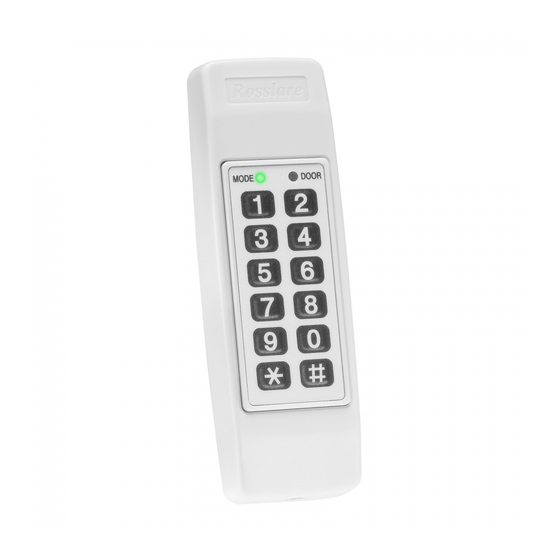

AC-C31
STAND-ALONE
ACCESS CONTROL UNIT
DOOR
2
4
4
6
8
0
#
08/01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-C31 and is the answer not in the manual?

Questions and answers

Related Manuals for Rosslare AC-C31

Summary of Contents for Rosslare AC-C31

  • Page 1 ROSSLARE INSTRUCTION MANUAL MODE DOOR AC-C31 STAND-ALONE ACCESS CONTROL UNIT ROSSLA R E ROSSLA R E www.rosslare.com.hk 08/01...

  • Page 2: Table Of Contents

    INSTALLATION Mounting the AC-C31 Controller Wiring Diagrams Equipment provided FEATURES AND CONCEPTS The following is provided as part of every AC-C31 package: Normal, Secure, & Master Users Modes Of Operation - AC-C31 Access Control Unit. Changing the Modes of Operation...

  • Page 3: Technical Specifications

    Technical Specification Key Features Here are some of the AC-C31’s key features: Electrical Characteristics Operating Voltage Range: Built in Keypad for PIN code entry 12 to 16V DC From a Regulated Power Supply Internal Buzzer Maximum Input Current: Comes with security screw and security screw tool...

  • Page 4: Installation

    This location should be at shoulder height and on the DOOR MODE same side as the door handle. The AC-C31 is designed to be easily mounted to a US Gang Box. Remove the Bezel Screw. (Use the diagram below to help you locate the Bezel Screw) Mounting Hole...

  • Page 5: Wiring Diagrams

    Wiring Diagrams REX / BL Lock AC-C31 Page 8 06/01 AC-C31 Page 9 06/01...

  • Page 6: Normal, Secure, & Master Users

    Normal, Secure, & Master Users Modes of Operation The AC-C31 accepts up to 500 users and provides entry via the use The AC-C31 has 3 Modes of Operation: of PIN codes. Each user is provided with two code memory slots,...

  • Page 7: Changing The Modes Of Operation

    Mode Door the Mode change. GREEN GREEN Mode LED will turn green Press the "#" key to confirm Mode Door the Mode change. GREEN Mode LED will turn green. AC-C31 Page 12 06/01 AC-C31 Page 13 06/01...

  • Page 8: Request To Exit (Rex) Button

    X32, AC-X41, and AC-X42 series Standalone Controllers (For a PIN code, it is usually located in a convenient location, e.g. Inside more up-to-date list of compatible products check the Rosslare Web the door or at a receptionist's desk. The function of the REX button Site at www.rosslare.com.hk).

  • Page 9: Programming The Ac-C31

    LED will turn GREEN green and the AC-C31 will be in The table below shows the names of all the AC-C31 Menus. It also Programming Mode. shows of all the AY-C31’s default factory codes and settings.

  • Page 10: Changing The Open Code 1

    Code will automatically be deleted, ready for a new Open Code 2 Note: - Programming Code can not be erased, i.e. the code to be re-entered. 0000 is not valid and will not erase the Programming Code. AC-C31 Page 18 08/01 AC-C31 Page 19 06/01...

  • Page 11: Changing The Normal / Secure Code

    Code and Door Chime can be programmed. Disable Bypass Mode - Disable Door Chime Disable Bypass Mode - Enable Door Chime Enable Bypass Mode - Disable Door Chime Enable Bypass Mode - Enable Door Chime AC-C31 Page 20 06/01 AC-C31 Page 21...

  • Page 12: Setting Fail Safe/Secure Operation

    Secondary Code and the User Slot Code is unknown. The Code Search method only works if a users Primary Code is already enrolled but the Secondary Code is not. (See Enrolling Users with the Code Search Method on Page 25) AC-C31 Page 22 06/01 AC-C31...
  • Page 13 Normal Mode. If the Primary Code entered is not valid, you will hear a long beep and the AC-C31 will continue to wait for a valid Primary Code. Enter the 4-digit PIN that you want to assign as the Primary or Secondary Code for this slot number.

  • Page 14: Deleting Primary And Secondary Codes

    If the Programming Code is valid, you will hear three beeps AC-C31 will return to Normal Mode and the AC-C31 will return to Normal Mode. Enter your Programming Code to If the Programming Code is invalid, you will hear a long beep and confirm the deletion.

  • Page 15: Return To Factory Default Settings

    Return To Factory Default Settings Replacing a lost Programming Code Warning: Note: The AC-C31 must be in Normal Mode otherwise this will not work. Make sure that the Mode LED is green before proceeding. You must be very careful before using this command!

  • Page 16: Glossary

    Default Factory Setting: Sounder) programming mode, deleting users, settings that the controller is Tamper Siren Time: The time (user and resetting the AC-C31 to its preprogrammed with when the Normal Mode: The system setting programmed) that the Tamper Siren factory default settings.

  • Page 17: Technical Support
