Rosslare MD-D04B Installation Manual

MD-D04B
4-Reader Expansion Module for AC-425x-B Control Panels
Installation Manual
1. Introduction
The MD-D04B is an optional expansion board for use with Rosslare's
AC-425x-B series of networked access control panels.
The expansion board adds an additional four reader or keypad inputs;
four relay outputs and four supervised inputs to the access control
panel.
As a result, an access control panel with an MD-D04B expansion can
support a total of eight readers and eight door panels. In addition, it is
possible to add any keypad or biometric reader that supports the
Wiegand or Clock & Data transmission formats.
The host access controller has complete control over the additional
readers, inputs and outputs of the MD-D04B expansion board. The
inputs and outputs can be configured using an access control software
system such as Rosslare AxTraxNG™. The software system also
configures the MD-D04B's reader card transmission format and input
connection topology.
This guide explains how to install and begin working with your new
MD-D04B access control panel expansion board.
2. Technical Specifications
2.1 Electrical Characteristics
Input Voltage
Input Current
(not including attached
devices))
Number of Reader Ports
Number of Inputs
Number of Outputs
Output Relays
Inputs Voltage
2.2 I nput Characteristics
6 B
Input Type:
3. I nstallation
2 B
To install the MD-D04B ex pansion board:
1. Disconnect power to the access control panel before attaching the
MD-D04B.
2. Remove the MD-D04B cover by lightly pulling one of the cover
knobs away from the circuit board. The entire cover comes away
from the board.
3. Peel off the label on the cover of the panel marked "Remove to
install I/O board".
The label is located on the same side of the panel as the DIP
switch.
12 VDC
Standby: 30 mA
Maximum: 190 mA
4
4
4
5 A with N.O., N.C., and COM contacts
Form-C relays
5 VDC maximum voltage
Selectable as:
•
Normally Open
•
Normally Closed
•
Supervised with one resistor (three
states, normally open or normally
closed)
•
Supervised with two resistors (four
states, Normally Open or Normally
Closed))

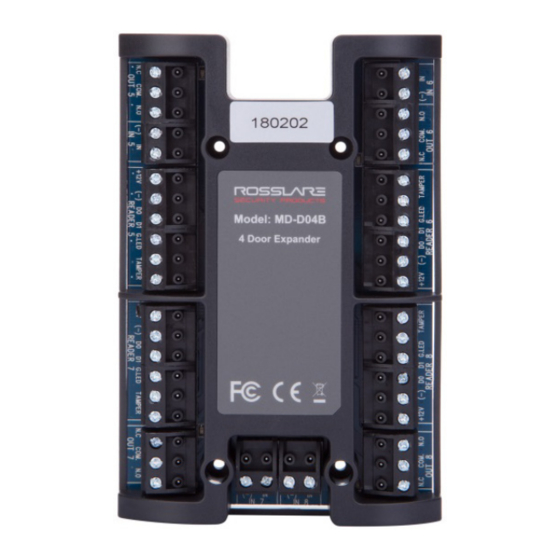

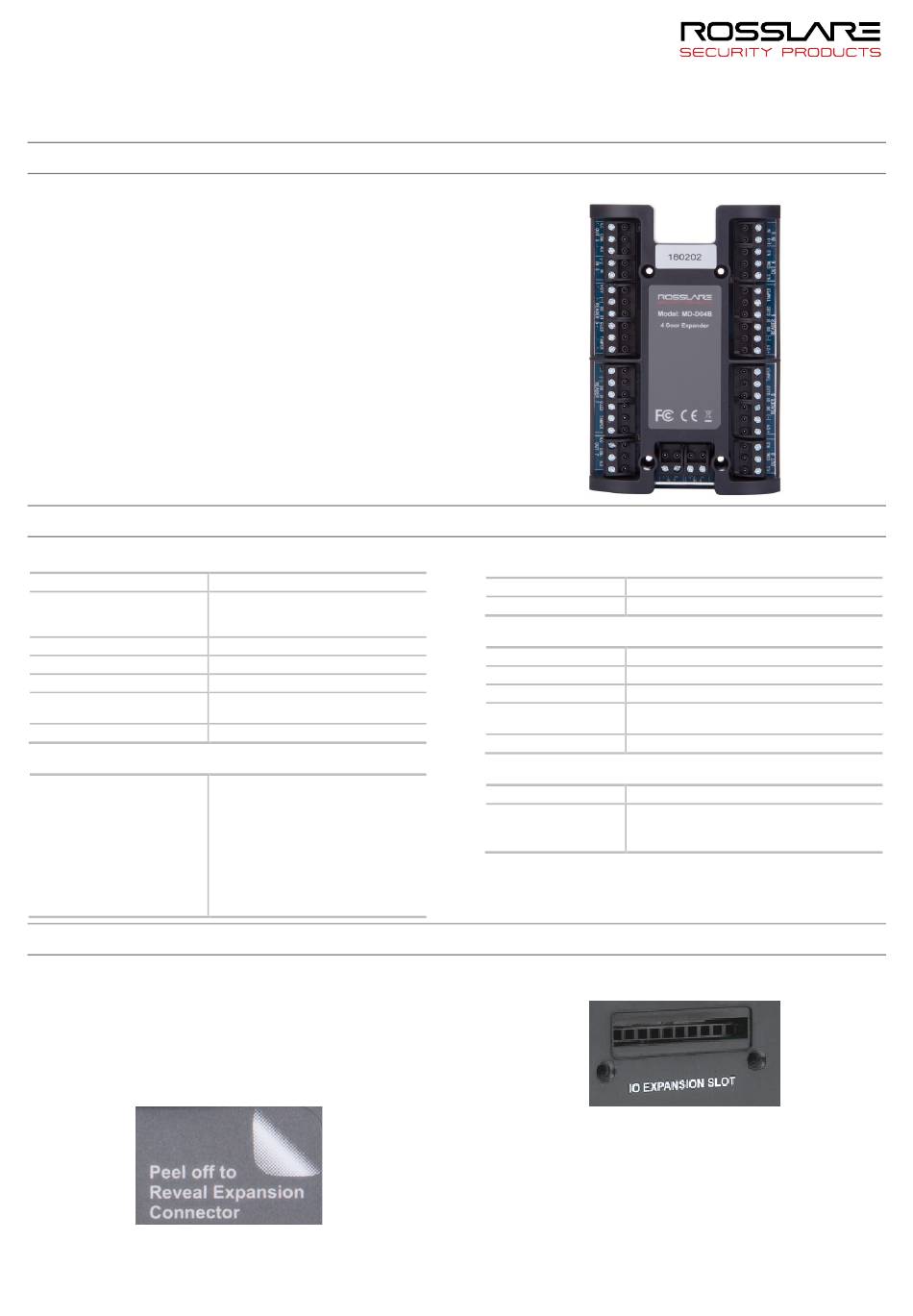

Figure 1: MD-D04B Access Controller Expansion Board
2.3 P hysical Characteristics
7 B
Dimensions (L x W x D)
Weight:
2.4 R eader Characteristics
8 B
Reader Output Voltage: 12 VDC
Max. Reader Current:
LED Control Output:
Tamper Input:
Supported Formats:
2.5 L ED Indicators
9 B
Power LED:
Output LEDs:
4. Insert the 10-pin male connector of the MD-D02B into the gap in
the panel cover labeled "IO EXPANSION SLOT".
The text on the MD-D02B must face the same way as the text on
the panel cover.
5. Tighten the screws securing the cover to the access control panel,
and the four Philips screws on the MD-D04B circuit board.
6. Replace the cover on the expansion board, using it as a guide to
ease the MD-D04B into the panel's 10-pin female connector.
1
116 x 76 x 22 mm (4.6 x 3.0 x 0.9 in.)
75 g (2.7 oz)
245 mA
Open collector, Active low
5 VDC maximum voltage, optical anti-tamper
sensor
Various (refer to the AxTraxNG software manual)
Active when connected to a power source
Four LEDs
Each output LED is active when an output relay is
energized and N.O. to COM contacts are shorted.
