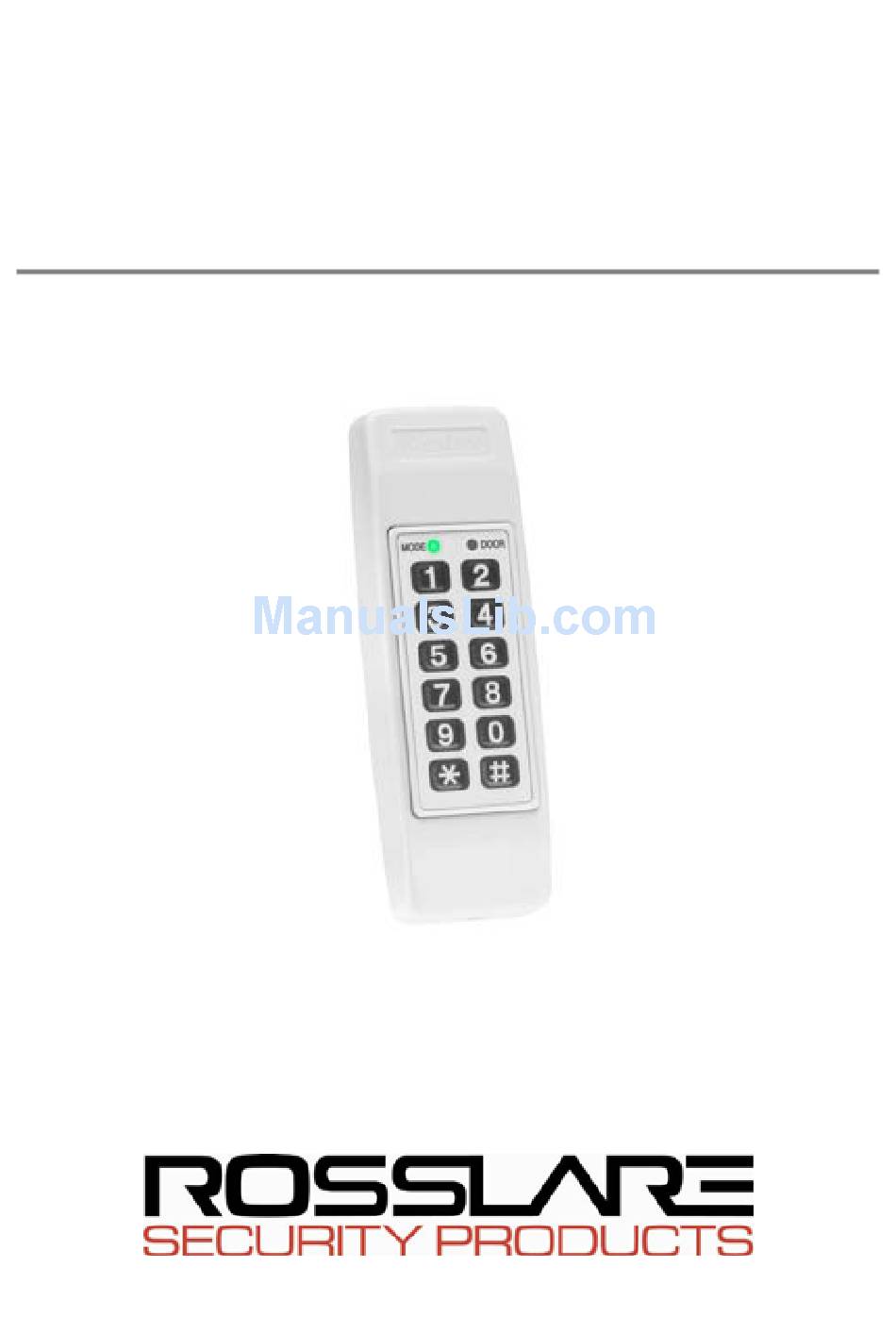

- Page 1 AC-C31V Stand-Alone Access Control Unit Installation Manual October 2009...
-
Page 3: Table Of Contents
Changing from Bypass Mode to Normal Mode . 13 The Request to Exit (REX) Button ....... 14 Case Tamper ............15 The BL-D40 External Sounder ......16 Programming the AC-C31V....... 17 12.1 Entering Programming Mode ......18 12.2 Exiting Programming Mode ....... 18 12.3... - Page 4 Return to Factory Default Settings ....27 12.12 Replacing a Lost Programming Code ..... 28 12.13 Replacing a Lost Normal/Secure Code ... 28 Appendix A. Limited Warranty ......... 29 Appendix B. Technical Support ......... 31 AC-C31V Installation Manual Page ii...
-
Page 5: Introduction
Introduction Introduction The AC-C31V is keypad access control unit. The unit accepts up to 500 users and provides entry via the use of PIN codes. Equipment The following equipment is provided in every AC-C31V package: • AC-C31V Access Control Unit •... -
Page 6: Technical Specifications
32°F to 145°F (0°C to 63°C) Operating Humidity: 0 to 95% (Non-Condensing) Mechanical Characteristics Dimensions 5.12 x 1.65 x 0.7 Inch Length x Width x Depth 130 x 42 x 18 mm Weight 2.47 oz. (70g) AC-C31V Installation Manual Page 4... -
Page 7: Key Features
Key Features Key Features The following are some of the AC-C31V key features: • Built-in Keypad for PIN code entry • Internal Buzzer • Comes with security screw and security screw tool • Two Status / Programming Interface LEDs • Three User Levels (Normal User, Secure User, Master User) •... -
Page 8: Installation
Installation Installation Mounting The AC-C31V is designed to be easily mounted onto a US Gang Box. 1. Before starting, select the location to mount the AC-C31V controller. This location should be at shoulder height and on the same side as the door handle. - Page 9 Installation Figure 1: AC-C31V Controller - Labeled Diagram Page 7 AC-C31V Installation Manual...
-
Page 10: Wiring
Installation Figure 2: AC-C31V Controller – Mounting Holes and Terminal Blocks Wiring Two of the typical wiring diagrams are illustrated below (see Figure 3 and Figure 4 in Wiring Diagrams). For other wiring diagram examples, refer to the support section of the Rosslare Web Site: Http://www.rosslare.com.hk/support. -
Page 11: Wiring Diagrams
Wiring Diagrams Wiring Diagrams Figure 3: Wiring the Lock Strike Relay and REX Figure 4: Wiring the BL-D40 External Sounder Page 9 AC-C31V Installation Manual... -
Page 12: Normal, Secure, And Master Users
Secure User - A Secure User must have a Primary and Secondary Code programmed; the two codes must not be the same. The Secure User can gain access when the AC-C31V is in any of its three modes of operation. In Normal mode, the Secure User must use a Primary Code to gain entry. -
Page 13: Modes Of Operation
Modes of Operation Modes of Operation The AC-C31V has three modes of operation: • Normal mode - Mode LED is green. Normal Mode is the default mode. In Normal Mode, the door is locked until a Primary Code is presented to the controller. Special codes such as “Open Code 1”... -
Page 14: Changing The Modes Of Operation
The Mode LED flashes green. 3. Press the # key to confirm the mode change. The Mode LED turns green. Changing from Normal to Bypass Mode For the Normal Mode, the Mode LED is green. See Changing the Normal/Bypass AC-C31V Installation Manual Page 12... -
Page 15: Changing From Bypass Mode To Normal Mode
See Changing the Normal/Bypass Code and Door Chime Settings to create/modify the Normal/Bypass Code. 1. Enter the 4-digit Normal/Bypass Code. Mode LED flashes green. 2. Press the # key to confirm the mode change. Mode LED turns green. Page 13 AC-C31V Installation Manual... -
Page 16: The Request To Exit (Rex) Button
REX Button is released and the "Lock Strike Release Time" has passed. In this case, the "Lock Strike Relay" only begins its countdown once the REX Button has been released. AC-C31V Installation Manual Page 14... -
Page 17: Case Tamper
Supplies receives a Tamper Event Signal, it activates a Siren, and if available, a Strobe Light. The Siren time can be easily programmed in the AC-C31V from zero to nine minutes. You can clear a tamper event by entering a valid User or Open Code to open the Lock Strike Output in the current Mode of Operation. -
Page 18: The Bl-D40 External Sounder
The BL-D40 External Sounder is compatible with the AC-X31, AC- X32, AC-X41, and AC-X42 series Standalone Controllers. (For a more up-to-date list of compatible products, check the Rosslare Web Site at www.rosslaresecurity.com) It is designed to operate indoors and is installed within the premises to be secured. The Sounder can be powered by a 12V DC power supply. -
Page 19: Programming The Ac-C31V
During the AC-C31V manufacturing process, certain codes and settings are preprogrammed. These settings are called the "Default Factory Settings". The table below shows the names of all the AC-C31V Menus. It also shows all the AC-C31V default factory codes and settings. Table 1: Programming Menu... -
Page 20: Entering Programming Mode
LED turns green and the AC-C31V goes into Programming Mode. Note: The AC-C31V must be in Normal Mode in order to enter the Programming Mode. The factory default Programming Code is 1234. If a Programming Code is not entered within five seconds, the AC-C31V returns to Normal Mode. -
Page 21: Changing Open Code 1
Programming the AC-C31V 12.3 Changing Open Code 1 Open Code 1 is mainly used as a method to quickly test the Lock Strike Relay during installation. The Default Factory Setting for Open Code 1 is 2580. When the first user is added to the controller, the default Open Code is automatically deleted, and is ready for a new Open Code 1 to be reentered. -
Page 22: Changing The Programming Code
Programming the AC-C31V 2. Press "2" to enter Menu 2. The Mode LED turns orange. 3. Enter the new 4-digit code that you want to set as Open Code 2. The system returns to Normal Mode: Three beeps are emitted. -
Page 23: Changing The Normal/Secure Code
Programming the AC-C31V 12.6 Changing the Normal/Secure Code 1. Enter Programming Mode. 2. Press "4" to enter Menu 4. The Mode LED flashes red. 3. Enter the new 4-digit code that you want to set as Normal/Secure Code. The system returns to Normal Mode: Three beeps are emitted. -
Page 24: Setting Fail Safe/Secure Operation, Tamper Siren Time, And Lock Strike Release Time
Programming the AC-C31V Enable the Bypass Mode and enable the Door Chime: Enter any 4-digit code not ending with 0. The system returns to Normal Mode: Three beeps are emitted. The Door LED turns off. The Mode LED turns green. -
Page 25: Enrolling Primary And Secondary Codes
Programming the AC-C31V 12.9 Enrolling Primary and Secondary Codes 12.9.1. Primary Codes • Primary Codes can only be enrolled to an empty User Slot, meaning a slot where there is no existing Primary Code. • Primary Codes must be unique, meaning that one user's Primary Code cannot be the same as another user's Primary Code. - Page 26 Programming the AC-C31V 12.9.4. Enrolling Primary and Secondary Codes Using the Standard Method 1. Enter Programming Mode. 2. Press "7" to enter Menu 7. The Door LED turns orange. 3. Enter a 3-digit User Slot number between 001 and 500 to indicate the user to whom you want to enroll a Primary or Secondary code.
-
Page 27: Deleting Primary And Secondary Codes
If the Secondary Code is valid, the controller beeps three times and returns to Normal Mode. If the Secondary Code is invalid, the controller emits a long beep, and then the AC-C31V continues to wait for you to enter a valid Secondary Code. 12.10 Deleting Primary and Secondary Codes There are two methods to delete Primary and Secondary codes: the Standard Method and the Code Search Method. - Page 28 4. Enter your Programming Code to confirm the deletion. If the Programming Code is valid, three beeps are emitted, and the AC-C31V returns to Normal Mode. If the Programming Code is invalid, a long beep is emitted, and the AC-C31V returns to Normal Mode.
-
Page 29: Return To Factory Default Settings
The Mode LED flashes red. Enter programming code to confirm. If the Programming Code is valid, three beeps are emitted, and the AC-C31V returns to Normal Mode. If the Programming Code is invalid, a long beep is emitted, and the AC-C31V returns to Normal Mode. -
Page 30: Replacing A Lost Programming Code
12.12 Replacing a Lost Programming Code Note: In order to be able to replace a lost programming code, the AC-C31V must be in Normal Mode. Before proceeding, verify that the Mode LED is green. 1. Remove power from the AC-C31V. -
Page 31: Appendix A. Limited Warranty
Months). Warranty Remedy Coverage In the event of a breach of warranty, ROSSLARE will credit Customer with the price of the Product paid by Customer, provided that the warranty claim is delivered to ROSSLARE by the Customer during the warranty period in accordance with the terms of this warranty. - Page 32 not...
-
Page 33: Appendix B. Technical Support
Technical Support Appendix B. Technical Support Asia Pacific, Middle East Rosslare Security Products Headquarters 905-912 Wing Fat Industrial Bldg, 12 Wang Tai Road, Kowloon Bay Hong Kong Tel: +852 2795-5630 Fax: +852 2795-1508 E-mail: support.apac@rosslaresecurity.com United States and Canada 1600 Hart Court, Suite 103... - Page 35 www.rosslaresecurity.com...
