3. Select Aux Out Menu option

4. Select the External Speaker Option and press the Save soft key.

Speaker Installation

Install the Cambridge SoundWorks speaker set for optimal placement in the conference

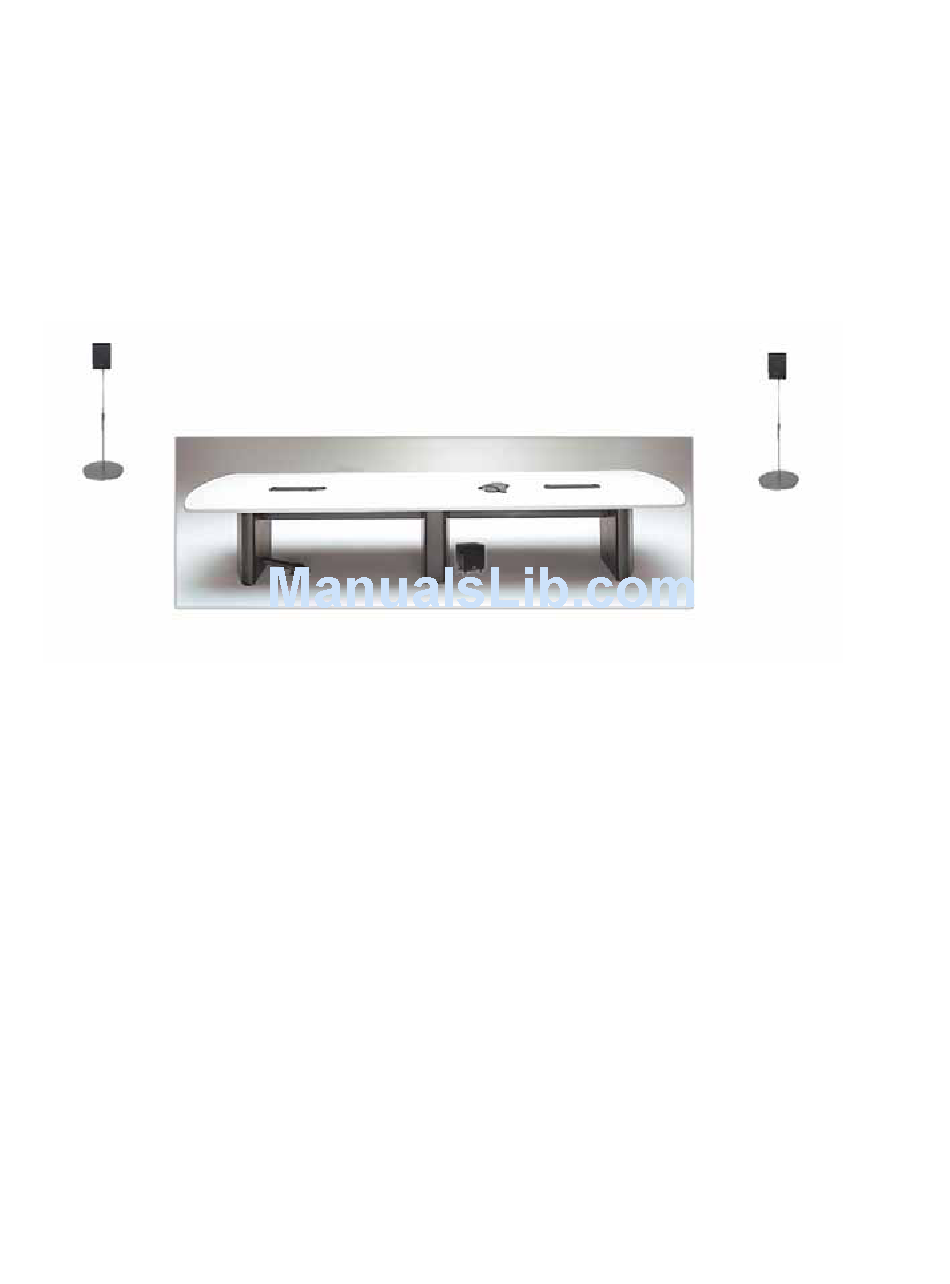

room. For example, as shown in the diagram below, the speakers can be set up on

stands or mounted to the wall least 6 feet away from the conference phone. The

powered subwoofer is typically placed under the conference room table.

In certain cases it may be required to extend the length of the supplied connecting wire

between the satellite speakers and the subwoofer using regular speaker wire (AWG #18

gauge).

The 2 satellite speakers may be mounted in one of 4 ways:

• Tabletop mount

• Wall mount (with supplied hardware)

• Wall mount (with swivel brackets available from Cambridge SoundWorks)

• Floor stand mount (floor stands available from Cambridge SoundWorks)

Please consult the speaker documentation for details.

Note: This use of 2 satellite speakers does not imply stereo audio but rather a

distribution of the telephone audio to two additional locations in the conference room.

The SoundStation VTX 1000 connects to the speaker set using a set of adapters

included in the Speaker Integration Kit (Polycom part number 2215-17409-001). The

same adapters are also available as regular off-the-shelf components. The External

Speaker Integration Kit simply offers all the necessary parts in a convenient bundle.
