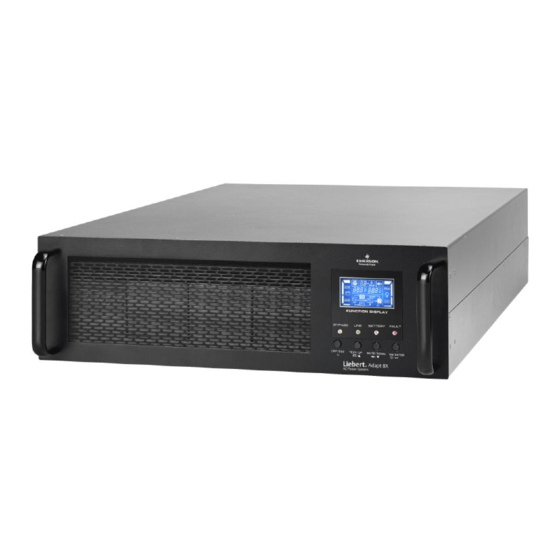

Single Phase Online UPS
Liebert Adapt BX
User Manual – 6k – 10kVA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Adapt BX 6K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Liebert Adapt BX 6K

Summary of Contents for Liebert Adapt BX 6K

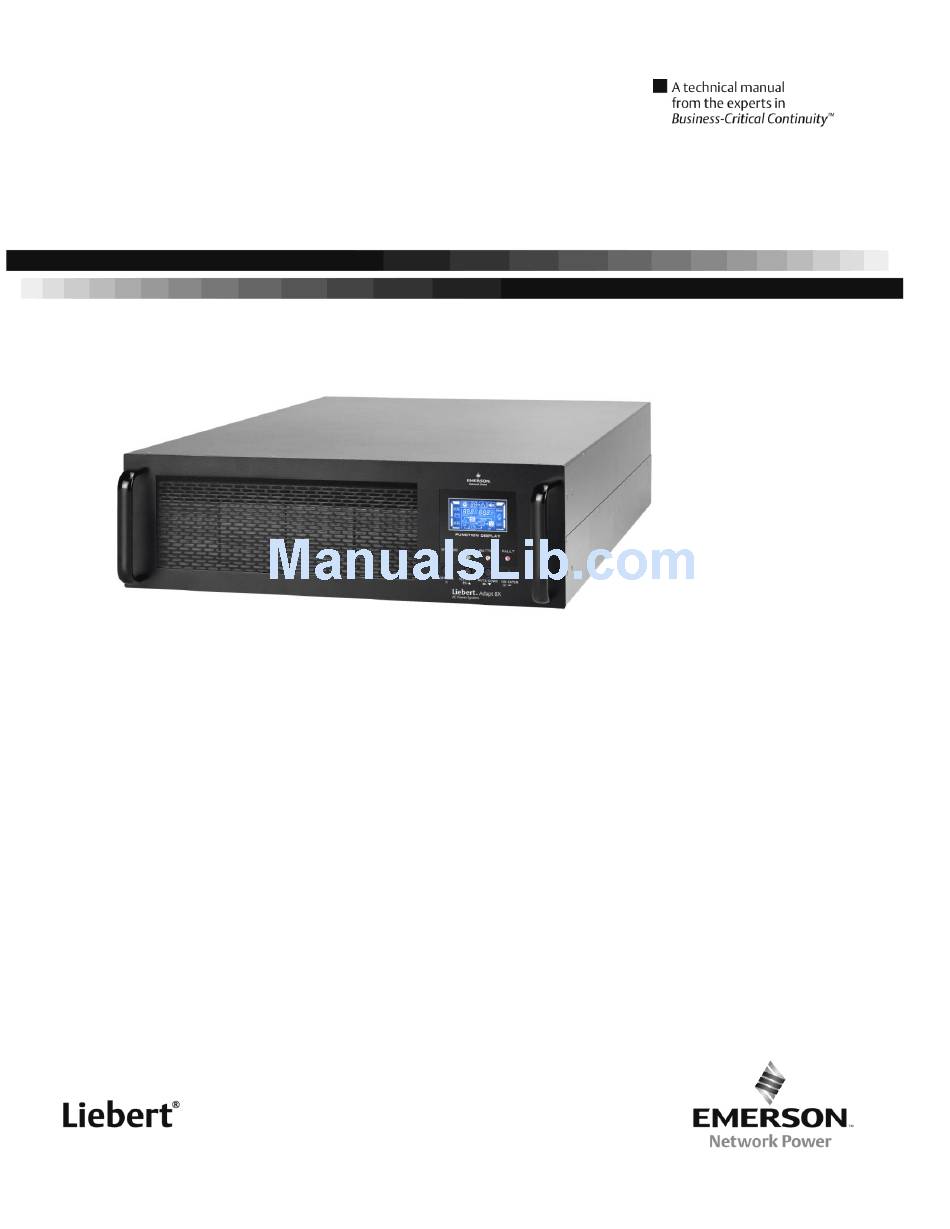

  • Page 1 Single Phase Online UPS Liebert Adapt BX User Manual – 6k – 10kVA...

  • Page 2: Table Of Contents

    Table of Contents 1. Safety and EMC instructions ..............1 1-1. Transportation and Storage ..............1 1-2. Preparation ....................1 1-3. Installation ....................1 1-4. Operation ....................1 1-5. Standards ....................2 2. Installation and Operation ................3 2-1. Unpacking and Inspection ............... 3 2-2.

  • Page 3: Safety And Emc Instructions

    1. Safety and EMC instructions Please read carefully the following user manual and the safety instructions before installing the unit or using the unit! 1-1. Transportation and Storage  Please transport the UPS system only in the original package to protect against shock and impact. ...

  • Page 4: Standards

    1-5. Standards * Safety IEC/EN 62040-1-1 * EMI Conducted Emission.......:IEC/EN 62040-2 Category C3 Radiated Emission........:IEC/EN 62040-2 Category C3 *EMS ESD............:IEC/EN 61000-4-2 Level 4 RS............:IEC/EN 61000-4-3 Level 3 EFT............:IEC/EN 61000-4-4 Level 4 SURGE........... :IEC/EN 61000-4-5 Level 4 CS............:IEC/EN 61000-4-6 Level 3 Power-frequency Magnetic field....

  • Page 5: Installation And Operation

    There are two different types of online UPS: standard and long-run models. Please refer to the following model table. Model Type Model Type Adapt BX 6K Adapt BX 6KL Standard model Long-run model Adapt BX 10K Adapt BX 10KL 2-1. Unpacking and Inspection Unpack the package and check the package contents.

  • Page 6: Single Ups Installation

    4. Share current port (only available for parallel model) 5. Parallel port (only available for parallel model) 6. Intelligent slot 7. Power stage fan External maintenance bypass switch port 9. Input circuit breaker 10. Input/Output terminal(Refer to Diagram 2 for the details) 11.
  • Page 7 Input Neutral Output Line Input Line Output Neutral Ground Terminal Block wiring diagram NOTE 1: Make sure that the wires are connected tightly with the terminals. NOTE 2: There are two kinds of outputs for 6K(L)/10K(L): output terminal/outlets and programmable terminal. Please connect non-critical devices to the programmable terminal and critical devices to the output terminal/outlets.

  • Page 8: Ups Installation For Parallel System

    battery polarity is connected. Wrong connection may cause permanent damage of the UPS. ● Make sure the protective earth ground wiring is correct. The wire current spec, color, position, connection and conductance reliability should be checked carefully. ● Make sure the utility input & output wiring is correct. The wire current spec, color, position, connection and conductance reliability should be checked carefully.

  • Page 9: Operations

    3. Operations 3-1. Button Operation Button Function  Turn on the UPS: Press and hold the button more than 0.5s to turn on the UPS. ON/Enter Button  Enter Key: Press this button to confirm the selection in setting menu. ...
  • Page 10 LCD Panel: Display Function Backup time information Indicates the backup time in pie chart. Indicates the backup time in numbers. H: hours, M: minutes, S: seconds Fault information Indicates that the warning and fault occurs. Indicates the fault codes, and the codes are listed in details in section 3-9. Mute operation Indicates that the UPS alarm is disabled.

  • Page 11: Audible Alarm

    Indicates the output is working. Battery information Indicates the Battery capacity by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates the battery is not connected. Indicates low battery level and low battery voltage. Input & Battery voltage information Indicates the input voltage or frequency or battery voltage. Vac: Input voltage, Vdc: battery voltage, Hz: input frequency 3-3.

  • Page 12: Single Ups Operation

    3-4. Single UPS Operation 1. Turn on the UPS with utility power supply (in AC mode) 1) After power supply is connected correctly, set the breaker of the battery pack at “ON” position (the step only available for long-run model). Then set the input breaker at “ON” position. At this time the fan is running and the UPS supplies power to the loads via the bypass.
  • Page 13 3) Make sure the battery numbers setting on the control board (Please refer to the section 3-4-12 for detailed setting) is consistent to real connection. 5. Battery mode operation 1) When the UPS is in Battery mode, the buzzer will beep according to different battery capacity. If the battery capacity is more than 25%, the buzzer will beep once every 4 seconds;...

  • Page 14: Parallel Operation

    buzzer is muted, the buzzer will beep again. 2) Some warning alarms can’t be muted unless the error is fixed. Please refer to section 3-3 for the details. 10. Operation in warning status 1) When Fault LED flashes and the buzzer beeps once every second, it means that there are some problems for UPS operation.
  • Page 15 Turn on the input breakers of all UPSs in the parallel systems and turn on each UPS in turns. Make sure that AC mode LED or Battery mode LED displays in each UPS. Measure the output voltage of each UPS to check if the voltage difference is less than 2V (typical 1V) with multimeter. If the difference is more than 2V, please check that parallel cable or share current cable are connected well.

  • Page 16: Abbreviation Meaning In Lcd Display

    3-6. Abbreviation Meaning in LCD Display Abbreviation Display content Meaning Enable Disable Auto Battery Normal mode (not CVCF mode) CVCF mode Subtract Not allowed Allow Reserved 3-7. LCD Setting There are three parameters to set up the UPS. Refer to following diagram. Parameter 1: It’s for program alternatives.
  • Page 17 15 programs available list for parameter 1: Battery Code Description Bypass CVCF Battery Test Output voltage Output frequency Voltage range for bypass Frequency range for bypass ECO mode enable/disable Voltage range for ECO mode ECO mode frequency range setting Bypass mode setting Battery backup time setting Programmable output setting Shutdown point for programmable output...
  • Page 18 The input frequency could be from 46Hz to 64Hz. NCF: Setting UPS to normal mode (not CVCF mode). If selected, the output frequency will synchronize with the input frequency within 46~54 Hz at 50Hz or within 56~64 Hz at 60Hz according to setting in parameter 2.
  • Page 19  06: Voltage range for ECO mode Interface Setting Parameter 2: Low voltage point in ECO mode. The setting range is from 5% to 10% of the nominal voltage. Parameter 3: High voltage point in ECO mode. The setting range is from 5% to 10% of the nominal voltage.
  • Page 20  10: Programmable output setting This function is not supported by this model.  11: Shutdown point for programmable output This function is not supported by this model.  12: Hot standby function enable/disable Interface Setting Parameter 2: HS.H Enable or disable Hot standby function. You may choose following two options in Parameter 3: YES: Hot standby function is enabled.

  • Page 21: Operating Mode/Status Description

    3-8. Operating Mode/Status Description Operating mode/status AC mode Description When the input voltage is within acceptable range, UPS will provide pure and stable AC power to output. The UPS will also charge the battery at AC mode. LCD display ECO mode Description When the input voltage is within voltage regulation range and ECO mode is enabled, UPS will bypass voltage to output for energy saving.

  • Page 22: Fault Code

    LCD display When UPS is in AC mode or CVCF mode, press “Test” key for more than Battery Test Description 0.5s. Then the UPS will beep once and start “Battery Test”. The line between I/P and inverter icons will blink to remind users. This operation is used to check the battery status.

  • Page 23: Warning Indicator

    3-10. Warning Indicator Warning Icon (flashing) Alarm Battery low Beeping every second Overload Beeping twice every second Battery unconnected Beeping every second Over charge Beeping every second EPO enable Beeping every second Fan failure/Over temperature Beeping every second Charger failure Beeping every second I/P fuse broken Beeping every second...

  • Page 24: Trouble Shooting

    4. Trouble Shooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy No indication and alarm in the front The AC input power is not Check if input cable firmly display panel even though the mains is connected well.

  • Page 25: Storage And Maintenance

    5. Storage and Maintenance 5-1. Storage Before storing, charge the UPS at least 7 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration -25°C - 40°C Every 3 months...

  • Page 26: Specifications

    6. Specifications MODEL CAPACITY* 6000 VA / 4800 W 10000 VA / 8000 W INPUT Low Line Loss 110 VAC ± 3 % at 50% Load; 176 VAC ± 3 % at 100% Load Voltage Low Line Comeback Low Line Loss Voltage + 10V Range High Line Loss 300 VAC ±...
