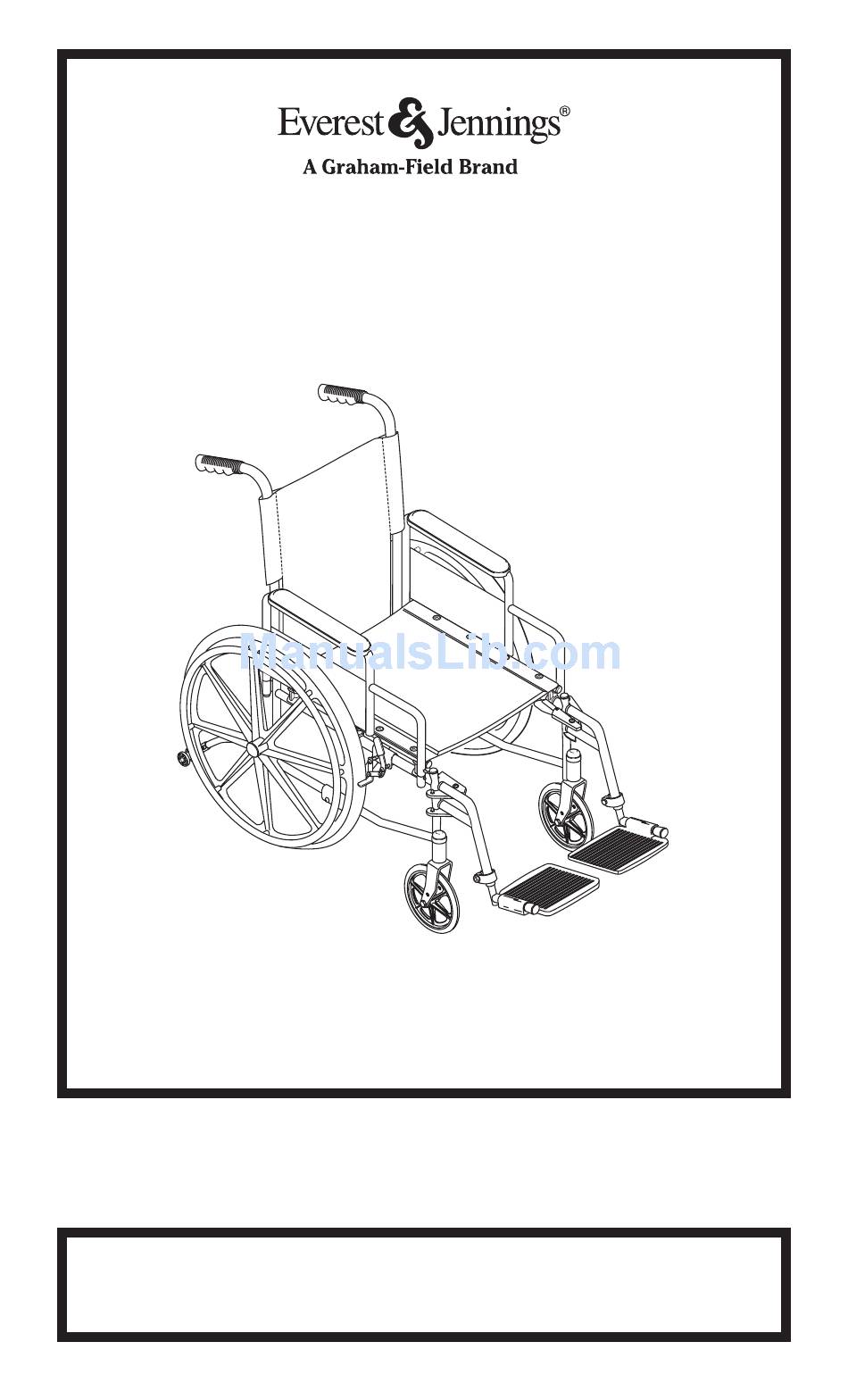

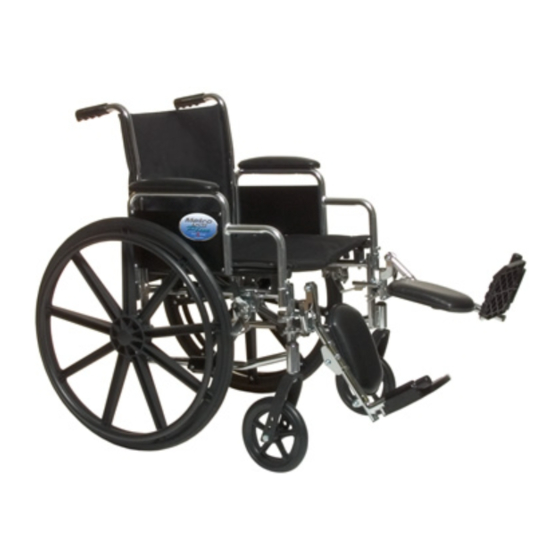

- Page 1 IC3 Plus Metro ® Manual Wheelchair Owner’s Manual GF0600044RevA06 ©GF Health Products, Inc. August 2006 Read this manual before operating your wheelchair...
-
Page 2: Table Of Contents
Contents I IntROduCtIOn ................3 II IMPORtAnt sAFety PReCAutIOns ..........5 III GettInG stARted ..............8 IV HAndlInG tIPs ................9 V AdjustMents .................14 VI tRAnsPORtInG tHe e&j MetRO IC3 Plus ......3 VII MAIntenAnCe ...............5 VIII tROublesHOOtInG ..............31 IX lIMIted wARRAnty ...............33 X IndeX ..................35 GF0600044RevA06, August 006 • Metro IC3 Plus Owner’s Manual... -
Page 3: I Introduction
ReAd tHIs MAnuAl beFORe OPeRAtInG yOuR wHeelCHAIR I IntROduCtIOn Important safety, operating, and maintenance instructions that war- rant your attention are included in this owner's manual. Read the entire manual carefully before operating your new wheelchair, and refer to it as often as necessary to help maintain good performance standards. - Page 4 The Metro IC3 Plus is intended for indoor and/or outdoor use. The person performing adjustments on the Metro IC3 Plus has the responsibility of making certain that the user can safely operate the wheelchair with the adjustments selected.
-
Page 5: Important Safety Precautions
Protect yourself and your wheelchair by having your Metro IC3 Plus serviced regularly. Whenever any part of your Metro IC3 Plus is not functioning properly, contact your Graham-Field Health Products dealer immediately, as a hazardous situation could result, causing personal injury or damage to your wheelchair. - Page 6 WARNING: Do not attempt inclines without anti-tippers installed. Do not attempt any incline or decline greater than six degrees (10% grade, or one foot of rise or fall per ten feet of ramp length). WARNING: This wheelchair does not offer seating or occu- pant restraint equivalent to the seat provided in a motor vehicle! To increase your safety while traveling in a motor vehicle, always transfer to...
- Page 7 WARNING: Do not lean over the top of the wheelchair back. This could cause the wheelchair to tip over. WARNING: To reduce the risk of tipping before leaning or reaching forward, sit back in the seat and rotate casters fully toward front of wheelchair. WARNING: Unauthorized modification or the use of non- Everest &...
-
Page 8: Getting Started
III GettInG stARted Please familiarize yourself with main components, identified in Metro IC3 Plus illustration below. Designs and specifications are subject to change without notice. back upholstery push handle/ back post armpad rear wheel seat upholstery footrest anti-tipper wheel lock cross brace... -
Page 9: Handling Tips
The Everest & Jennings® Metro IC3 Plus has been designed and en- gineered to perform as a stable and well balanced unit when used for its intended purpose. However, it is possible to tip the Metro IC3 Plus over if it is used improperly. We urge you to learn the characteristics of your wheelchair. - Page 10 Make sure that the wheelchair is stabilized, and will not move or slide during the transfer. Take extra precaution to prevent tipping. Use good body mechanics to prevent personal injury. ReACHInG / bendInG WARNING: Always turn the casters frontward to provide sta- bility while reaching.
- Page 11 backward WARNING: Do not engage the wheel locks while reaching or bending backward. Should your weight suddenly shift accidentally, it is better to roll in that direc- tion than to tip over. WARNING: Do not lean over the back upholstery; this could cause the wheelchair to tip.
- Page 12 RAMPs And InClInes WARNING: During descent, the footplates' lowest point should be no closer to the ground than 2-1/2 inches to permit proper clearance. WARNING: Do not attempt inclines without anti-tippers in- stalled. Do not attempt any incline or decline of more than 6 degrees (10% grade, or one foot of rise or fall per ten feet of ramp length).
- Page 13 If you encounter steps and there is no ramp available, avoid the steps by utilizing the disabled designated elevators now required in most locations. WARNING: Never attempt to negotiate steps, stairs or esca- lators in your Metro IC3 Plus. GF0600044RevA06, August 006 • Metro IC3 Plus Owner’s Manual...
-
Page 14: Adjustments
V AdjustMents The Metro IC3 Plus offers several adjustments to make it easier and more comfortable to drive. Part VII, MAINTENANCE, offers preventive maintenance suggestions for keeping your wheelchair in excellent condition; ensure that all components are in excellent condition before adjusting. The following are recommended methods; after a few adjustments, you may develop your own. - Page 15 ARMs All Metro IC3 Plus arms are removable. Remove arm 1. Depress lower right arm arm release pin release pin until it unlocks. 2. Hold arm by cen- ter of armpad. Lift straight up and off. Install arm Hold arm by center of front arm socket armpad.
- Page 16 FROnt RIGGInG FOOtRest—detACHAble, swInGAwAy WARNING: The footplates' lowest point should be no closer to the ground than 2-1/2 inches, to permit proper clearance. WARNING: Do not stand on the footplates; this could cause the wheelchair to tip. Remove footrest 1. To release lock, pull swingaway release lever hinge plate...
- Page 17 Adjust footplate extension length Two 1/2" wrenches 1. Loosen footrest clamp: extension Use a two 1/2" wrenches clamp to loosen nut enough so that footplate exten- footplate sion tube slides inside footrest tube. 2. Reposition footplate extension in desired position. 3. Tighten footrest clamp: footplate extension, adjust length Use a two 1/2"...
- Page 18 eleVAtInG leGRest (OPtIOnAl)—detACHAble, swInGAwAy WARNING: The footplates' lowest point should be no closer to the ground than 2-1/2 inches, to permit proper clearance. WARNING: Do not stand on the footplates; this could cause the wheelchair to tip. Remove elevating legrest 1. To release lock, pull hinge plate swingaway release...
- Page 19 Adjust legrest elevation Note: It is possible to RAISE elevating legrest without unlock- ing legrest release. As a safety feature, however, you must unlock legrest release in order to LOWER elevat- ing legrest. 1. To release elevation lock, pull legrest release lever up toward back of wheel- chair. legrest release lever 2. Swing legrest up to de- sired position. 3. Lock legrest elevation level: Pull lever toward front of wheelchair.
- Page 20 Adjust elevating legrest calf pad position The legrest calf pad has three mounting positions one inch apart on legrest tube. Refer to picture at right. To adjust: 1. Rotate calf pad/ hinge plate as- sembly on legrest legrest tube tube so that legrest calf pad / hinge legrest tube stop plate assembly is in center of...
- Page 21 CROssbRACes tighten crossbraces M13 wrench, M6 hex key Check the crossbraces to ensure that the bolt and nut securing both crossbraces in the center of the wheelchair are secure (crossbraces should be loose enough to fold easily, yet snug enough to take up excess play). Use a M13 wrench and M6 hex key to tighten. GF0600044RevA06, August 006 • Metro IC3 Plus Owner’s Manual...
- Page 22 wHeel lOCks Adjust wheel locks One 3/8" wrench 1. Use a 7/16" wrench right rear wheel to loosen the two wheel lock clamp bolts until right front frame the lock slides on the frame. 2. Place the wheel lock in the locked wheel lock position and slide shown unlocked it into contact with the tire.
-
Page 23: Transporting The E&J Metro Ic3 Plus
The Metro IC3 Plus can easily be transported by folding the wheelchair: 1. Detach front rigging from wheelchair. 2. Remove the seat cushion, if so equipped. - Page 24 ReAsseMbly 1. Push down with even pressure on seat tubes on both sides. WARNING: Do not place your hand between seat tube and side panel. 2. Push again if seat tubes are not positioned directly upon front frame seat struts as shown below. seat strut seat strut right front...
-
Page 25: Maintenance
Periodic inspection, adjustment, and replace- ment of worn parts will provide many years of superb performance. When you believe that a component or part of your Metro IC3 Plus is not functioning properly, contact your Graham-Field Health Products dealer immediately, as a potentially hazardous condition could result. - Page 26 MAINTENANCE SCHEDULE Procedure Perform at least every Week month 3 months 6 months Check tire wear ✔ Check handrims ✔ Check wheel lock engagement ✔ Check anti-tippers (optional) ✔ Wipe off frame with soft cloth ✔ Check handgrips ✔ Check upholstery ✔...
- Page 27 and maintenance of your wheelchair. Regular maintenance is essen- tial for your safety and continued operation of your wheelchair. Check tire wear Examine tires at least once a week for surface wear and cracks and replace them as needed. Replace solid rubber tires when they become loose on the rims or cracks appear.
- Page 28 Check upholstery Check upholstery at least once a month. Inspect for rips, tears and worn spots. Ensure that all upholstery-attaching screws are pres- ent, properly aligned, and well-secured. Use a Phillips screwdriver to tighten upholstery mounting screws. Check attaching screws for sharp edges or stripped screws, and replace if found.
- Page 29 Check backposts / push handles Check backposts at least once a month. Ensure that all mounting hardware is securely fastened and that the backposts are not bent or damaged. Contact your dealer if you observe cracking or peeling paint or plating. Check footrests & elevating legrests Check footrests and legrests at least once a month. Inspect the lock- ing mechanisms to confirm sure fit.
- Page 30 Check wheel bearings Have your Graham-Field Health Products dealer check caster and rear wheel axle bearings at least every six months. GF0600044RevA06, August 006 • Metro IC3 Plus Owner’s Manual...
-
Page 31: Troubleshooting
VIII tROublesHOOtInG Continual use of your Metro IC3 Plus necessitates maintenance, especially if the factory-set adjustments have been altered. The fol- lowing troubleshooting guide lists several common problems that may occur, and offers corrective actions for each. If you are unsure of the solution or unable to diagnose the problem, do not hesitate to ask your Graham-Field Health Products dealer for assistance. - Page 32 Caution: A complete inspection of your wheelchair, in- ▲ cluding maintenance, servicing and safety checks, should be performed by a Graham-Field Health Products dealer at least once a year. WARNING: Unauthorized modification or the use of non- Everest & Jennings® replacement parts could change the structure of the wheelchair, void the warranty, and create a hazardous condition, which could result in serious personal injury. GF0600044RevA06, August 006 • Metro IC3 Plus Owner’s Manual...
-
Page 33: Limited Warranty
July 4, 1975. This warranty is extended only to the original purchaser/consumer or dealer/non-consumer and to no other purchaser or transferee. GF Health Products, Inc. warrants the Metro IC3 Plus against manufacturing defects in materials and workmanship as listed below:... - Page 34 LIMITATIONS AND EXCLUSIONS: The foregoing warranty shall not apply to serial numbered products if the serial number has been re- moved or defaced. Products subjected to negligence, abuse, misuse, improper operation, improper maintenance, improper cleaning, im- proper storage, or damages beyond GF Health Products, Inc.'s control are not covered by this warranty, and that evaluation shall be solely determined by GF Health Products, Inc. This warranty shall not apply to problems arising from normal wear and tear or failure to follow instructions. The warranty shall also not apply to products modified without GF Health Products, Inc.’s express written consent; nor shall it apply if parts not manufactured by GF Health Products, Inc., or if parts not complying with original equipment specifications are added to GF Health Products, Inc. products; or if the product or part is ser- viced by an entity not authorized by GF Health Products, Inc. THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FIT- NESS FOR A PARTICULAR PURPOSE, AND SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN, AND THE REMEDY FOR...
-
Page 35: Index
X IndeX Adjustments 14 Note, significance 4 Anti-tippers, check Arm, install 15 Ramps and Inclines 1 Arm, remove 15 Reaching / bending 10 Arms, check 8 Rear wheel adjustment, check 8 Rear wheels 14 backposts, check 9 balance 9 safety precautions 5 Casters 14 tires, check Caster stems, check 9 tools, for adjustment, list 14 Caution, significance 4 tools, for maintenance, list 6 Cleaning your Metro IC3 Plus 9 transfer activities 9 Crossbraces, tighten 1 transporting the e&j Metro IC3 Curbs and steps 13 Plus 3 troubleshooting 31 elevating legrest, attach 18 elevating legrest, remove 18 upholstery, check 8 elevating legrest—detachable, swinga- way 18 Warning, significance 4,6 elevating legrest calf pad position, warnings 5 adjust 0... - Page 36 Corporate Headquarters: Graham-Field Health Products 2935 Northeast Parkway Atlanta, Georgia 30360 U.S.A. telephone: 800-347-5678, 770-447-1609 fax: 800-726-0601, 678-291-3232 www.grahamfield.com...
