Page 1: User Manual
Paramount ™ Manual Wheelchair User Manual GF0700137RevA07 ©GF Health Products, Inc. September 2007 Read this manual before operating your wheelchair. Save this manual for future reference. -
Page 2: Table Of Contents
Contents 1 IntRODuctIOn ................3 IMPORtAnt SAFety PRecAutIOnS ..........5 3 GettInG StARteD ..............8 4 HAnDlInG tIPS ................9 5 ADjuStMentS .................13 6 tRAnSPORtInG tHe e&j PARAMOunt XD ......1 7 MAIntenAnce ................. 8 tROubleSHOOtInG ..............7 9 lIMIteD wARRAnty ..............9 10 InDeX ..................31 GF0700137RevA07, September 007 • Paramount XD Owner’s Manual... -
Page 3: Introduction
This person must evalu- ate the user's ability, weight, physical condition, the environment in which the Paramount XD will be used, and the terrain over which the wheelchair will travel. Thank you for choosing an Everest & Jennings® product. We at Graham-Field Health Products wish to assure you of our continuing commitment to provide innovation and quality in our products. - Page 4 (295 kg) who require a lightweight, portable wheelchair, fitted to their anatomy, without the need of customization or alteration to the center of gravity. The Paramount XD is intended for indoor and/or outdoor use. The person performing adjustments on the Paramount XD has the responsibility of making certain that the user can safely operate the wheelchair with the adjustments selected.
-
Page 5: Important Safety Precautions
Protect yourself and your wheelchair by having your Paramount XD serviced regularly. Whenever any part of your Paramount XD is not functioning properly, contact your Graham-Field Health Products dealer immediately, as a hazardous situation could result, causing personal injury or damage to your wheelchair. - Page 6 WARNING: Do not attempt inclines without anti-tippers installed. Do not attempt any incline or decline greater than six degrees (10% grade, or one foot of rise or fall per ten feet of ramp length). WARNING: This wheelchair does not offer seating or occu- pant restraint equivalent to the seat provided in a motor vehicle! To increase your safety while traveling in a motor vehicle, always transfer to...
- Page 7 WARNING: To reduce the risk of tipping before leaning or reaching forward, sit back in the seat and rotate casters fully toward front of wheelchair. WARNING: Unauthorized modification or the use of non- Everest & Jennings replacement parts could change the structure of the wheelchair, void the warranty, and create a hazardous condition resulting in serious personal injury.
-
Page 8: Getting Started

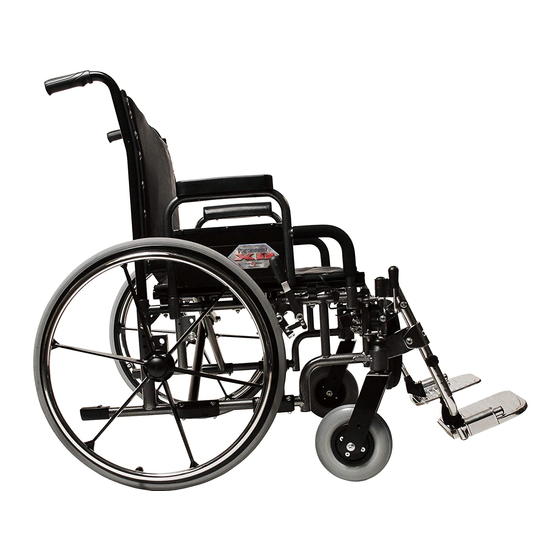

3 GettInG StARteD Please familiarize yourself with main components, identified in Para- mount XD illustration below. back upholstery push handle/ back post armpad seat rear wheel upholstery footrest frame anti-tip cross brace cover caster housing wheel lock caster fork caster wheel GF0700137RevA07, September 007 • Paramount XD Owner’s Manual... -
Page 9: Handling Tips
4 HAnDlInG tIPS The Everest & Jennings Paramount XD has been designed and engineered to perform as a stable and well balanced unit when used for its intended purpose. However, it is possible to tip the Paramount XD over if it is used improperly. We urge you to learn the characteris- tics of your wheelchair. - Page 10 ReAcHInG / benDInG WARNING: Always turn the casters frontward to provide sta- bility while reaching. If in doubt, ask for assis- tance or use a device that will extend your reach without requiring you to shift your weight. Although it is not recommended, you may find it occasionally neces- sary to lean or reach from your wheelchair.
- Page 11 1. Maneuver the wheelchair as close as possible to the object; the rear wheels will limit how close you can get. 2. Rotate both casters fully forward: Go forward, and then back the wheelchair toward the object to swing the casters fully forward. 3.
- Page 12 If you encounter steps and there is no ramp available, avoid the steps by utilizing the disabled designated elevators now required in most locations. WARNING: Never attempt to negotiate steps, stairs or esca- lators in your Paramount XD. GF0700137RevA07, September 007 • Paramount XD Owner’s Manual...
-
Page 13: Adjustments
5 ADjuStMentS The Paramount XD offers several adjustments to make it easier and more comfortable to drive. Section 7, MAINTENANCE, offers preven- tive maintenance suggestions for keeping your wheelchair in excel- lent condition; ensure that all components are in excellent condition before adjusting. - Page 14 ARMS All Paramount XD arms are removable. Remove arm 1. Depress lower arm release until it unlocks. 2. Hold arm by center of armpad. Lift straight up and off. Attach arm release 1. Hold arm by center of armpad. 2. Lower arm straight down...
- Page 15 FROnt RIGGInG FOOtReSt—DetAcHAble, SwInGAwAy WARNING: The footplates' lowest point should be no closer to the ground than 2 inches, to permit proper clearance. WARNING: Do not stand on the footplates; this could cause the wheelchair to tip. Remove footrest swingaway release lever 1. To release lock, pull lower hinge pin swingaway release lever forward, toward...
- Page 16 Adjust footplate extension length 1. Remove adjustment knob; this will free footrest hanger footplate extension tube to slide inside adjustment knob footrest hanger tube. 2. Reposition footplate footplate extension in desired extension position. 3. Reinstall adjustment adjustment footplate holes knob in appropriate Adjust footplate extension length adjustment hole for desired footplate exten- sion length.
- Page 17 elevAtInG leGReSt—DetAcHAble, SwInGAwAy WARNING: The footplates' lowest point should be no closer to the ground than 2 inches, to permit proper clearance. WARNING: Do not stand on the footplates; this could cause the wheelchair to tip. Remove elevating legrest 1. To release lock, pull swingaway release lever swingaway release lever forward, toward front of...
- Page 18 Adjust legrest elevation Note: It is possible to RAISE elevating legrest without unlock- ing legrest release. As a safety feature, however, you must unlock legrest release in order to LOWER elevat- ing legrest. 1. To release elevation lock, pull legrest release lever legrest release lever up toward back of wheel- chair. elevating legrest 2. Swing legrest up to desired position. 3. Lock legrest elevation level: Pull lever toward front of wheelchair.
- Page 19 Adjust elevating legrest panel position The legrest panel has three mounting positions one inch apart on legrest tube. Refer legrest tube stop to picture at right. To adjust: elevating 1. Rotate legrest panel / legrest hinge plate assembly legrest panel / on legrest tube so that hinge plate legrest tube stop is in assembly...
- Page 20 wHeel lOckS Adjust wheel locks One 3/8" wrench 1. Use a 7/16" wrench to loosen the two clamp clamp bolts until the lock clamp slides on the frame. bolt 2. Place the wheel lock in the locked position and slide it into contact with the tire. wheel lock 3.
-
Page 21: Transporting The E&J Paramount Xd
The Paramount XD can easily be transported by folding the wheel- chair: 1. Detach front rigging from wheelchair. 2. Remove the seat cushion, if so equipped. -
Page 22: Maintenance
Periodic inspection, adjustment, and replace- ment of worn parts will provide many years of superb performance. When you believe that a component or part of your Paramount XD is not functioning properly, contact your Graham-Field Health Products dealer immediately, as a potentially hazardous condition could result. - Page 23 MAINTENANCE SCHEDULE Procedure Perform at least every Week month 3 months 6 months Check tire wear ✔ Check handrims ✔ Check wheel lock engagement ✔ Check anti-tippers (optional) ✔ Wipe off frame with soft cloth ✔ Check handgrips ✔ Check upholstery ✔...
- Page 24 dealer with any questions or concerns regarding the safe operation and maintenance of your wheelchair. Regular maintenance is essen- tial for your safety and continued operation of your wheelchair. check tire wear Examine tires at least once a week for surface wear and cracks and replace them as needed.
- Page 25 check upholstery Check upholstery at least once a month. Inspect for rips, tears and worn spots. Ensure that all upholstery-attaching screws are pres- ent, properly aligned, and well-secured. Use a Phillips screwdriver to tighten upholstery mounting screws. Check attaching screws for sharp edges or stripped screws, and replace if found.
- Page 26 check footrests & elevating legrests Check footrests and legrests at least once a month. Inspect the lock- ing mechanisms to confirm sure fit. Check for cracks, burrs, or sharp edges, and replace if found. Ensure that the footrest or legrest will automatically lock securely in place and will not accidentally unlock. cleaning your Paramount XD Wipe off base and seat frame frequently, at least once a week, using a soft cloth.
-
Page 27: Troubleshooting
8 tROubleSHOOtInG Continual use of your Paramount XD necessitates maintenance, especially if the factory-set adjustments have been altered. The fol- lowing troubleshooting guide lists several common problems that may occur, and offers corrective actions for each. If you are unsure of the solution or unable to diagnose the problem, do not hesitate to ask your Graham-Field Health Products dealer for assistance. - Page 28 WARNING: Unauthorized modification or the use of non- Everest & Jennings replacement parts could change the structure of the wheelchair, void the warranty, and create a hazardous condition, which could result in serious personal injury. GF0700137RevA07, September 007 • Paramount XD Owner’s Manual...
-
Page 29: Limited Warranty
July 4, 1975. This warranty is extended only to the original purchaser/consumer or dealer/non-consumer and to no other purchaser or transferee. GF Health Products, Inc. warrants the Paramount XD against manufacturing defects in materials and workmanship as listed below:... - Page 30 LIMITATIONS AND EXCLUSIONS: The foregoing warranty shall not apply to serial numbered products if the serial number has been re- moved or defaced. Products subjected to negligence, abuse, misuse, improper operation, improper maintenance, improper cleaning, im- proper storage, or damages beyond GF Health Products, Inc.'s control are not covered by this warranty, and that evaluation shall be solely determined by GF Health Products, Inc. This warranty shall not apply to problems arising from normal wear and tear or failure to follow instructions. The warranty shall also not apply to products modified without GF Health Products, Inc.’s express written consent; nor shall it apply if parts not manufactured by GF Health Products, Inc., or if parts not complying with original equipment specifications are added to GF Health Products, Inc. products; or if the product or part is ser- viced by an entity not authorized by GF Health Products, Inc. THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FIT- NESS FOR A PARTICULAR PURPOSE, AND SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN, AND THE REMEDY FOR...
-
Page 31: Index
10 Index Adjustments 13 Note, significance 4 Anti-tippers, check 4 Arm, attach 14 Paramount XD, illustration 8 Arm, remove 14 Arms, check 5 Ramps and Inclines 11 Reaching / bending 10 backposts, check 5 Rear wheel adjustment, check 5 balance 9 Rear wheels 13 casters 13 Safety precautions 5 caster stems, check 6 Caution, significance 4 tires, check 4 cleaning your Paramount XD 6 tools, for adjustment, list 13 crossbraces, tighten 19 tools, for maintenance, list 3 curbs and steps 1 transfer activities 9 transporting the e&j Paramount XD 1 elevating legrest, attach 17 troubleshooting 7 elevating legrest, remove 17 elevating legrest—detachable, upholstery, check 5 swingaway 17 elevating legrest elevation, adjust 18 warnings 5 elevating legrest panel position, WARNING statement, significance 4 adjust 19 warranty, limited 9... - Page 32 Corporate Headquarters: GF Health Products 2935 Northeast Parkway Atlanta, Georgia 30360 U.S.A. telephone: 800-347-5678, 770-447-1609 fax: 800-726-0601, 678-291-3232 www.grahamfield.com Everest & Jennings, E&J, GF and Graham-Field are registered trademarks, and Paramount is a trademark, of GF Health Products, Inc.
