- Page 1 Recliner 22" x 19" Manual Wheelchair User Manual 3K02-INS-LAB-RevD19 Read this manual before operating your wheelchair. Save this manual for future use. The most current version of this manual can be found online at www.grahamfield.com.
-
Page 2: Table Of Contents
REMOVING THE HEADREST (SEE PICTURES BELOW) ..............24 FOLDING THE RECLINER ........................25 TRANSPORTING THE RECLINER ....................... 26 MAINTENANCE ............................27 TROUBLESHOOTING ..........................31 10 CE CERTIFICATION ............................ 32 11 LIMITED WARRANTY..........................33 12 INDEX ................................35 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... -
Page 3: Introduction
The Advantage Recliner is intended for indoor and / or outdoor use. The Advantage Recliner comes with a higher back and removable full support headrest which includes an additional neck support that adjusts easily to fit every need. -
Page 4: Important Safety Precautions
IS CONCERNED. Periodic inspection, adjustment, and replacement of worn parts will provide many years of superb performance. WARNINGS The Advantage Recliner 22" x 19"maximum weight capacity is 450 lb (204 kg), EVENLY DISTRIBUTED. WARNING: Do not operate this wheelchair on streets or roadways. - Page 5 WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov. WARNING: GF Health Products, Inc. specifically disclaims responsibility for any personal injury or property damage which may occur during any use which does not comply with federal, state, or local laws or ordinances. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual...
-
Page 6: Getting Started

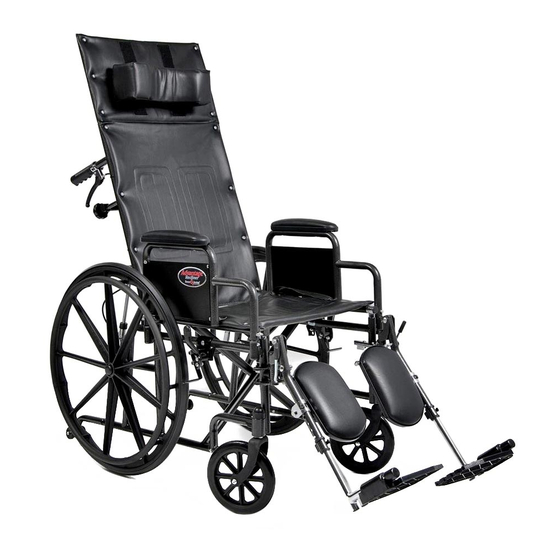

3 GETTING STARTED Familiarize yourself with main components, identified in Advantage Recliner illustration below. removable headrest back upholstery handgrip armpad trigger release spreader bar seat upholstery backpost elevating mech lock legrest leg pad handrim anti-tipper rear wheel footplate frame caster socket... -
Page 7: Unfolding The Recliner (See Pictures Below)
2. Lift right end of spreader bar, position spreader bar slot over right spreader bar attachment rod, and push down gently to trap right spreader bar slot on right backpost spreader bar attachment rod as shown at above right. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... -
Page 8: Installing The Removable Headrest (See Pictures Below)
INSTALLING THE REMOVABLE HEADREST (SEE PICTURES BELOW) Slide the Removable Headrest tubes down into the Backpost tubes to the desired height, as shown above. WARNING: Ensure Removable Headrest is securely installed, as described, before use. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... -
Page 9: Disassembling And Folding The Recliner
3. Allow spreader bar to rotate and drop to the left, as shown at above right. Info: Retain all components for future use. REMOVING THE HEADREST (SEE PICTURES BELOW) Slide the Removable Headrest tubes upward from the Backpost tubes as shown above. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... -
Page 10: Folding The Recliner
4. Use backposts to completely fold the back upholstery and close the Recliner as shown above. Info: If you are planning to transport the Recliner, see later section, Transporting the Advantage Recliner. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... -
Page 11: General Operation Guidelines
4 GENERAL OPERATION GUIDELINES OPERATING THE WHEEL LOCKS Two wheel locks are located on the Advantage Recliner; one on each of the fixed rear wheels. To engage, push the lever forward. Once over center, the lever will lock into place. To disengage, pull back on the lever. - Page 12 1. Pull the trigger releases located below the push handles on both sides simultaneously and raise the back upright or to desired incremental position. 2. Release trigger releases to lock back into place. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual...
-
Page 13: Handling Tips
However, it is possible to tip the Advantage Recliner over if it is used improperly or if you move beyond the center of gravity. You may want to consider the use of a positioning belt, available from your distributor or www.grahamfield.com, to maintain proper weight distribution. -
Page 14: Reaching / Bending
3. Reach only as far as your arm will extend without changing your sitting position. If in doubt, reposition the wheelchair or ask for assistance. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... -
Page 15: Ramps And Inclines
Descent should be made slowly and safely by grasping the handrims; however, use care, as friction heat will be generated. We recommend the use of gloves to reduce the effects of friction heat, but going slower is a better alternative. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... -
Page 16: Curbs
DO NOT let the front casters down until the wheelchair is back far enough to clear the curb. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... -
Page 17: Stairs And Escalators
STAIRS AND ESCALATORS WARNING: Never attempt to negotiate stairs or escalators in your Advantage Recliner. Stairs and escalators are dangerous obstacles. If you encounter steps and there is no ramp available, avoid the steps by utilizing the disabled designated elevators now required in most locations. -
Page 18: Adjustments
6 ADJUSTMENTS The Advantage Recliner offers several adjustments to make it easier and more comfortable to drive. Section 6, MAINTENANCE, offers preventive maintenance suggestions for keeping your wheelchair in excellent condition; ensure that all components are in excellent condition before adjusting. -
Page 19: Arms
Ensure that release pin is release pin locked in place. front arm socket WARNING: Ensure arm release is locked in place before occupying or operating wheelchair. remove arm 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... -
Page 20: Front Rigging
3. Ensure legrest is locked in place and swingaway release lever is locked in a rearward position, toward back of wheelchair. WARNING: Ensure legrests are locked in place before occupying or operating wheelchair. remove elevating legrest 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... - Page 21 2. To return panel to position, hold the panel and rotate downward. The panel will stop at the proper position. adjust legrest WARNING: Ensure legrest panels are locked in place before occupying or operating wheelchair. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual...
- Page 22 5. Ensure both footplate extensions are securely fastened adjustment holes and that minimum ground clearance is 2 inches. latch WARNING: Ensure that footplates are securely footplate fastened before occupying or operating wheelchair. elevating legrest footplate extension, adjust length 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual...
-
Page 23: Crossbraces
5. Repeat steps 1-4 for other wheel lock. Tighten the adjustment bolts securely to eliminate wheel lock movement on frame. WARNING: Ensure that wheel locks are adjusted so that they lock in place appropriately before occupying or operating wheelchair. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... -
Page 24: Transporting The Advantage Recliner
3. Allow spreader bar to rotate and drop to the left, as shown at above right. Info: Retain all components for future use. REMOVING THE HEADREST (SEE PICTURES BELOW) Slide the Removable Headrest tubes upward from the Backpost tubes as shown above. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... -
Page 25: Folding The Recliner
4. Use backposts to completely fold the back upholstery and close the Recliner as shown above. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... -
Page 26: Transporting The Recliner
WARNING: DO NOT put any articles on top of the wheelchair. Close the trunk lid slowly. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... -
Page 27: Maintenance
When you believe that a component or part of your Advantage Recliner is not functioning properly, contact your GF authorized distributor immediately, as a potentially hazardous condition could result. - Page 28 WARNING: Anti-tippers must be installed in the downward position. Check handgrips Check handgrips at least once a week. Ensure that they are not ripped; ensure that they are tight and securely fastened. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual...
- Page 29 Never use abrasive cleansers; they could scratch the finish. Never use steam or high pressure cleaners. Clean upholstery and plastic components at least once a month with a mild soap and water solution. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual...
- Page 30 Evaluate all threads, locking nuts and bearings. Check wheel bearings Have your GF authorized distributor check caster and rear wheel axle bearings at least every six months. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual...
-
Page 31: Troubleshooting
See distributor to correct adjustment. Info: Use only Everest & Jennings replacement parts. An Advantage Recliner parts catalog is available online at www.grahamfield.com to assist in the ordering of parts. CAUTION: A complete inspection of your wheelchair, including maintenance, servicing and safety checks, should be performed by a GF authorized distributor at least every six months. -
Page 32: Ce Certification
10 CE CERTIFICATION Manufactured for GF Health Products, Inc. One Graham-Field Way Atlanta, GA 30340-3140 770.368.4700 www.grahamfield.com EC Authorized Representative CEpartner4U BV, ESDOORNLAAN 13 3951 DB MAARN The Netherlands +31(0)6-516.536.26 www.cepartner4u.com 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... -
Page 33: Limited Warranty
6) Any labor or shipping charges incurred in the replacement part installation or repair; 7) Costs and expenses of regular maintenance and cleaning; and 8) Representations and warranties made by any person or entity other than GF. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... - Page 34 Failure to abide by those regulations may result in a denial of the freight claim. GF will assist you in filing the freight claim. 3) Claims for any short shipment must be made within three (3) days of the invoice date. 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual...
-
Page 35: Index
Weight training 17 Info statement, significance 3 Wheel bearings, check 30 Installing the removable headrest 8 Wheel lock engagement, check 28 Installing the spreader bar 7 Wheel locks, adjust 23 Introduction 3 3K02-INS-LAB-RevD19 • 22" x 19" Advantage Recliner User Manual... - Page 36 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. www.grahamfield.com © 2012, GF Health Products, Inc. All Rights Reserved. Advantage, and Everest & Jennings are trademarks of GF Health Products, Inc., One Graham-Field Way, Atlanta GA 30340-3140 GF Health Products, Inc.
