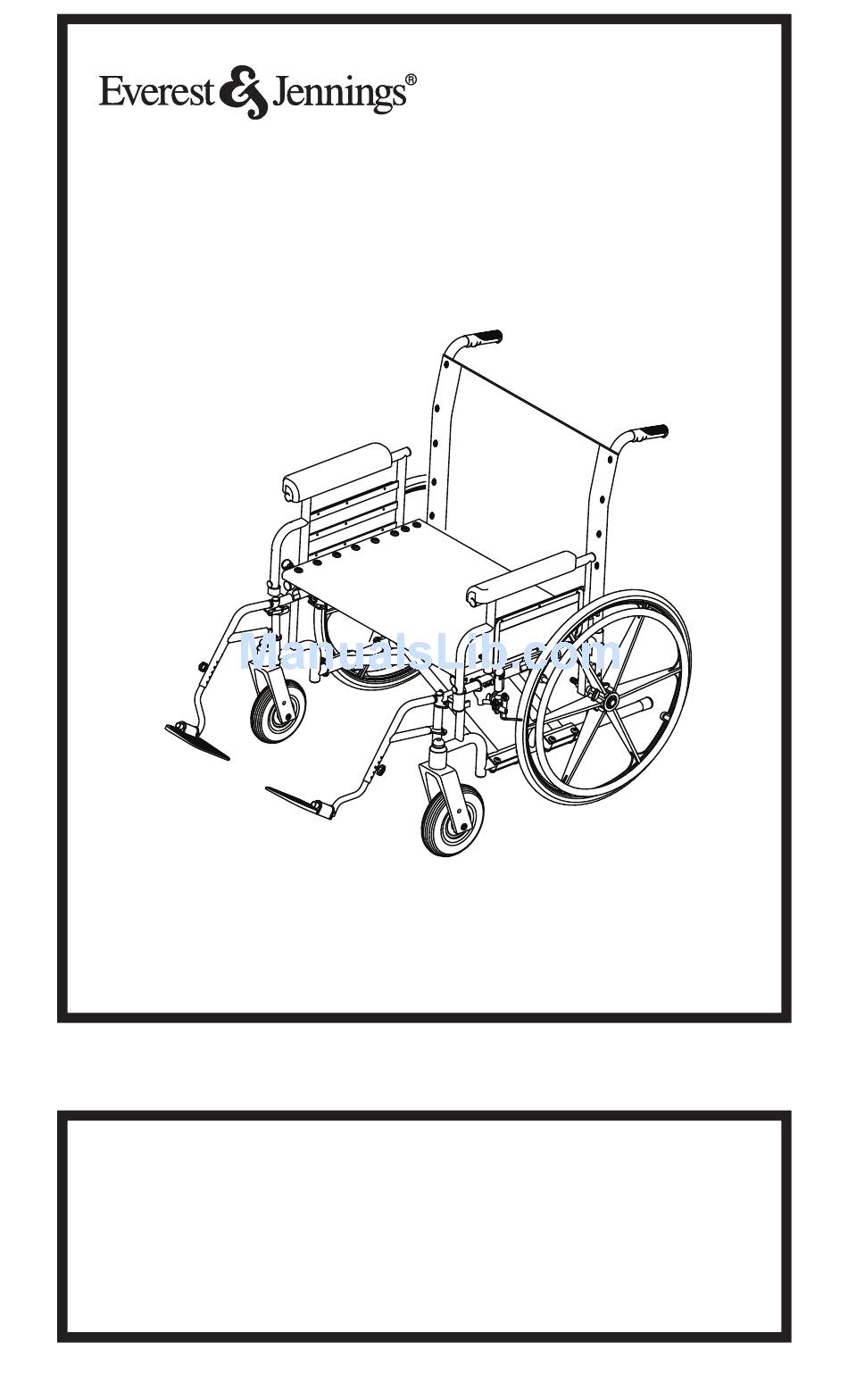

Page 1: User Manual
™ Paramount Manual Wheelchair User Manual 5PX1-INS-LAB-RevC14 Read this manual before operating your wheelchair. Save this manual for future use. -
Page 2: Table Of Contents
1 INTRODUCTION.................3 2 IMPORTANT SAFETY PRECAUTIONS ........5 3 GETTING STARTED ..............8 4 HANDLING TIPS ................9 5 ADJUSTMENTS ...............14 6 TRANSPORTING THE E&J PARAMOUNT XD ......22 7 MAINTENANCE ...............23 8 TROUBLESHOOTING ...............28 9 LIMITED WARRANTY ..............29 10 INDEX ..................31 GF Health Products, Inc. is not responsible for typographical errors. -
Page 3: Introduction
fitted to their anatomy, without the need of customization or alteration to the center of gravity. The Paramount XD, intended for indoor and / or outdoor use, has a maximum weight capacity of 650 lb (295 kg). - Page 4 The person performing adjustments on the Paramount XD has the responsibility of making certain that the user can safely operate the wheelchair with the adjustments selected. This person must evaluate the user's ability, weight, physical condition, the environment in which the wheelchair will be used, and the terrain over which the wheelchair will travel.
-
Page 5: Important Safety Precautions
Always consult your healthcare professional to determine those methods most suitable for your individual abilities. Protect yourself and your wheelchair by having your Paramount XD serviced regularly. Whenever any part of your Paramount XD is not functioning properly, contact your Graham-Field authorized distributor immediately, as a hazardous situation could result, causing personal injury or damage to your wheelchair. - Page 6 WARNING: Unauthorized modification or the use of non- Everest & Jennings replacement parts could change the structure of the wheelchair, void the warranty, and create a hazardous condition resulting in serious personal injury. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
- Page 7 WARNING: GF Health Products, Inc. specifically disclaims responsibility for any personal injury or property damage which may occur during any use which does not comply with federal, state, or local laws or ordinances. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
-
Page 8: Getting Started

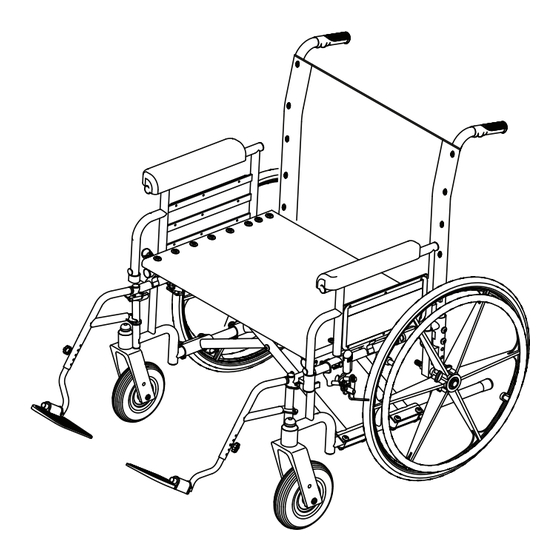

Please familiarize yourself with main components, identified in Paramount XD illustration below. back upholstery push handle/ back post armpad seat rear wheel upholstery footrest handrim footplate frame crossbrace tipping sleeve caster housing wheel lock caster fork caster wheel 5PX1-INS-LAB-RevC14 • Paramount XD User Manual... -
Page 9: Handling Tips
However, it is possible to tip the Paramount XD over if it is used improperly. We urge you to learn the characteristics of your wheelchair. It is most important to learn safe methods to perform the daily activities basic to your lifestyle. - Page 10 2. Rotate both casters fully forward: Go forward, and then back the wheelchair toward the object to swing the casters fully forward. 3. Engage both wheel locks. 4. Ensure that the casters are rotated fully forward before reaching. If not, repeat step 2. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
- Page 11 3. Reach only as far as your arm will extend without changing your sitting position. If in doubt, reposition the wheelchair or ask for assistance. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
- Page 12 Lean the upper part of your body slightly forward as you ascend the incline. If it becomes necessary to stop on the incline, avoid any abrupt or sudden forward movement as you resume climbing, this could cause tipping. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
- Page 13 WARNING: Never attempt to negotiate steps, stairs or escalators in your Paramount XD. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
-
Page 14: Adjustments
5 ADJUSTMENTS The Paramount XD offers several adjustments to make it easier and more comfortable to drive. Section 7, MAINTENANCE, offers preventive maintenance suggestions for keeping your wheelchair in excellent condition; ensure that all components are in excellent condition before adjusting. The following are recommended methods;... - Page 15 ARMS All Paramount XD arms are removable. Remove arm 1. Depress lower arm release until it unlocks. 2. Hold arm by center of armpad. Lift straight up and off. Install arm 1. Hold arm by center of release armpad. 2. Lower arm straight down into sockets and push to lock.
- Page 16 2. Swing footrest inward. 3. Ensure swingaway release lever is locked in a rearward position, toward back of wheelchair. WARNING: Ensure that footrests are locked in place before occupying or operating wheelchair. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
- Page 17 4. Follow steps 1-3 to adjust other footplate extension length. Ensure both adjustment knobs are securely tightened and minimum ground clearance is inches. WARNING: Ensure footplates are securely installed before occupying or operating wheelchair. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
- Page 18 2. Swing legrest inward. 3. Ensure legrest is locked in place and swingaway release lever is locked in a rearward position, toward back of wheelchair. WARNING: Ensure legrests are locked in place before occupying or operating wheelchair. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
- Page 19 • When the stop pin is in the middle notch, the legrest is in mid position. • When the stop pin is in the last notch, the legrest is in high (horizontal) position. WARNING: Ensure elevating legrests are locked in place before occupying or operating wheelchair. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
- Page 20 (crossbraces should be loose enough to fold easily, yet snug enough to take up excess play). Use a M13 wrench and M6 hex key to tighten. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
- Page 21 fit. The lock should indent the tire at least ". Tighten clamp bolts securely to eliminate wheel lock movement on frame. WARNING: Ensure wheel locks are adjusted so that they lock in place appropriately before occupying or operating wheelchair. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
-
Page 22: Transporting The E&J Paramount Xd
To increase your safety while traveling in a motor vehicle, always transfer to the vehicle seat and use the restraint provided by the vehicle manufacturer. The Paramount XD can easily be transported by folding the wheelchair: 1. Detach front rigging from wheelchair. -
Page 23: Maintenance
Only excellent condition is acceptable where safety is concerned. Service manual There is no service manual for the Paramount XD. Please contact your Graham-Field authorized distributor with service questions not answered by this manual. Info: We recommend that you have a Graham-Field authorized distributor perform a six month maintenance check, as the distributor may find and correct a problem... -
Page 24: General Care
Contact your authorized distributor with any questions or concerns regarding the safe operation and maintenance of your wheelchair. Regular maintenance is essential for your safety and continued operation of your wheelchair. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual... - Page 25 Check the anti-tippers at least once a week. Ensure that anti-tippers are securely fastened and properly positioned. Check handgrips Check handgrips at least once a week. Ensure they are not ripped; ensure they are tight and securely fastened. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
- Page 26 Check backposts at least once a month. Ensure that all mounting hardware is securely fastened and that the backposts are not bent or damaged. Contact your authorized distributor if you observe cracking or peeling paint or plating. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
- Page 27 Ensure that stems are firmly attached to forks, and that forks and stems are not bent. Evaluate all threads, locking nuts and bearings. Check wheel bearings Have your Graham-Field authorized distributor check caster and rear wheel axle bearings at least every six months. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
-
Page 28: Troubleshooting
8 TROUBLESHOOTING Continual use of your Paramount XD necessitates maintenance, especially if the factory-set adjustments have been altered. The following troubleshooting guide lists several common problems that may occur, and offers corrective actions for each. If you are unsure of the solution or unable to diagnose the problem, do not hesitate to ask your Graham-Field authorized distributor for assistance. -
Page 29: Limited Warranty
4) Accessories or parts not provided by GF; 5) Charges by anyone for adjustments, repairs, replacement parts, installation or other work performed upon or in connection with such products which are not expressly authorized in writing, in advance, by 5PX1-INS-LAB-RevC14 • Paramount XD User Manual... - Page 30 Failure to abide by those regulations may result in a denial of the freight claim. GF will assist you in iling the freight claim. 3) Claims for any short shipment must be made within thirty (30) days of the invoice date. 5PX1-INS-LAB-RevC14 • Paramount XD User Manual...
