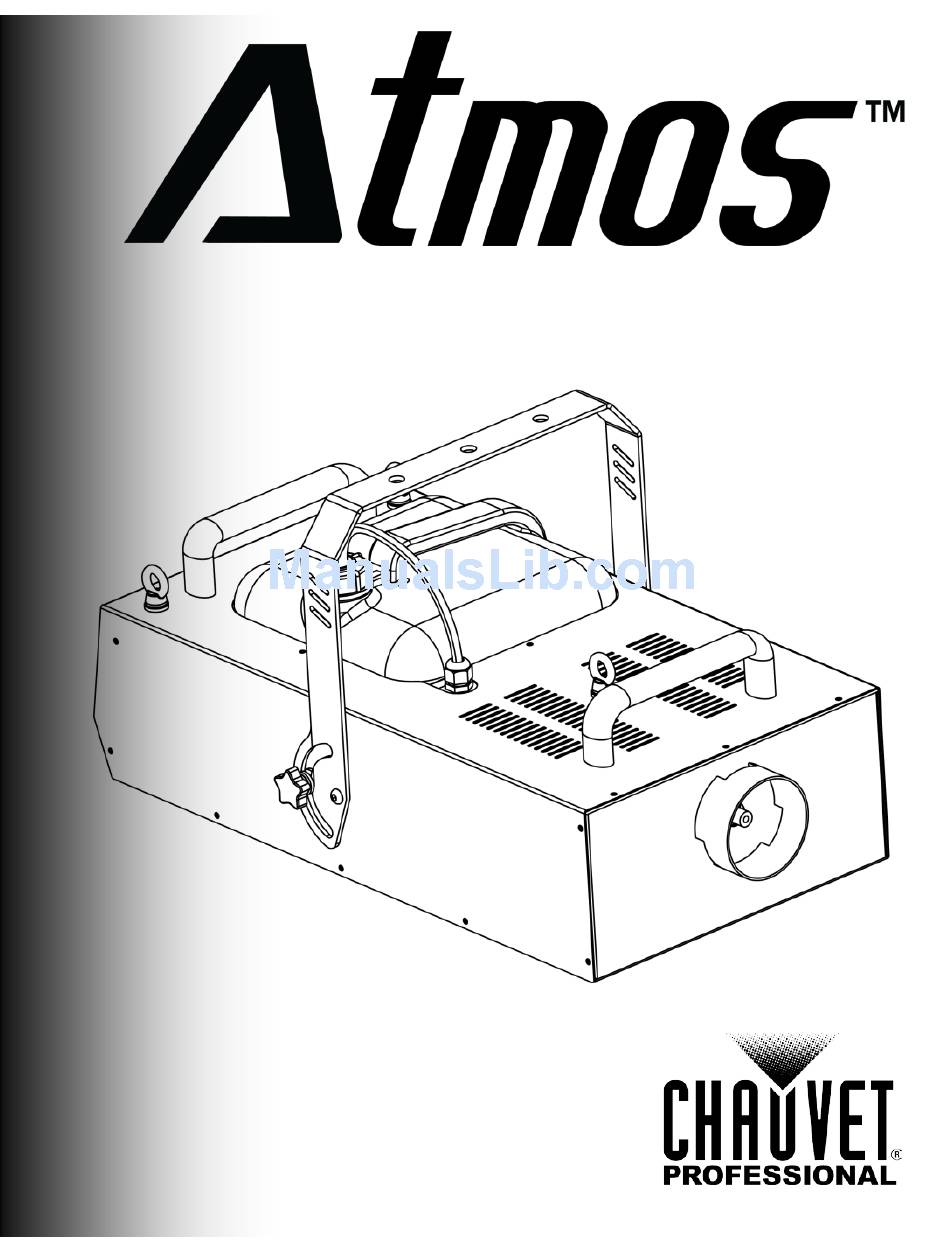

- Page 1 User Manual...
- Page 2 Copyright Notice CHAUVET® owns the content of this User Manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2014 CHAUVET®. All rights reserved.
-
Page 3: Table Of Contents
Timer Mode ....................................11 Manual Mode ..................................... 11 Timer Mode Parameters ................................11 5. Technical Information ..........................12 Hazer Maintenance ..............................12 Storage ...................................... 12 6. Technical Specifications ......................... 13 Returns ..................................14 Contact Us ..............................14 Atmos™ User Manual Rev. 1... - Page 4 Table of Contents -ii- Atmos™ User Manual Rev. 1...
-
Page 5: Before You Begin
If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not CHAUVET®. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 6: Product At A Glance
This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained CHAUVET® certified technicians. Do not open the housing or attempt any repairs. -
Page 7: Introduction

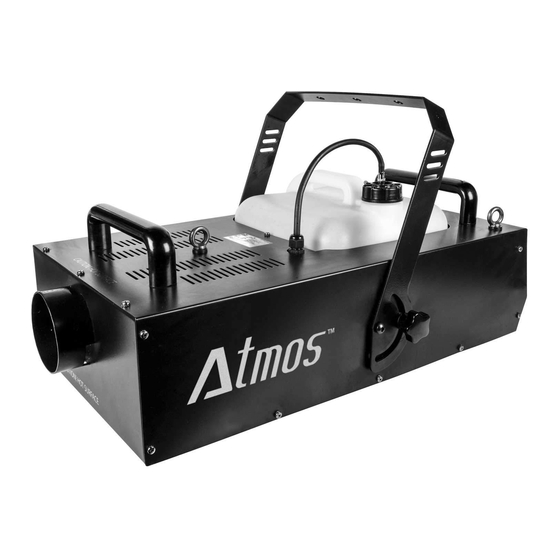

Introduction 2. I NTRODUCTION The Atmos™ is a professional-level fogger with excellent output and tank capacity. The Atmos™ Description features a 1.6 kW heater, tough housing for product longevity, a removable control panel, an industry-standard Neutrik® powerCON™ power input connection, and 3- and 5-pin DMX input/output connections. -
Page 8: Overview
Overview Fluid Tank Output Nozzle Front View DMX In DMX In Power Switch Breaker Power In Control Panel DMX Out DMX Out Rear View Safety Cable Loop Safety Cable Loop Bracket Adjustment Knob Side View Atmos™ User Manual Rev. 1... -
Page 9: Dimensions
Introduction Dimensions 25.98 in 660 mm 15.0 in 381 mm 15.0 in 381 mm Atmos™ User Manual Rev. 1... -
Page 10: Setup
If the breaker does not reset (the breaker button will not remain latched), contact CHAUVET® immediately. You can link the Atmos™ to a DMX controller using a 3- or 5-pin DMX connection. If using DMX Linking other DMX compatible products with the Atmos™, you can control each individually with a single DMX controller. -
Page 11: Mounting
When hanging this product, always secure to a fastening device using a safety cable (such as CH-05 from CHAUVET®). The Atmos™ comes with rubber feet for floor mounting and a yoke to which you can attach Procedure mounting clamps for hanging. You must supply your own mounting clamps. Make sure the structure and the clamps (such as CLP-15 from CHAUVET®) are capable of supporting the... -
Page 12: Operation
3. Pour CHAUVET® (HDF or QDF) fog fluid into the tank and replace the cap. 4. Return the tank back to its compartment in the Atmos™. 5. Make sure the plastic hose entering the Atmos™ from the fluid tank cap is not bent or kinked. -
Page 13: Menu Map
Operation Menu Map Atmos™ Opening Screen CHAUVET Version X.X CHAUVET AC-120V 60Hz Warming Up (only appears if Atmos™ is cold) Ready To Atmos CHAUVET Atmos™ Functions Menu Interval Set 1–200s CHAUVET Duration Set 1–200s CHAUVET Timer Out 1–100% CHAUVET Volume Out 1–100%... -
Page 14: Configuration
To change the output volume for subsequent operation of the Atmos™, simply repeat the steps above. Activating the Fluid The Atmos™ has a fluid sensor that can detect when the amount of fluid in the fluid tank has reached a low level. Sensor To activate the fluid sensor, do the following. -
Page 15: Timer Mode
3. The fog output duration during Timer mode is set by the Duration Set menu option. 4. The fog output volume during Timer mode is set by the Timer Out menu option. 5. This cycle will repeat itself until you press <TIMER> again or until the Atmos™ runs out of fluid. -
Page 16: Technical Information
Run the product in a well-ventilated area until the tank is empty. · Refill with fog fluid to continue using the Atmos™. Run the machine briefly to clear any cleaning solution from the pump and heater. FCQ (Fog Cleaner Quart) was specifically developed by CHAUVET® to clean your Atmos™. -
Page 17: Technical Specifications
40,000 cfm Thermal Max. External Temperature Cooling System 104 °F (40 °C) Fan-Assisted Convection I/O Connectors Connector Type Channel Range 3- and 5-pin XLR Sockets Ordering Product Name Item Code UPC Number Atmos™ 05070859 781462212070 Atmos™ User Manual Rev. 1 -13-... -
Page 18: Returns
Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. CHAUVET® will refuse any product returned without an RMA number.
