Page 1: Programmable Fan

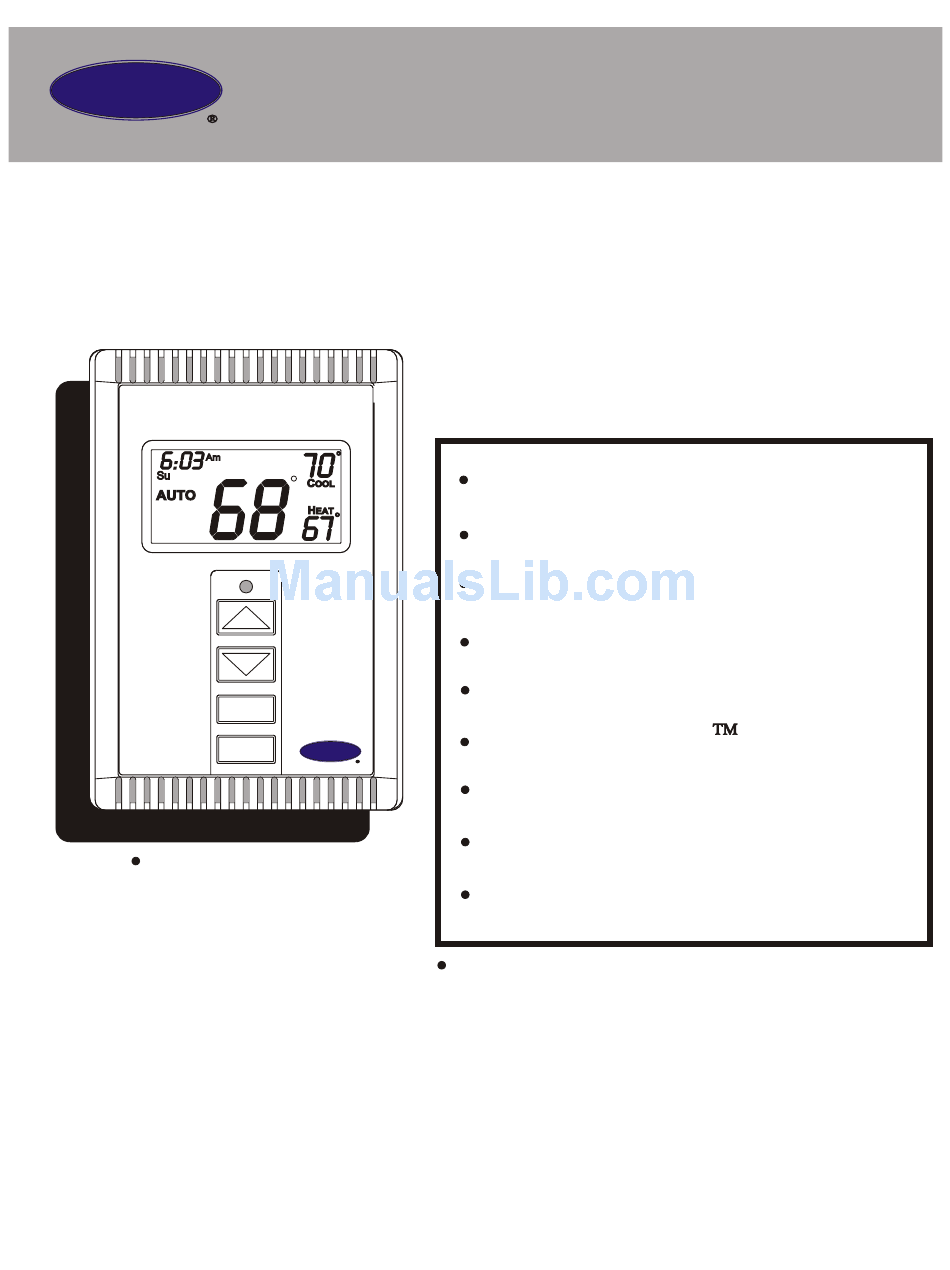

P R O G R A M M A B L E D I G I T A L T H E R M O S T A T Carrier USER INFORMATION MANUAL FOR THE OPERATION AND MAINTENANCE OF YOUR NEW THERMOSTAT Heating &... -
Page 2: Table Of Contents
Set the clock and go BASIC OPERATION PROGRAMMING 4 Time Periods ADVANCED SETUP ABOUT ADVANCED OPERATION WARRANTY CAUTION Follow TSTATCCPRF01 Installation Instructions before proceeding. SET THERMOSTAT TO MODE “OFF” PRIOR TO CHANGING SETTINGS IN SETUP OR RESTORING FACTORY DEFAULTS. Carrier TSTATCCPRF01 FCC ID MUH-T10013 This device complies with Part 15 of the FCC rules. -
Page 3: Front Panel

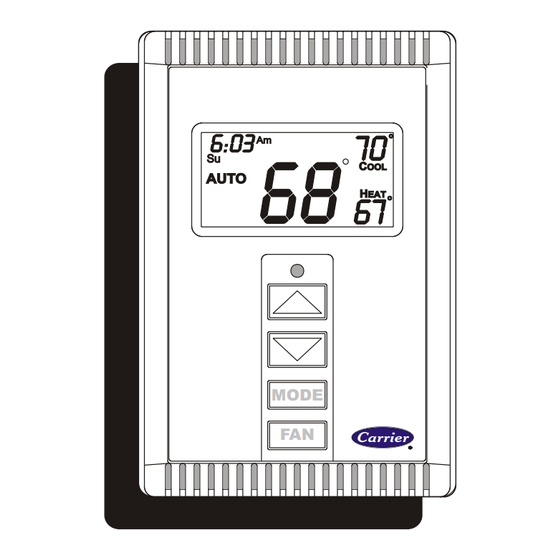

Front Panel Carrier Liquid Crystal Display with Thermoglow Up/Down Buttons Mode Button Fan Button Transmission Indicator Page 2... -
Page 4: Display
Display 12:00 Program Setup Locked SMTWTFS AUTO Night Morning Evening Fan On Mode Indicators Selects the operation mode of the equipment. HEAT - indicates the heat mode. COOL - indicates the air conditioning mode. AUTO - indicates the system will automatically changeover between heat and cool modes as the temperature varies. - Page 5 Display Morning, Day, Evening & Night Indication Indicates the program time period. Page 8-11. Setup Indication Indicates the thermostat is in the programming mode. Page 12. Fan Operation Indication Fan On - indicates constant, continuous fan operation. When Fan On is not lit - indicates the fan will only operate when necessary to heat or to cool.
-
Page 6: Quick Start
Quick Start Set the Clock and Go Press the Mode button. During Setup & Programming: MODE While holding the Mode, Pressing the Mode button press the Fan button for selects different flashing items. 2 seconds to enter Setup (Represented in dark black) screens. -
Page 7: Basic Operation
Basic Operation Select Mode 12:00 The HEAT setting indicates the temperature the room has to reach before the furnace will Press turn on to heat the room. MODE 12:00 The COOL setting indicates the temperature the room has to reach before the air conditioner will turn on to cool the room. -
Page 8: Select Desired Temperature
Basic Operation Select Desired Temperature In any mode, adjust the desired Set Temperature 12:00 with AUTO buttons. Pressing the up/down buttons in Auto mode will adjust both the heat and cool set temperatures simultaneously. Pressing the up/down buttons in Heat or Cool modes will adjust only the heat or cool set temperature. -
Page 9: Programming
Programming 4 Time Periods (Unit # 1 only) Time period programming is only available on Unit Number 1. Press the Mode button. While holding the Mode, press the Up button for 2 seconds to enter MODE time period programming. Use the back cover Programming Worksheet to help with this section. - Page 10 Programming 4 Time Periods I0 30 Start Adjust the start time for Day. Press MODE I0 30 Adjust the cooling setpoint for Day. (35 - 99 ) Press MODE I0 30 Adjust the heating setpoint for Day. (35 - 99 ) Press MODE 5 30...
- Page 11 Programming 4 Time Periods 5 30 Adjust the heating setpoint for Evening. (35 - 99 ) Evening Press MODE I I 30 Start Adjust the start time for Night. Night Press MODE I I 30 Adjust the cooling setpoint for Night. Night (35 - 99 ) Press...
- Page 12 Programming 4 Time Periods The copy command becomes available after programming the entire previous day. 18:no Select Yes or No to copy the previous day’s program to this day. If No is selected: If Yes is selected: Selecting Yes, then pressing mode will copy the previous day’s program and then will ask the Press same copy question again.
-
Page 13: Advanced Setup
Advanced Setup Press the Mode button. MODE While holding the Mode, NOTE: Each step # is located at press the Fan button for the top right corner of the 5 seconds to enter Setup display for easy reference. screens. 12:00 Setup Adjust the time of day clock. - Page 14 Advanced Setup Setup Select the House Code number. The receiver must also use this same number for proper operation. Press MODE Setup Select the Unit ID number. If more than 1 thermostat is used, each will need a different Unit ID number. Press MODE Setup...
- Page 15 Advanced Setup Setup Select the display back- light always On, or Off after 8 seconds. Press MODE 0:00 Setup Adjust the programmable fan timer. 0 - 60 minutes. 0:00 = off Press Note: Available only Fan On on Unit ID #1. MODE Setup Select thermostat...
-
Page 16: Advanced Setup Table
Advanced Setup Advanced Setup Table Step # Description Range Factory Default Time of day clock set 24 hour 12:00 Am Day of the week Sun - Sat Monday Zoning Use Off / On House Code 0 - 63 Unit Number 1 - 4/1 - 16 Deadband or Temperature swing 1 - 6... -
Page 17: About Advanced Operation
About Advanced Features & Operation MEMORY BACKUP - In the event of a power loss, the thermostat will retain the stored program settings without external power or batteries. 2 STAGE OPERATION - The 2nd Stage of heat or cool is turned on when (1) the 1st Stage has been on for a minimum of two minutes, and (2) the temperature spread from the setpoint is equal to or greater than: the setpoint... - Page 18 About Advanced Features & Operation KEYPAD LOCK - T o prevent unauthorized use of the thermostat, the front panel buttons may be disabled. To disable, or ‘lock’ the keypad, press and hold in the Mode button. While holding the Mode button in, press the Up and Down buttons in together.
- Page 19 About Advanced Features & Operation DUAL SETPOINT BEHAVIOR - The adjustable setpoint range is: 35 - 99 degrees in Fahrenheit and 7 - 35 degrees in Centigrade. When in the modes Heat or Cool, this adjustable range is unhampered. When adjusting any Auto mode, including programming time periods, the thermostat will not allow the Heat setpoint...
- Page 20 About Advanced Features & Operation FACTORY DEFAULTS - If, for any reason it is desirable to return all stored settings back to the factory default settings, press the Mode button. While holding the Mode button in, press the Down button for 2 sec. All icons will appear.
-
Page 21: Warranty
Warranty Five-Year Warranty - This Product is warranted to be free from defects in material and workmanship. If defect appears within five years from the date of original installation, whether or not actual use begins on that date, then the product does meet this warranty. A new or remanufactured part, at the manufacturer’s sole option, to replace any defective part will be provided without charge for the part itself;... - Page 22 Programming Worksheet see page 8 DAY PERIOD START TIME COOL HEAT Morning Evening Night Morning Copy Mon Evening Night Morning Copy Tue Evening Night Morning Copy Wed Evening Night Morning Copy Thu Evening Night Morning Copy Fri Evening Night Morning Copy Sat Evening Night...
