Carrier TSTATCCPB501 User's Information Manual

5+2 day programmable digital thermostat
Hide thumbs Also See for TSTATCCPB501:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
Carrier
Heating & Cooling
I2:00
72
Mo
Heat Pump & Heat Cool
NOTE TO INSTALLER: THIS MANUAL MUST BE LEFT WITH THE EQUIPMENT USER.
T S T A T C C P B 5 0 1
D I G I T A L T H E R M O S T A T
USER INFORMATION MANUAL FOR THE OPERATION AND
MAINTENANCE OF YOUR NEW THERMOSTAT
74
C
OOL
AUTO
70
H
EAT
P R O G R A M M A B L E
5+2 DAY PROGRAMMABLE
DIGITAL THERMOSTAT
Dual Setpoint
5+2 Day Programmable
4 Time periods
Very Easy to Program
Large, Easy To Read Display
Thermoglow
No Batteries Required
Auto Changeover
No Batteries Required
Locking Keypad
Meets California Title 24 Residential
Backlight

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSTATCCPB501 and is the answer not in the manual?

Questions and answers

Related Manuals for Carrier TSTATCCPB501

Summary of Contents for Carrier TSTATCCPB501

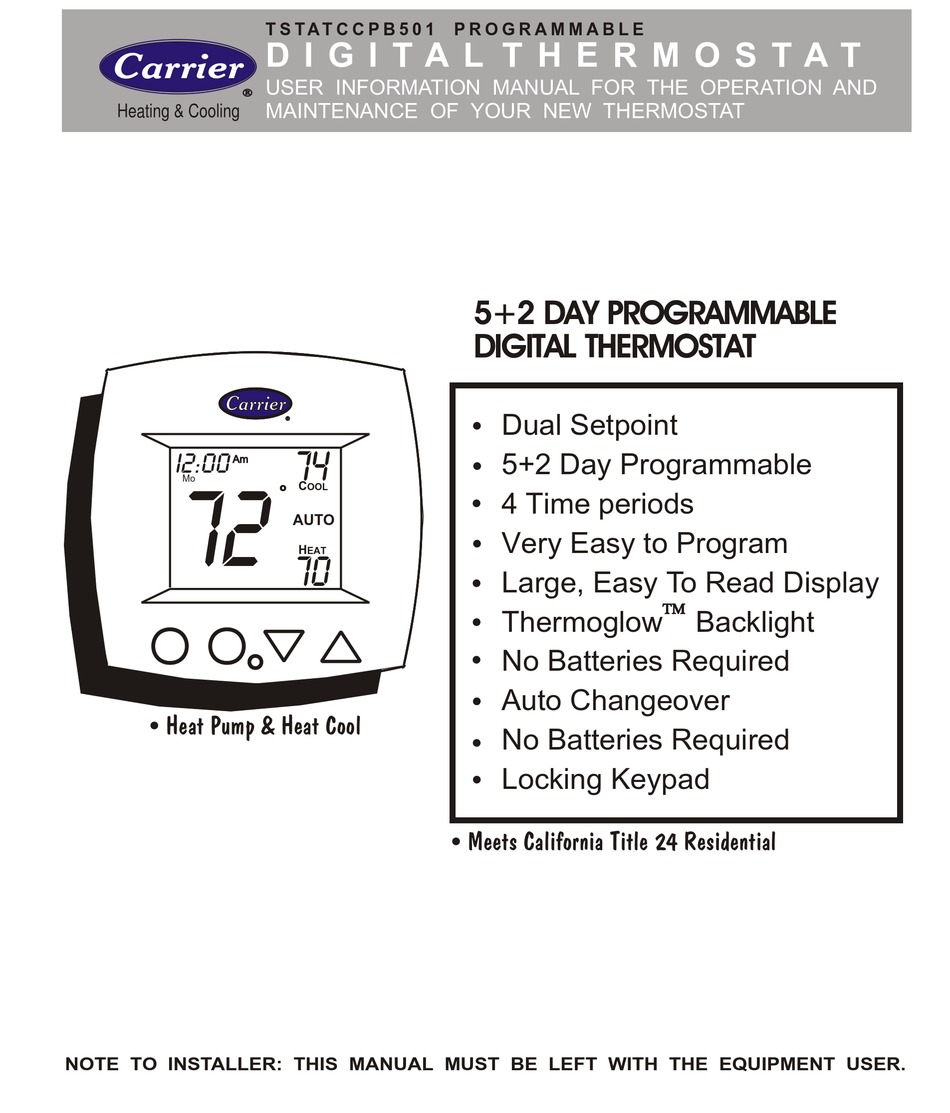

  • Page 1 P R O G R A M M A B L E D I G I T A L T H E R M O S T A T Carrier USER INFORMATION MANUAL FOR THE OPERATION AND MAINTENANCE OF YOUR NEW THERMOSTAT Heating &...

  • Page 2: Front Panel

    BASIC OPERATION PROGRAMMING 4 Time Periods ADVANCED SETUP ABOUT ADVANCED OPERATION WARRANTY CAUTION Follow Installation Instructions before proceeding. SET THERMOSTAT TO MODE “OFF” PRIOR TO CHANGING SETTINGS IN SETUP OR RESTORING FACTORY DEFAULTS. Residential Light Commercial Systems Carrier Corporation 04/01 TSTATCCPB501...

  • Page 3: Mode Button

    I2:00 AUTO Liquid Crystal Display with Thermoglow Up/Down Buttons Mode Button Fan Button Heat or Cool Indicator Heat = Red, Cool = Green...
  • Page 4 I2:00 Night Setup SuMoTuWeThFrSa AUTO Locked ONOFF Program On Morning DayEvening Fan On Mode Indicators Selects the operation mode of the equipment. HEAT - indicates the heat mode. COOL - indicates the air conditioning mode. AUTO - indicates the system will automatically changeover between heat and cool modes as the temperature varies.
  • Page 5 Morning, Day, Evening & Night Indication Indicates the program time period. Page 8-11. Setup Indication Indicates the thermostat is in the programming mode. Page 12. Fan Operation Indication Fan On - indicates constant, continuous fan operation. When Fan On is not lit - indicates the fan will only operate when necessary to heat or to cool.

  • Page 6: Normal Operation

    Press the Mode button. During Setup & Programming: While holding the Mode, Pressing the Mode button MODE press the Fan button selects different flashing items. for 2 seconds to enter Setup (Represented in dark black) screens. Pressing the Up and Down I2:00 buttons will modify the flashing selection.

  • Page 7: Select Mode

    Select Mode I2:00 The HEAT setting indicates the temperature the room has to reach before the furnace will turn on to heat the room. MODE I2:00 The COOL setting indicates the temperature the room has to reach before the air conditioner will turn on to cool the room.

  • Page 8: Select Desired Temperature

    Select Desired Temperature In any mode, adjust the I2:00 desired Set Temperature with AUTO buttons. Pressing the up/down buttons in Auto mode will adjust both the heat and cool set temperatures simultaneously. Pressing the up/down buttons in Heat or Cool modes will adjust only the heat or cool set temperature.

  • Page 9: Time Period Programming

    Press the Mode button. While holding the Mode, press the Up button for 2 seconds to enter time period programming. MODE MoTuWeThFr Select the Day of the Week. MoTuWeThFr or SaSu. (Weekday or Weekend schedule) Press MODE 7:30 MoTuWeThFr Adjust the start time for Morning.
  • Page 10 I0:30 MoTuWeThFr Adjust the start time for Day. Press MODE I0:30 MoTuWeThFr Adjust the cooling setpoint for Day. (35 - 99) Press MODE I0:30 MoTuWeThFr Adjust the heating setpoint for Day. (35 - 99) Press MODE 5:30 MoTuWeThFr Adjust the start time for Evening.
  • Page 11 5:30 MoTuWeThFr Adjust the heating setpoint for Evening. (35 - 99) Press Evening MODE I I:30 Night MoTuWeThFr Adjust the start time for Night. Press MODE I I:30 Night MoTuWeThFr Adjust the cooling setpoint for Night. (35 - 99) Press MODE I I:30 Night...
  • Page 12 Select the Day of the Week. MoTuWeThFr or SaSu. (Weekday or Weekend schedule) Press MODE Continue Time Period Programming Morning through Night as done in previous steps starting on page 8 for the Weekend schedule. To Exit Programming Press the Mode button. While holding the Mode, press the Up button for 2 seconds to exit time period programming.
  • Page 13 Press the Mode button. MODE While holding the Mode, NOTE: Each step # is located at press the Fan button the top right corner of the for 5 seconds to enter Setup display for easy reference. screens. I2:00 Setup Adjust the time of day clock.
  • Page 14 Setup Select the reversing valve polarity for Heat Pump, O or B. (Step 4 only appears if heat pump is on in step 3) Press MODE Setup Select Electric Heat On or Off. (Step 5 only appears if heat pump is off in step 3) Press MODE...
  • Page 15 Select the cycles per Setup hour limit. d=cycles per hour limit defeated. d1=d + defeat 5 min. Compressor lockout. (d, d1, 2 - 6) Press MODE Setup Select the display back- light always On, or Off after 8 seconds. Press MODE Setup Select thermostat...

  • Page 16: Advanced Setup Table

    Advanced Setup Table Step # Description Range Factory Default Time of day clock set 24 hour 12:00 Am Day of the week Sun - Sat Monday Heat Pump Off / On Reversing Valve polarity O / B Electric Heat Off / On Deadband or Temperature swing 1 - 6 Forced minimum difference heat/cool...
  • Page 17 2 STAGE OPERATION - The 2nd Stage of heat or cool is turned on when (1) the 1st Stage has been on for a minimum of two minutes, and (2) the temperature spread from the setpoint is equal to or greater than: the setpoint plus the deadband, plus 2 degrees.
  • Page 18 EMERGENCY HEAT - Is a feature available to Heat Pump installations. To turn on Emergency Heat press in the Fan button. While holding the Fan button press the Up button for 2 seconds. The Cool setpoint display will read ‘EH’. I2:00 Press for Emergency Heat...
  • Page 19 KEYPAD LOCK - T o prevent unauthorized use of the thermostat, the front panel buttons may be disabled. To disable, or ‘lock’ the keypad, press and hold in the Mode button. While holding the Mode button in, press the Up and Down buttons in together.
  • Page 20 DUAL SETPOINT BEHAVIOR - The adjustable setpoint range is: 35 - 99 degrees in Fahrenheit and 7 - 35 degrees in Centigrade. When in the modes Heat or Cool, this adjustable range is unhampered. When adjusting any Auto mode, including programming Occupied and Unoccupied periods, the 1050 will not allow the Heat setpoint to get closer to the Cool setpoint than the value programmed as the minimum difference in...

  • Page 21: About Advanced Features & Operation

    About Advanced Features & Operation FACTORY DEFAULTS - If, for any reason it is desirable to return all stored settings back to the factory default settings, press the Mode button. While holding the Mode button in, press the Down button for 2 sec. All icons will appear.
  • Page 22 Five-Year Warranty - This Product is warranted to be free from defects in material and workmanship. If defect appears within five years from the date of original installation, whether or not actual use begins on that date, then the product does meet this warranty. A new or remanufactured part, at the manufacturer’s sole option, to replace any defective part will be provided without charge for the part itself;...
