KM0032 / KM0532 / KM0932 User Manual FCC Information This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
KM0032 / KM0532 / KM0932 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://support.aten.com North America http://www.aten-usa.com/product_registration Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan...
KM0032 / KM0532 / KM0932 User Manual Package Contents The KM0032 / KM0532 / KM0932 package consists of: 1 KM0032, KM0532, or KM0932 2 Power Cords 1 Daisy Chain Cable (KM0032 only) 1 Rack Mount Kit 1 User Instructions* Check to make sure that all of the components are present and in good order.
KM0032 / KM0532 / KM0932 network environment, and change the default password. Chapter 4, Logging In, describes how to log in to the KM0032 / KM0532 / KM0932 from a local console and an internet browser.
Page 13
KM0032 / KM0532 / KM0932 User Manual Chapter 13, RS-232 Port Operation, explains how to access and operate the devices connected to the KM0032 / KM0532 / KM0932 via a serial terminal connection. Chapter 14, LDAP Server Configuration, explains how to setup and configure a server for LDAP connections.
KM0032 / KM0532 / KM0932 User Manual Conventions This manual uses the following conventions: Monospaced Indicates text that you should key in. Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt].
KM0932 Dual * KM0032 switches operate as slaves chained to a KM0532 or KM0932. As such, they do not use a console of their own. Devices connected to them are accessed through a console belonging to the master KM0532 or KM0932.
Features 9 (KM0932) or 5 (KM0532) consoles independently and simultaneously control up to 32 directly connected computers Standardized graphical user interface – consistent across all Altusen products –...
Page 17
Chapter 1. Introduction Remote authentication supports; RADIUS, LDAP, TACACS, LDAPS, and MS Active Director Supports ATEN Log Server and Syslog Server Saves valuable time - backup and restore settings when changing master stations – backup user and group accounts, station names, port access rights, and user profile settings.
Page 18
KM0032 / KM0532 / KM0932 User Manual A master station can allocate the best available path for the user. If the current path is busy and there is another path available the user is automatically redirected to the available path Users can access features on multiple computers simultaneously –...
Keyboard and mouse (PS/2 or USB) Console modules are required to connect KVM consoles to the KM0532 / KM0932. They provide flexibility for your installation by allowing PS/2 and USB interfaces to be mixed and matched at the KVM console side. The console modules currently available are listed in the table below.
KA7178 Virtual Media, and Smart Card Reader support *See KA7178 Dual Output Dongle, page 53, for details Connecting Cables Other cables that are used to connect up the KM0032 / KM0532 / KM0932 installation include the following: Function Type Connecting Console Modules or KVM Adapter...
Page 21
Chapter 1. Introduction Version UNIX 4.3 and higher FreeBSD 4.2 and higher Solaris 8 and higher Novell Netware 5.0 and higher OS 9 and higher...

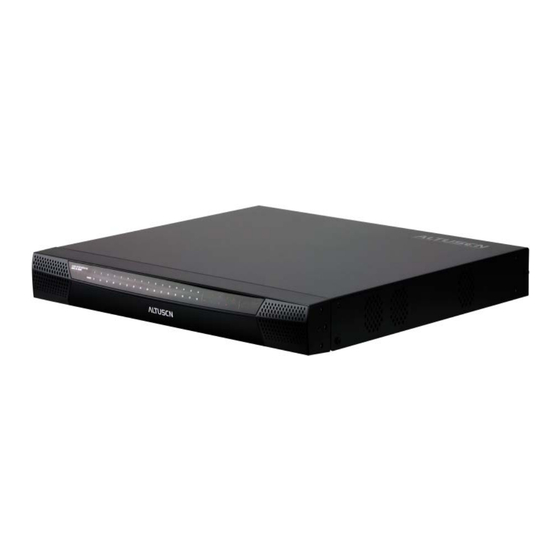

KM0032 / KM0532 / KM0932 User Manual Components KM0532 / KM0932 Front View KM0532 KM0932 Component Description Power LED Lights (blue) to indicate that the unit is receiving power. KVM Port LEDs The KVM Port LEDs provide status information about their...
Page 23
Chapter 1. Introduction Component Description LAN LED The LED lights ORANGE to indicate 10 Mbps data transmission speed. The LED lights GREEN to indicate 100 Mbps data transmission speed. The LED flashes when data is being transmitted Reset Switch Pressing in this button performs a system reset. When the system is reset, the switch beeps, and then the KVM port LEDs flash in succession until the reset is completed.
KM0032 / KM0532 / KM0932 User Manual KM0032 Front View Component Description Power LED Lights (blue) to indicate that the unit is receiving power. Port LEDs The Port LEDs provide status information about their corresponding KVM Ports, They light as follows: GREEN: The computer connected to its corresponding port is On Line.
The Cat 5e or Cat 6 cables from the console modules plug in here. KVM Ports The Cat 5e or Cat 6 cables that link the KM0532 / KM0932 to the KVM Adapter Cables (which connect to the computers – see page 20), plug in here.
KM0032 / KM0532 / KM0932 User Manual KM0032 Rear View Component Description Power Sockets The power cords from the AC source plug in here. The socket on the left is Socket 1; the socket on the right is Socket 2.
KVM adapter cables, see Cables, page 6. As a cost-saving feature, KM0032 switches, can be daisy chained down from a KM0532 or KM0932. Since devices connected to them are accessed through one of the KM0532 or KM0932 consoles, they don’t require a console of their own.
Keyboard Power On function. Stacking and Rack Mounting The KM0032 / KM0532 / KM0932 can be stacked on the desktop or rack mounted in a variety of ways. The following sections take you through the procedures for each method.
Chapter 2. Hardware Setup Rack Mounting The KM0032 / KM0532 / KM0932 can be mounted in a 19" (1U) rack. The mounting brackets can screw into either the front or the back of the unit so that it can attach to the front or the back of the rack.
Page 30
KM0032 / KM0532 / KM0932 User Manual 3. Position the device in the front of the rack and align the holes in the mounting brackets with the holes in the rack. 4. Screw the mounting brackets to the rack. Note: Cage nuts are provided for racks that are not prethreaded.
Chapter 2. Hardware Setup Rack Mounting - Rear To mount the unit at the rear of the rack, do the following: 1. Remove the two screws at the rear of the unit: Phillips head hex M3 x 6 2. Use the M3 x 8 Phillips head hex screws supplied with the rack mounting kit to screw the rack mounting brackets into the rear of the unit: Phillips head hex M3 x 8...
Page 32
KM0032 / KM0532 / KM0932 User Manual 3. Position the device in the rack and align the holes in the mounting brackets with the holes in the rack. 4. Screw the mounting brackets to the rear of the rack. Note: Cage nuts are provided for racks that are not prethreaded.
To prevent damage to your installation it is important that all devices are properly grounded. Use a grounding wire to ground the KM0032 / KM0532 / KM0932 by connecting one end of the wire to the switch’s grounding terminal (see...
(Repeat steps 3 and 4 for all computers that you wish to connect. Up to 32 computers may be connected in this fashion.) 5. Plug a cable from the LAN or WAN into the KM0532 or KM0932's LAN port. 6. Connect a PON unit (Optional) Use Cat.
Page 35
Note: Do not omit this step. Proper grounding helps to prevent damage to the unit from surges or static electricity. 8. Plug the power cords supplied with this package into the KM0532 / KM0932’s Power Socket, and then into an AC power source.
Daisy chaining refers to adding a KVM switch via a dedicated daisy chain port (see the diagram on page 28). The KM0532 / KM0932 supports both daisy chaining and cascading, providing enormous capacity and flexibility to expand the installation. The following sections provide information and procedures to set up cascaded and daisy chained KVM installations.
(KM0932) bus connections for each cascaded KM0532 / KM0932, and usually no more than one for other KVM switches. In order for all the KVM consoles on the first level KM0532 or KM0932 to be able to access the KVM ports of a cascaded KM0532 / KM0932 at the same time, you must create the maximum number of bus connections between the first level parent switch and the child switch.
5 when cascading them from the second level KVM switches.) 7. Power on the first level KM0532 / KM0932. 8. Wait one minute, and then power on each second level KM0532 / KM0932. 9. Wait one minute, and then power on each third level KM0532 / KM0932.
Page 39
AC power source, and then plug the power adapter cables into the power jacks on the rear of the console modules. 11. Turn on the power to all the computers. Cascaded KM0532 / KM0932 Installation Diagram Console Module Console Module...
To cascade a KVM switch other than the KM0532 / KM0932: 1. Use Cat 5e or Cat 6 cable to connect a KVM port on the KM0532 or KM0932 to a KVM adapter cable appropriate for the KVM switch you are connecting.
1. Use a daisy chain cable set (see Cables, page 6) to connect the CHAIN OUT port of the parent KM0532 / KM0932 to the CHAIN IN port of the first KM0032. Note: The maximum distance between the KM0532 / KM0932 and the last KM0032 in the chain cannot exceed 50 m.
Compensation (ASC), allow signals to travel up to 300 meters (1000 feet) and still maintain reliability and high video resolution. This allows the KM0032 / KM0532 / KM0932 installation to take advantage of the internal Cat 5e and Cat 6 wiring built-in to most modern commercial buildings.
Chapter 2. Hardware Setup The Adapter ID Function Adapter Cable information (the Adapter ID, port name, OS, keyboard language, and access mode), is stored on the adapter. The switch’s Adapter ID function takes this information and stores it along with the adapter cable’s configuration information (access rights, etc.), in its database –...
Page 44
KM0032 / KM0532 / KM0932 User Manual This Page Intentionally Left Blank...
Chapter 3 Super Administrator Setup Overview The KM0032 / KM0532 / KM0932 supports three types of user, as shown in the table, bellow: User Type Role Super Administrator Access and manage ports and devices. Manage Users and Groups. Configure the overall installation. Configure personal working environment.
Page 46
KM0032 / KM0532 / KM0932 User Manual Since this is the first time you are logging in, key in the default Username: ADMINISTRATOR; and the default Password: password. Note: For security purposes, you should change the password. (See Changing the Super Administrator Login, page 34 for details.)
Chapter 3. Super Administrator Setup Network Configuration To set up the network, do the following: 1. Click the Device Management tab. 2. Select Network on the menu bar. A screen similar to the one below appears: 3. Fill in the fields according to the information provided under Network, page 54.
KM0032 / KM0532 / KM0932 User Manual Changing the Super Administrator Login To change the default Super Administrator Password, do the following: 1. Click the Port Access tab. 2. Select Preferences on the menu bar. 3. Key the old password into the Old Password field.
Chapter 3. Super Administrator Setup Moving On After setting up the network and changing the default Super Administrator username and password, you can proceed to other administration activities. These include User Management, Device Management, and Firmware Upgrade Maintenance. These activities can be accomplished either from the console or from a web browser.
Page 50
KM0032 / KM0532 / KM0932 User Manual This Page Intentionally Left Blank...
See Security, page 75 for details. Console Login When a console is connected to a powered on KM0532 or KM0932 and there is no user logged in, the KM0532 or KM0932 login screen appears on the display: Simply key in your Username and Password, then click Login to bring up the Console UI.
The KM0532 or KM0932 can be accessed via an Internet browser from any platform. Note: 1. The KM0032 is installed as a daisy chained extension to a KM0532 or KM0932, and cannot be accessed directly. It can only be accessed via a login to the switch it is daisy chained from (a KM0532 or KM0932).
The User Interface Overview Once you have successfully logged in the KM0532 or KM0932’s GUI Main Page appears. The look of the page varies slightly, depending on which method, Console or Web, you used to log in. Each of the interfaces is described in the sections that follow.
The Console UI page components are described in the table below: Item Description Tab Bar The tab bar contains the KM0032 / KM0532 / KM0932’s main operation categories. The items that appear in the tab bar are determined by the user’s type, and the authorization options that were selected when the user’s account was created.
Chapter 5. The User Interface Console UI Keyboard Navigation You can navigate the Console UI from the keyboard. The hotkey combinations, and their effects, are shown in the table, below: Focus Hotkey Effect Miscellaneous Brings up the About screen. Logs you out of the session. The Tab Bar Ctrl P Selects the Port Access tab.
(see Browser Login, page 38), the Web Browser Main Page comes up, with the Port Access page displayed: Note: 1. The KM0032 is installed as a daisy chained extension to a KM0532 or KM0932, and cannot be accessed directly. It can only be accessed via a login to the switch it is daisy chained from (a KM0532 or KM0932).
The web page screen components are described in the table, below: Item Description Tab Bar The tab bar contains the KM0032 / KM0532 / KM0932’s main operation categories. The items that appear in the tab bar are determined by the user’s type, and the authorization options that were selected when the user’s account was created.
Page 58
KM0032 / KM0532 / KM0932 User Manual This Page Intentionally Left Blank...
Chapter 6 Device Management Overview The Device Management page allows super administrators to configure and control overall KM0032 / KM0532 / KM0932 operations. Note: This page is for super administrators only. Other users can skip this chapter. Device When you click the Device Management tab, the GUI opens with the Device menu page displayed.
Page 60
KM0032 / KM0532 / KM0932 User Manual Browser UI The Device Management settings are described in the table, below: Item Meaning General Device Name Allows you to give the switch a name. This can be convenient by helping you to distinguish among the various switches in a large, cascaded installation.
Page 61
Chapter 6. Device Management Item Meaning Root Web Session When a user is logged in via a web browser and there is Device Timeout no input from the user for the amount of time set with this Settings function, the user is automatically logged out and will need to log in again.
2nd and 3rd level cascading for increased control of up to 1024 servers, administered by a Dual Root 18 Console Module setup. Setting up a Dual Root installation requires a combination of two KM0532/ KM0932 switches connected to a LAN. To setup Dual Root, refer to the Dual Root Layer 1 Installation diagram on page 49, and do the following: Note: 1.
Page 63
Chapter 6. Device Management Dual Root Layer 1 Installation Up to 9 Up to 9 Console Modules Console Modules KA7240/KA7230 KA7240/KA7230 KM0932 Dual Root Slave KM0932 Dual Root Master Dual Root Layer 1 Installation Network...
The Cat 5e UTP Cable connections are as follows: (4) KVM Ports from A & B to (4) Console Ports, on each switch respectively. Dual Root cascading can accommodate up to 8 KM0532/KM0932 Switches. To install switches in a Dual Root Cascade, use the diagrams that follow:...
Page 66
KM0032 / KM0532 / KM0932 User Manual Dual Root Layer 3 Installation Dual Root Master Dual Root Slave Cat 5e UTP Cat 5e UTP Cable Cable Layer To Cascade additional switches from Layer 2 in a Dual Root setup, you must make (8) KVM Port to (8) Console Port connections for each Layer 3 switch added.
Chapter 6. Device Management KA7178 Dual Output Dongle The KA7178 Adapter Cable provides two Cat 5e/6 connectors, allowing a computer to connect to two KM0032, KM0532, or KM0932 switches. This allows consoles on different switches access to the same computer, as shown below.
The IP Installer is an external Windows-based utility for assigning IP addresses to the KM0032 / KM0532 / KM0932. See IP Installer, page 201 for details. Click one of the radio buttons to select Enable, View Only, or Disable for the IP Installer utility.
Chapter 6. Device Management DNS Server For automatic DNS Server address assignment, select the Obtain DNS Server Address Automatically radio button. To specify the DNS Server address manually, select the Set DNS Server Address Manually radio button, and fill in the addresses for the Preferred and Alternate DNS servers with values appropriate for your network.
KM0032 / KM0532 / KM0932 User Manual SMTP Settings The KM0032 / KM0532 / KM0932 can send reports from an SMTP server. To have the KM0032 / KM0532 / KM0932 email reports from the SMTP server to you, do the following: 1.
Chapter 6. Device Management SNMP Server To be notified of SNMP trap events, do the following: 1. Check Enable SNMP Agent. 2. Key in either the IPv4 address or domain name of the computer to be notified of SNMP trap events. 3.
Page 76
KM0032 / KM0532 / KM0932 User Manual LDAP/LDAPS Settings LDAP / LDAPS Authentication and Authorization Settings To allow authentication and authorization via LDAP / LDAPS, refer to the information in the table, below: Item Action Enable Put a check in the Enable checkbox to allow LDAP / LDAPS authentication and authorization.
Chapter 6. Device Management TACACS Settings TACACS Authentication and Authorization Settings To allow authentication and authorization via TACACS, refer to the information in the table, below: Item Action Enable Put a check in the Enable checkbox to allow TACACS+ authentication and authorization. Preferred Fill in the IP address and port number for the TACACS+ server.
KM0032 / KM0532 / KM0932 User Manual Association The Association page is used to associate a PN0108 PON (Power Over the NET™) power outlet with a KVM port on the Matrix KVM Switch. Once an association has been made, the power status of the device attached to the KVM port can be controlled from the Port Access page, rather than having to control the power status by opening a separate web session to the PN0108.
Page 80
KM0032 / KM0532 / KM0932 User Manual The page is organized into three main sections, as described in the table, below: Page Section Description Associations This section is where you associate the PN0108 power outlet(s) with a KVM port on the Matrix KVM Switch.
Page 81
Chapter 6. Device Management clicking on it. The outlet ID and Name appear in the power supply list (Browser UI). – or – Drop down the Associated Power Supply 1 list to select the outlet you want to associate with the port, then click the Association button just to the right of the selection box.
Page 82
KM0032 / KM0532 / KM0932 User Manual 3. (Optional) If the device connected to the KVM switch port has a dual power supply, and if you wish to associate additional outlet ports with the secondary power supply, simply repeat step 2, by clicking Add to select another outlet you want to associate with the port.
Page 83
Chapter 6. Device Management You can also power control the device when you select its port from the Port → Access Connections page.
KM0032 / KM0532 / KM0932 User Manual Summary Clicking the Summary tab brings up a page similar to the one below: Console UI Browser UI This page provides a sorted listing of the power associations that have been made via the Power Management page.
Chapter 6. Device Management MultiView MultiView supports multi-console port access to a computer using multiple video cards to connect to multiple ports on the switch. The MultiView page is divided into two sections Console Groups and IO Groups. Console UI Browser UI...
KM0032 / KM0532 / KM0932 User Manual MultiView Groups For multiple consoles to simultaneously access a computer connected by multiple video cards to multiple ports on the switch, the consoles and ports must be added to groups. The consoles must be added to a Console Group and the ports must be added to an IO Group, respectively.
Chapter 6. Device Management Console UI: Add to IO Group 2. Click Save. Creating Console Groups To create a Console Group, do the following: 1. From the Console Groups section click Add, then drag and drop the associated consoles from the console list into the Main Console, Member 1, Member 2, and or Member 3 sections of the Console Group (Browser UI).
Page 88
KM0032 / KM0532 / KM0932 User Manual Browser UI: Add to Console Group Console UI: Add to Console Group 2. Click Save.
Chapter 6. Device Management Security The Security page is divided into 2 main panels, Login Settings and Account Policy, as described in the sections that follow. Console UI...
Page 91
Chapter 6. Device Management Item Meaning Login Maximum Sets the number of failed login attempts that are allowed Login Failures before the user is locked out of further attempts to log in. Settings Checking Disabled allows an unlimited number of login failure attempts Lockout Period Sets the amount of time a user must wait after being locked out before being able to try logging in again.
To set the time, use the 24 hour HH:MM:SS format. Time Zone To establish the time zone that the KM0032 / KM0532 / KM0932 is located in, drop down the Time Zone list and choose the city that most closely corresponds to where it is at.
Chapter 6. Device Management When you have finished making your Date/Time page settings, click Save. Browser UI An explanation of the settings found on this page are as follows: Current System Time This section displays the time and date that the switch is currently set to. The time and date fields are for information purposes and cannot be edited.
KM0032 / KM0532 / KM0932 User Manual New System Time Use these fields to change the switch’s time and date settings, as follows: To set the switch’s time and date to match the time and date of the computer you are logged in on, select the Synchronize with computer time radio button.
System Console UI The Console UI’s System page provides system information, including the firmware version, regarding the KM0032 / KM0532 / KM0932 and the modules connected to it. Browser UI The Browser UI’s System page provides detailed information about the devices (KVM switches, Console Modules, and KVM Adapter Cables) deployed on the matrix KVM switch installation.
Page 96
KM0032 / KM0532 / KM0932 User Manual This Page Intentionally Left Blank...
Chapter 7 User Management Overview The User Management page allows super administrators and administrators to create, modify, and delete users and groups, as well as assign device authorizations to them. Up to 1024 accounts and 256 groups can be created. Note: 1.
Chapter 7. User Management The page is organized into two main areas. All users are listed in the Sidebar at the left of the page. The large panel at the right also lists the users, but provides more detailed information at-a-glance for each. Adding Users To add a user, do the following: 1.
Page 100
KM0032 / KM0532 / KM0932 User Manual Browser UI 4. Enter the required information for the user in the appropriate fields. A description of each of the fields is given in the table, below: 5. When your selections have been made click Save. When the operation completes, the new user appears in the Sidebar and the main panel.
Page 101
Permissions Virtual Media is only available to users. It gives them permission to use the KM0032 / KM0532 / KM0932’s virtual media function. See VM Mount:, page 112 for details. Power Management is only available to users. It allows them to access a Power on the Net™...
Page 102
KM0032 / KM0532 / KM0932 User Manual Field Description Status Status allows you to control the user’s account and access to the installation, as follows: Disable Account lets you suspend a user’s account without actually deleting it, so that it can be easily reinstated in the future.
Chapter 7. User Management Modifying User Accounts To modify a user account, do the following: 1. Select Accounts on the menu bar. 2. In the Sidebar, click the user’s name – or – In the main panel, select the user’s name, then click Modify. 3.
KM0032 / KM0532 / KM0932 User Manual Groups Groups allow administrators to easily and efficiently manage users and devices. Since device access rights apply to anyone who is a member of the group, administrators need only set them once for the group, instead of having to set them for each user individually.
Page 105
A minimum of 1 and a maximum of 16 characters is allowed. Permissions Virtual Media is only available to users. It gives them permission to use the KM0032 / KM0532 / KM0932’s virtual media function. See VM Mount:, page 112 for details. Power Management allows users to access a Power on the Net™...
KM0032 / KM0532 / KM0932 User Manual 5. When your selections have been made click Save. When the operation completes, the new group appears in the Sidebar and the main panel. The main panel also shows whether the group status is currently active or has been disabled.
Chapter 7. User Management Users and Groups There are two ways to assign users to – and remove users from – groups: from the Users menu; and from the Group menu. Note: Before you can assign users to groups, you must first create them. See Adding Users, page 85 for details.
KM0032 / KM0532 / KM0932 User Manual Browser UI 4. In the Available Groups column, select the group that you want the user to be in. 5. Click the Right Arrow to put the group’s name into the Selected Groups column.
Page 109
Chapter 7. User Management 3. In the page that comes up, select the Groups tab. A screen, similar to the one below, appears: Console UI...
Page 110
KM0032 / KM0532 / KM0932 User Manual Browser UI 4. In the Selected Groups column, select the group that you want to remove the user from. 5. Click the Left Arrow to remove the group’s name from the Selected Groups column. (It goes back into the Available Groups column.) 6.
Chapter 7. User Management Assigning Users to a Group From the Group Menu To assign a user to a group from the Group menu, do the following: 1. Select Groups on the menu bar. 2. In the Sidebar, click the group’s name –...
Page 112
KM0032 / KM0532 / KM0932 User Manual Browser UI 4. In the Available Users column, select the user that you want to be a member of the group. 5. Click the Right Arrow to put the user’s name into the Selected Users column.
Chapter 7. User Management Removing Users From a Group From the Group Menu To remove a user from a group from the Group menu, do the following: 1. Select Groups on the menu bar. 2. In the Sidebar, click the group’s name –...
Page 114
KM0032 / KM0532 / KM0932 User Manual Browser UI 4. In the Selected Users column, select the user that you want to remove from the group. 5. Click the Left Arrow to remove the user’s name from the Selected Users column.
Chapter 7. User Management Device Assignment When a user logs in to the Matrix KVM Switch, the GUI comes up with the Port Access page displayed. All the ports that the user is permitted to access are listed in the Port Selection panel at the left of the page. Access permissions for those ports and the devices connected to them are assigned on a port-by-port basis from the User or Group list of the User Management page.
Page 116
KM0032 / KM0532 / KM0932 User Manual Browser UI Note: Only devices that are powered on appear in the list. 4. Switches and ports are listed in the left hand column. Select the port that you wish to configure the permissions for, then click a radio button to set...
Chapter 7. User Management Heading Description View Only The user can only view the remote screen; he cannot perform any operations on it. Full Access The user can view the remote screen and can perform operations on the remote system from his keyboard and monitor.
Page 118
KM0032 / KM0532 / KM0932 User Manual This Page Intentionally Left Blank...
Chapter 8. Port Access Page Layout The Port Access page is organized into several main areas: All the ports that a user is permitted to access are listed in the Port Selection Sidebar at the left of the page. At the bottom of the Sidebar, there is a Show button that gives users control over which of their ports appear in the tree The main panel provides a detailed listing of each port, as well as a means of accessing the ports.
KM0032 / KM0532 / KM0932 User Manual Console UI When you right click on a port in the Browser UI, a small button pops up offering to let you add the port to your Favorites list, and, if the port has been named, to erase the port’s name.
Page 123
Chapter 8. Port Access Sidebar tree, as well as which ports get scanned when Auto Scan Mode is invoked (see Auto Scanning, page 140): Console UI / Browser UI The meanings of the choices are explained in the table, below: Choices Explanation This is the default view.
KM0032 / KM0532 / KM0932 User Manual Connections The Connections page displays port status information at the device level, and port connection configuration options at the port level. In addition the Console Selector tab can be used to force one or more consoles to connect to a specific computer using a matrix chart.
Page 125
Chapter 8. Port Access Browser UI The column headings and their meanings are described in the table, below: Heading Meaning Port Number The port’s number on the switch. Port Name If a name has been assigned to a port it displays here. Status The current status of the port –...
KM0032 / KM0532 / KM0932 User Manual Port Level When a port is selected in the Sidebar tree, the Connections page changes to display the port’s attributes and connection options: Console UI Port Attributes: The port attributes are read only, and are for your reference. The attributes are configured on the Port Access Properties page (see page 129).
Chapter 8. Port Access Browser UI Port Attributes: The port attributes are read only, and are for your reference. The attributes are configured on the Port Access Properties page (see page 129). Associated Link If a PN0108 PON (Power Over the NET™) power outlet port has been associated with this port (see Association, page 64), you can control its power status from this page by clicking the socket icon.
KM0032 / KM0532 / KM0932 User Manual Console Selector The Console Selector tab allows Administrator’s the ability to force multiple consoles to connect to selected ports using a graphical index chart. The Console Selector tab lists the connected consoles and ports in a cross reference index with selector buttons.
Page 129
Chapter 8. Port Access Browser UI Explanations of each Console Selector option are given in the table below: Setting Function Profile Use the pull-down box to Import or Save connection arrangements. Up to 16 predefined profiles can be stored (Save) and later recalled (Import). Profile names can be changed.
KM0032 / KM0532 / KM0932 User Manual Favorites The Favorites page is similar to a bookmarks feature. Ports that you frequently visit can be saved in a list here. Simply open this page and select the port – rather than hunting for it in the Sidebar. In addition, you can limit the ports that get scanned under Scan Mode, to just the ones you have selected as Favorites (see Scan Mode, page 122).
Chapter 8. Port Access Adding a Favorite Console GUI: To add a favorite under the Console GUI, first select the port in the Sidebar, then click Add (at the bottom of the main panel). Browser GUI: To add a favorite under the Browser GUI: Right click on the port in the Sidebar, then click the Add to Favorites button that appears.
Chapter 8. Port Access Preferences The Preferences page allows users to set up their own, individual, working environments. The Matrix KVM Switch stores a separate configuration record for each user profile, and sets up the working configuration according to the Username that was keyed into the Login dialog box.
Chapter 8. Port Access Changing the Preference Settings Make your settings changes according to the information given in the following table: Setting Function Language Selects the language that the interface displays in. Drop down the list of available languages to choose the one you want. Toolbar Selects which Hotkey controls the Toolbar: [Scroll Lock] [Scroll Lock], or Hotkey...
Page 136
KM0032 / KM0532 / KM0932 User Manual Setting Function Welcome If this is enabled, a welcome message appears at the right side of the Message menu bar. If it is disabled, no welcome message appears. When the (Browser UI) function is enabled, if you put a check in the Username checkbox, the user’s name appears with the welcome message.
The diagram displays the device model requirements for Multicast Audio to work across any KVM connection: KA7240 KA7240 KA7240 KA7240 KA7176 KA7176 KM0532 / KM0932 KA7240 KA7240 Model Requirements: KVM Adapter Cable KVM Switch Console Modules KA7176 KM0532 / KM00932...
KM0032 / KM0532 / KM0932 User Manual Sessions The Session page lets the administrator see at a glance all the users currently logged into the Matrix KVM Switch, and provides information about each of their sessions. Console UI Browser UI...
Chapter 8. Port Access The meanings of the headings at the top of the page are fairly straightforward. The headings that might need further explanation are as follows: The information under the Service heading indicates whether the user has logged in via a browser connection (HTTPS), or from a local console. The information under the Console/IP heading indicates: For Console connections: The console’s name followed by a slash, and then the console port number on the switch it is connected to.
Page 140
KM0032 / KM0532 / KM0932 User Manual While Broadcast Mode is in effect, the mouse will not function normally. You must exit Broadcast Mode in order to regain control of the mouse. To exit Broadcast Mode, invoke the GUI (with the Hotkey); select Broadcast...
Chapter 8. Port Access Access The Access page is used to set user and group access rights on a port-by-port basis. Console UI Browser UI...
Page 142
KM0032 / KM0532 / KM0932 User Manual Users and Groups are listed on separate pages – click the appropriate tab at the top of the panel to switch between the pages. To set a user’s access rights for a port, first select the port in the Sidebar tree, then check the appropriate radio buttons in the user’s row.
Chapter 8. Port Access Properties Configuring Port Properties To configure a port’s properties, bring up the Port Properties configuration page, as follows: 1. Under the Port Access tab, select the Properties menu item. 2. Click on the port in the Sidebar –...
Page 144
KM0032 / KM0532 / KM0932 User Manual Browser UI: Port Setting List...
Page 145
Chapter 8. Port Access Console UI: Port Properties Browser UI: Port Properties...
Page 146
KM0032 / KM0532 / KM0932 User Manual An explanation of the configuration fields is given in the table, below: Field Explanation Port Name For convenience – especially in large installations with many switches and ports – each switch and each port can be given a name.
KA7140 Properties When a KA7140 Adapter Cable is used to connect a serial device to the KM0032 / KM0532 / KM0932, in addition to the usual parameters, serial parameters need to be configured, as well. To configure the KA7140 to interact...
KM0032 / KM0532 / KM0932 User Manual 4. Drop down each of the serial parameter lists to select the port property values that match the ones used by the connected serial console device. The port property settings that the KA7140 supports are given in the...
Chapter 8. Port Access If a Power over the NET™ (PON) module is connected to your installation clicking the PON menu item starts a Java Applet viewer that brings up its interface – allowing you to remotely power manage servers connected to the Matrix KVM Switch.
Page 150
KM0032 / KM0532 / KM0932 User Manual This Page Intentionally Left Blank...
Chapter 9 Console Port Operation Overview After you have successfully logged in (see above Logging In, page 37), the Matrix KVM Switch comes up with the Port Access tab's Connections page displayed. Note: Port operations can only be performed from the Console UI. The Browser UI is for configuration purposes only.
KM0032 / KM0532 / KM0932 User Manual The Port Toolbar The switch interface provides a toolbar to help you with port switching operations from within the captured port. To bring up the toolbar, tap the Toolbar Hotkey (Scroll Lock or Ctrl), twice. The toolbar appears at the upper...
Chapter 9. Console Port Operation The Toolbar Icons The meanings of the toolbar icons are explained in the table below. Icon Purpose Click to switch to the station previous to the current one in the Sidebar tree. Click to switch to the station that comes after the current one in the Sidebar tree.
KM0032 / KM0532 / KM0932 User Manual Toolbar Hotkey Port Switching When the toolbar displays, you can use hotkeys to provide KVM focus to a port directly from the keyboard. The Matrix KVM Switch provides the following hotkey features: Auto Scanning...
Chapter 9. Console Port Operation To Resume Auto Scanning after a pause, press any key except [Esc] or the [Spacebar]. Scanning continues from where it left off. While Auto Scan Mode is in effect, ordinary keyboard functions are suspended. You must exit Auto Scan Mode in order to regain normal control of the keyboard.
A computer connected to KVM Port 4 of a switch that is cascaded from KVM Port 15 of a first stage KM0532 / KM0932 would have a Port ID of 15 04. (Single digit port numbers are padded with a preceding zero.) A computer connected to KVM Port 9 of a switch that occupies Station 7 in a daisy chain would have a Port ID of C7 09.
Chapter 9. Console Port Operation Push Video Hotkey The Push Video feature allows a user to push their console’s port connection to another console for viewing or operating in a Share or Occupy mode. To do so; invoke the Hotkey Mode (see above Keyboard Hotkey Port Switching, page 142) and enter the letter P followed by the console number you wish to push your video to.
KM0032 / KM0532 / KM0932 User Manual Hotkey Summary Table The following table summarizes Hotkey operations on the KM0032 / KM0532 / KM0932: Invocation Hotkey Action [Num Lock] + [-] [Port ID] [Enter] Switches access to the computer that corresponds to that Port ID.
Chapter 10 Overview The Matrix KVM Switch logs all the events that take place on it. The log stores a maximum of 512 events. When the limit is reached, the oldest events get discarded as new events come in. To view the contents of the log, click the Log icon.
KM0032 / KM0532 / KM0932 User Manual Browser UI Console UI A listing of the events that have been recorded in the log file appear in the main panel: the time of the event is listed in the left column; a description of the event that occurred at that time is listed to the right.
Page 161
Chapter 10. Log A description of the items is given in the table, below: Item Description Today Select this radio button to filter results for records from the current day only. Select this radio button to filter results for all the records in the log file.
KM0032 / KM0532 / KM0932 User Manual Browser UI Like the Console page, the events that have been recorded in the log file appear in the main panel: the time of the event is listed in the left column; a description of the event that occurred at that time is listed to the right.
Log Server. Installation 1. Log into the KM0032 / KM0532 / KM0932 switch. 2. Click the Download tab and download the Log Server AP program. 3. Go to the location on your hard disk that you downloaded the Log Server program to, and double click its icon (LogSetup.exe) to bring up the...
KM0032 / KM0532 / KM0932 User Manual Starting Up To start the Log Server, either double click the program icon, or key in the full path to the program on the command line. The first time you run it, a screen similar to the one below appears: Note: 1.
Chapter 11. The Log Server The Menu Bar The Menu bar consists of four items: Configure Events Options Help These are discussed in the sections that follow. Note: If the Menu Bar appears to be disabled, click in the List window to enable it.
KM0032 / KM0532 / KM0932 User Manual A description of the fields is given in the table, below: Field Explanation Address This can either be the IP address of the computer the Log Server is running on, or its DNS name.
Chapter 11. The Log Server A description of the items is given in the table, below: Item Description New search This is one of three radio buttons that define the scope of the search. If it is selected, the search is performed on all the events in the database for the selected unit.
KM0032 / KM0532 / KM0932 User Manual Options Network Retry allows you to set the number of seconds that the Log Server should wait before attempting to connect if its previous attempt to connect failed. When you click this item, a dialog box x, similar to the one below, appears: Key in the number of seconds, then click OK to finish.
Chapter 11. The Log Server The Log Server Main Screen Overview The Log Server Main Screen is divided into two main panels. The upper (List) panel lists all of the units that have been selected for the Log Server to track. The lower (Event) panel displays the tick information for the currently selected unit.
KM0032 / KM0532 / KM0932 User Manual The List Panel The List panel contains six fields: Field Explanation Recording Determines whether the Log Server records the ticks for this unit, or not. If the Recording checkbox is checked, the field displays Recording, and the ticks are recorded.
The browser session offers three menu items: Backup/Restore, Firmware Upgrade and Certificates: Backup/Restore allows super administrators to backup KM0032 / KM0532 / KM0932 system configuration settings to a file, and restore configuration settings from previously saved files. Firmware Upgrade allows super administrators to upgrade firmware for connected Matrix KVM Switches, attached console modules, and KVM adapter cables.
KM0032 / KM0532 / KM0932 User Manual The operations performed in the backup/restore procedures are described in the table, below: Procedure Operation Backup Backs up the system configuration – including master station settings, user and group accounts, user profiles, port access rights, and favorites.
Chapter 12. Maintenance 4. Navigate to the directory where you want to save the file and click Save. Restore To restore system configuration settings, do the following: 1. In the Restore panel, click Browse. 2. Navigate to the directory where the backup file is located and select it. 3.
KM0032 / KM0532 / KM0932 User Manual Firmware Upgrade New firmware versions can be downloaded from our website as they become available. Check the website regularly, to find the latest upgrade packages. Under Firmware Upgrade the following devices get upgraded simultaneously:...
Page 175
Chapter 12. Maintenance 4. Click Yes to continue. After a short while, the Firmware Upgrade page comes up: All the stations, consoles and KVM adapters that are capable of being upgraded are listed. Note: Only online stations and consoles, as well as KVM adapters connected to online devices show up in the list.
KM0032 / KM0532 / KM0932 User Manual Firmware Upgrade Recovery Should the switch’s firmware upgrade procedure fail, and the switch becomes unusable, the following firmware upgrade recovery procedure will resolve the problem: 1. Power off the switch. 2. Press and hold the Reset Switch in (see Reset Switch, page 9 for details).
Chapter 12. Maintenance Certificates Private Certificate When logging in over a secure (SSL) connection, a signed certificate is used to verify that the user is logging in to the intended site. For enhanced security, the Private Certificate section allows you to use your own private encryption key and signed certificate, rather than the default ATEN certificate.
Page 178
KM0032 / KM0532 / KM0932 User Manual Note: 1. Clicking Restore Default returns the device to using the default ATEN certificate. 2. Both the private encryption key and the signed certificate must be imported at the same time.
Chapter 12. Maintenance Console UI EDID Information/Update The console session’s Maintenance function has two tabs: Monitor Information, and Update Adapter: Note: Only Super Administrators can use Maintenance functions. Monitor Information The Monitor Information tab provides the console’s EDID (Extended Display Identification Data) which includes;...
Page 180
KM0032 / KM0532 / KM0932 User Manual Update Adapter The Update Adapter tab allows a user to manually update a computers KVM Adapter by sending its EDID information (including monitor resolution) to the dongle for display optimization. To update a computers KVM Adapter simply select it on the Computer/ KVM Adapter list and click: Send.
Overview RS-232 port operation allows Super Administrators or Administrators to establish a serial terminal login to the KM0532 / KM0932 from their computer’s COM port to a Console Module’s RS-232 port. This allows a Super Administrator or Administrator to monitor the usage of all the consoles and all the ports from a single access point.
KM0032 / KM0532 / KM0932 User Manual Connecting Once you establish a connection via your terminal program, the command screen comes up. 1. Press [Enter] to bring up the Username prompt. 2. Key in your username, then press [Enter] to bring up the Password prompt.
RS-232 login attempt. The user profile for the Super Administrator or Administrator logging in over the RS-232 port must exist in the database of the KM0532 / KM0932 that the Console Module is attached to. Access rights: Super Administrators can access consoles and ports that have been given Super Administrator, Administrator, and User access rights.
KM0032 / KM0532 / KM0932 User Manual Command Summary A description of the commands supported with this function is provided in the table below: Command Description This is the Auto Scan Mode command. It is followed by a string that specifies the console, duration, and ports you want to auto scan (see AS, page 172 for details).*...
Page 185
Chapter 13. RS-232 Port Operation * Only online ports that are available to the users that are logged into the Console Module(s) are shown with this command. Examples of the commands are given in the sections that follow.
Where: XX is a two-digit number that represents the console number on the KM0032 / KM0532 / KM0932 you want Auto Scan Mode started. YY represents the scan duration in seconds that Auto Scan Mode will pause for between each port scan.
After this command is issued, the display of the server connected to KVM Port 8 of the switch cascaded from KVM Port 3 of the first stage KM0532 / KM0932 appears on Console 2’s monitor, and Console 2’s keyboard and mouse input goes to the server connected to KVM Port 08 of the switch cascaded from the first stage KM0532 / KM0932’s KVM Port 3.
Page 188
12 of the switch that occupies Station 3 in a daisy chain that links back to the top level KM0532 / KM0932, appears on Console 8’s monitor, and Console 8’s keyboard and mouse input goes to the server connected to KVM Port 12 of the Station 3 switch.
Page 189
Chapter 13. RS-232 Port Operation This command is used to list the KVM port information for all or specified switch ports. The LP command lists the port #, Power On / Off, and port name. The available command are: LP ALL LP ON LP OFF LP XX...
Page 190
Where: XX is a two-digit number that represents the console port number on the KM0532 / KM0932 that the Console Module you wish to access connects For example, LI 04 lists all the available KVM ports that are accessed via the Console Module connected to console module port 4 of the KM0532 / KM0932.
Page 191
Where: XX is a two-digit number that represents the console port number on the KM0532 / KM0932 of the Console Module whose logged in user you wish to list. For example, LU 02 lists the user profile of the user who is logged into the Console Module connected to console module port 2 of the KM0532 / KM0932.
KM0032 / KM0532 / KM0932 User Manual Response Messages After sending RS-232 commands to the KVM switch, the switch will provide a response message notifying the administrator of the status of the action taken. Below is a list of the possible response messages and their meaning.
To allow authentication and authorization via LDAP or LDAPS, the Active Directory’s LDAP Schema must be extended so that an extended attribute name for the KM0032 / KM0532 / KM0932 switch– iKVM0932-userProfile – is added as an optional attribute to the person class.
KM0032 / KM0532 / KM0932 User Manual Install the Active Directory Schema Snap-in To install the Active Directory Schema Snap-in, do the following: 1. Open a Command Prompt. 2. Key in: regsvr32 schmmgmt.dll to register schmmgmt.dll on your Active Directory computer.
Chapter 14. LDAP Server Configuration Extend and Update the Active Directory Schema To extend and update the Active Directory Schema, you must do the following 3 procedures: 1) create a new attribute; 2) extend the object class with the new attribute;...
Page 196
KM0032 / KM0532 / KM0932 User Manual (Continued from previous page.) 5. Fill in the dialog box to match the entries for Description and Common Name shown below, then click OK to complete the procedure. Note: The Unique X500 Object ID uses periods, not commas.
Chapter 14. LDAP Server Configuration Extend the Object Class With the New Attribute To extend the object class with the new attribute, do the following: → → 1. Open the Control Panel Administrative Tools Active Directory Schema. 2. In the left panel of the screen that comes up, select Classes. 3.
Page 198
KM0032 / KM0532 / KM0932 User Manual 5. On the Attributes page, click Add: 6. In the list that comes up, select iKVM0932-userProfile, then click OK to complete the procedure.
Chapter 14. LDAP Server Configuration Editing Active Directory Users To edit Active Directory Users With the Extended Schema, do the following: 1. Run ADSI Edit. (Installed as part of the Support Tools.) 2. In the left panel, open Domain, and navigate to the DC=aten,DC=com CN=Users node.
Page 200
KM0032 / KM0532 / KM0932 User Manual (Continued from previous page.) 5. On the Attribute Editor page of the dialog box that appears, select iKVM0932-userProfile from the list. 6. Click Edit to bring up the String Attribute Editor: (Continues on next page.)
Page 201
Chapter 14. LDAP Server Configuration (Continued from previous page.) 7. Key in the KM0032 / KM0532 / KM0932 permission attribute values. For example: Note: Where user represents the Username of a KM0032 / KM0532 / KM0932 user whose permissions reflect the permissions you want to have.
KM0032 / KM0532 / KM0932 User Manual OpenLDAP OpenLDAP is an Open source LDAP server designed for Unix platforms. A Windows version can be downloaded from: http://download.bergmans.us/openldap/openldap-2.2.29/ openldap-2.2.29-db-4.3.29-openssl-0.9.8a- win32_Setup.exe. OpenLDAP Server Installation After downloading the program, launch the installer, select your language, accept the license and choose the target installation directory.
Chapter 14. LDAP Server Configuration OpenLDAP Server Configuration The main OpenLDAP configuration file, slapd.conf, is found in the /OpenLdap directory. It has to be customized before launching the server. This section provides a quick summary of the modifications to the configuration file in order for it to be used with the Matrix KVM switch, for a complete explanation of OpenLDAP, refer to the official OpenLDAP documentation.
KM0032 / KM0532 / KM0932 User Manual Starting the OpenLDAP Server To start the OpenLDAP Server, run slapd (the OpenLDAP Server executable file) from the command line. slapd supports a number of command line options, the most important option is the d switch that triggers debug information.
Chapter 14. LDAP Server Configuration Customizing the OpenLDAP Schema The schema that slapd uses may be extended to support additional syntaxes, matching rules, attribute types, and object classes. In the case of the Matrix KVM switch, the User class and the permission attribute are extended to define a new schema.
KM0032 / KM0532 / KM0932 User Manual LDAP DIT Design and LDIF File LDAP Data Structure An LDAP Directory stores information in a tree structure known as the Directory Information Tree (DIT). The nodes in the tree are directory entries, and each entry contains information in attribute-value form.
Chapter 14. LDAP Server Configuration (Continued from previous page.) DIT Creation The LDAP Data Interchange Format (LDIF) is used to represent LDAP entries in a simple text format (please refer to RFC 2849). The figure below illustrates an LDIF file that creates the DIT for the KM0932 directory tree. The name of the file is init.ldif and you create it in the /OpenLDAP directory, as follows:...
KM0032 / KM0532 / KM0932 User Manual Using the New Schema To use the new schema, do the following: 1. Save the new schema file (e.g., km0932schema) in the /OpenLDAP/schema/ directory. 2. Add the new schema to the slapd.conf file (in the /OpenLDAP directory), as shown in the figure, below: 3.
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water.
Page 210
KM0032 / KM0532 / KM0932 User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.
KM0032 / KM0532 / KM0932 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, see Telephone Support, page iii: North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation...
Appendix Trusted Certificates Overview When you try to log in to the device from your browser, a Security Alert message appears to inform you that the device’s certificate is not trusted, and asks if you want to proceed. The certificate can be trusted, but the alert is triggered because the certificate’s name is not found on the Microsoft list of Trusted Authorities.
KM0032 / KM0532 / KM0932 User Manual Self-Signed Private Certificates If you wish to create your own self-signed encryption key and certificate, a free utility – openssl.exe – is available for download over the web at www.openssl.org. To create your private key and certificate do the following: 1.
If you are an administrator logging in for the first time, you need to access the KM0032 / KM0532 / KM0932 in order to give it an IP address that users can connect to. There are three methods to choose from. In each case, your computer must be on the same network segment as the KM0032 / KM0532 / KM0932.
2. Specify the switch's default IP address (192.168.0.60) in your browser, and you will be able to connect. 3. Assign a fixed IP address for the KM0032 / KM0532 / KM0932 that is suitable for the network segment that it resides on.
General Problem Solution I can’t use the KA9222 or The KM0032 / KM0532 / KM0932 does not support these KA9272 Console Modules two console modules. Instead, use the KA7230, and with the KM0032 / KM0532 KA7240 Console Modules with the KM0032 / KM0532 / / KM0932.
Page 218
KM0032 / KM0532 / KM0932 User Manual Problem Solution The firmware upgrade See Firmware Upgrade Recovery, page 162. process was prematurely aborted and now some of the modules are inoperable. I can't upgrade the firmware Make sure that you have selected the correct firmware version.
Appendix Sun Systems Problem Solution Video display problems The display resolution should be set to 1024 x 768 @ with HDB-15 interface 60Hz. systems (e.g. Sun Blade Under Text Mode: 1000 servers). 1. Enter the ok prompt (see below) and issue the follow- ing firmware commands: setenv output-device screen:r1024x768x60 reset-all...
Supported KVM Switches The table below lists KVM switches that are compatible with the KM0032 / KM0532 / KM0932 and the type of expansion that they use. (KVM switches listed below are sold separately. Contact your dealer for details.) Expansion Type...
Appendix The maximum distance between the first and last KVM switches in the daisy chain cannot exceed 50 meters. Additional Connection Diagrams Console Modules KA7230 KA7240...
KM0032 / KM0532 / KM0932 User Manual KM0532 / KM0932 Specifications Function KM0532 KM0932 Computer Direct Connections Console Connections Port Selection GUI, Hotkeys Connectors Console Port 5 x RJ-45 Female 9 x RJ-45 Female KVM Port 32 x RJ-45 Female...
Appendix KM0032 Specifications Function KM0032 Computer Direct Connections Port Selection via daisy chain Connectors KVM Port 32 x RJ-45 Female Daisy chain 2 x VHDCI 68 Female (Black) F/W Recovery 1 x RJ-45 Female 1 x RJ-45 Female (Black) Power 2 x 3-prong AC Socket Switches Reset...
KM0032 / KM0532 / KM0932 User Manual Factory Default Settings The factory default settings are as follows (in alphabetical order): Setting Default Accessible Ports Super Administrators – Full for all ports All other users – None for all ports. Beeper On (Activated) Date &...
Appendix Restoring Factory Default Settings You can restore the factory default settings and the default login settings for the Matrix KVM Switch. Note: When restoring the default login settings, all super administrator, administrator, user, and group accounts are deleted. To restore the factory default settings (see page 212), or the default login settings, do the following: 1.
KM0032 / KM0532 / KM0932 User Manual KA7140 Pin Assignments Pin assignments for the KA7140 Adapter are given in the table, below: Assignment DB9 Female About SPHD Connectors This product uses SPHD connectors for its KVM and/or Console ports. We have specifically modified the shape of these connectors so that only KVM cables that we have designed to work with this product can be connected.
Appendix Limited Warranty ALTUSEN warrants this product against defects in material or workmanship for a period of one (1) year from the date of purchase. If this product proves to be defective, contact ALTUSEN's support department for repair or replacement of your unit. ALTUSEN will not issue a refund. Return requests can not be processed without the original proof of purchase.
Page 230
KM0032 / KM0532 / KM0932 User Manual This Page Intentionally Left Blank...
Page 234
Index User Management, 83 Users User management assigning to groups, 93, 97 accounts, 83 removing from groups, 94, 99 User Notice, iii Users and Groups, 93...
Need help?
Do you have a question about the KM0532 and is the answer not in the manual?
Questions and answers
