Air Live BU-3026 User Manual

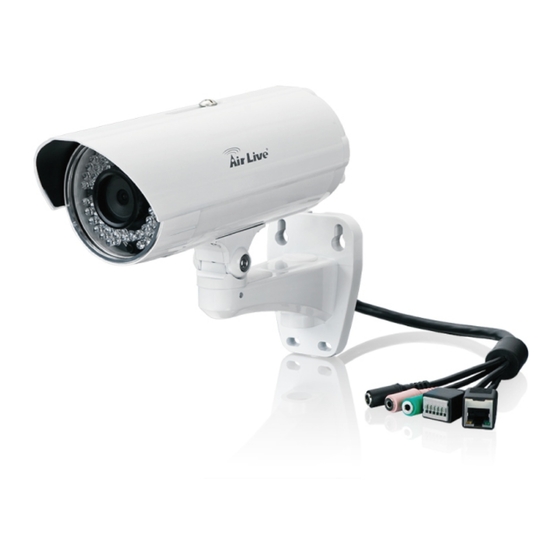

3-megapixel 25 meter wide angle ir bullet type ipcam / 3-megapixel 25 meter wide angle ir bullet type ipcam with video analytics
Hide thumbs Also See for BU-3026:
Table of Contents

Advertisement

Quick Links

Download this manual
BU-3026/BU-3026-IVS
3-Megapixel 25 meter Wide Angle
IR Bullet Type IPCAM /
3-Megapixel 25 meter Wide Angle
IR Bullet Type IPCAM with Video
Analytics
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Air Live BU-3026

Summary of Contents for Air Live BU-3026

  • Page 1 BU-3026/BU-3026-IVS 3-Megapixel 25 meter Wide Angle IR Bullet Type IPCAM / 3-Megapixel 25 meter Wide Angle IR Bullet Type IPCAM with Video Analytics User’s Manual...
  • Page 2 This product contains some codes from GPL. In compliance with GPL agreement, AirLive will publish the GPL codes on our website. Please go to www.airlive.com and go to the "Support->GPL" menu to download source code. All Trademarks are properties of their respective holders. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 3 The lists of entities entitled to receive used equipment can be found on the websites of municipalities. Some components of devices such as external wiring, circuit boards and liquid crystal displays have a negative impact on the environment. AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 4: Table Of Contents

    5.1 Live View....................16 5.2 Configuration ..................18 6. Configuration ...................19 6.1 Network....................20 6.2 Video....................27 6.3 Audio....................34 6.4 Event....................35 6.5 Storage ....................42 6.6 RS-485....................43 6.7 System....................45 6.8 Status ....................51 7. Appendix....................53 A. Video Analytics (Only for BU-3026-IVS) ..........53 AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 5: Overview

    Users are able to view live video streaming over the Internet, and it is not only one of benefits for using AirLive BU-3026/BU-3026-IVS IP cameras. It is also designed to offer high-performance surveillance by being equipped with PoE switch which allows power and data to be transmitted via a single Ethernet cable.

  • Page 6: Features

    Mechanical IR-Cut Filter Removable MicroSD Card Slot for Local Storage Two-Way Audio, DI/DO Clear Motion Technology for Moving Objects WDR Enhanced Compatible with ONVIF Standard Built-in Video Analytics (Equipped only for BU-3026-IVS) Free 64-Channel Recording Software 1.3 Product Specification Model BU-3026/BU-3026-IVS Camera...
  • Page 7 Text, time and date OSD Digital Zoom Audio Encoder G.711 / AMR (Only for 3GPP) Audio Audio Streaming Two-way Audio Input/Output 1 Line in, 1 Line out Network Ethernet Ethernet (10/100 Base-T), RJ-45 IEEE802.3af Wireless None AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 8 Search & Installation-IP Wizard II BU-3026: Motion detection, External input via DI interface, Tamper detection. BU-3026-IVS: Event Triggers Motion Detection, External input via DI interface, Tamper detection, Face Detection, iMotion Detection, Trip Zone, Object Counting, Face recognition, e-Fence. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 9 Internet Explorer 7 or later; Apple Browser Safari 2 or above; Firefox 2.00 or above; Google Chrome Viewing System With 3GPP player, CamPro Mobile for iOS/Android Device iOS/Android device VLC, Quick Time, Real Player, Core Video Player Player AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 10: System Requirement

    Internet Explorer 7 or later; Apple Safari 2 or above; Firefox Web Browser 2.00 or above; Google Chrome Note: Please keep updating the latest Windows software and service package. (Ex: Net Framework, Windows Media Player, Enhance ActiveX Security) AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 11: Package Contents And Installation

    Connector There are various connectors of AirLive BU-3026/BU-3026-IVS as shown in the figures below. Please refer to the diagrams and tables for using of each connector. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 12 2. Package Contents and Installation AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 13 100Mbps Fast Ethernet network switch or hub. 3. Alarm Digital I/O: AirLive BU-3026/BU-3026-IVS supports RS-485, 2 digital alarm inputs and 1 digital alarm output. Please make sure the alarm connections are properly wired. Please refer to the pin definition table below.

  • Page 14: Connect To Ip Camera

    2. Package Contents and Installation 2.3 Connect to IP Camera 1. Insert the bundled CD into your PC/Laptop. 2. Auto Run screen shows up, click “Install Software AirLive IP Wizard II” to install the configuration tool. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 15 2. Package Contents and Installation 3. After completed the installation, run the “Air Live IP Wizard II” to start to search the IP camera. 4. The entire detected IP camera will be listed out. 5. If the Camera’s IP address is in the same IP segment as your LAN, select the founded IP Camera and double click on the item.

  • Page 16: Using Ip Camera Via Web Browser

    You can change them in the Account Menu. (Please check “System → Account”) 3. The monitor image will be displayed in your browser. In the left side of main window, you can configure the settings you want. For more details, please refer to the following chapters. AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 17: Operating Ip Camera Via Ios/Android Device

    You can access into your IP camera via the iOS/Android device. Please follow the setup steps below. 1. Download AirLive CamPro Mobile 2. Execute the AirLive CamPro Mobile program from APP store/Android market. 4. Setup page appears 3. Click Setup button. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 18 4. Operating IP Camera via iOS/Android Device 5. Click Add button 6. Click Auto Search button and select the camera. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 19 9. If camera connects correctly, it 10. The video appears on the main screen. will show blue icon. Note: The image is continuous snapshots, not video. Thus, live image can’t be recorded here. AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 20: Operating The Network Camera

    3. View Options: The device supports multi-profile function for H.264, MPEG4 and JPEG simultaneously. User can choose the proper and/or preferred profile which is listed here. 4. Language: AirLive BU-3026/BU-3026-IVS provide multiple languages to meet customer’s requirement. 5. Digital Output: Switch digital output interface on or off.
  • Page 21 Digital Zoom: From 1X to 10X. Click to full screen first. Click to enable this function. Click to disable it. Scroll up/down to zoom in/out Note: Digital zoom uses computer algorithm to enlarge the video and may lose some details. AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 22: Configuration

    Record: Click it to start recording an AVI file in local storage. Press to stop the recording process. 5.2 Configuration Click “Configuration” for the camera detail settings. For more information, please refer to Chapter 6. AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 23: Configuration

    6. Configuration Configuration Click the “Configuration” to display sub-menus included Network / Video / Audio / Event / Storage / RS-485 / System / Status / Video Analytics. ote: Video Analytics function is only for BU-3026-IVS. AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 24: Network

    6. Configuration 6.1 Network General AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 25 Enable Multicast: Select this option to enable the multicast function of the camera. Complete the following settings so that you can deliver information from your camera to multi receivers. - Multicast Group Address: Assign a category of IP addresses to receive the information from the camera. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 26 To set up the DDNS, select the Provider from the pull-down menu and then enter the required information in the Host Name, User Name and Password text boxes. Note: You have to sign up for DDNS service with the service provider before configuring this feature. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 27 QoS (quality of service): It is the ability to provide different priority to different applications or data flows. - Video DSCP: Assign the DSCP (Diff Serv Code Point) of the stream video from the camera by setting the value from 0 to 63. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 28 IP range in Start/End IP Address of Deny IP Address and then click Add, the user whose IP address located within the range will not be allowed to access into the camera. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 29 TCP Port: Set port number of TCP server. Message: The message will be sent to FTP server. HTTP Notification: Select to enable this function. URL: Type the server name or the IP address of the HTTP server. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 30 HTTP Login name: Type the user name for the HTTP server. HTTP Login Password: Type the password for the HTTP server. iSCSI Enable the iSCSI and key-in server IP address and Port number. The disk of the server will be the storage in IP camera setting. AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 31: Video

    ROI: ROI means Region of Interest. When the main stream is set to High Resolution, user can select specified region for monitoring, this can save the bandwidth if there are too many collision on the network. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 32 Mobile View (Not supported by MPEG4): The camera supports 3GPP specification. Select the Disable option to disable this feature. Otherwise, select 3GPP Without Audio or 3GPP With Audio to transfer the video clips without or with audio. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 33 Please contact your service provider when you are failed to use this service. 2. Exposure Exposure Setting: There are three options (Auto / Manual / Clear Motion). When you select Manual mode, you can adjust Exposure Value, Exposure Time and Gain value of the day and night mode. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 34 The camera switches off the IR cut filter at all times for the sensor to accept infrared light. Schedule: The camera switches between day mode and night mode based on a specified schedule. Enter the start and end time for day mode. ‐ ICR Delay Time: Select from 5s to 30s. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 35 6. Configuration 3. Image Image Setting: Brightness: Adjust the brightness level from 0~255. Contrast: Adjust the contrast level from 0~255. Saturation: Adjust the colors level from 0~255. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 36 WDR Setting: WDR is intended to provide clear images even under backlighting, where the intensity of illumination varies a lot. BLC Setting: Backlight compensation can get ideal exposure of object which is in front of the strong luminance background AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 37 When you select User Define Image, you can click Browse to select the image file from your computer and then click Update to apply the setting. Note: JPG/JPEG file with maximum 65536 bytes. AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 38: Audio

    Enable Speaker: Select the option to enable the camera’s audio out function, so that the connected speaker can play the sound and voice through the camera. 3. Recording File: During an event action, you can upload one audio file in WAV (mono, 8KHZ, <100KB in size) for playback. AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 39: Event

    FTP Server: Select “Enable” to enable the FTP server function. - FTP Server: Enter the IP address of the target FTP server. - User Name: Enter the user name to login into the FTP server. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 40 - Password: Enter the password to login into the Network Storage server. - Test SMB: When done, click the button to test the network storage server function. Note: The recorded video files in Network Storage are enclosed by MP4/AVI format without audio. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 41 - Login Password: Enter the login password of the HTTP server. - Message: Enter the message here. - Test HTTP: Click to test the HTTP server function. 2. Event Schedule Click “Add” for more detail settings. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 42 - Enable TCP: The camera will send instant message when triggered. - Enable SD CARD: Image will be saved into local SD Card when triggered. - Enable HTTP: Camera will send the attachment to HTTP server. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 43 - Audio File Playback: Playback a recorded audio file when triggered. - Modify/Delete: To change/remove the event profile, select the file on the list and click Modify/Delete. Note: To enable the FTP/Email/Samba/TCP/HTTP services, the required settings of must be completed in Event section. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 44 Window 1/2/3: When the detecting area is enabled, you can use the mouse to move the detecting area and change the coverage. Set the Percentage and Sensitivity (1~99) for detecting motion to record video. When done, click Apply to save the settings and activate the motion detection function. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 45 Once a tampering is detected, the camera will resume a normal operating after a certain stability time (Reset Time) during which no detection will be performed. Select Alarm Type specify the activation condition. Statistics Chart Display: You can see the test result of alarm type here. AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 46: Storage

    - Maximum Size of Each File: This option allows you to limit the file size to be uploaded to the server. - Timestamp: Select this option to add the date & time information on the attachment. Schedule: - NAS/File Server: Enter the IP address of the Network Storage/CIFS server. AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 47: Rs-485

    Command 1~5 string boxes, you can customize more buttons and settings for your needs. Please note that the setting values in the Command Name string boxes should be from the connected external device (please refer to the manual of the connected device). AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 48 6. Configuration RS-485>>RS-485 PTZ You can enable RS-485 PTZ function when you have Pan/Tilt Head. AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 49: System

    6. Configuration 6.7 System The System menu contains sub-menus as below. When completed, click Apply to save the settings. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 50 Update Interval. - Manual: Select this option to set the date and time manually. - Synchronize with PC: Select this option and the date & time settings of the camera will be synchronized with the connected computer. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 51 - User Name/Password/Confirm Password: Enter the user’s name you want to add to use the camera. Then, enter the password twice for the new user. When done, click Add to add the new user for the camera. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 52 HTTPS: Select the Enable HTTPS option to enable HTTPS which is a secure protocol to provide authenticated and encrypted communication within your network. - HTTPS Port: Assign a HTTPS port in the text box. The default HTTPS port is 443. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 53 Be aware that you should not turn off the power during updating the firmware and wait for finish message. Furthermore, the firmware upgrade procedure always is risk and do not try to upgrade new firmware if it’s not necessary. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 54 Backup: Click the button to save the current configuration of the camera. Backup to SD CARD Device: Click to save the configuration file to SD card. Configuration Restore: lick Browse to locate the backup file on your PC and then click Restore. AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 55: Status

    The Status menu shows the current status of the camera, including the basic information, audio/video settings, networking configuration, and system logs. 1. Basic It provides the basic information as above. 2. Audio/Video It provides the information including H.264/MJPEG/Mobile View/Audio as below. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 56 6. Configuration 3. Network: It provides the information including IP/LAN as below. 4. System Log: It provides the log information as below. Enable remote log: Enter the IP address to enable the remote log function. AirLive BU-3026/BU-3026-IVS User’s Manual...

  • Page 57: Appendix

    Appendix A. Video Analytics (Only for BU-3026-IVS) BU-3026-IVS provides multiple intelligent video analytics that helps you to save your human resources and reach the goal of automatic surveillance. Please go to Configuration Video Analytics to experience the entire IVS function.
  • Page 58 Calibration (Min. Face Size): Face detection requires the min. face size is 20x20 pixels, so you can use this for reference. Face Enhancement: Enable this function for more accuracy. Image Capture: Enable this function to save the image to Samba server or SD card. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 59 You can save up to 10 face images to the AirLive BU-3026-IVS for recognition, so when the camera catch the face which match the database, the camera will trigger related output devices by necessary reaction.
  • Page 60 Objects must move and stay within the boundary for at least 100 ms. Select Sensitivity to set the detection sensitivity level. Higher sensitivity will make it easier to detect and less objects missing, but more misjudgments. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 61 “Against Traffic”. Select Sensitivity to set the detection sensitivity level. Higher sensitivity will make it easier to detect and less objects missing, but more misjudgments. Select People / Vehicles / Anything as the detected objects. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 62 You may choose one way or two way directions for counting. The numbers can be displayed on screen and saved to the database. It is also useful to calculate the amount of traffic flow on the highway. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 63 This function can be used in many applications, either as a standalone protection system or other protection systems such as airports, power plants, radio towers or even military camps. AirLive BU-3026/BU-3026-IVS User’s Manual...
  • Page 64 15 points at most can be used in each zone. Select Delete Zone/All to delete the zones. Select Enable/Disable to allow the trigger or not. Statistics Chart Display: Here will show the detection result of e-Fence. AirLive BU-3026/BU-3026-IVS User’s Manual...
