Clifford Matrix RS2 Installation Manual page 11

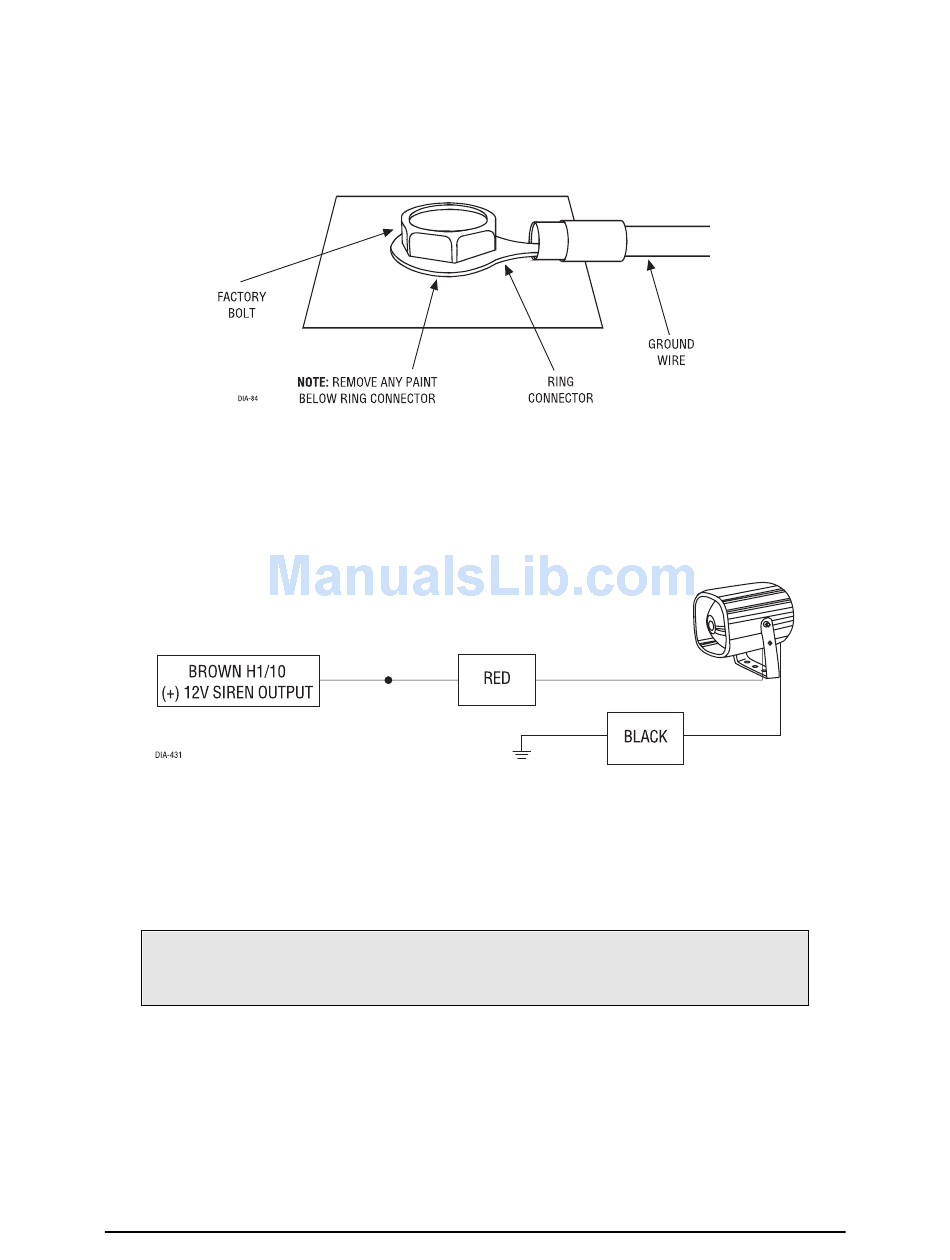

H1/8 BLACK (-) Chassis Ground Connection
Remove any paint and connect this wire to bare metal, preferably with a factory bolt rather than
your own screw. (Screws tend to either strip or loosen with time.) We recommend grounding all
your components, including the siren, to the same point in the vehicle.
H1/10 BROWN (+) Siren Output
Connect this to the red wire of the siren. Connect the black wire of the siren to (-) chassis ground,
preferably at the same point you connected the control module's black ground wire.
H1/11 RED (+)12V Constant Power Input
Before connecting this wire, remove the supplied fuse. Connect to the battery positive terminal or
the constant 12V supply to the ignition switch.
IMPORTANT! Always use a fuse within 12 inches of the point you obtain (+)12V. Do
not use the 15A fuse in the harness for this purpose. This fuse protects the module
itself.
H1/12 RED/WHITE Channel 2, (-) 200 mA Output
When the system receives the code controlling Channel 2, for longer than 1.5 seconds, the
red/white wire will supply an output as long as the transmission continues. This is often used to
operate a trunk/hatch release or other relay-driven function.
