Summary of Contents for VTech VT1010

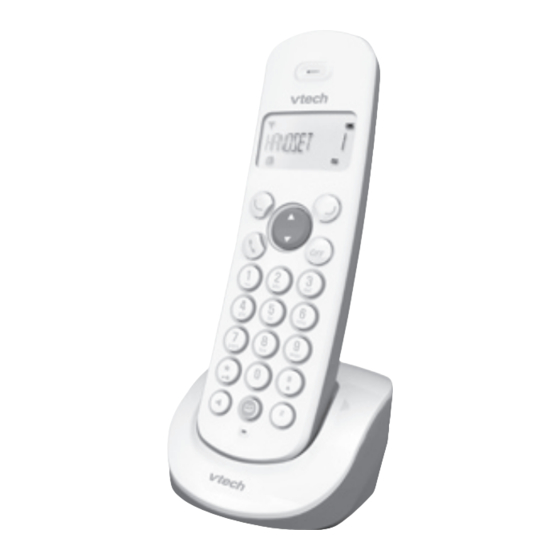

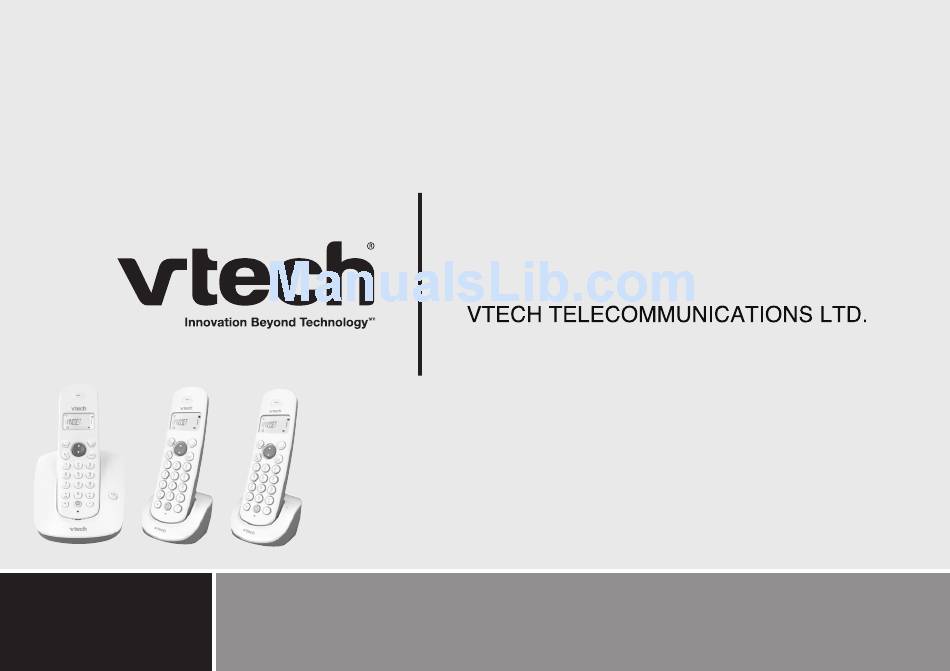

- Page 1 User’s manual w w w . v t e c h . c o m DECT Model: VT1010/VT1010T VT1515/VT1616...
-
Page 2: Table Of Contents
Delete the Entire Private Phonebook ......16 Make an internal call ..11 Check the Phonebook Usage ........16 (for VT1010T / VT1515 / VT1616 only) Intercom Another Handset Text and Digit Entry Table .......... 17 (for VT1010T / VT1515 / VT1616 only) .......11 www.vtech.com... - Page 3 Rename the Handset ..........22 Set Handset Display ...........22 Set the Auto Answer ...........23 Date and Time Settings ........23 Change the Date Format ..........23 Change the Time Format ...........23 Set the Time ...............24 Set the Date ..............24 Reset your Phone ............24 www.vtech.com...
-
Page 4: Important Safety Instructions
12)Please note the correct polarity while inserting the batteries. 13)Do not immerse batteries in water, do not place in fire. If you have questions about this product, or having difficulty with setup or operation, call our Vtech Electronics ( HK LTD). Customer Service Centre : 852-2776 3223... -
Page 5: Setting Up The Telephone
Setting up the telephone Package contents The package for the VT1010/VT1010T/VT1515/VT1616 contains the following items: VT1010 VT1010T VT1515 / VT1616 • 1 Handset • 2 Handsets • 3 Handsets • 1 Base station • 1 Base station • 1 Base station •... -
Page 6: Connecting The Telephone
Thus, first charge the battery before you connect the unit with the telephone network. The unit will function only if it is charged completely. Socket for telephone connection cord Socket for mains cable www.vtech.com... -
Page 7: Installing And Charging The Batteries
4) Put the handset on the base and charge for 14 hours first time. A beep indicates that the handset is properly placed on the base or charger. Use only the power pack provided for the base station. Use only NiMH rechargeable batteries. www.vtech.com... -
Page 8: Getting To Know Your Phone
In idle / predialing mode: Press to insert a flash During a call: Press to decrease the volume During a call: Press to dial a flash In ringing: Press to decrease the ringer volume 11. MICROPHONE 12. EARPIECE www.vtech.com... -
Page 9: Overview Of The Base Station
Press the Page on the base station to page your handset. It will ring for approximately 60 seconds. Press on the handset or on the base to stop the paging. 2. Charging cradle for the handset. Charging cradle for the handset. Page key www.vtech.com... -
Page 10: Displays, Keys , Icons
Indicate a call is in progress. Indicate that handsfree is being used. Indicate that the ringer is switched off. Steady when an alarm is set. Flash when the alarm time set before reaches. Indicate that the keypad is locked. www.vtech.com... - Page 11 Press to conduct Intercom call when idle (INT) Press to go back to previous menu level or cancel the current action if applicable (BACK) Press to clear a character or stop the alarm if applicable, press to mute / unmute during a call. www.vtech.com...
-
Page 12: Using Your Phone
Call timer Your handset automatically times the duration of every call. The call timer will display a few seconds after the call has made. It is shown in hours, minutes and seconds format (HH:MM:SS). www.vtech.com... -
Page 13: Answer A Call
In idle, press and hold to turn off the handset ringer. The icon is displayed on the LCD. Turn on the Keypad Lock In idle, press and hold to turn on the keypad lock. The icon is displayed on the LCD www.vtech.com... -
Page 14: Make An Internal Call (For Vt1010T / Vt1515 / Vt1616 Only)
5. Press and hold on the calling handset to establish the conference call. Any handset hangs up during a conference call will leave the other handset still in connection with the external call. www.vtech.com... -
Page 15: Redial
DELETE. 4. Press OK to confirm. Delete the Entire Redial List 1. In idle mode, press to access the redial list 2. Press to select the desire number 3. Press to select DELETE ALL. 4. Press OK to confirm. www.vtech.com... -
Page 16: Call List
ADD TO PB. 4. Press OK to enter the name. 5. Press OK and the selected call list number is displayed. 6. Edit the number if necessary. 7. Press OK and to select the melody. 8. Press OK to confirm. www.vtech.com... -
Page 17: Delete An Entry In The Call List
Press to select CALL LIST Press to select DETAILS. 2. Press to select the desired entry. 3. Press to select DETAILS. 4. Press the date and time of the selected call list entry display. www.vtech.com... -
Page 18: Phonebook
2. Press to select the desired phonebook entry. 3. Press to select EDIT. 4. Press the current contents of the selected phonebook entry displays. 5. Edit the name and press OK. 6. Edit the number and press OK www.vtech.com... -
Page 19: Delete A Phonebook Entry
You can check how many phonebook entries have been occupied in your phone and how many phonebook entries are available for you to store in the phonebook. 1. Press to access the phonebook. 2. Press to select PB STATUS. 3. Press OK to confirm. www.vtech.com... -
Page 20: Text And Digit Entry Table
1. Once a character is selected, the cursor will move to the next position after a short pause. 2. You can move the cursor within the text by to amend the text entry. 3. Press to delete the last character. 4. Press and hold to delete the entire text string. Particular key characters table: www.vtech.com... -
Page 21: Base Settings
You can locate the handset by pressing on the base station. All the handsets registered to the base will produce the paging tone and “PAGING…” is displayed on the LCD. You can stop the paging by pressing any handset or on the base again. www.vtech.com... -
Page 22: Handset Settings
During paging or ringing, the alarm will not sound when the alarm time is reached. However, if snooze function is enabled, the alarm will sound again at the end of the snooze period provided that it’s not ringing or in paging mode at the end of the snooze period www.vtech.com... -
Page 23: Ringer Setup
(a total of 6 ringer volume levels including ringer VOLUME OFF). volume will If VOLUME OFF is selected, <Ringer Off> icon will display. be played 5. Press OK to confirm. during your selection. www.vtech.com... -
Page 24: Tone Setup
1. Press to select HS SETTINGS. 2. Press OK and to select TONE SETUP. 3. Press OK and to select OUT OF RANGE 4. Press OK and to turn on or off these tones. 5. Press OK to confirm. www.vtech.com... -
Page 25: Set The Handset Language
You can choose to display time or handset name in your idle screen. 1. Press to select HS SETTINGS. 2. Press OK and to select HS DISPLAY. 3. Press OK and to select HANDSET NAME or TIME. 4. Press OK to confirm. www.vtech.com... -
Page 26: Set The Auto Answer
HS SETTINGS. 2. Press OK and to select DATE & TIME. 3. Press OK and to select TIME FORMAT. 4. Press to select your desired time format (12 HR or 24 HR). 5. Press OK to confirm. www.vtech.com... -
Page 27: Set The Time
1. Press to select DEFAULT. 2. Press OK and you are requested to enter the 4-digit system PIN. 3. Enter the 4-digit system PIN. 4. Press OK to confirm. 5. Press OK to re-confirm. www.vtech.com... -
Page 28: Troubleshooting
Please contact the technical support of the network provider for further information. This telephone is not equipped with a grounding function! Therefore some of the functions may be limited when used in PBX systems. For technical support, call VTech Technical Inquiry Hotline Tel: 852-2667 7433. www.vtech.com... -
Page 29: Technical Specification
Weight of a base: 134.3g (without adaptor) 230V 300mA Weight of a handset: 116.26g (with battery) Charger station power supply: 230V 200mA Weight of a charger: 40.3g (without adaptor) Handsets operationg time: Power pack: HongKong standby / talk time approx. 100hrs / approx. 10hrs www.vtech.com... - Page 30 VTech Electronics (HK) Ltd. 21/F, C.N.T. House, No. 120 Johnston Road,Wan Chai, Hong Kong. Customer Service Center Tel: 852-2776 3223 Technical Inquiry Hotline Tel: 852-2667 7433 91-002202-010-100...
