SANTOS :
140-150 AVENUE ROGER SALENGRO
69120 VAULX-EN-VELIN (LYON) - FRANCE
SANTOS : Instruction and maintenance manual
TÉL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 -
TELECOPIE 33 (0) 478 26 58 21
E-Mail :santos@santos.fr
!
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs
mélangeurs - Pétrin - Râpes à fromage - Broyeurs à glaçons - Hache-viande - Coupe-légumes
98150 US 4.4 - 04 2012
www.santos.fr
USER AND MAINTENANCE MANUAL
IMPORTANT: documents included in this manual to be kept:
• "CE" COMPLIANCE DECLARATION
• WARRANTY CERTIFICATE
Translation of the original version
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS

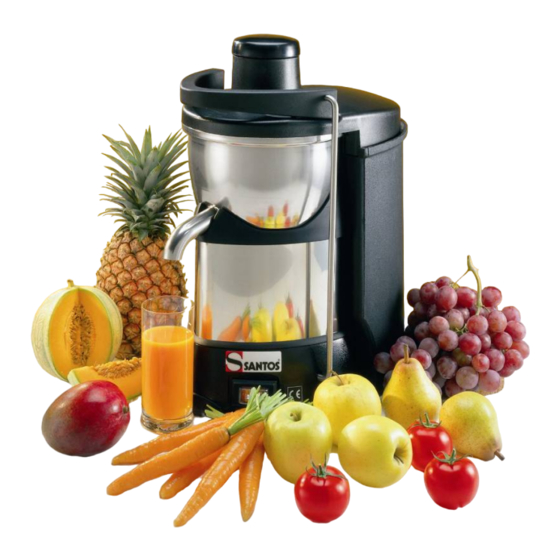

JUICE EXTRACTOR # 50
1/18
www.santos.fr
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Santos 50
Summary of Contents for Santos 50
- Page 1 SANTOS : 140-150 AVENUE ROGER SALENGRO 69120 VAULX-EN-VELIN (LYON) - FRANCE SANTOS : Instruction and maintenance manual TÉL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 - TELECOPIE 33 (0) 478 26 58 21 E-Mail :santos@santos.fr...
-
Page 2: Table Of Contents
USING FOR THE 1st TIME: ................... 5 RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE ......5 JUICE EXTRACTOR #50 and basket ................6 USING FOR THE FIRST TIME: ..................6 USING THE MACHINE FOR THE FIRST TIME: ............6 Assembly and preparation: .................. -
Page 3: Ce" Compliance Declaration
SANTOS : Instruction and maintenance manual “CE” COMPLIANCE DECLARATION THE MANUFACTURER: SANTOS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE declares that the appliance intended for the professional market described below: Description: Juice extractor Type number: 50, 50C complies with: •... -
Page 4: Important Safeguards
5. The machine must not be left to operate without supervision. Do not use abrasive sponge for cleaning the basket 7. Use of spare parts other than certified original SANTOS parts is prohibited 8. This appliance is not designed for use by people (including children) whose... -
Page 5: Electrical Connection
SANTOS : Instruction and maintenance manual ELECTRICAL CONNECTION: The juice extractor no. 50 is available in two voltages for the electrical power supply • 220-240V 50/60 Hz single phase • 110-120V 50/60 Hz single phase Line protection: the appliance should be connected to a standard 2-pole + earth electric socket. -
Page 6: Juice Extractor #50 And Basket
SANTOS : Instruction and maintenance manual JUICE EXTRACTOR #50 and basket • Robust and very well-constructed (components made of cast aluminum, engineered plastic and 18/10 stainless steel plate), this juice extractor is particularly suitable for extracting juice and making coulis and sauce juices from... -
Page 7: Using
SANTOS : Instruction and maintenance manual Using: 1. Start the machine by putting the On / Off switch (11) to the 1 position; the indicator will light up. 2. Place the recipient under the bowl spout (4) 3. Introduce the fruits or vegetables into the cover feed channel (2) and push them onto the rotating grater with the fruit plunger (3). -
Page 8: How To Stop The Machine
SANTOS : Instruction and maintenance manual HOW TO STOP THE MACHINE The machine can be stopped in several ways: • by using the On / Off switch (11), • by operating the bowl (4) cover (2) clamping handle (1) • by unplugging the mains cord plug (10) -
Page 9: Safety / Maintenance
Correct the problem and press the On / Off switch (11) (position 1). If the problem persists, switch off the power supply to the machine (unplug the cord from the mains socket (10)) and call in the maintenance service or contact a SANTOS approved dealer. -
Page 10: Discharging The Capacitor
SANTOS : Instruction and maintenance manual Discharging the capacitor: Use a screwdriver with insulated handle to touch the 2 connectors on the capacitor (13). The appearance of an electric arc shows that the capacitor has discharged. Spare Parts : IMPORTANT: Use of spare parts other than certified original... -
Page 11: Fault Finding
SANTOS : Instruction and maintenance manual FAULT FINDING First identify exactly why the machine stopped. The machine will not start: • Check: the mains power supply and the condition of the power supply cord, • Check: the position of the juice bowl on the motor unit, the position of the cover on the juice bowl, and the locking of the clamping handle on the cover. -
Page 12: Reference To Standards
SANTOS : Instruction and maintenance manual REFERENCE TO STANDARDS The juice extractor No. 50 complies with the following European standards: • CE (Europe) checked by the LNE National Test Laboratory. • GS (Germany) checked by the LNE National Test Laboratory. -
Page 13: Electrical Wiring Diagram 110-120V 50/60Hz
SANTOS : Instruction and maintenance manual Electrical wiring diagram 110-120V 50/60Hz Blue Condensateur White White 1 Blue Relais de démarrage Marche / Arrêt U< Black Black 3 White White White Interrupteur (Freinage) Black Black GREEN/YELLOW Masse moteur GREEN/YELLOW Masse virole 13/18 98150 US 4.4 - 04 2012... -
Page 14: Electrical Wiring Diagram 220-240V 50/60Hz
SANTOS : Instruction and maintenance manual Electrical wiring diagram 220-240V 50/60Hz Blue Condensateur White White 1 Blue Relais de démarrage Marche / Arrêt Black U< Black interrupteur (Freinage) Black Black GREEN/YELLOW 5 Masse moteur GREEN/YELLOW Masse virole 14/18 98150 US 4.4 - 04 2012... -
Page 15: Translation Chart For Electrical Components
SANTOS : Instruction and maintenance manual TRANSLATION CHART FOR ELECTRICAL COMPONENTS Moteur Motor Condensateur Capacitor Relais de démarrage Start relay Interrupteur (freinage) Switch (brake) Marche / Arrêt On / Off Masse moteur Motor ground Masse virole Shell ground TRANSLATION CHART FOR WIRE COLORS... -
Page 16: Figures
SANTOS : Instruction and maintenance manual Figures : Figure 2 Figure 3 Figure 1 Figure 6 Figure 4 Figure 5 Figure 7 Figure 8 16/18 98150 US 4.4 - 04 2012 www.santos.fr... - Page 17 SANTOS : Instruction and maintenance manual 17/18 98150 US 4.4 - 04 2012 www.santos.fr...
-
Page 18: Warranty Certificate
In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.
