SANTOS SAS :
140-150 AVENUE ROGER SALENGRO
69120 VAULX-EN-VELIN (LYON) - FRANCE
PHONE 33 (0) 472 37 35 29 -
SANTOS: Instruction and Maintenance Manual
FAX 33 (0) 478 26 58 21
E-Mail :santos@santos.fr
USER AND MAINTENANCE MANUAL
!
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers - Dough mixer
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs
mélangeurs - Pétrin - Râpes à fromage - Broyeurs à glaçons - Hache-viande - Coupe-légumes
98132 EN 2.2 - 03 2014
www.santos.fr

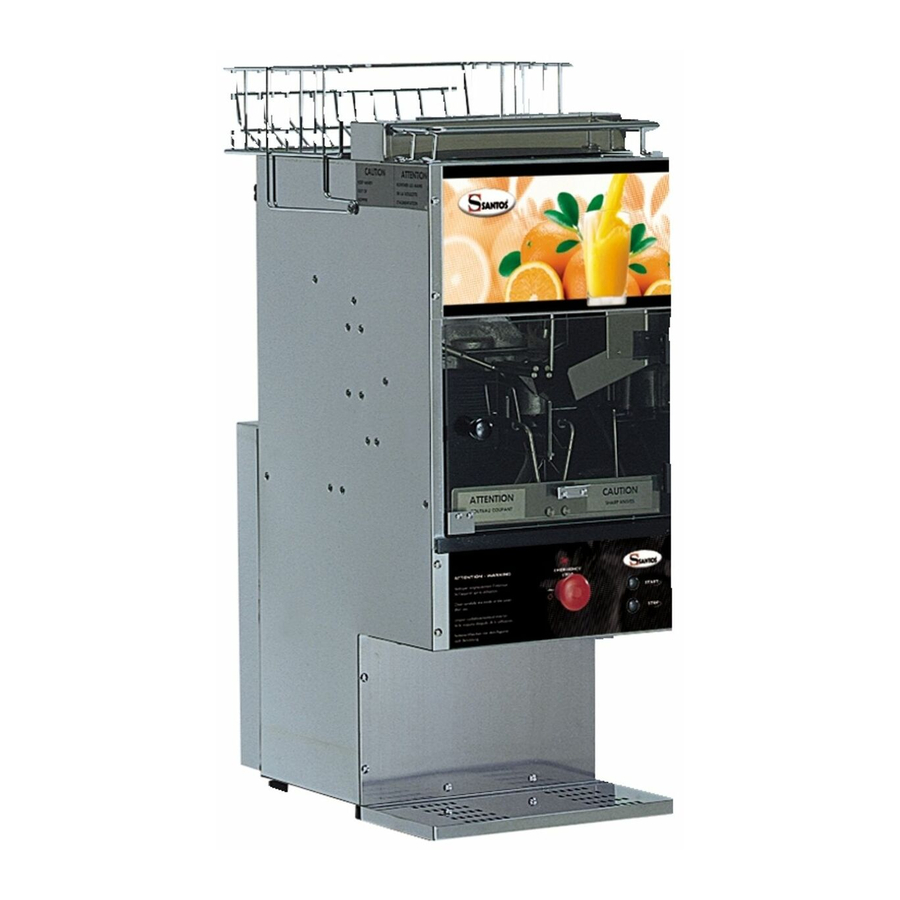

AUTOMATIC ORANGES JUICER # 32
IMPORTANT: documents included in this manual to be kept:
• "CE" COMPLIANCE DECLARATION
• WARRANTY CERTIFICATE
Translation of the original version
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS
1 / 27
www.santos.fr
Advertisement
Table of Contents
Related Manuals for Santos 32
Summary of Contents for Santos 32
- Page 1 SANTOS: Instruction and Maintenance Manual FAX 33 (0) 478 26 58 21 E-Mail :santos@santos.fr www.santos.fr AUTOMATIC ORANGES JUICER # 32 USER AND MAINTENANCE MANUAL IMPORTANT: documents included in this manual to be kept: • "CE" COMPLIANCE DECLARATION • WARRANTY CERTIFICATE...
-
Page 2: Table Of Contents
SANTOS: Instruction and Maintenance Manual CONTENTS “CE” COMPLIANCE DECLARATION ........................3 IMPORTANT SAFEGUARDS ............................4 IMPROPER USE ................................4 ELECTRICAL CONNECTION: ........................... 4 PREPARING THE APPLIANCE FOR USE FOR THE 1 TIME ................5 RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE ..............5 DESCRIPTION OF THE APPLIANCE ........................ -
Page 3: Ce" Compliance Declaration
SANTOS: Instruction and Maintenance Manual “CE” COMPLIANCE DECLARATION THE MANUFACTURER: SANTOS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE declares that the appliance intended for the professional market described below: Description: Automatic oranges juicer Type number: 32, 32T, 32BAC complies with: •... -
Page 4: Important Safeguards
SANTOS dealer or from SANTOS itself. 6. The use of spare parts other than certified SANTOS original parts is prohibited. 7. Do not use the appliance if the power supply cord is damaged. It must be replaced by either a SANTOS approved dealer or a person with similar qualifications to avoid any danger. -
Page 5: Preparing The Appliance For Use For The 1St Time
or on the identification plate on the last page of this manual. • If the power cable is damaged, it should be replaced by a SANTOS approved dealer, SANTOS or a person with similar qualifications to avoid any danger. -
Page 6: Description Of The Appliance
SANTOS: Instruction and Maintenance Manual DESCRIPTION OF THE APPLIANCE The number 32 automatic orange juicer consists in 6 major parts : - oranges’hopper (1) - chute (2) with dumper (3) - knife (4) - squeezer’s holder (5) ,with selector and... -
Page 7: Using The Machine
SANTOS: Instruction and Maintenance Manual 2) A special table fitted with: A receptacle (1) receiving a plastic bag or a bin to collect the skin at the rear. A glass holder (2). Net weight : 52.8 lbs (24 Kg) Shipping weight : 63.8 lbs (29 Kg) -
Page 8: Disassembly And Assembly Of Knife And Filler
SANTOS: Instruction and Maintenance Manual Disassembly and assembly of knife and filler Preliminary Steps: Stop the machine with the “Pause”button, squeezers in upper position Unplug the machine Unlock and open the door. Operating procedure: Removal : Follow the preliminary steps... -
Page 9: Installation And Removal Of The Cones
SANTOS: Instruction and Maintenance Manual Installation and removal of the cones Preliminary Steps: Stop the machine using the “pause” button (squeezing upper position) Unplug the machine Unlock and open the door Remove the knife Operating procedure: Removal Follow the preliminary steps... -
Page 10: Adjusting The Juice Extraction Pressure
SANTOS: Instruction and Maintenance Manual Adjusting the juice extraction pressure The extraction pressure is considered as suitable when the maximum of juice is extracted without tearing the orange skin. The extraction pressure thus depends on the skin thickness and variety of oranges. - Page 11 SANTOS: Instruction and Maintenance Manual Ingredients : Tools : - Jet or non-abrasive sponge or soft - Hot water (high pressure excluded). cloth - Cold water (high pressure excluded) - Portable pressure water sprayer, - Disinfectant solution with adjustable pressure, 5 liters capacity is provided with the machine.
-
Page 12: Maintenance
SANTOS: Instruction and Maintenance Manual MAINTENANCE Prior to carrying out any intervention on the appliance, it must be disconnected from the mains without fail. In order to ensure correct operation of the orange juicer, the following table shows the maintenance operations and frequencies to be complies with. -
Page 13: Replacing Springs
SANTOS: Instruction and Maintenance Manual Replacing springs Spares Springs 1 and 2 (réf. 32 279). Springs 3 (ref 32245) and 4 (ref. 32 244). Springs 5(ref 32 327) and 6 (ref.32 326) Springs 7 and 8 (ref. 32 261). Springs (ref144) Preliminary steps : Stop the machine by the “PAUSE”... - Page 14 SANTOS: Instruction and Maintenance Manual Replace springs 3, 4, 5 and 6 with caution Remove the rear protective cover and rear upper panel Replace both springs (7 and 8) taking care to well position the hooking loops for new springs in the grooves of plastic hinge bushes...
-
Page 15: Checking The Rubber Boot And The Main Shaft
SANTOS: Instruction and Maintenance Manual Checking the rubber boot and the main shaft Ingredients : tools : Grease STRUCTOVIS POO - Screwdriver Water Replace if required Rubber foot (ref 32432) Preliminary Steps Switch off the machine using the pause button, squeezers in upper position... -
Page 16: Checking The Drive Mechanism
Driving gear ref 32 666 (13 teeth) Bending gear ref 32 555 Driven gear ref 32 520 Chain ref 32 582 (70 links) for 60 Hz, réf :32 583 (64 links) for 50 Hz Complete chain device ref 32 540 Bending spring ref 32 560... - Page 17 SANTOS: Instruction and Maintenance Manual Complementary Steps: Install the lower front panel Plug the machine 98132 EN 2.2 - 03 2014 17 / 27 www.santos.fr...
-
Page 18: Spare Parts
SANTOS: Instruction and Maintenance Manual Spare parts: IMPORTANT: Use of spare parts other than certified original SANTOS parts is prohibited This machine requires no specific maintenance. The bearings are lubricated for life. If any intervention is necessary to replace parts subject to wear, such as the cones, springs or other components, please refer to the parts lists (see the exploded view at the end of this manual). -
Page 19: Wiring Diagram 220-240V 50Hz
SANTOS: Instruction and Maintenance Manual Wiring diagram 220-240V 50Hz 98132 EN 2.2 - 03 2014 19 / 27 www.santos.fr... -
Page 20: Wiring Diagram 220-240V 60Hz
SANTOS: Instruction and Maintenance Manual Wiring diagram 220-240V 60Hz 98132 EN 2.2 - 03 2014 20 / 27 www.santos.fr... -
Page 21: Wiring Diagram 110-120V 60Hz
SANTOS: Instruction and Maintenance Manual Wiring diagram 110-120V 60Hz 98132 EN 2.2 - 03 2014 21 / 27 www.santos.fr... -
Page 22: Exploded Views
SANTOS: Instruction and Maintenance Manual Exploded views Plate 1: Steel sheet construction / body and electrical controls 98132 EN 2.2 - 03 2014 22 / 27 www.santos.fr... - Page 23 SANTOS: Instruction and Maintenance Manual Plate 2 : Squeezer holder assembly 98132 EN 2.2 - 03 2014 23 / 27 www.santos.fr...
- Page 24 SANTOS: Instruction and Maintenance Manual Plate 3 : Knife assembly and tank assembly 98132 EN 2.2 - 03 2014 24 / 27 www.santos.fr...
- Page 25 SANTOS: Instruction and Maintenance Manual Plate 4 : Geared-motor support assembly 98132 EN 2.2 - 03 2014 25 / 27 www.santos.fr...
- Page 26 SANTOS: Instruction and Maintenance Manual Plate 5 : Geared-motor assembly 98132 EN 2.2 - 03 2014 26 / 27 www.santos.fr...
-
Page 27: Warranty Certificate
In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.
