USER AND MAINTENANCE MANUAL
IMPORTANT: documents included in this manual to be kept:
*408.006 - *408.013 - *408.106
Model no 10
408006-013-070-106-170 en ma 2010.12

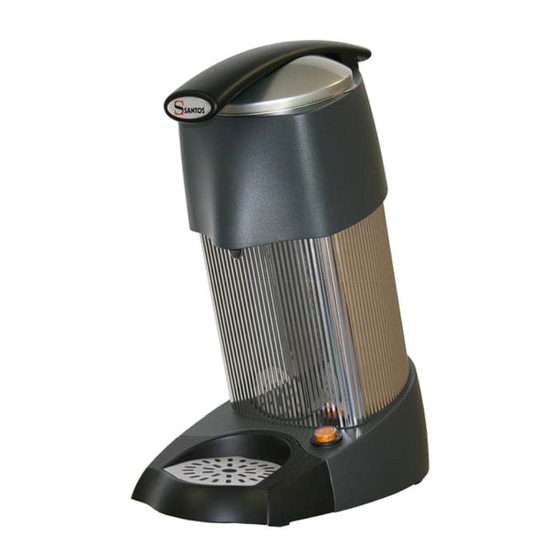

CITRUS JUICER WITH LEVER no 10
CITRUS JUICER WITH LEVER no 70
• "CE" COMPLIANCE DECLARATION
• WARRANTY CERTIFICATE
*408.070 - *408.170
Model no 70
1/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10 and is the answer not in the manual?

Questions and answers

Related Manuals for Santos 10

Summary of Contents for Santos 10

  • Page 1 CITRUS JUICER WITH LEVER no 10 CITRUS JUICER WITH LEVER no 70 USER AND MAINTENANCE MANUAL IMPORTANT: documents included in this manual to be kept: • “CE” COMPLIANCE DECLARATION • WARRANTY CERTIFICATE *408.006 - *408.013 - *408.106 *408.070 - *408.170...

  • Page 2: Table Of Contents

    The appliance stops after the motor has overheated: ....................8 The appliance stops following an overload: ......................8 The motor operates but the cone does not rotate:.....................8 REFERENCE TO STANDARDS..........................8 MACHINE TECHNICAL SPECIFICATIONS ........................9 .................................10 IRING DIAGRAM ..................................11 IGURES WARRANTY CERTIFICATE ...........................13 APPLIANCE IDENTIFICATION PLATE.......................13...

  • Page 3: Ce" Compliance Declaration

    Description: CITRUS JUICER WITH LEVER Type number: 10, 10C, 10CC, 70, 70C complies with: the statutory provisions defined in appendix 1 of the European "machines" directive n°2006/42/CE and the national legislation transposing it the statutory provisions of the following European directives and regulations: o N°...

  • Page 4: Important Safeguards

    6. Unplug the appliance before carrying out any work on it: cleaning, maintenance or repair. 7. The use of spare parts other than certified SANTOS original parts is prohibited. ELECTRICAL CONNECTION: The appliance's power supply is available in two single-phase voltages:...

  • Page 5: Preparing The Appliance For Use For The 1St Time (Fig. A )

    – Professional Equipment section – so that it can be either recycled or disassembled in order to reduce any impact on the environment. For further information, please contact your dealer or SANTOS.. For the disposal or recycling of the appliance components, please refer to a specialist company or contact SANTOS.

  • Page 6: Description Of The Appliance

    (2), o a lever to press the fruit down (1), o mechanical clutch. Citrus Juicer n°10 is designed for extracting juice from oranges and lemons. Citrus Fruit Squeezer n°70 is designed for extracting juice from oranges, lemons and grapefruit.

  • Page 7: Maintenance

    5. Remove the glass-holder (8), the grid (10) and rinse under running water. 6. Model n°10: When more thorough cleaning is required, the pressing cup (3) must be removed. To do this, unscrew it by turning it anti-clockwise (Fig. B and Fig. C).

  • Page 8: Fault Finding

    Wait for the motor to cool down (25 to 45 minutes) then press the On / Off switch (6) ("1-On" position). If the problem persists, switch off the power supply to the machine (unplug the cord from the mains socket) and call in the maintenance service or contact a SANTOS approved dealer. The appliance stops following an overload: If the motor stalls during operation, release the pressure on the lever to allow it to start again.

  • Page 9: Reference To Standards

    EN 60335-2-64 :2004 Part 2-64: Particular requirements for commercial electric kitchen machines. UL (USA) and cUL (Canada). NSF (USA). MACHINE TECHNICAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS (1) n° 10 n° 70 Model 110-120 220-240 110-120 220-240 Power supply voltage (Hz)

  • Page 10: Wiring Diagram

    Wiring diagram Black Yellow Grey White Capacitor On / Off Blue White White Brown Green Yellow 98110 EN 4.1 - 12 2010 10 / 13 www.santos.fr 10/13 408006-013-070-106-170 en ma 2010.12...

  • Page 11: Figures

    Fig. B’ MARK Description MARK Description Pressure lever On / Off switch Cone Motor unit Pressing cup Glass holder Splash guard Juice container Glass support grid 98110 EN 4.1 - 12 2010 11 / 13 www.santos.fr 11/13 408006-013-070-106-170 en ma 2010.12...
  • Page 12 Fig. B Unscrewing Fig. C Fig. E 98110 EN 4.1 - 12 2010 12 / 13 www.santos.fr 12/13 408006-013-070-106-170 en ma 2010.12...

  • Page 13: Warranty Certificate

    Our guarantee does not extend to the payment of penalties, the repair of direct or indirect damages and notably to any loss of income resulting from the nonconformity or the defectiveness of products, SANTOS's global responsibility being limited to the sale price of the delivered product and to the possible repair of the defective products.

This manual is also suitable for:

70

Table of Contents
