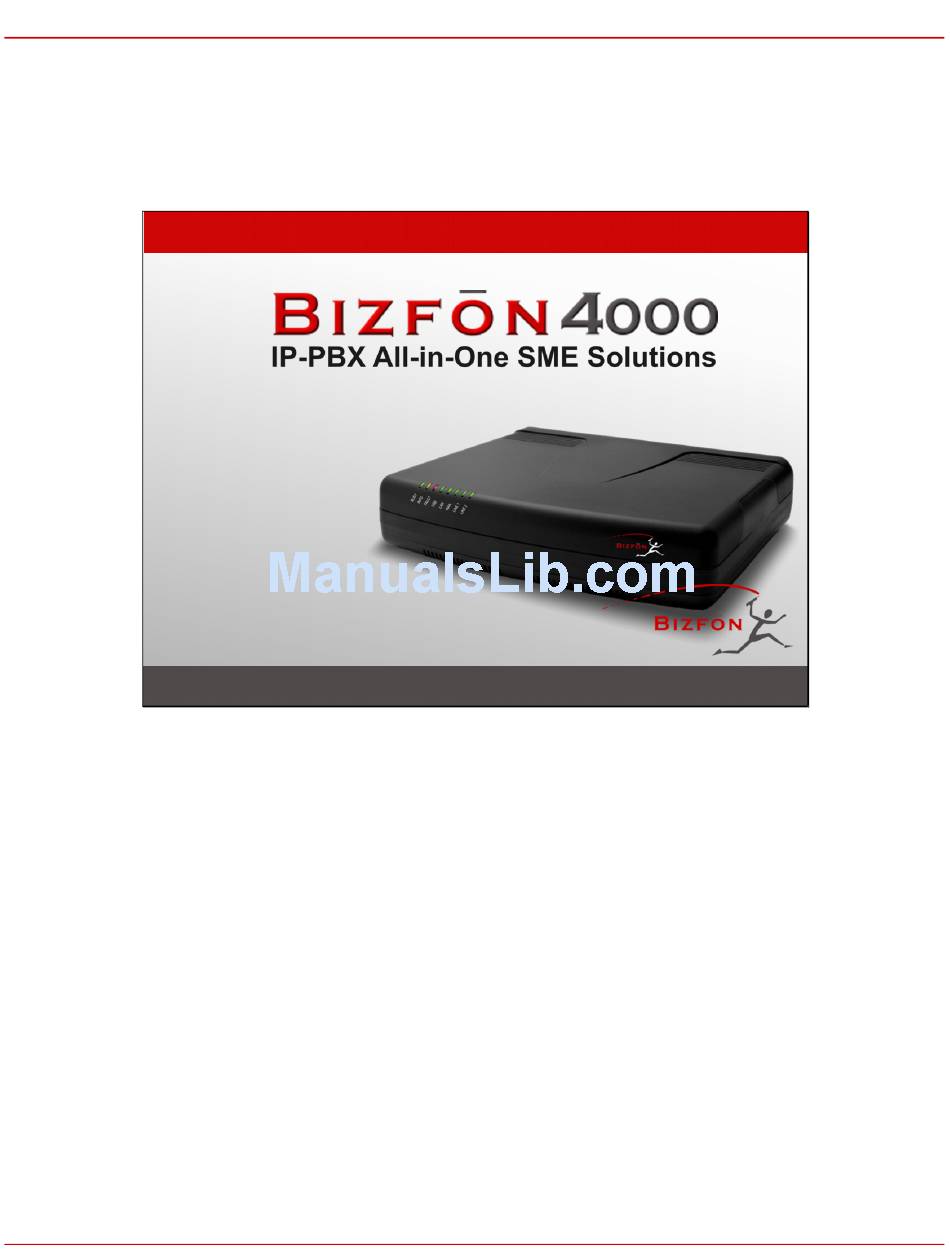

Bizfon 4000 Administrator's Manual

Ip-pbx all-in-one sme solutions
Hide thumbs Also See for 4000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
Bizfon Manual II: Administrator's Guide
Manual II:
Administrator's Guide
Edition 1 SW Release 3.1.23 and higher, May 2006
