Radio Shack 150-2114 Manual

Introduction
Thank you for buying a RadioShack Remote Control.
You can use your remote to replace a broken or lost
remote or combine the functions of two or more
remotes.
This remote control operates the common features of
most (but not all) models and brands of IR (Infrared)
controlled video equipment. This remote may support
functions that are not available on your device. Some
SAT
functions of your particular device (such as menu
functions) may not be controlled by this remote. In
such cases, use the original remote control for your
device.
Please use this manual to become familiar with your
remote, then install batteries and set up your remote for
your particular device and brand.

Battery Installation

1. Push down on the tab on the back of the remote and
lift off the cover.
2. Match the batteries to the + and - marks inside the
battery case, then insert 4 AAA alkaline batteries.
3. Replace the cover.
When the remote's range decreases or it does not
operate properly, replace the batteries. You have 2
minutes to change the batteries without losing codes
you have programmed. However, do not press any
buttons until batteries are installed. If buttons are
pressed without batteries in the remote, all codes will be
lost.

Battery Saver

Your remote automatically times out if the buttons are
pressed more than 30 seconds. This will save your
batteries should your remote get stuck in a place (for
example, between sofa cushions) where the buttons
remain pressed.
Cat. No. 15-2114 [ A ]
TV Volume/Mute Punch-Through
The TV Volume/Mute punch-through feature lets you
control the Volume and Mute function of your TV in
any mode programmed to be a VCR, DVD, Cable, or
DBS device without changing to TV mode.
TV/VCR Punch-Through
VCR Punch-through is only available in TV mode and
any mode programmed for Cable, the 6 VCR keys (Play,
Pause, Stop, Record, FF and Rewind) will punch-
through to the device programmed under VCR (in TV
mode), or any mode programmed for Cable.

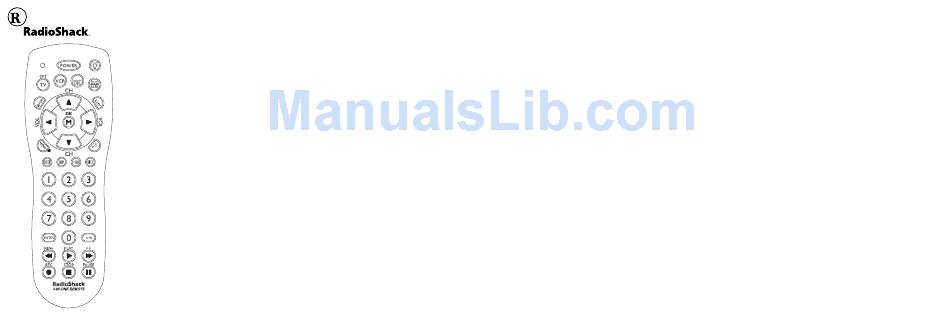

Button functions

The remote powers on in TV mode.
A-B Operates as TV/Video, TV/VCR, etc.,
depending on mode.
PIP Operates your television's Picture-in-
Picture feature if available.
Disp Displays device on-screen status
information.
Enter Used to enter channel numbers for
some devices.
Backlight Lights up the buttons on the remote
when pressed.
Menu Puts the remote in Menu mode and
displays the menu on the TV. The
indicator light blinks continuously to
indicate the remote is in Menu mode,
VOL UP/DOWN keys operate as cursor
right/left, CH+/- keys operate as cursor
up/down, and Mute operates as OK.
Press any mode key to exit Menu.
Guide Displays on-screen Satellite Channel
Guide. To use the cursor keys in Guide
screens, activate Menu Mode (above)
then press Guide. The same keys are
now available for Guide as described
above for Menu Mode.
Last Goes to last channel viewed.
100+ Press first, then enter the number for
channels higher than 100.
1. 2.
Note: Some buttons on the remote might have functions

Programming with Code Search

that are labeled differently on the device you are
controlling, depending on the brand and model of your
1. Manually turn on the device (TV, VCR, etc.) to be
device. For example, Last may be called RECALL or
controlled.
Previous Channel; ENTER may be called DISPLAY.
2. Press and hold the Setup button until the red
Also, this remote can only operate features that exist on
indicator stays on. Release the Setup button.
your device. For example, your device must have
3. Press and release the desired mode button (TV,
Previous Channel capability for the Last button to
VCR, etc.). The red indicator blinks, then stays lit.
operate this feature.
4. Press the Channel Up button repeatedly (up to 300
times) until the device to be controlled changes

Code Setup

channels. The red indicator blinks, then stays lit.
The Setup button is used to set up the remote. You can If you accidentally overshoot the desired code, press
set up the remote using the code for your brand of the Channel Down button to backtrack through the
device from the code list, or search through the library library until the device changes channels. Pressing
of codes until you find a code that works for your Channel Up changes the direction to forward again.
device. Press and release the Enter button to set the code. If
the device does not have a Channel Up button, use
You can store any kind of code under any mode (except Play (VCR or DVD) or Power instead.
TV). For example, you can store a VCR code under the
DBS key, or a DVD code under the VCR key, etc. The Code Search method above assumes that you want
However, you can only store TV codes under the TV to store VCR codes under the VCR button, DVD codes
key. under DVD, etc. If you want to store a VCR code under
DVD, first follow the procedure for "Direct Code Entry"

Direct Code Entry

on page 3, trying any DVD code from the code tables
(that is, press DVD in step 2, then enter any VCR code).
Then follow the steps for Code Search above.
1. Press and hold the Setup button until the red
indicator stays on. Release the Setup button.
Operation
2. Press and release the desired mode button (TV, VCR,
etc.). The red indicator blinks, then stays lit.
3. Enter the 3 digit code from the code list. 1. Press the mode button for the desired device.
Note: The red indicator turns off after a valid code 2. Aim the remote at the device.
entry and flashes for an invalid code. 3. Press POWER to turn on the device.
4. With your device on, press Channel Up. If the 4. Press other buttons to operate the features of your
device responds, no further setup is required. device.
Note: If some buttons on your device do not
operate, try one of the other codes for your brand. Note: The REC button must be pressed TWICE to
record from your VCR. For some brands of VCRs, you
TV/VCR and TV/DVD Combo units might need to press the REC button once, then press it
again for three seconds.
For some TV/VCR and TV/DVD combo units, you might
need to set up two different buttons to control both
parts of the combo unit. (See "Direct Code Entry.") For
example, set up a code under the TV button to control
the TV part of the combo unit AND a separate code for
the VCR or DVD under any other button you choose.
3.

Code Identification

1. Press and hold the Setup button until the red
indicator stays lit. Release the Setup button.
2. Press and release the desired mode button (TV,
VCR, etc.). The red indicator blinks, then stays lit.
3. Press and release the Setup button. The indicator
light blinks off.
4. To find the first digit for the code stored under the
mode key you pressed in step 2, press each numeric
key from 0-9 in turn. When the indicator blinks off,
the number you pressed is the first digit for the
code you are searching for.
5. Repeat step 4 to find the second and third digits.

Sleep Timer

The Sleep Time enables the remote to turn off the TV
after a period of 1 to 99 minutes. The remote must be in
TV mode to set a Sleep Timer. This feature works even
if your TV does not have a sleep feature.
1. Press and release the TV mode key.
2. Press and hold the Sleep button until the LED
remains lit (about 2-3 seconds).
3. Release the Sleep button.
4. Press and release the numeric keys (01-99) for the
time required. The LED will blink off to indicate
keypress acceptance.
5. TV Sleep Timer is set.
6. Leave the Remote pointing towards the TV with an
unobstructed path.
To cancel the Sleep Timer, press and hold the Sleep key
until the LED blinks, or press and release the Power key
in TV mode.

Troubleshooting

Remote does not operate your device.
• Press the mode button of the device you want to
control.
• Program the remote with a new code.
• Install new batteries. (You might have to reprogram
your remote after installing new batteries.)
• Remote may not be compatible with your device.
4. 5.
Remote does not operate some features of your device.
• Program remote with a new code.
• Remote may not be able to operate all features of
your device or button names might be different than
your device.
Indicator light blinks after you program a device code.
• Remote did not accept the code.
• Try to program the code again or try a different code.
Limited Ninety-Day Warranty
This product is warranted by RadioShack against manufacturing
defects in material and workmanship under normal use for ninety
(90) days from the date of purchase from RadioShack company-
owned stores and authorized RadioShack franchisees and dealers.
EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO
EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES,
INCLUDING THOSE OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURA-
TION TO THE DURATION OF THE WRITTEN LIMITED
WARRANTIES CONTAINED HEREIN. EXCEPT AS PRO-
VIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY OR
RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON
OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR
DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR
PERFORMANCE OF THE PRODUCT OR ARISING OUT OF
ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT
LIMITED TO, ANY DAMAGES RESULTING FROM INCON-
VENIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE,
OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may
not apply to you. In the event of a product defect during the
warranty period, take the product and the RadioShack sales receipt
as proof of purchase date to any RadioShack store. RadioShack
will, at its option, unless otherwise provided by law: (a) correct the
defect by product repair without charge for parts and labor; (b)
replace the product with one of the same or similar design; or (c)
refund the purchase price. All replaced parts and products, and
products on which a refund is made, become the property of
RadioShack. New or reconditioned parts and products may be used
in the performance of warranty service. Repaired or replaced parts
and products are warranted for the remainder of the original
warranty period. You will be charged for repair or replacement of
the product made after the expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or
attributable to acts of God, abuse, accident, misuse, improper or
abnormal usage, failure to follow instructions, improper installa-
tion or maintenance, alteration, lightning or other incidence of
excess voltage or current; (b) any repairs other than those
provided by a RadioShack Authorized Service Facility; (c)
consumables such as fuses or batteries; (d) cosmetic damage; (e)
transportation, shipping or insurance costs; or (f) costs of product
removal, installation, setup service adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
RadioShack Customer Relations, 200 Taylor Street, 6th Floor,
Fort Worth, TX 76102
Custom Manufactured in China for RadioShack, Ft. Worth, TX
76102.
6.
