Elektronikbau- und Vertriebs CETA 106 Operating Manual

Heating circuit controller with differential temperature
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

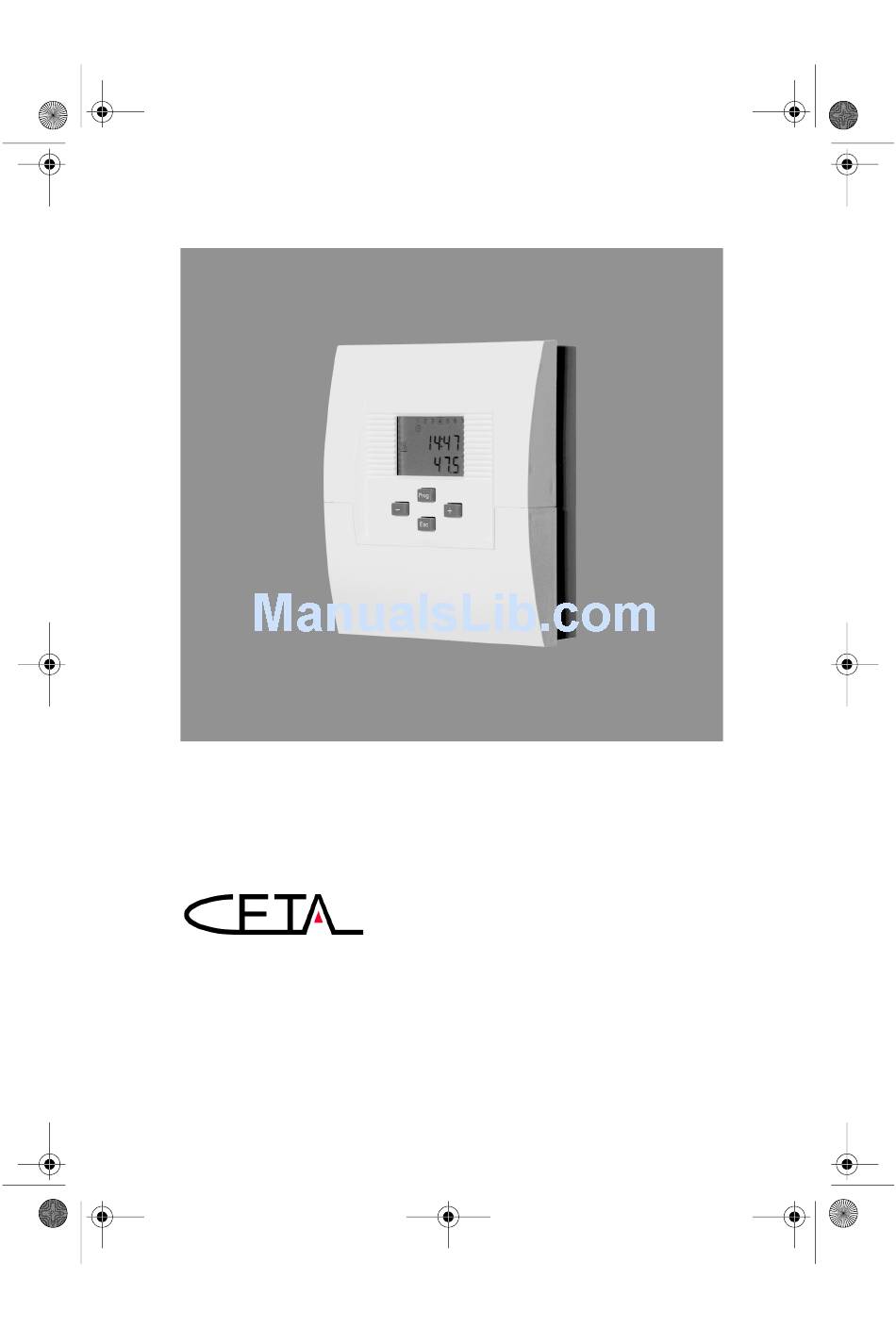

BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 1 Freitag, 11. Dezember 2009 1:16 13

Operating manual

106
Heating circuit controller with differential temperature
Version 0950-10
Art. 0450021003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CETA 106 and is the answer not in the manual?

Questions and answers

Related Manuals for Elektronikbau- und Vertriebs CETA 106

Summary of Contents for Elektronikbau- und Vertriebs CETA 106

  • Page 1: Operating Manual

    BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 1 Freitag, 11. Dezember 2009 1:16 13 Operating manual Heating circuit controller with differential temperature Version 0950-10 Art. 0450021003...

  • Page 2: Table Of Contents

    Declaration of conformity ....................21 Technical Data ........................22 Liability ..........................22 Disposal ...........................22 © Elektronikbau- und Vertriebs GmbH Heisterner Weg 8 - 12 D-57299 Burbach This document may not be reproduced nor disclosed to third parties, particularly competitors, in original or copy form without our prior explicit consent. The document is subject to our proprietary rights and...

  • Page 3: Scope Of Delivery

    BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 1 Freitag, 11. Dezember 2009 1:16 13 Scope of delivery 1. 1x Central unit CETA 106 5. 3x Screw assembly 4x35 mm 2. 1 x Outside sensor AF200 6. 3x Plug U6 3. 1x Flow sensor VF202B 7. 2 x Cable clamp 4.

  • Page 4: General Key Functions

    •Change menu item •Exit setting •Keep old value •Select next higher menu level Esc-Long •Return to basic display 2. Version display (when starting) c 106= Type designation Ceta 106 1.5= Version display (due to update, it can differ from example shown)

  • Page 5: Basic Display

    BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 3 Freitag, 11. Dezember 2009 1:16 13 Basic display 3. Basic display Weekday 14:47 Time 44.0°C Temperature F1 heat storage tank 1  Display pump function Explanation of symbols Display pump function heating circuit Automatic mode heating circuit after timer program I or II Heating mode heating circuit (Operating mode AUTOMATIC or HEATING) Reduced mode heating circuit...

  • Page 6: Functions With Direct Access

    BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 4 Freitag, 11. Dezember 2009 1:16 13 Functions with direct access 4. Functions with direct access Manual operation Controller is in manual mode — Activate by pressing and holding button — End function by pressing button Function: Manual operation allows manual start-up of the heating circuit or measurement of emission without automatic functions.

  • Page 7: Menu Level

    BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 5 Freitag, 11. Dezember 2009 1:16 13 Menu level 5. Menu level Basic display General menu structure Prog Select parameters Menu 01 Prog 02:01 02:02 02:nn Menu 02 Parameter 01 Parameter 02 Last parameter Prog Prog Value 1 Calibration Set parameter value Return...
  • Page 8 BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 6 Freitag, 11. Dezember 2009 1:16 13 Menu level Overview of menu level Basic display Prog 06:01 03:01 03:02 03:03 03:04 Display Info Outdoor actual Outdoor long-term Outdoor min Outdoor max heating pump Prog 08:04 08:05 08:07 08:03 08:08 Temperature Temperature...
  • Page 9 BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 7 Freitag, 11. Dezember 2009 1:16 13 Menu level 06:02 06:03 06:04 06:05 06:06 Mixing valve Flow actual Flow setpoint Room actual Room setpoint open/closed 03:06 03:07 03:09 03:10 Time for Anti-blocking Code heating Total reset automatic exit protection specialist 06:06...

  • Page 10: Parameter Description

    BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 8 Freitag, 11. Dezember 2009 1:16 13 Parameter description 6. Parameter description 01 Information level Display Designation Description 03:01 Outdoor actual Current outside temperature 03:02 Outdoor long-term Average long-term value of outside temperature. Depending on set building type (03:04), the value is averaged longer or shorter. 03:03 Outdoor min Minimum outside temperature value (0.00 to 24.00 h)
  • Page 11 1=ON, automatic sensor detection 03:03 Bus address Setting range 31 … 35 Factory setting: 31 Function: If more than one CETA 106 has to be connected via data bus within a system, each unit must be set to a unique address.
  • Page 12 BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 10 Freitag, 11. Dezember 2009 1:16 13 Parameter description Display Designation Description 03:04 Building type Setting range: 1: Light construction (mean value over 6 X3 hours) 2: Medium construction (mean value over 24 hours) 3: Heavy construction (mean value over 72 hours) Factory setting: 2 Function: This parameter considers the building type by adapting the...
  • Page 13 BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 11 Freitag, 11. Dezember 2009 1:16 13 Parameter description Display Designation Description 06:02 Room day Setting range: 5 … 30°C Factory setting: 30°C Function: The set temperature is the room setpoint during active cycles of operation in AUTOMATIC mode and during HEATING mode. 06:03 Room night Setting range:...
  • Page 14 BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 12 Freitag, 11. Dezember 2009 1:16 13 Parameter description Display Designation Description 06:07 Heating curve/ Setting range: 0,05 … 3,50 conductance Factory setting: 1,00 Function: Determines the heating curve for the heating circuit. 06:08 Heating system Setting range: 1.00…10.00 (Exponent) Factory setting: 1,10...
  • Page 15 BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 13 Freitag, 11. Dezember 2009 1:16 13 Parameter description Display Designation Description 06:09 Frost protection Setting range: OFF (----) -50 °C ... +10 °C Factory setting: 3 °C Function: To keep the heating system from freezing in switch-off mode, the controller is equipped with electronic frost protection.
  • Page 16 BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 14 Freitag, 11. Dezember 2009 1:16 13 Parameter description Display Designation Description 06:18 Minimum Setting range: 5…95°C temperature limit Factory setting: 20°C Function: This function limits the flow temperature of the heating circuit. The set temperature will be maintained. 06:19 Maximum Setting range:...
  • Page 17 BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 15 Freitag, 11. Dezember 2009 1:16 13 Parameter description Display Designation Description 08:04 Minimum running Setting range: OFF (----) time of pump 0.5 ... 60 min Factory setting: 3 min Function: Minimum switch-on time of pump per start. 08:05 Minimum Setting range:...

  • Page 18: Sensor Calibration

    BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 16 Freitag, 11. Dezember 2009 1:16 13 Parameter description Display Designation Description 08:10 Inhibition heat Setting range: OFF (----) ... 24h generator Function: After burner block is active, the heat generator is also blocked for the duration of the set time 08:15 Reset counter Setting range:...

  • Page 19: Mounting

    BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 17 Freitag, 11. Dezember 2009 1:16 13 Mounting 28 Relay test Display Designation Description 28:01 Test output 1 Setting range: 0 = OFF 1 = ON Factory setting: 0 Function: By changing the value, the output switches heat circuit pump on and off (test function), independent of function.

  • Page 20: Connection Diagram

    BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 18 Freitag, 11. Dezember 2009 1:16 13 Connection diagram Rail mount 1. Insert mounting feet into rail mount opening. 2. Lock hook in place by pushing down. 8. Connection diagram Hazard! Connection must be performed by an authorised professional electrician! Ensure that unit is de-energised before opening it! 230V connections Low voltage connections...

  • Page 21: Fault Clearance

    BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 19 Freitag, 11. Dezember 2009 1:16 13 Fault clearance 9. Fault clearance To allow an accurate diagnosis in case of malfunction, the unit is equipped with a fault display system. The faults are shown on the basic display of the unit in form of an error code.

  • Page 22: Sensor Resistance Values

    BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 20 Freitag, 11. Dezember 2009 1:16 13 Sensor resistance values 10. Sensor resistance values Depending on temperature: PT1000 (option) VF202B, AF200, KVT20 (option) T (°C) R (kOhm) T (°C) R (kOhm) 1,155 1,783 1,194 1,812 1,232 1,840 1,271 1,869 1,309 1,898...

  • Page 23: Declaration Of Conformity

    BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 21 Freitag, 11. Dezember 2009 1:16 13 Declaration of conformity 11. Declaration of conformity Elektronikbau- und Vertriebs- GmbH Heisternerweg 8-12, 57299 Burbach EC Declaration of Conformity Product identification: Heating controller Type designation: CETA 106 Manufacturer: EbV Elektronikbau- und Vertriebs-GmbH...

  • Page 24: Technical Data

    BA_CETA106_EbV_EN_0450021003_0950-10.book Seite 22 Freitag, 11. Dezember 2009 1:16 13 Technical Data 12. Technical Data Mains voltage: 230V +6%/ -10% Rated frequency: 50...60Hz Power input: max. 2.1VA Fuse: 6.3A Output relay contact load: 2 (2) A Ambient temperature: -10...+50 °C Storage temperature: -25...+80 °C Degree of protection: IP 30...
