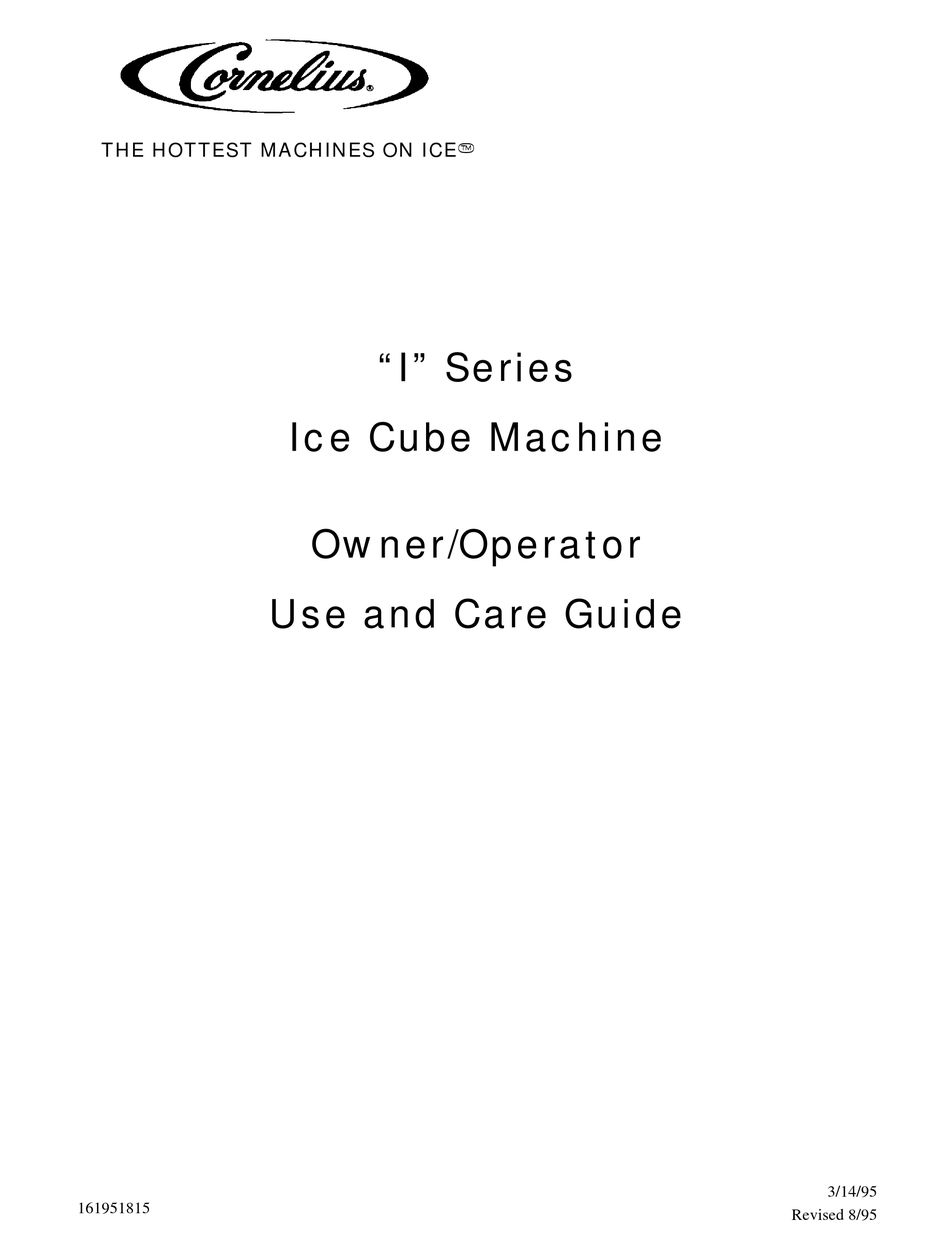

THE HOTTEST MACHINES ON ICET
"I" Series
Ice Cube Machine
Owner/Operator
Use and Care Guide
3/14/95
161951815
Revised 8/95

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cornelius I Series

Summary of Contents for Cornelius I Series

  • Page 1 THE HOTTEST MACHINES ON ICET “I” Series Ice Cube Machine Owner/Operator Use and Care Guide 3/14/95 161951815 Revised 8/95...
  • Page 2 THIS PAGE LEFT BLANK INTENTIONALLY TD185...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS MODEL & SERIAL LOCATION ......“I” Series Cuber ........... . WARRANTY REGISTRATION .
  • Page 4 THIS PAGE LEFT BLANK INTENTIONALLY...

  • Page 5: Model & Serial Location

    MODEL & SERIAL LOCATION “I” Series Cuber Condenser Discharge Air Deflector (as required)* Bin Adapter (as required)* Model/Serial Nameplate Location *Bin adapters and condenser discharge air deflector may be required depending on your location or the size of the storage bin. Record the model number and the serial number of your ice equipment.

  • Page 6: Warranty Registration

    WARRANTY Warranty Coverage The following warranty outline is provided for your convenience. For full details, read the warranty bond at the back of this manual. Exclusions from the Warranty Coverage The following items are not included in the ice machine warranty coverage. 1.

  • Page 7: Owner' S Recommended Maintenance

    OWNER’ S RECOMMENDED MAINTENANCE SEMI-ANNUAL MAINTENANCE GENERAL ICE MACHINE INSPECTION CLEANING THE EXTERIOR CLEANING THE CONDENSER -- AIR-COOLED WATER-COOLED INTERIOR CLEANING -- CLEANING PROCEDURES SANITIZING PROCEDURES 1. General Ice Machine Inspection S Check all water fittings and tubes for leaks. Also, make sure the refrigeration tubing is not rubbing or vibrating against other tubing panels, etc.

  • Page 8: Cleaning The Condenser

    3. CLEANING THE CONDENSER Disconnect electric power to the ice machine at the electric service Caution switch box before cleaning condenser! Air- -Cooled Condenser A dirty condenser restricts airflow which results in excessively high operat- ing temperatures. High operating temperatures reduce ice production and shorten component life.

  • Page 9: Clean Procedures

    Prep Clean Use full-strength ice machine cleaner on a coarse surface material (such as terry cloth) and wipe down the inside wall of the evaporator area, the water pan, the water curtain and evaporator plastic extrusions. If the water distrib- utor tube has heavy scale build- -up, remove and soak it in full-strength ice machine cleaner (or exchange the tube and clean the scaled tube at a later date).
  • Page 10 THIS PAGE LEFT BLANK INTENTIONALLY 3/9/94 161951-815 Revised 8/95...

  • Page 11: Sanitizing Procedures

    SANITIZING PROCEDURES To be performed only after cleaning the ice machine: Note: 1. *Add 1/4 ounce (7.08 g) sodium hypochlorite solution (common liquid laundry bleach) to the water pan and allow the pump to cir- culate the solution for 5 minutes. You may also use a commercial sanitizer such as Calgon Ice Machine Sanitizer following the direc- tions on the product label.
  • Page 12 BEFORE CALLING FOR SERVICE If a problem arises during the operation of your ice machine, follow the checklist below before calling for service. CHECKLIST Problem Probable Cause Remedy ICE MACHINE DOES NOT No electrical power to ice Replace fuse, reset circuit OPERATE machine.
  • Page 13 The obligation of CORNELIUS under this war- ranty is limited to repair or replacement (at the option of CORNELIUS) FOB factory in Mason City, Iowa of the part (or Parts) of any Machine that is proven defective.
  • Page 14 IMI CORNELIUS INC. Corporate Headquarters: One Cornelius Place Anoka, Minnesota 55303-6234 (612) 421-6120 (800) 238-3600...
