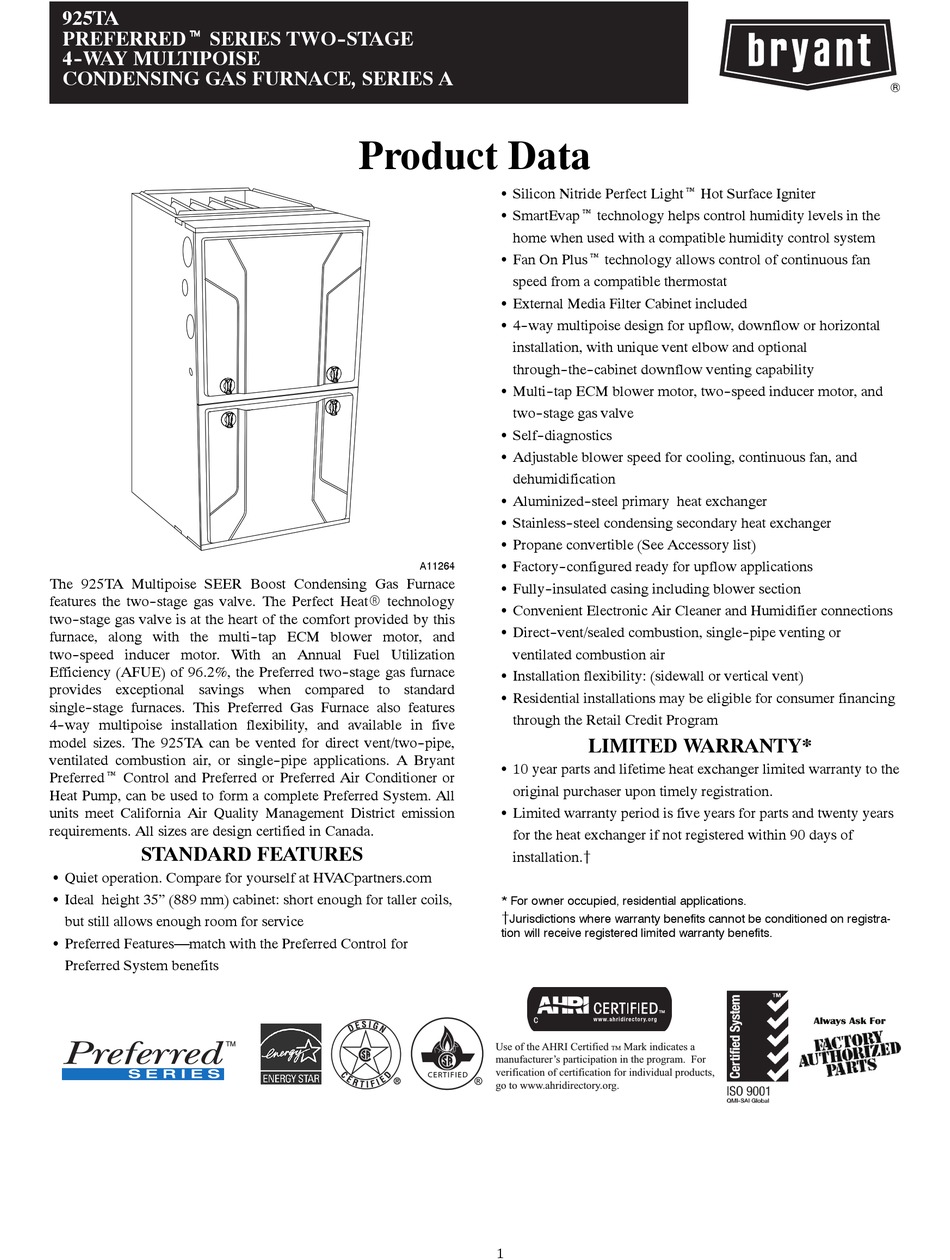

Bryant 925TA Product Data

925TA
PREFERREDt SERIES TWO- - STAGE
4- -WAY MULTIPOISE
CONDENSING GAS FURNACE, SERIES A
The 925TA Multipoise SEER Boost Condensing Gas Furnace
features the two- -stage gas valve. The Perfect HeatR technology
two- -stage gas valve is at the heart of the comfort provided by this
furnace, along with the multi- -tap ECM blower motor, and
two- -speed inducer motor. With an Annual Fuel Utilization
Efficiency (AFUE) of 96.2%, the Preferred two- -stage gas furnace
provides exceptional savings when compared to standard
single- -stage furnaces. This Preferred Gas Furnace also features
4- -way multipoise installation flexibility, and available in five
model sizes. The 925TA can be vented for direct vent/two- -pipe,
ventilated combustion air, or single- -pipe applications. A Bryant
Preferred™ Control and Preferred or Preferred Air Conditioner or
Heat Pump, can be used to form a complete Preferred System. All
units meet California Air Quality Management District emission
requirements. All sizes are design certified in Canada.
STANDARD FEATURES
S Quiet operation. Compare for yourself at HVACpartners.com
S Ideal height 35" (889 mm) cabinet: short enough for taller coils,
but still allows enough room for service
S Preferred Features—match with the Preferred Control for
Preferred System benefits
Product Data
S Silicon Nitride Perfect Light™ Hot Surface Igniter
S SmartEvap™ technology helps control humidity levels in the
home when used with a compatible humidity control system
S Fan On Plus™ technology allows control of continuous fan
speed from a compatible thermostat
S External Media Filter Cabinet included
S 4- -way multipoise design for upflow, downflow or horizontal
installation, with unique vent elbow and optional
through- -the- -cabinet downflow venting capability
S Multi- -tap ECM blower motor, two- -speed inducer motor, and
two- -stage gas valve
S Self- -diagnostics
S Adjustable blower speed for cooling, continuous fan, and
dehumidification
S Aluminized- -steel primary heat exchanger
S Stainless- -steel condensing secondary heat exchanger
S Propane convertible (See Accessory list)
S Factory- -configured ready for upflow applications

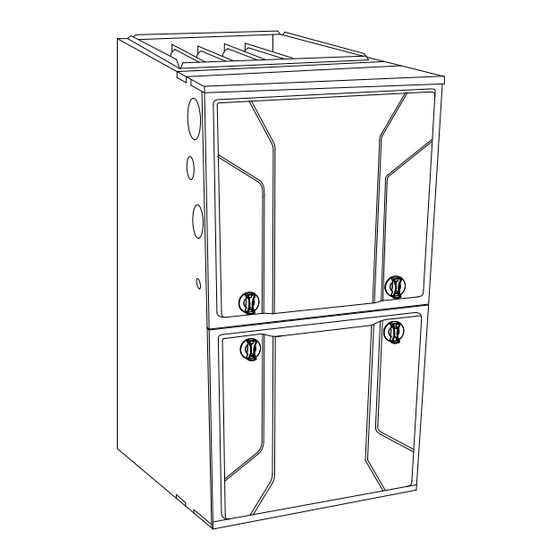

A11264
S Fully- -insulated casing including blower section
S Convenient Electronic Air Cleaner and Humidifier connections
S Direct- -vent/sealed combustion, single- -pipe venting or
ventilated combustion air
S Installation flexibility: (sidewall or vertical vent)
S Residential installations may be eligible for consumer financing
through the Retail Credit Program
S 10 year parts and lifetime heat exchanger limited warranty to the
original purchaser upon timely registration.
S Limited warranty period is five years for parts and twenty years
for the heat exchanger if not registered within 90 days of
installation.{
* For owner occupied, residential applications.
{ Jurisdictions where warranty benefits cannot be conditioned on registra-
tion will receive registered limited warranty benefits.
Use of the AHRI Certified
manufacturer's participation in the program. For
verification of certification for individual products,
CERTIFIED
go to www.ahridirectory.org.
1

LIMITED WARRANTY*

Mark indicates a
TM
Always Ask For
