Summary of Contents for Chauvet Bubble King

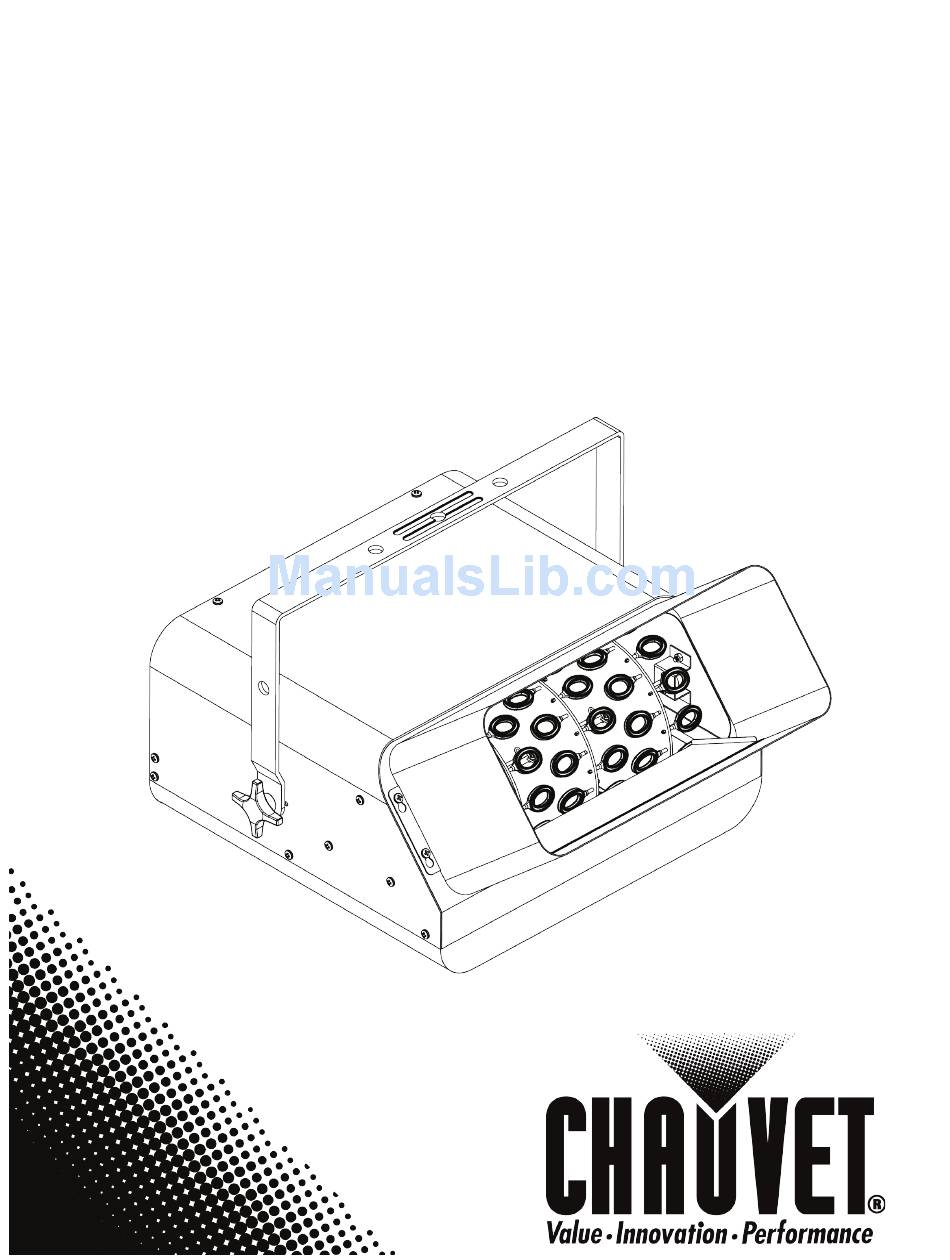

- Page 1 Bubble King ™ User Manual...
-
Page 2: Table Of Contents
Operation ...................... 8 5. Technical Information ................9 Product Maintenance ..................9 Contact Procedure ..................10 CHAUVET® Contact Information ..............10 Returning Products to CHAUVET® .............. 10 6. Technical Specifications ..............11 Page 2 of 11 Bubble King™ User Manual (Rev. 3) -
Page 3: Before You Begin
CHAUVET®, upon receipt. Failure to do so in a timely manner may invalidate your claim with the carrier. In addition, keep the container and all the packing material for inspection. -
Page 4: Product At A Glance
Please contact the nearest authorized technical assistance center. • Keep this User Manual for future consultation. If you sell the product to another user, be sure that they also receive this document. Page 4 of 11 Bubble King™ User Manual (Rev. 3) -
Page 5: Introduction
2. I NTRODUCTION Product Overview Mounting Bracket Power In & Remote In Fuse Holder Remote/On/Off Switch Adjustment Knob Bubble King™ User Manual (Rev. 3) Page 5 of 11... -
Page 6: Setup
ETUP AC Power The Bubble King™ has a fixed voltage power supply and can work with an input voltage of either 120 V, 60 Hz or 230 V, 50 Hz, depending on the specific model. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or... -
Page 7: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes section. Orientation The Bubble King™ may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and fluid replenishment purposes. -
Page 8: Operation
4. O PERATION Operation Place the Bubble King™ on a level surface and loosen the thumbscrews on the front of the unit for fluid tank access. Lift the cover. Fill the tank with bubble fluid. Note: We recommend using CHAUVET® bubble fluid (BJU) which has been specially formulated for use with CHAUVET®... -
Page 9: Technical Information
Plug the product in and allow it to run as usual until all wands appear to be free of residue. Always dry the surfaces carefully after cleaning them. Do not spin the fan using compressed air because you could damage it. Bubble King™ User Manual (Rev. 3) Page 9 of 11... -
Page 10: Contact Procedure
If you live in the UK or Ireland, contact CHAUVET® Europe Ltd.(see below). • If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your distributor of record. Refer to our Web site for contact details of distributors outside the US, United Kingdom, or Ireland. -
Page 11: Technical Specifications
Power I/O U.S./Worldwide UK/Europe Power Cord plug Edison (U.S.) Local plug Thermal Maximum External Temp. 104° F (40° C) Ordering Product Name Item Code Item Number Bubble King 02070055 B-550 Bubble King™ User Manual (Rev. 3) Page 11 of 11...
