Summary of Contents for Chauvet OVATION B-565FC

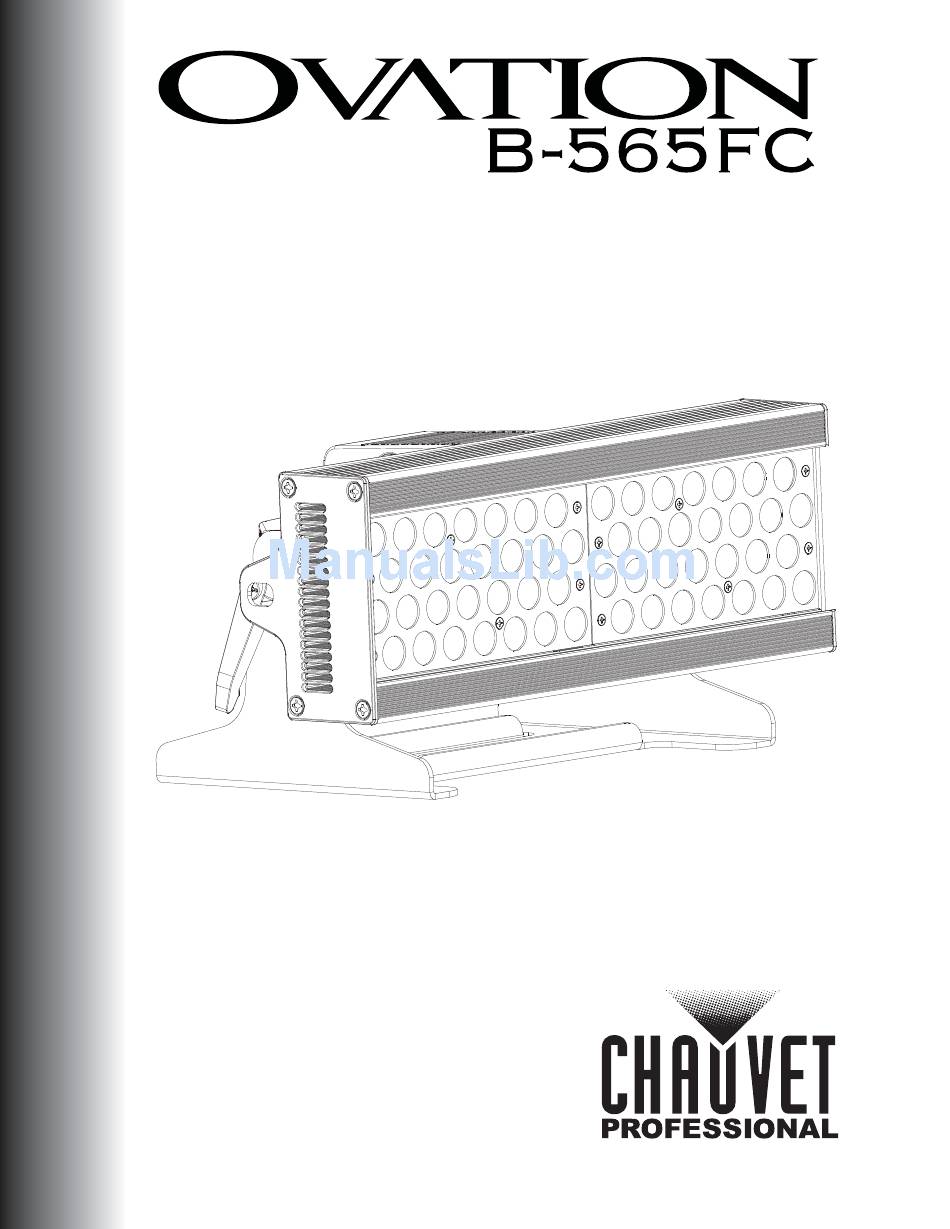

  • Page 1 User Manual...
  • Page 2: Table Of Contents

    Control Panel Operation................10 Programming....................10 Menu Map ..................... 10 Configuration (DMX/Art-Net™/sACN) ............14 Control Protocol ......................Ethernet Setting ......................Control Personalities ...................... Starting Address......................DMX Values ....................16 2-Cell Personalities ......................TOC 1 of 2 Ovation B-565FC User Manual Rev. 1...
  • Page 3 6. Te c hnic al Info rmatio n ..............Product Maintenance ..................27 7. Te c hnic al S pe c ific atio ns ............8. Re turns ..................9. Co ntac t Us .................. Ovation B-565FC User Manual Rev. 1 TOC 2 of 2...
  • Page 4: Edition Notes

    Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetprofessional.com...
  • Page 5: Before You Begin

    If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.
  • Page 6: Safety Notes

    • In the event of a serious operation problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. Expected LED Lifespan LEDs gradually decline in brightness over time, primarily because of heat. LEDs that are arranged in clusters experience higher operating temperatures than single LEDs.
  • Page 7: Introduction

    NTRODUCTION Description The Ovation B-565FC is a high-power full color LED (RGBAL) batten. It features full RGBA-Lime color mixing with modes providing full 16-bit dimming for up to 10 cells, selectable PWM, RDM, Art-Net™, and sACN. The Virtual Color Wheel matches popular gel colors comparable to those projected by a tungsten source, in addition to color temperature presets that match a tungsten source from 2800 to 6500 K.
  • Page 8: Product Overview

    NTRODUCTION Product Overview Menu Buttons Adjustment Handle Display Fuse Filter Lock Neutrik® PowerCON® Amphenol etherCON® Through 3- and 5-pin DMX Out 3- and 5-pin DMX In Neutrik® PowerCON® Page 5 of 30 Ovation B-565FC User Manual Rev. 1...
  • Page 9: Product Dimensions

    10.43 in 265 mm 2.40 in 61 mm 1.18 in 30 mm 8.15 in 207mm 2.64 in 67 mm 1.93 in 49 mm 5.04 in 7.48 in 128 mm 190 mm Ovation B-565FC User Manual Rev. 1 Page 6 of 30...
  • Page 10: Setup

    DMX Connection You can link the Ovation B-565FC to a DMX controller using a 3- or 5-pin DMX connection. If using other DMX-compatible products with this product, you can control each individually with a single DMX controller. Art-Net™ Connection Art-Net™...
  • Page 11: Sacn Connection

    Master/Slave Connectivity The Master/Slave mode allows a Ovation B-565FC (the master) to control one or more Ovation B-565FC products (the slaves) without a DMX controller. One Ovation B-565FC becomes the master when running an auto or custom program, or by being in a Static mode.
  • Page 12: Mounting

    Procedure The Ovation B-565FC comes with a double-bracketed yoke to which you can either attach mounting clamps for hanging or simply use as a floor stand. You must supply the mounting clamps. Make sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product.
  • Page 13: Operation

    RGBAL Fine 10CH 10-channel: 16-bit RGBAL 17-channel: 16-bit dimmer, 16-bit RGBAL, virtual color wheel, color RGBAL FULL 17CH temperature, strobe, color macros, dimmer mode Ovation B-565FC User Manual Rev. 1 Page 10 of 30...
  • Page 14 Rosco. Color Amber Dimmer <000–255> Wheel Refer to the Virtual Color Wheel Wheel R26-Light Chart section for specific values. R27- Medium R33- NoColor Pink R337-True Pink R38-Light Rose R41- Salmon Page 11 of 30 Ovation B-565FC User Manual Rev. 1...
  • Page 15 Preset white color temperatures. 4000K Emulates a tungsten lamp at the Color 4500K Dimmer <000–255> specified color temperature. Refer to Temperature Preset Color Temperature Chart 5000K section for specific values. 5600K 6000K 6500K Ovation B-565FC User Manual Rev. 1 Page 12 of 30...
  • Page 16 Display backlight always on Turns off display after 10 seconds of inactivity Back Light Turns off display after 20 seconds of inactivity Turns off display after 30 seconds of inactivity Page 13 of 30 Ovation B-565FC User Manual Rev. 1...
  • Page 17: Configuration (Dmx/Art-Net™/Sacn)

    Use control configurations to operate the product with a controller. Control Protocol This setting allows you to choose the protocol with which to control the Ovation B-565FC. Go to the Protocol main level. Select the desired control protocol (DMX512, ArtNet, or sACN).
  • Page 18: Control Personalities

    2 Cell RGBA 8CH 2 Cell RGBAL 10CH 2 Cell RGB EXT 15CH 2 Cell RGBA EXT 17CH 2 Cell RGBAL EXT 19CH 2 Cell RGBAL Fine 20CH 2 Cell RGBAL FULL 31CH Page 15 of 30 Ovation B-565FC User Manual Rev. 1...
  • Page 19: Dmx Values

    051 Preset dimmer speed from display menu  101 Dimmer speed mode off  Dimmer Speed 152 Dimmer speed mode 1 (fastest)  203 Dimmer speed mode 2  255 Dimmer speed mode 3 (slowest)  Ovation B-565FC User Manual Rev. 1 Page 16 of 30...
  • Page 20 255 0–100%  255 Refer to the Virtual Color Wheel Chart Virtual Color Wheel 2  specific values Refer to the Preset Color Temperature Chart Color Temperature 2  specific values Page 17 of 30 Ovation B-565FC User Manual Rev. 1...
  • Page 21 Preset Color Temperature Chart Color Temperature 1  specific values 010 No function  Strobe 1 255 Strobe, slow to fast  Red 2 255 0–100%  Green 2 255 0–100%  Ovation B-565FC User Manual Rev. 1 Page 18 of 30...
  • Page 22 Red 1 255 0–100%  Green 1 255 0–100%  Blue 1 255 0–100%  Red 2 255 0–100%  Green 2 255 0–100%  Blue 2 255 0–100%  Page 19 of 30 Ovation B-565FC User Manual Rev. 1...
  • Page 23: 1-Cell Personalities

     Lime Fine 255 0–100%  1-Cell RGBAL EXT 10CH Channel Function Value Percent/Setting Dimmer 255 0–100%  Dimmer Fine 255 0–100%  255 0–100%  Green 255 0–100%  Ovation B-565FC User Manual Rev. 1 Page 20 of 30...
  • Page 24 255 Strobe, slow to fast  1-Cell RGBAL 5CH Channel Function Value Percent/Setting 255 0–100%  Green 255 0–100%  Blue 255 0–100%  Amber 255 0–100%  Lime 255 0–100%  Page 21 of 30 Ovation B-565FC User Manual Rev. 1...
  • Page 25 255 0–100%  255 Refer to the Virtual Color Wheel Chart Virtual Color Wheel  specific values 255 Refer to the Preset Color Temperature Chart Color Temperature  specific values Ovation B-565FC User Manual Rev. 1 Page 22 of 30...
  • Page 26: Virtual Color Wheel

    PERATION Virtual Color Wheel The Ovation B-565FC includes a feature called the Virtual Color Wheel (VCW). This feature is available as a stand-alone control mode for manual use and also as a control channel in each of the products’ DMX personalities.
  • Page 27: Configuration (Standalone)

    Note: The color temperatures above are simulated renditions of the color output produced as compared to a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy. Configuration (Standalone) Use standalone configuration to operate the product without a DMX controller.
  • Page 28: Master/Slave

    The master should be the first product in the daisy chain. Dimmer Profiles This setting determines how fast the output of the Ovation B-565FC changes when you modify the output value. This setting provides four different options to simulate the dimming curve of an incandescent lighting product.
  • Page 29: Back Light

    PERATION Back Light This setting allows for selection of the amount of time the backlight on the Ovation B-565FC’s display stays on after the last button is pressed on the control panel. Go to the Back Light main level. Select On (remains on), 10S (10 seconds), 20S (20 seconds), or 30S (seconds).
  • Page 30: Technical Information

    Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 27 of 30 Ovation B-565FC User Manual Rev. 1...
  • Page 31: Technical Specifications

    1 Cell: 3, 3, 4, 5, 8, 9, 10, 10, 17 3- and 5-pin XLR 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31 Ordering Product Name Item Code UPC Number Ovation B-565FC 03031236 781462215842 Ovation B-565FC User Manual Rev. 1 Page 28 of 30...
  • Page 32: Returns

    ETURNS ETURNS Send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags. Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return.
  • Page 33: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. UL 1573 CSA C22.2 No. 166 E113093 Ovation B-565FC User Manual Rev. 1 Page 30 of 30...
