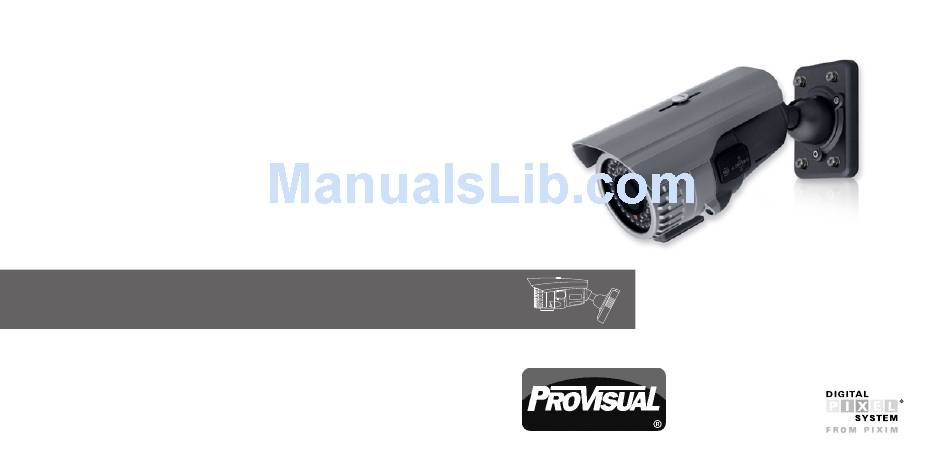

- Page 1 Ultra Wide Dynamic ProVisual, INC. www.provisualusa.com IR Waterproof Bullet Camera 3399 NW 72nd Ave. Suite 123 Miami, Florida 33122. United states Phone:(001) 305-594-4151 User's Manual...
- Page 2 5. Do not attempt to aim the camera at the sun. Do not attempt to aim the camera at the sun or other extremely bright objects that cause smear to appear irrespective of whether the camera is operating or not. This could damage the DPS Sensor. CB-2085IR-WDR...
- Page 3 3.Features Long-effective IR Light Source Design Long-effective IR Light Source Design "SEAWOLF" Image Sensor Adopts high performance IR LED and heat balance design, effectively extends the service life of LED. This camera adopts innovative DPS (Digital Pixel System) image sensor and image processing technology.
- Page 4 1. Set the camera installation location and fix the bracket installation plate with 1. Sunshade Screw expansion bolt. CB-2085IR-WDR 2. Fix the camera main frame to bracket installation plate with screws. 2. Sunshade Cover 3. Turn the cardan shaft and settle the camera at the required angle and then fix the 3.
-
Page 5: Menu Operation
OSD Menu Setup WDR Control: ENTER: Enter or exit menu Press Enter to show the menu, move the cursor to WDR Control, set MEDIUM, NORMAL, LOW, HIGH by left and right button, choose the setting for WDR in Move up and down by Up and Down button accordance with the lighting condition, set High in strong lighting contrast to realize Move horizontally or modify parameter by Left and Right button higher quality image. - Page 6 Technical parameter: LENS SELECT: Model CB-2085IR-WDR Move cursor to LENS SELECT, set LENS SELECT by Right and Left button as : 1/3” DPS Sensor (SEAWOLF) MANUAL, DC:DC Automatically. MANUAL FOR MANUAL IRIS LENS, DC for Sensor AUTO IRIS LENS. Video Format...
