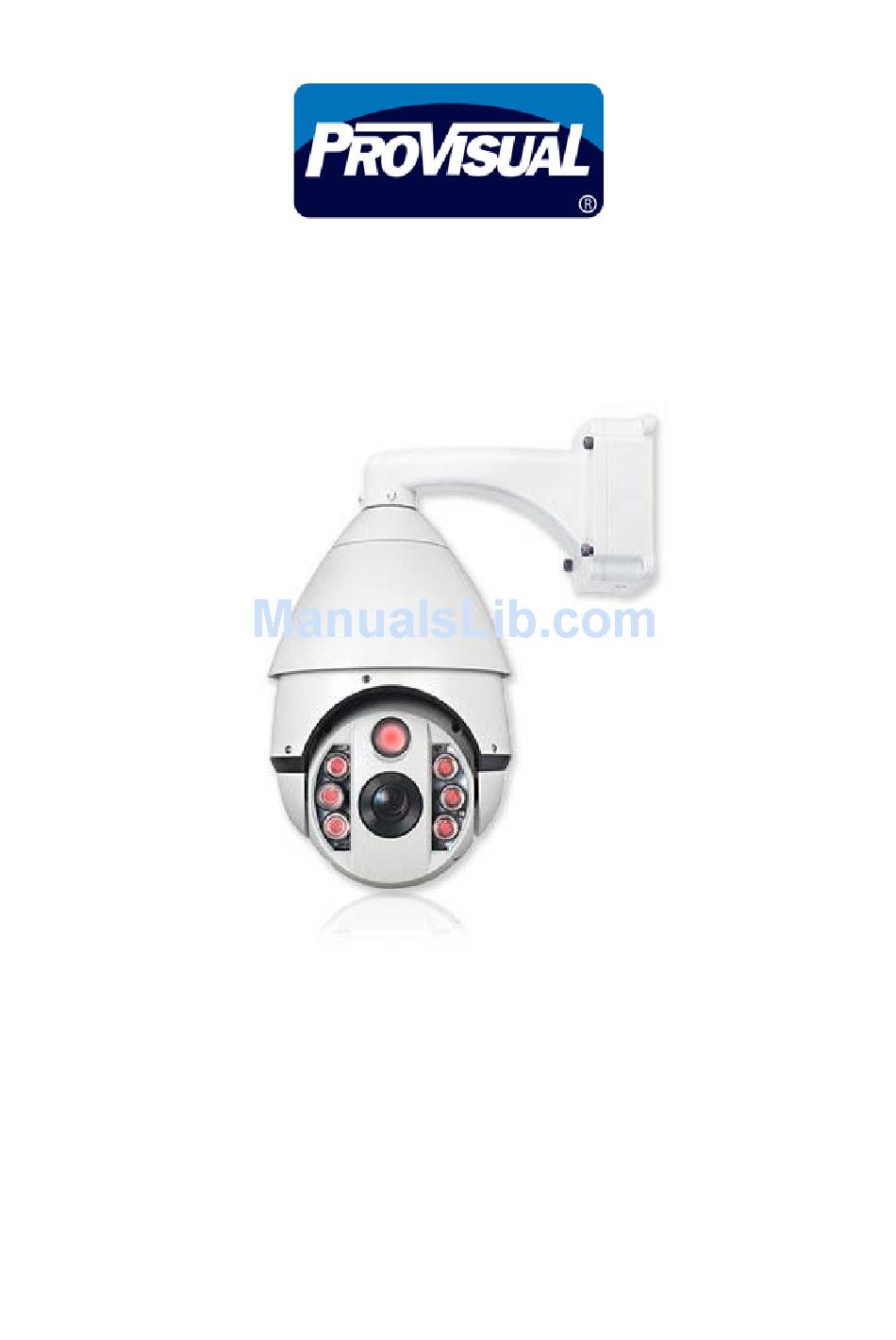

  • Page 1 PTZ2007-X18 2 MP Laser HD IP High Speed PTZ Camera User Manual...

  • Page 2: Table Of Contents

    Contents 1 Warning..................1 2 Features ..................1 2.1 Features ................1 2.2 Specifications ..............2 3 Installations ................... 3 3.1 Hardware requirements ............3 3.2 Software requirement ............3 3.3 PDVR Installation..............4 4 PDVR Instructions and Operation ..........7 4.1 PDVR ...................
  • Page 3 5.4.1 Connect Windows DVR Server ......26 5.4.2 Field remote monitoring ........28 5.4.3 Remote setting ............28 5.4.4 Remote playback local history video....28...

  • Page 4: Warning

    1 Warning  Do not install this speed dome in hazardous places where combustible or explosive materials are stored or used.  Please strictly abide by all the safety rules in the countries and areas when install and use.  Make sure all the power supply around you and camera’s power are off when installing.

  • Page 5: Specifications

     Housing, 1pc superpower LED IR light + 6pcs LED Array IR lights, night vision distance up to 120 meters. 2.2 Specifications Image Sensor ½.8" 2 Megapixel CMOS Day night Mode IR-CUT auto switch; Min. Illumination 0.1 Lux/F1.6 (Wide-angle) Scan Mode Line by line Electronic Shutter 1/25 secs to 1/500 secs...

  • Page 6: Installations

    3 Installations 3.1 Hardware requirements Channel 9-16CH 17-32CH Celeron Celeron Celeron Celeron D2.4G or D2.66G or D2.8G or D3.0G or more more more more Memory 512M or 256M 512M 256M more Video Card Intel 945PE Intel 865G Intel 915G/945G or more Motherboards Notice: <1>...

  • Page 7: Pdvr Installation

    properly. 3.3 PDVR Installation Please insert the CD to the computer, read the data, back up to the computer and compress the RAR. Package. Find the icon in the compression file. Double click the above Icon, as shows below windows when Installing: Page 4 of 32...
  • Page 8 Page 5 of 32...
  • Page 9 Page 6 of 32...

  • Page 10: Pdvr Instructions And Operation

    When installed,click <Finish>.Then the Desktop will show the below icon: 4 PDVR Instructions and Operation 4.1 PDVR Click the <PDVR> icon and access to the Main menu as follows:  <Config>: Enter to set the PDVR and Camera configuration.  <Play back>: Play back the record video.

  • Page 11: Configuration

     <Screen Division>: Show the current screen division.  <Record>: Start record, if select Channel 1, record Channel 1. 4.2 Configuration 4.2.1 IP Camera Connection Access the main menu, click<Config>, and choose <IP Camera Connection> as below:  <Set TV format>: PAL/NTSC optional ...

  • Page 12: Scheduled Record

     <Location Text>: choose a connected camera, click and edit the location text.  <Add>: add a new camera IP address, input the effective IP address an location text, then apply to finish.  <View>: Select and image will show in the main menu. ...

  • Page 13: User

    [2] Motion Record (M): Record when there is movement. User should set the Zone and Sensitivity of the Motion detection before Motion Record. [3] No Record: only browse the video, no record. User can manually set the record in Main Menu ...

  • Page 14: Network

     <Cameras remote user can view>: set up a remote connection for the added user, when select the corresponding channel, remote user can view the corresponding cameras when it is remotely connected. 4.2.4 Network Access the main menu, click<Config>, and choose <Network> as below: ...

  • Page 15: Running

    the camera has registered domain name, please delete the registered domain name if you want a new one, then you can register it).  <Connect Mode>: Two options can be chosen, 100M or 300M network cable. If choose 300M, then use 300M network cable to connect the camera.

  • Page 16: Storage

     <Reboot/ Power off>: Set the date and time of the Reboot and Power off.  <DVR auto boots >: select this icon, the DVR run with the computer. 4.2.6 Storage Access the main menu, click<Config>, and choose <Storage> as below: ...
  • Page 17  <Select Camera>: Choose the camera’s location text, then adjustment the camera’s color.  <Digital Shutter>: Adjust the camera’s exposure time.  <Manual Reduce>: manually reduce the frame, if choose 1/2, the frame will reduced to half of before.  <Adjustment>: Adjust the color and contract ration, also can automatically adjust the brightness.

  • Page 18: Motion Detection

    [2] Software switch: IR switches according to the image brightness. [3] Combine. 4.2.8 Motion Detection When there is movement in the motion detection zone, the system can trigger to record and alarm. Access the main menu, click<Config>, and choose <Adjustment> windows as below: ...

  • Page 19: Ptz

    motion detection zone.  <Enable video maximum>: enlarge the image of the motion detection zone when there is movement.  <Auto disable alarm>: Set auto stop time, and the camera auto disable alarm.  <Manually disable alarm>: Click the alarm screen, and disable alarm. 4.2.9 PTZ Access the main menu, click<Config>, and choose <PTZ>...
  • Page 20  <Set preset>: move the camera to the monitoring place and set the configuration, then input the preset ID in the <Preset ID > and a name in <Preset Name>, Click end to finish the setting.  <Call preset>: Choose from the preset ID or double click it as below. User can also call preset at the DVR main menu: right click the video interface and choose the preset as below: Page 17 of 32...
  • Page 21  <Delete preset>: select a preset, and click [Delete].  <Preset cruise>: select a Group ID, add the cruise preset, and set dwell time for each preset, then apply. Then back to the DVR Main menu, right-click the video screen as below: Page 18 of 32...
  • Page 22 Preset cruise can be called in <PTZ> window as below:  <Group ID>: Classify presets in different angles into a group, four groups and 128 presets can be set.  <Preset ID>: Fill a number for the new added preset. ...

  • Page 23: Decoder

    4.2.10 Decoder Access the main menu, click<Config>, and choose <Decoder> windows as below:  <Search-refresh>: Search the decoder in the LAN.  <Decoder IP>: Show the added Decoder IP.  <Location Text>: Name the added Decoder, it will be showed in the main menu when right click and choose.

  • Page 24: Set Alarm

    [2] When finished adding decoder IP in the Decoder interface, return to the main menu and if need to switch to the TV image, please right click and pop up the below dialog box: Click to choose the decoder, then click the TV name and switch the image to the TV.

  • Page 25: Ie Remote Monitoring

     <Set Alarm>: Select [Enable alarm], it support [Short-circuit alarm] and [Break alarm].  <Select Alarm outs when Alarm In>: can choose from [Enable photo], [Alarm Record], [Enable video maximum], [Enable Trigger] and [Duration]. 5 IE Remote Monitoring 5.1 Network Structure System network topology 5.2 Lan Remote Monitoring The internal computer haven’t external public IP address, it shows the private...
  • Page 26 (For the safety of the network of the DVR system, we recommend using Router as the firewall). 2) “Telephone Line—ADSL Adapter—Computer”. If the DVR uses the method 1) to connect the network, then the external computer needs to set the Router to monitor the DVR record through port mapping(or Virtual Server) to connect all the network software port(Default: 9000-9002) into the router to forward all data to DVR’s computer.

  • Page 27: Ie Security Setting

    Input the Account and password, then access to the main menu of the router setting, and click the right menu” Forward ”-Virtual Servers, and enter to the below interface, and set the port: 80. 9000.9001.9002 as the forward port (if the PDVR internal IP address is: 192.168.1.3), and then save it.
  • Page 28 [2] Click [Custom Level] and access to the security setting and enable [Download unsigned ActiveX controls]. Page 25 of 32...

  • Page 29: Ie Remote Monitoring System

    [3] Click [OK] and finish the IE security setting, and then user can remote monitoring through IE. 5.4 IE Remote Monitoring System 5.4.1 Connect Windows DVR Server After installing” ” and enter or input the Windows DVR Server IP address or Dynamic address in the IE browser address bar, Click [Enter] and will pop up”...
  • Page 30 window as below: Input IP address, User account and Password, then click [Next]. After connecting the DVR system, the IE browser CMS interface will show the Number of the remote camera in the right column: Page 27 of 32...
  • Page 31 , and access the” connect to server” window again, and input other Click PDVR server’s IP address, User and Password to connect that PDVR, and achieve one IE browser monitor several PDVR. 5.4.2 Field remote monitoring After connecting the PDVR system successfully, double click the gray box in front of the serial number, then remote controlling.
  • Page 32 [1] Before connecting the IE, do please close the fire wall in the host end and remote end. [2] The Max. Display screen is 16 screens when remote visiting the Host DVR port. [3] The Max supply camera is 64 channels, if there are several cameras visit the host at the same time and more than 64 channels, the IE browser will inform that”...
