  • Page 1 IR High Speed Dome Camera PTZ-9636IR User Manual...

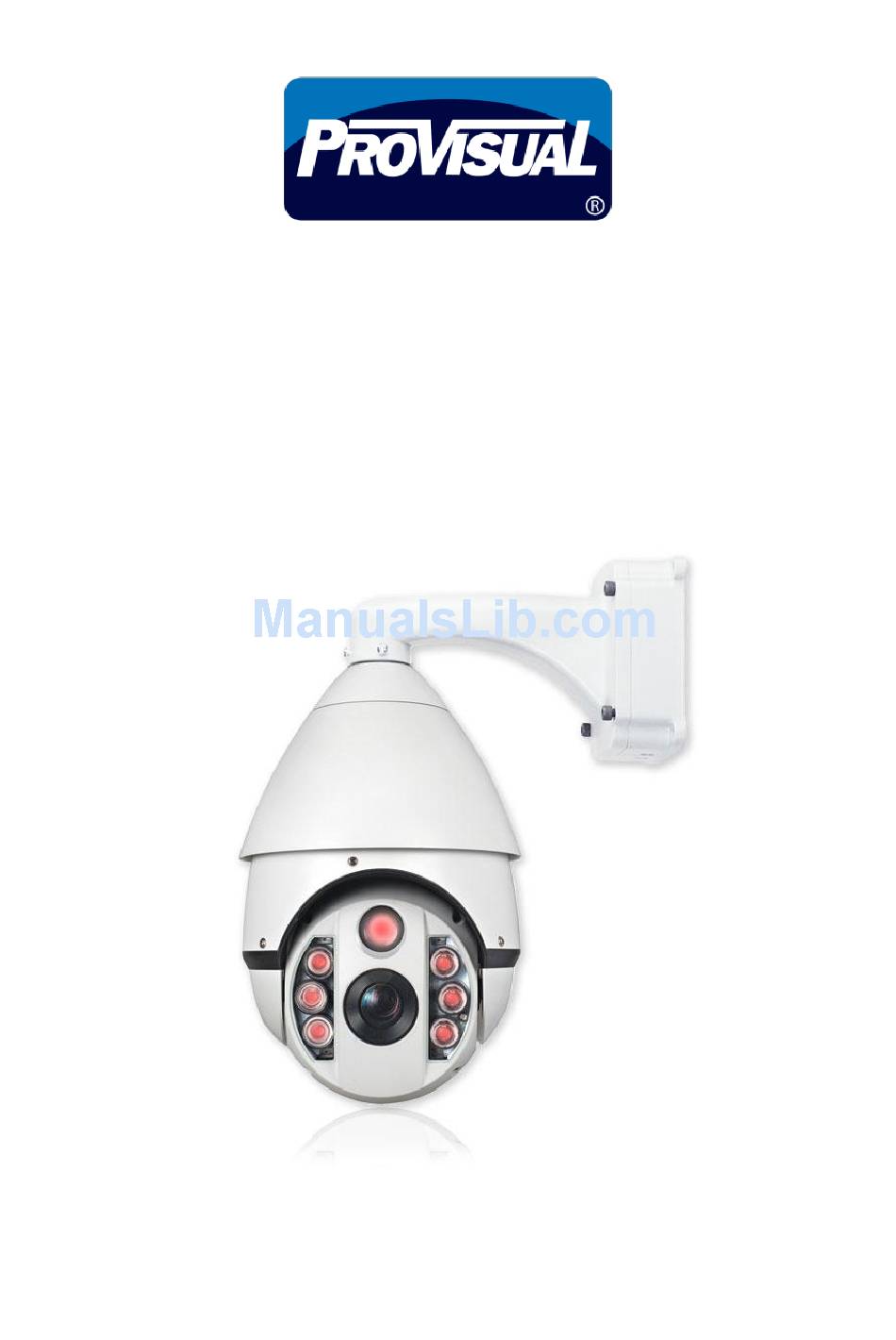

  • Page 2 Packing: Name Wall Bracket(include fixed Screws) Holder DC12V/5A power supply Screws PM8*25 socket head screws User’s manual Warranty Card Conformity of quality Description: 1pc superpower LED IR light + 6 pcs LED Array IR lights. Superpower LED IR light equipped with big or small lens (the big lens’ minimum Angle is 5°) to secondary condense the light, this model can fully gather IR lights into small angle and emit to far distance, and the effect is excellent and night vision distance is up to 150 meters.

  • Page 3: Table Of Contents

    Contents 1 Instruction ..................1 1.1 Safety Instructions ................1 1.2 Warnings..................... 1 2 Features ..................2 2.1 Product Features ................2 2.2 Specifications ..................3 3 Installation Preparations ............4 3.1 Tool List ....................4 3.2 Installation Preparation ..............4 3.3 DIP Switch Setup ................

  • Page 4: User's Manual

    1 Instruction This product can be widely used in intelligent building, bank security, urban roads, airport terminals and bus stations, and also are able to satisfy various demands from any square and activities occasion. 1.1 Safety Instructions  Make sure to read the user’s manual before using the product. ...

  • Page 5: Features

    2 Features 2.1 Product Features CCD Sensor: 1/3” Sony Effio CCD Color 960H.   Zoom Magnification: 36X Optical zoom.  Day & Night function: The camera is configured to switch to the black and white mode automatically under low light conditions and at night. Various focus mode: Auto Focus / Manual Focus / Semi-Auto Focus.

  • Page 6: Specifications

    2.2 Specifications Output: DC12V±5%, 5A Power Supply Input: AC100～240V, 50/60Hz Max. Power IR off: 15W IR on: 31W Sync system Internal Sync Pan Speed 0.08°～240°/S Tilt Speed 0.08°～240°/S Pan Range 0°～360° (Continuous) Tilt Range 0°～90°（180° auto flip） Preset Preset Accuracy <±0.1°...

  • Page 7: Screws

    3 Installation Preparations 3.1 Tool List (The tools in the list will be used or not) (1) Screws (2) Monkey wrench (3) Philips screwdriver (4) Straight Screwdriver (5) Wire stripper (6) Ladder (7) Electric drill (8) Socket head wrench (9) Hammer (10) Electric iron (11) BNC mail connector 3.2 Installation Preparation...

  • Page 8: Setup Of The Osd Menu

    (2)Baud Rate Setup Decoder Switch: 9~10 (1=ON, 0=OFF) Switch 9-10 setting Max transmission Baud Rate distance(M) 2400BPS 1800 4800BPS 1200 9600BPS Auto detected 2400, 600-1800 4800, 9600,19200BPS Notice: Please restart the camera after setting switch (3) When the DIP Switch 9th and 10th are ON, the PTZ can automatically detected the baud rate 2400, 4800, 9600, 19200.

  • Page 9: Enter The Osd Menu

    When starting, the PTZ will check the below information: Level self-check: Success Vertical self-check: Success Camera type: SONY Success When finished, the above information will disappear and the dome is under the control status. Notice: When the PTZ passed the level and vertical self-check, the screen show success, if not, error, and please contact our technician 4.2 Enter the OSD Menu In the condition of standby status, calling preset 95 enters into the main menu.

  • Page 10: System

    4.3 SYSTEM <Main Menu>  <SYSTEM> SITE INFO DISPLAY SETUP BOOTUP SCREEN PASSWORD SET DEFAULT SYSTEM REBOOT RTC TIME SET RTC TIMER RUNNING BACK EXIT System info includes following settings.  < SITE INFO>: User can setup the dome’s ID, site name and broadcast address.
  • Page 11 4.3.1 SITE INFO <Main Menu>  <SYSTEM>  <SITE INFO > NAME: GXAAF DOME: 001 DOME ID OPT: SOFT SOFTWARE ID: HARDWARE ID: BROADCAST ID: BACK EXIT  <NAME>: is the title of the dome. Assigning a name to a dome helps user to remember which dome it is.
  • Page 12  <BACK>: return to upper menu.  <EXIT>: exit the menu 4.3.2 DISPLAY SET UP < Main Menu><SYSTEM><DISPLAY SETUP> SITE NAME: PRESET TITLE: PATTERN NAME: OFF ZOOM: ORIENATATION: OFF TEMPRETURE: ZONE NAME: RTC TIME: BACK EXIT  <SITE NAME>：Choose to display site name or not. ...
  • Page 13 4.3.3 DISPLAY BOOT-UP INFO <Main Menu><SYSTEM><DISPLAY BOOT-UP INFO> PROTOCOL: PELCO P D BAUD RATE: 2400BPS CAMERA ID: 001 CAMERA S/N: 0000000001 MODEL: ----------------- VERSION: V1.02 FAN SPEED: 6000RPM CALL PRESET 1 TO BACK Enter into Boot-up info displays to check current setup, call preset 1 to return to upper menu.
  • Page 14  <CONFIRM>: Re-input the new password and confirm. If the input is not the same as the first time input, the system will remain the old password.  <PSWD PROTECTION>: Switch on / off the password protection. When it is <On> user need to enter password to access main menu or save preset through keyboard.

  • Page 15: Lens

    4.3.8 RTC RIME RUNNING <Main Menu><SYSTEM><RTC TIMER RUNNING> DATE Y/M/D: 00 00 00 TIME H: M: S: 00 00 00 ACTION: PRESET BACK EXIT  <DATE and TIME>: Setup time running time (24-hour)  <ACTION>: Choose one function from <PRESET>, <ZONE>, <TOUR>, <PATTERN>...
  • Page 16  <BOTH>: Joystick movement triggers both auto focus and auto iris <FOCUS>：Joystick movement triggers auto focus only  <IRIS>: Joystick movement triggers auto iris only.  <NONE>: Joystick movement triggers none of the functions.。  <AF RESUME TIME>: This item sets the time to restore auto focus after focus is manually changed.

  • Page 17: Camera

     <CAMERA P/N>: Show the current camera P/N (PAL/ NTSC), The PTZ can automatically detected some of the camera Signal mode, if not, please set manually. 4.5 CAMERA <Main Menu><CAMERA> WHITE BALANCE: AUTO BLC MODE BACK EXIT 4.5.1 WHITE BALANCE ...

  • Page 18: Pan/Tilt

    BLC QTY: WDR: BACK EXIT  <BLC QTY>: Adjust the data of the BLC, choose from 000-255.  <WDR>:ON and OFF the camera’s WDR function. 4.6 PAN/TILT <Main Menu><PAN/TILT> AUTO STOP TIME: SPEED AMPLIFY: PROPORTIONAL P/T: ON SET NORTH BACK EXIT ...

  • Page 19: Auto Running

    Notice: The above two functions is not available at present  <PROPORTIONAL P/T>: The dome moves at a speed of certain degree per second. Objects on screen move much faster in wide scope than in telescope. Even too faster in some case.
  • Page 20 4.7.1 PRESET <Main Menu><AUTO RUNNING><PRESET> PRESET NUMBER: TITLE: PRESET 001 SET CURRNET REMOVE CURRENT BACK EXIT In this function, the value of pan/tilt speed and camera parameters could be stored in the preset so that you can call them when needed. 128 presets can be set.
  • Page 21  < REMOVE CURRENT>: Delete the preset with the number and title display above. 4.7.2 TOUR <Main Menu>  <AUTO RUNNING>  <TOUR> TOUR NUMBER: 001 DWELL: 003 EDIT BACK EXIT The dome camera will run repeatedly as the given sequence of presets at certain dwell time by one command.
  • Page 22 There are three group numbers, the left side is preset number, the right side is dwell time; tour from left to right, up to down in the order to run preset; when the preset number is set to < 000>, the current preset is skipped; <SAVE AND BACK>: Save the tour and back.
  • Page 23 CALL PRESET 1 TO BACK CONFIRM… … 180S 000% RECORD………. <180S>: Remaining record time.  <000%>: The recording space. The record time will decrease while the  space increases. User can call preset 1 to back to the upper menu. Notice: Any of the time and space is finished;...
  • Page 24 Special note: 360° scan stay time and preset cruise stay time is sharing, PTZ running by the new setting time. For instance, call 360° scan stay time is 5 seconds, after then, recall the preset cruise stay time is 10 seconds, then when the user recalls 360°...
  • Page 25 CALL PRESET 1 TO BACK CONFIRM..Move the camera left limit position to confirm and return.  <RIGHT LIMIT>: Set the right edge of region (B) CALL PRESET 1 TO BACK CONFIRM..<PAN SPEED>...

  • Page 26: Privacy Mask (Need Support By Camera)

    0S：PARK TIME OFF 60S：PARK TIME ON, 60S 120S：PARK TIME ON, 120S 4.7.7 <RUNNING TYPE> Set the run type after the idle time, users can choose Preset, Tour, Pattern, or Auto. Note: Time running available only<IDLE TIME> and <RUNNING TYPE> are both ON state. 4.8 PRIVACY MASK (Need support by camera) <Main Menu>...

  • Page 27: Language

    Call preset 1 to confirm your setup and then you will see below sub-menu: CALL PRESET 1 TO RETURN CONFIRM..SIZE Using up, down, left and right key to adjust the size of the mask, then call preset 1 to confirm and return.
  • Page 28 IR MODE: AUTO IR ZOOM SET 1: 006 IR ZOOM SET 2: 010 PRESENT LUX: 000 IR START SET: 006 IR CLOSE SET: 012 BACK EXIT  <IR MODE >: AUTO/OPEN/CLOSE <AUTO>: Default. When the detected signal value from the IR sensitive below the value of IR Start, the IR dome automatically open the IR lights.

  • Page 29: Appendix I Dip Switch Setting

    APPENDIX I DIP SWITCH SETTING DIP Switch consists of 8 numbers from 1-8, use 8421 binary cod, max 255 address. When the switch is in the “ON” position, the number from 1-8 corresponding to 1, 2, 4, 8, 32, 64, 128. For example, if you set 1, 3, 5, 7 switch to the “ON”...
  • Page 30 1 1 0 0 0 1 0 0 0 0 1 0 0 1 0 0 1 0 1 0 0 1 0 0 0 1 1 0 0 1 0 0 1 1 1 0 0 1 0 0 0 0 0 1 0 1 0 0 1 0 0 1 0 1 0 0 0 1 0 1 0 1 0 0...
  • Page 31 1 0 0 1 1 0 1 0 0 1 0 1 1 0 1 0 0 0 1 1 1 0 1 0 0 0 1 1 1 0 1 0 1 0 1 1 1 0 1 0 0 1 1 1 1 0 1 0 1 1 1 1 1 0 1 0 0 0 0 0 0 1 1 0...
  • Page 32 1 1 1 1 0 0 0 1 0 0 0 0 1 0 0 1 1 0 0 0 1 0 0 1 0 1 0 0 1 0 0 1 1 1 0 0 1 0 0 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 0 1 0 1 1 0 1 0 0 1...
  • Page 33 1 0 1 0 0 0 1 1 0 1 1 0 0 0 1 1 1 1 1 0 0 0 1 1 0 0 0 1 0 0 1 1 1 0 0 1 0 0 1 1 0 1 0 1 0 0 1 1 1 1 0 1 0 0 1 1 0 0 1 1 0 0 1 1...

  • Page 34: Appendix Ii Shortcuts Key Chart

    1 1 0 1 1 1 1 1 0 0 1 1 1 1 1 1 1 0 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Notice: Some protocols and address start from 0.
  • Page 35 Set #94 preset Set color-to-black function Set #95 preset Close main menu Set #96 preset Access main menu Set #97 preset Set 360°scan, the preset-dwell: 0S Set #98 preset Set 360°scan, the preset-dwell: 5S Set #99 preset Set 360°scan, the preset-dwell: 10S Call #71 preset Proportional P/T ON Call #82 preset...

  • Page 36: Appendix Iii Trouble Shooting

    APPENDIX III Trouble Shooting Troubles Reason Solution 1. The power supply is not 1. Correct the connection. No action when power on connected correctly. 2. Check the power supply is 2. The fuse is broken. connected, or confirms if the plug connects well.
