Wearing your processor

Attaching the coil and coil cable

If the coil is not attached to the processing unit, or the coil cable is
not attached to the coil, you need to attach them before placing the
processor on your ear.

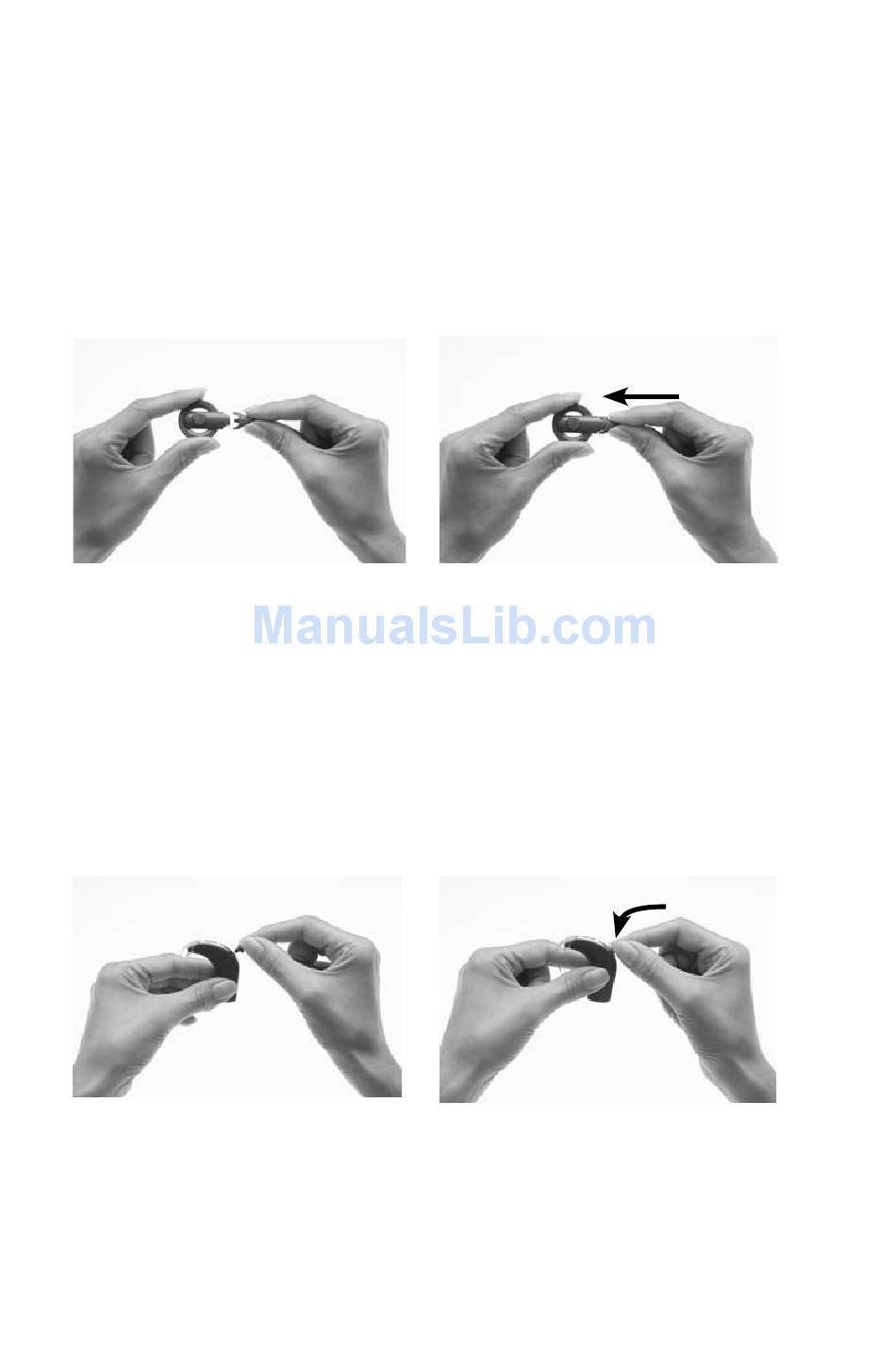

Attaching the coil cable to the coil

To attach the coil cable to the coil:
1. Hold the coil in one hand
and the coil cable plug in the
other hand as shown.
2. Align the coil end of the coil
cable plug with the coil.

Attaching the coil to the processing unit

To attach the coil to the processing unit:
1. Align the coil cable plug with
the coil cable socket on the
processing unit.
16 - CP810 Sound Processor User Guide
3. Push the coil cable plug
firmly into the coil until it
clicks into place.
2. Push the coil cable plug
firmly into the socket until
it clicks into place.
© Cochlear Limited 2010
