PCI Express Communication Cards
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCI-1482E and is the answer not in the manual?

Questions and answers

Related Manuals for TEDIA PCI-1482E

Summary of Contents for TEDIA PCI-1482E

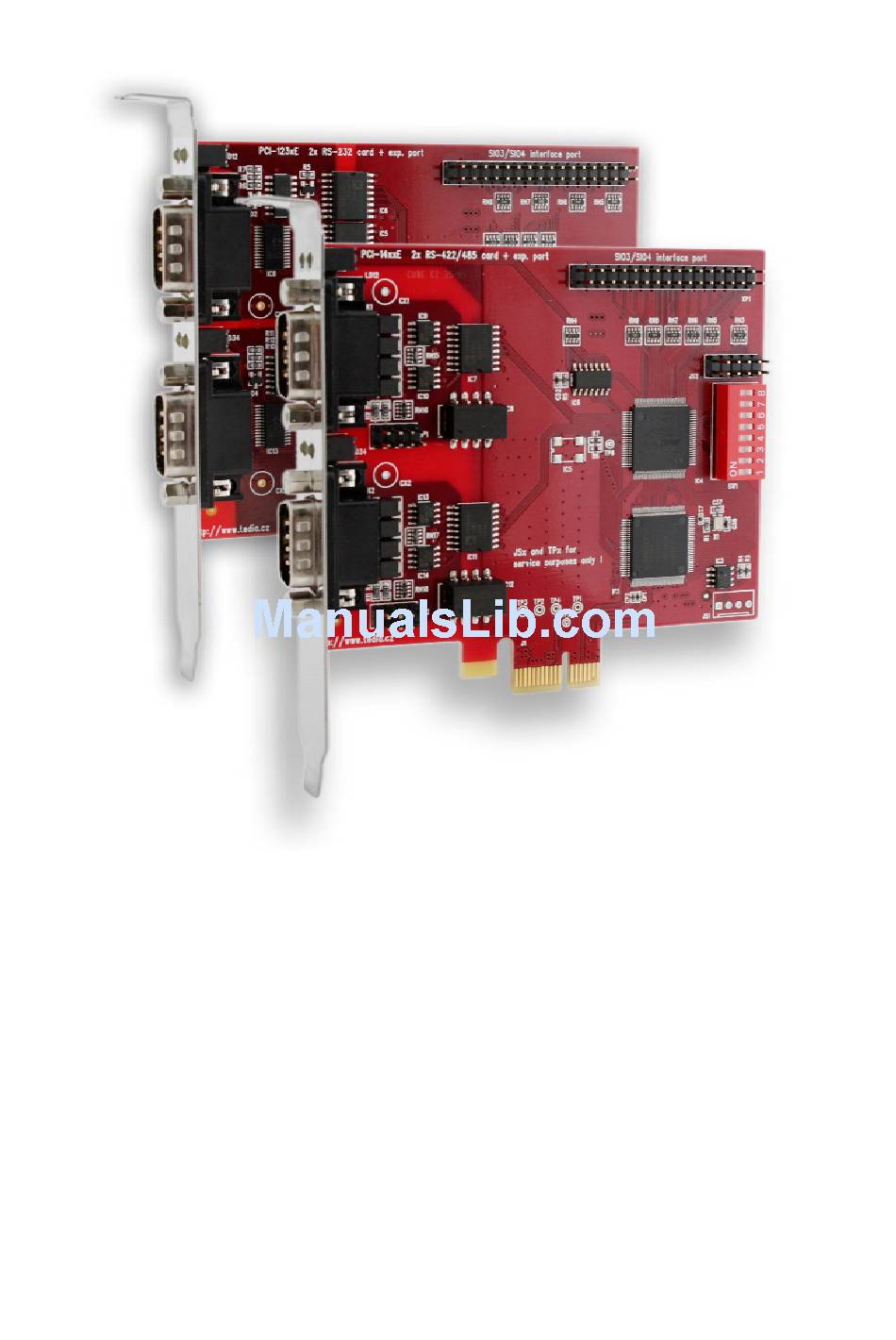

  • Page 1 PCI Express Communication Cards User Guide...
  • Page 2 “as is,” without warranty of any kind, either expressed or ® implied, including, but not limited to, its particular purpose. TEDIA reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time.

  • Page 3: Table Of Contents

    PCI Express Communication Cards User Guide - Table of Contents Table of Contents CE Declaration of Conformity 1. Introduction 1.1. Description I - 1 1.2. Available Versions I - 1 1.3. General Instructions for Use I - 1 2. Specifications 2.1.
  • Page 4 PCI-1200E series (i.e. PCI-1232E and PCI-1234E), PCI-1400E series (i.e. PCI-1414E, PCI-1434E, PCI-1482E and PCI-1484E), when installed in accordance with the manufacturers specifications, are in conformity with the following standards...

  • Page 5: Description

    PCI-1414E (4x D-Sub 9) II - 2 PCI-1434E (4x D-Sub 9) II - 2 PCI-1482E (2x D-Sub 9) II - 2 PCI-1484E (4x D-Sub 9) II - 2 Note: At the time of issuing this manual, no cards providing non-isolated ports or specific connectors (such as RJ45) had been in production.

  • Page 6: Specifications

    PCI Express Communication Cards User Guide Specifications 2.1. Common Features Number of ports: 2 or 4 Supported interfaces: RS-232, RS-422, RS-485 Supported signals RS-232: TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI Supported signals RS-422: TXD+ (B), TXD- (A), RXD+ (B), RXD- (A) Supported signals RS-485: TXD/RXD+ (B), TXD/RXD- (A) Communication controller:...

  • Page 7: Rs-232 Non-Isolated Interface

    (350 mA max.) PCI-1434E: 350 mA @ 3.3V typ. (500 mA max.) 180 mA @ 12V typ. (330 mA max.) PCI-1482E: 300 mA @ 3.3V typ. (450 mA max.) 100 mA @ 12V typ. (180 mA max.) PCI-1484E: 350 mA @ 3.3V typ.

  • Page 8: Installation

    Detailed reading of this guide and following the instructions precisely are highly recommended for achieving full quality and to prevent any damage during installation. For further information see manufacturer's website http://www.tedia.eu. 3.2. Line Mode Selection The communication cards support standard interfaces RS-232, RS-422 (four-wire duplex line) and RS-485 (two-wire half-duplex line).

  • Page 9: Location Of Connectors, Leds And Switches

    32 devices. Although the number of the repeaters in a row is not limited, more than three are not generally recommended. ® Note: The TEDIA product line provides a complex series of isolated converters, and repeaters for the RS-232, RS-422 and RS-485 lines. rev. 10.2009...

  • Page 10: Windows Drivers

    PC will release the COM ports, but the driver will remain installed. The complete driver uninstallation may be proceeded in the Control Panel -> Add or Remove Programs --> TEDIA PCI Express Controller Driver. 4.3. Advanced Driver Configuration...

  • Page 11: Advanced Baurates Settings

    PCI Express Communication Cards User Guide RS-422 RS-422 with output transceiver permanently activated; DTR and RTS are driven automatically (it is possible to use external RS-232 converters to connect RS-232 devices; contact technical support for more information) RS-485 FD (Full Duplex) with transceiver driven by DTR (also called RS-422 multimaster mode or four-wire RS-485) RS-485 HD (Half Duplex) is the standard RS-485 option;...
  • Page 12 PCI Express Communication Cards User guide - Appendix II, Tables and Figures LD12 LD12-1 LD12-2 SIO3/SIO4 SIO1 LD34 LD34-1 LD34-2 TYPE SIO2 Ser. No. Figure 1. Important Components at PCI-1232E and PCI-1234E. Notes: The type and serial number label is located at the MCS9901CV controller, see figure above.
  • Page 13 LD34-2 TYPE SIO2 Ser. No. Figure 2. Important Components at PCI-1414E, PCI-1434E, PCI-1482E and PCI-1484E. Notes: The type and serial number label is located at the MCS9901CV controller, see figure above. The PCI-14x4E set includes the PCIe card itself and the extension (see description in page II-3) that provides COM3 and COM4.
  • Page 14 PCI Express Communication Cards User guide - Appendix II, Tables and Figures LD12 LD12-1 LD12-2 SIO3 LD34 LD34-1 LD34-2 SIO4 PCI-1023E PCI-1024E PCI-1026E Figure 3. Important Components at PCI-1023E, PCI-1024E a PCI-1026E. Note: The PCI-102xE extensions are included at the four-port sets PCI-1234E, PCI-1414E, PCI-1434E a PCI-1484E, see table below.
  • Page 15 The circuit schematics including the termination resistors topology is shown in Figure 4. The user may activate the termination impedances by connecting the corresponding pins at the D-Sub 9 connector (identical to all TEDIA PCI and ISA communication cards) or by setting the appropriate jumper; see Figure 5. rev. 10.2009...
  • Page 16 PCI Express Communication Cards User guide - Appendix II, Tables and Figures D-Sub 9 (RS-422) 470R 470R RXD+ ( - - - ) RXD- ( - - - ) TXD+ TXD/RXD+ 150R 150R TXD- TXD/RXD- (RS-485) 470R 470R RS-422 RS-485 JP1/JP2 active termination impedances included at the card...
  • Page 17 PCI Express Communication Cards User guide - Appendix II, Tables and Figures 1. device 2. device line max. 1200m Figure 6. Schematics of RS-422 Line with the Point-To-Point Topology. Note: The line utilizes two shielded pairs (see Chapter 3.7.). The termination resistors on the driver side are not necessary when using the standard mode.
  • Page 18 PCI Express Communication Cards User Guide - Notes ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 20 Developement, manufacturing, sales office, service center, technical support and headquarters: ® address: TEDIA spol. s r. o. Zábělská 12 31211 Plzeň Czech Republic phone: +420 373730431 (general number, sales office) +420 373730436 (technical support) fax: +420 373730430 e-mail: sales@tedia.eu support@tedia.eu internet: http://www.tedia.eu...
