- Page 1 Counter & Digital I/O PCIe card PCT-8424/8425/8426 User Guide...
- Page 2 “as is,” without warranty of any kind, either expressed or ® implied, including, but not limited to, its particular purpose. TEDIA reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time.
-
Page 3: Table Of Contents
PCT-8424, PCT-8425, PCT-8426 User Guide - Table of Contents Table of Contents CE Declaration of Conformity, WEEE 1. Introduction Description ........... - Page 4 PCT-8424, PCT-8425, PCT-8426 User Guide - CE Declaration of Conformity, WEEE CE Declaration of Conformity ® All TEDIA products described in this user guide comply with the essential requirements of the following applicable European Directives: • Electromagnetic Compatibility (EMC) Directive 2014/30/EU •...
-
Page 5: Introduction

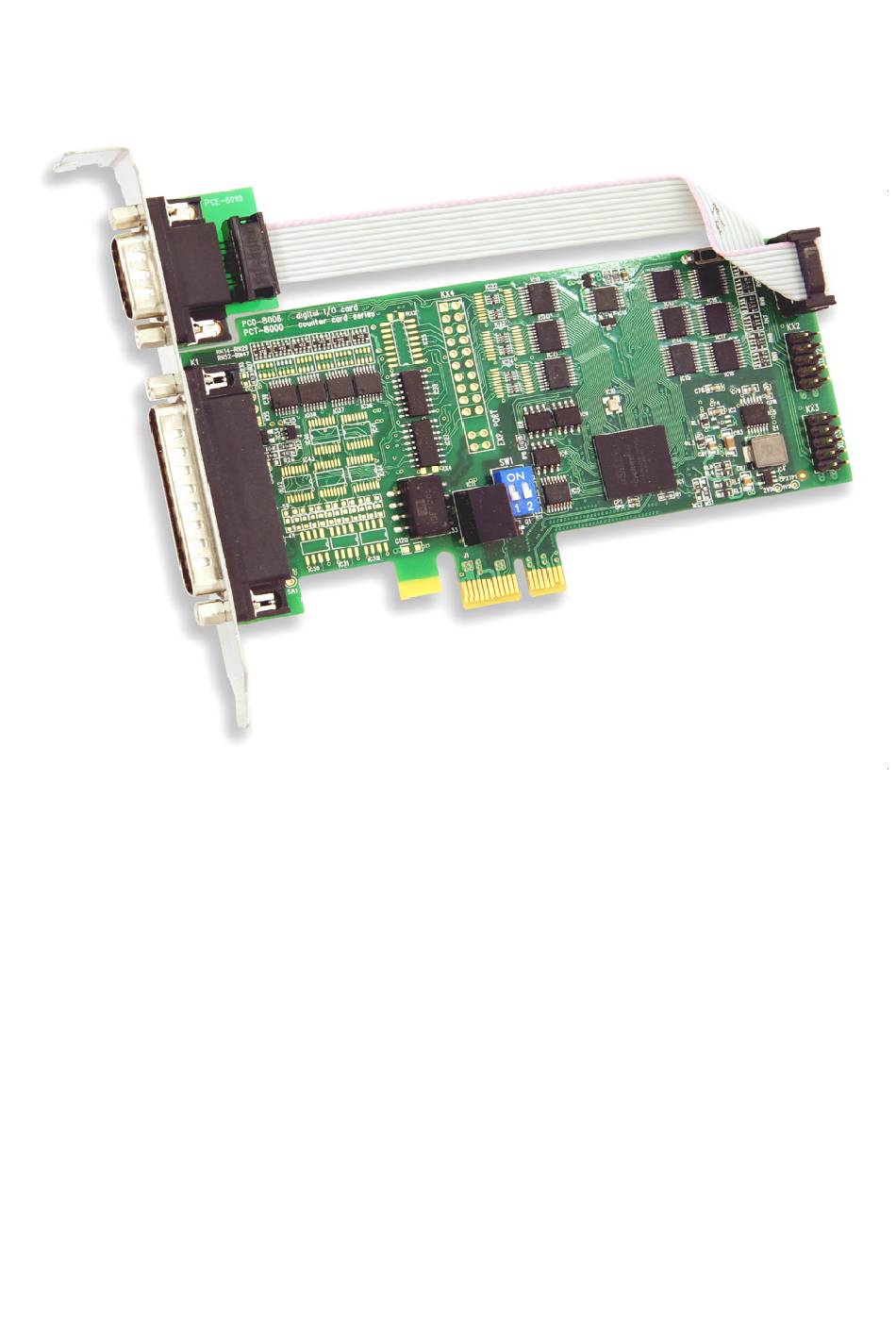

User Guide Introduction Description The PCT-8424/8425/8426 are add-on PCI Express cards intended especially for laboratory and industrial automation and measuring systems. The PCT-8424/8425/8426 cards provide especially these features: • 24 isolated digital inputs; signal levels depending on the type of card (5 V or 24 V) •... -
Page 6: Specifications
PCT-8424, PCT-8425, PCT-8426 User Guide Specifications Digital inputs Input type: PCT-8424, PCT-8424/LP HC/HCT/TTL PCT-8425, PCT-8425/LP 24 V, common GND (designed for PNP outputs) PCT-8426, PCT-8426/LP 24 V, common 24 V (designed for NPN outputs) Number of inputs: Parameters of HC/HCT/TTL type inputs: signal level L: <... -
Page 7: Interrupt Logic
PCT-8424, PCT-8425, PCT-8426 User Guide Number of timers: Timers mode: period measurement, with assigned capture register Timers depth: 32 bits Time base: 25 MHz (ie. 171 second max.) Interrupt logic Interrupt sources: timestamp IRQ generator (1÷255 ms), all digital ports... -
Page 8: Installation
Detailed reading of this guide and following the instructions precisely are highly recommended for achieving full quality and to prevent any damage during installation. For further information see manufacturer's website http://www.tedia.eu. Hardware configuration The PCT-842x card contains a single configuration element - a two-segment DIP switch (the status of this switch can be read by the program to identify multiple cards as CardID value). -
Page 9: Counters And Timers
The PCT-8424 card counters respond to the falling edge, ie. the contents of the counter are incremented by one at the time of the signal change from 1 to 0 in the data register. -
Page 10: Digital Inputs And Ports
All cards of the PCT-842x series contain 24 isolated digital inputs they differ from each other only by signal levels and input connections. The PCT-8424 card digital inputs work with HC/HCT/TTL levels and use HCTMOS circuits providing high input impedance, very low leakage current and protection diodes. The... -
Page 11: Description Of Digital Ports
Check the Appendix, Figure 6 for detail information. Note: Unfortunately, the concept of bidirectional ports does not provide the overvoltage protection available to other ports of PCI/PCIe TEDIA cards. Interrupt logic The PCT-842x card allows to trigger an interrupt (simultaneously with the timestamp IRQ generator) by any combination of rising or falling edges of the signals of all digital inputs and digital ports. - Page 12 PCT-8424, PCT-8425, PCT-8426 User guide - Appendix, Tables and Figures PCT--842x PCE-8019 Card ID ID=0 ID=1 ID=2 ID=3 PCT-842x/LP Card ID ID=0 ID=1 ID=2 ID=3 Figure 1. Location of switches and connectors on both version of cards. connector of digital inputs DIN00÷DIN23 (D-Sub 25 - male) connector of digital port DIO0, ie.
- Page 13 PCT-8424, PCT-8425, PCT-8426 User guide - Appendix, Tables and Figures K1 signal (PCE-8025/LP) K1 signal (PCE-8025/LP) DIN00 (DIO00) DIN01 (DIO01) DIN02 (DIO02) DIN03 (DIO03) DIN04 (DIO04) DIN05 (DIO05) DIN06 (DIO06) DIN07 (DIO07) DIN08 (DIO08) DIN09 (DIO09) DIN10 (DIO10) DIN11 (DIO11)
- Page 14 Pin layout on D-Sub 25 (male), D-Sub 9 (male) and header type connectors (2x 5 pins, 2.54 mm pitch). INPUT signals PCIe card isolation DINxx DINxx data Figure 3. Simplified schematic of isolated inputs PCT-8424. INPUT signals PCIe card isolation DINxx data DINxx 24 V power supply Figure 4.
- Page 15 PCT-8424, PCT-8425, PCT-8426 User guide - Appendix, Tables and Figures INPUT signals PCIe card DINxx isolation DINxx data 24 V power supply Figure 5. Simplified schematic of isolated inputs PCT-8426. As can be seen from the schematic, DINxx inputs handle signals with negative polarity against the common rail (COM).
- Page 16 PCT-8424, PCT-8425, PCT-8426 User Guide - Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
