TEDIA OPT-821A User Manual

General description
The OPT-821A daughter board provides optical isolation and input digital signal
conditioning of the DAQ cards.
The board provides eight input blocks (isolated between each other) for processing
DC signals up to 32 V. All channels work as inverting, i.e. high input voltage is
represented by the output level "L". Every channel is fitted with an indicating LED,
signalizing high input signal level.
The output port operates in NPN open collector mode (requires pull-up resistors;
meets all DAQ cards TEDIA) or TTL mode (requires an external power supply).
General instructions for use
The OPT-821A board is designed for DAQ&C applications and may be used only
according to the manufacturer's recommendations and precautions given in this
manual and other general standards and terms and may be used only such a way,
that its failure caused by any reason will not be dangerous to any person or property.
Installation
The OPT-821A board is supplied as an unencapsulated kit intended for fastening via
four screws, a plastic housing DIN-801 suitable for mounting on the 35 mm DIN
rail is supplied optionally.
The board can be used in an environment with operating temperature -10~60 °C and
relative humidity up to 90%, noncondensing and normal levels of pollution.
Specifications
input voltage - level L:
input voltage - level H:
maximum input voltage:
input impedance:
output voltage - level L:
output voltage - level H:
signal delay:
isolation voltage (see note below):
power supply (see note below):
recommended cable length:
dimensions of board:
mounting hole spacing:
mounting hole diameter:
Note: "AC" indicates the rms value of a 50 Hz AC harmonic signal.
Note: The power supply is required only for TTL mode.
< 5 V (i.e. level H on the output signal)
DC
> 15 V (i.e. level L on the output signal)
DC
±50 V
DC
6 kOhm approx.
< 0.5 V (1.6 mA max.)
> 2.5 V (0.5 mA max., TTL mode)
< 0.5 ms
1500 V (all inputs against outputs)
AC
100 V (between inputs)
DC
+8~30 V (10 mA typ., 15 mA max.)
DC
10 m max. (input signals)
2 m max. (output signals)
72 x 88 mm
61.5 x 77 mm
3.5 mm
SV2
2 1
OPT-821A
1
CH0 CH1 CH2 CH3

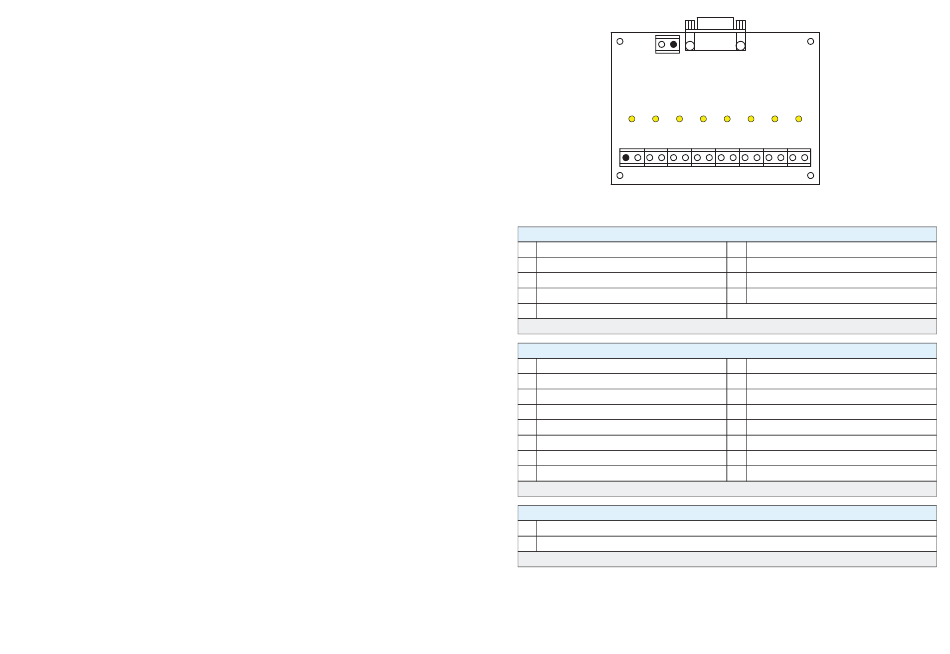

K1 connector pin assigment (interface port, D-Sub 9, female)
1 CH0 - DIN port signal (PC card)
2 CH2 - DIN port signal (PC card)
3 CH4 - DIN port signal (PC card)
4 CH6 - DIN port signal (PC card)
5 GND - common signal (PC card)
Note: The OPT-821A signals operate in "NPN open collector" mode or in TTL levels.
SV1 terminals pin assigment (digital inputs)
1 CH0 - input signal (positive)
2 CH0 - input signal (negative)
3 CH1 - input signal (positive)
4 CH1 - input signal (negative)
5 CH2 - input signal (positive)
6 CH2 - input signal (negative)
7 CH3 - input signal (positive)
8 CH3 - input signal (negative)
Note: The schematic of the input circuits is shown in the figure Fig. 1.
SV2 terminal block pin assigment (power supply)
1 power supply (+8~30 V , current consumption 10 mA typ., 15 mA max.)
DC
2 power supply (GND, directly connected to pin 5 of K1 connector)
Note: The power supply is required only for TTL mode.
K1
SV1
16
CH4 CH5 CH6 CH7
6 CH1 - DIN port signal (PC card)
7 CH3 - DIN port signal (PC card)
8 CH5 - DIN port signal (PC card)
9 CH7 - DIN port signal (PC card)
9 CH4 - input signal (positive)
10 CH4 - input signal (negative)
11 CH5 - input signal (positive)
12 CH5 - input signal (negative)
13 CH6 - input signal (positive)
14 CH6 - input signal (negative)
15 CH7 - input signal (positive)
16 CH7 - input signal (negative)
