- Page 1 Digital I/O PCIe card PCD-8104/8105/8106 User Guide...
- Page 2 “as is,” without warranty of any kind, either expressed or ® implied, including, but not limited to, its particular purpose. TEDIA reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time.
-
Page 3: Table Of Contents
PCD-8104, PCD-8105, PCD-8106 User Guide - Table of Contents Table of Contents CE Declaration of Conformity, WEEE 1. Introduction Description ........... - Page 4 PCD-8104, PCD-8105, PCD-8106 User Guide - CE Declaration of Conformity, WEEE CE Declaration of Conformity ® All TEDIA products described in this user guide comply with the essential requirements of the following applicable European Directives: • Electromagnetic Compatibility (EMC) Directive 2014/30/EU •...
-
Page 5: Introduction

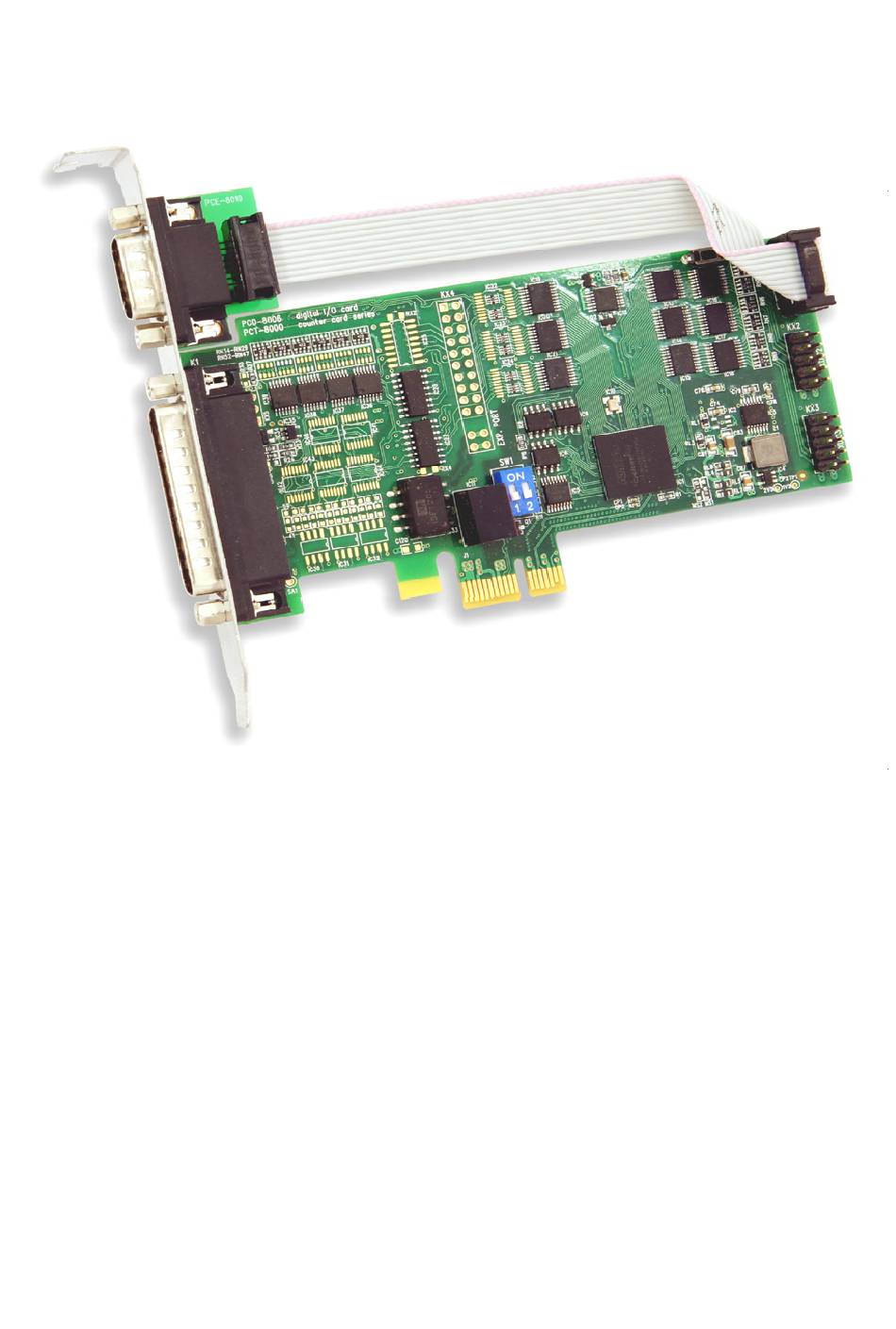

User Guide Introduction Description The PCD-8104/8105/8106 are add-on PCI Express cards intended especially for laboratory and industrial automation and measuring systems. The PCD-8104/8105/8106 cards provide especially these features : • 24 isolated digital inputs; signal levels depending on the type of card (5 V or 24 V) •... -
Page 6: Specifications
PCD-8104, PCD-8105, PCD-8106 User Guide Specifications Digital inputs Input type: PCD-8104, PCD-8104/LP HC/HCT/TTL PCD-8105, PCD-8105/LP 24 V, common GND (designed for PNP outputs) PCD-8106, PCD-8106/LP 24 V, common 24 V (designed for NPN outputs) Number of inputs: Parameters of HC/HCT/TTL type inputs: signal level L: <... -
Page 7: General Data
PCD-8104, PCD-8105, PCD-8106 User Guide General data Bus type: PCI Express (x1, Gen 1) PCI ID: VID=1760 , DID=0804 (PCD-8104, PCD-8104/LP) VID=1760 , DID=0805 (PCD-8105, PCD-8105/LP) VID=1760 , DID=0806 (PCD-8106, PCD-8106/LP) Bus power consumption: 300 mA typ. @ 3.3 V (500 mA max.) -
Page 8: Installation
Detailed reading of this guide and following the instructions precisely are highly recommended for achieving full quality and to prevent any damage during installation. For further information see manufacturer's website http://www.tedia.eu. Hardware configuration The PCD-810x card contains a single configuration element - a two-segment DIP switch (the status of this switch can be read by the program to identify multiple cards as CardID value). -
Page 9: Digital Inputs And Ports
All cards of the PCD-810x series contain 24 isolated digital inputs they differ from each other only by signal levels and input connections. The PCD-8104 card digital inputs work with HC/HCT/TTL levels and use HCTMOS circuits providing high input impedance, very low leakage current and protection diodes. The... -
Page 10: Description Of Digital Ports
Check the Appendix, Figure 6 for detail information. Note: Unfortunately, the concept of bidirectional ports does not provide the overvoltage protection available to other ports of PCI/PCIe TEDIA cards. Interrupt logic The PCD-810x card allows to trigger an interrupt (simultaneously with the timestamp IRQ generator) by any combination of rising or falling edges of the signals of all digital inputs and digital ports. - Page 11 PCD-8104, PCD-8105, PCD-8106 User guide - Appendix, Tables and Figures PCD-810x PCE-8019 Card ID ID=0 ID=1 ID=2 ID=3 PCD-810x/LP Card ID ID=0 ID=1 ID=2 ID=3 Figure 1. Location of switches and connectors on both version of cards. connector of digital inputs DIN00÷DIN23 (D-Sub 25 - male) connector of digital port DIO0, ie.
- Page 12 PCD-8104, PCD-8105, PCD-8106 User guide - Appendix, Tables and Figures K1 signal (PCE-8025/LP) K1 signal (PCE-8025/LP) DIN00 (DIO00) DIN01 (DIO01) DIN02 (DIO02) DIN03 (DIO03) DIN04 (DIO04) DIN05 (DIO05) DIN06 (DIO06) DIN07 (DIO07) DIN08 (DIO08) DIN09 (DIO09) DIN10 (DIO10) DIN11 (DIO11)
- Page 13 Pin layout on D-Sub 25 (male), D-Sub 9 (male) and header type connectors (2x 5 pins, 2.54 mm pitch). INPUT signals PCIe card isolation DINxx DINxx data Figure 3. Simplified schematic of isolated inputs PCD-8104. INPUT signals PCIe card isolation DINxx data DINxx 24 V power supply Figure 4.
- Page 14 PCD-8104, PCD-8105, PCD-8106 User guide - Appendix, Tables and Figures INPUT signals PCIe card DINxx isolation DINxx data 24 V power supply Figure 5. Simplified schematic of isolated inputs PCD-8106. As can be seen from the schematic, DINxx inputs handle signals with negative polarity against the common rail (COM).
- Page 15 PCD-8104, PCD-8105, PCD-8106 User Guide - Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
