4. After communication, unplug the MINI USB cable.
7.9.2 MS ACTIVESYNC

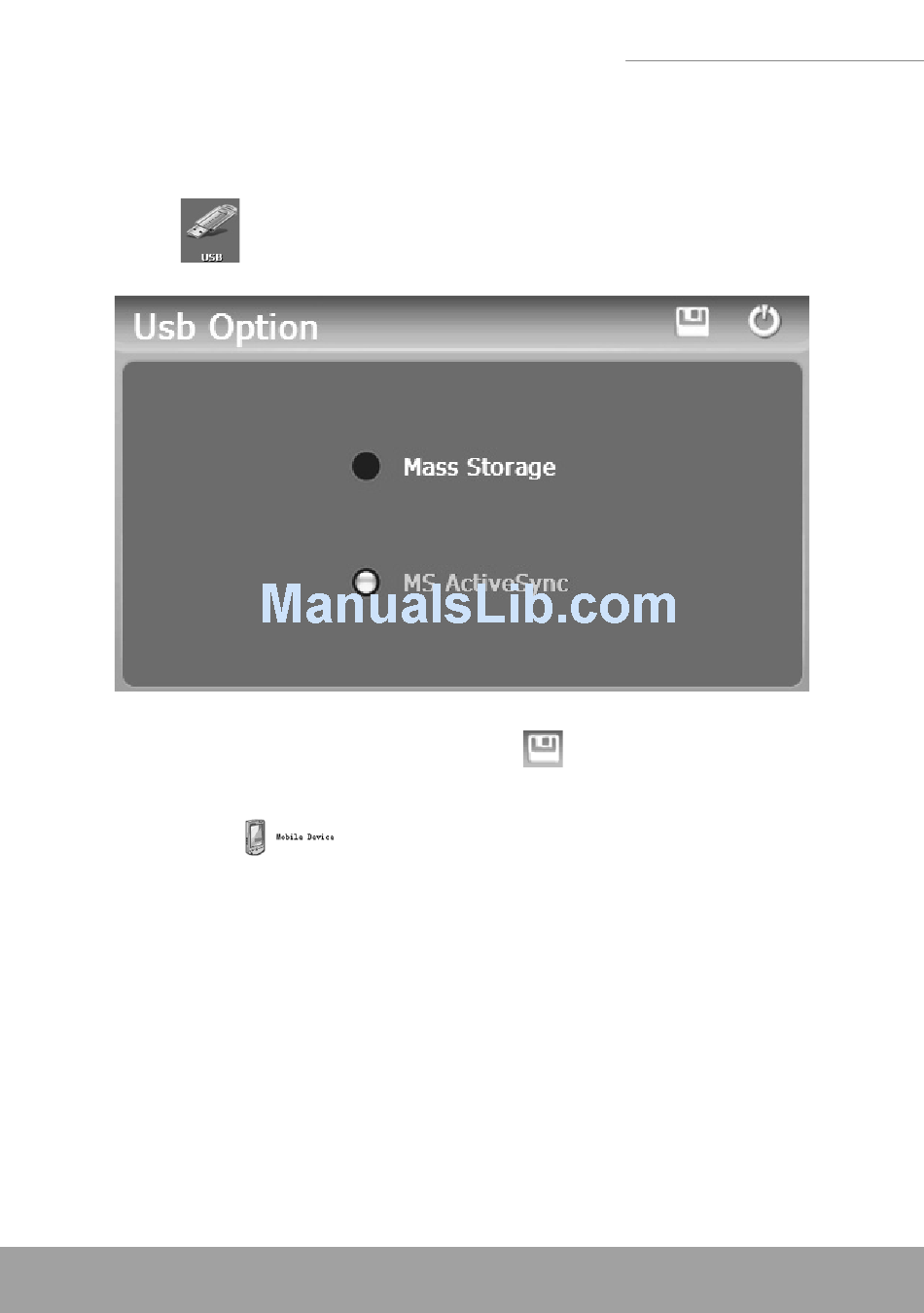

1. Tap in the system interface to enter USB Option as shown
below.
Select MASS ACTIVESYNC and tap
2. Install the application Mobile Device in a drive of PC. Then the
following icon
3. Connect the MINI USB terminal of the USB cable to the MINI
USB port of the GPS navigator and the standard USB terminal to the
USB Host port of PC.
4. After the PC finds new hardware, double click the Mobile Device
drive in the selection area to enter the memory of GPS navigator for
data transmission.
5. After transmission, unplug the USB cable.
[Attention] For data safety back up the navigator data
[Note] If MASS STORAGE is selected while the GPS navigator is
connected with PC, other operations will be suspended.
will appear in the drive selection.
5" GPS Navigation 5" GPS Navigation
to save the setting.
49 49
