FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compli-
ance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer
or peripheral device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device
may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause
undesired operation. This remote control may operate in humid environments, but not when placed on a wet surface.
SYNCHRONIZATION:
To create a unique link between your insert and remote control please follow these steps:
1. With insert off, press and hold the "lights" button on the insert until the letter "F" shows on the display screen.
2. Press the "lights" button on the remote, the lights on the insert will turn on and synchronization is complete.
RF REMOTE FUNCTIONS:
Blower On/
Blower On/
1
2
Speed Selection
Power Off
3
4
Lights On/Dim/Off
5 Min Delay Off
RF REMOTE FEATURES:
The RF remote control is equipped with a magnet on the back for easy
storage. The remote may be placed on any magnetic surface such as a
refrigerator or the Zephyr remote holder, FIG. 4. The remote holder can
be inserted into a standard electrical outlet for easy storage. Note: The
remote holder does not charge the RF remote.
Maximum remote control communication distance is 15 feet from the insert.
RF REMOTE MAINTENANCE:
Clean the remote control using non abrasive detergents
Follow instructions below for replacing battery.
Using a small fl at head screwdriver, raise the cover of the battery
door (A) in order to access the battery compartment. FIG. 5.
Remove the battery and replace with battery type A23 12V.
Negative end of battery should face the spring inside the remote.
Re-install battery door and recycle old battery.
Blower On / Speed Selection
1
Press to power on blower and cycle through all six blower speeds.
Blower On / Power Off
2
By pressing , the blowers will power on at the last speed setting. Press
again and the entire hood will power off, including lights.
Delay Off
3
By pressing , the blower and lights will enter Delay Off mode. A dot will
appear in the lower right corner of the power pack display
function is on. The blower will change to speed 1 and shut down after 5
minutes.
Lights On / Dim / Off
4
Switch lights On by pressing
17
indicating the
once, again to dim and again to switch Off.

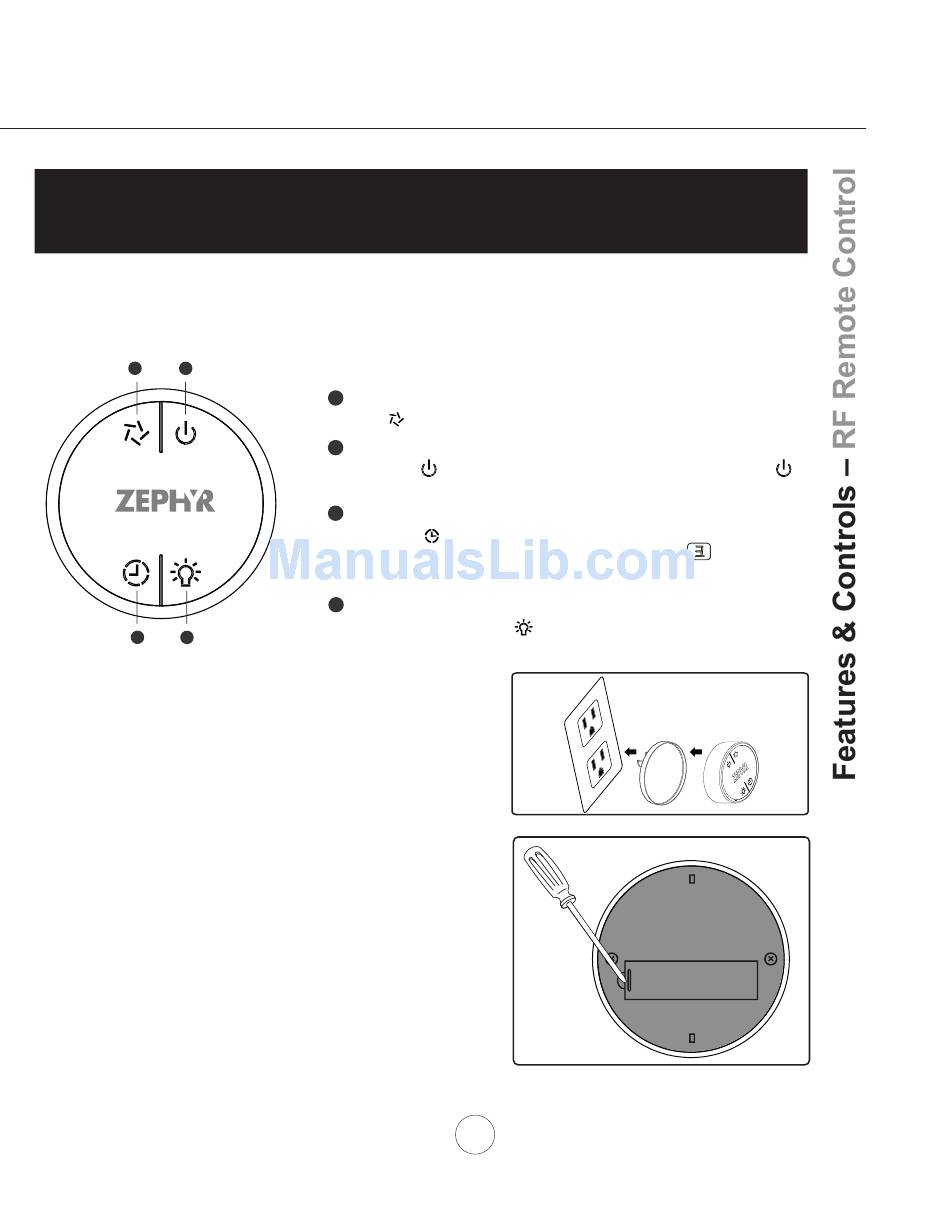

FIG. 4
+
A
FIG. 5
-
