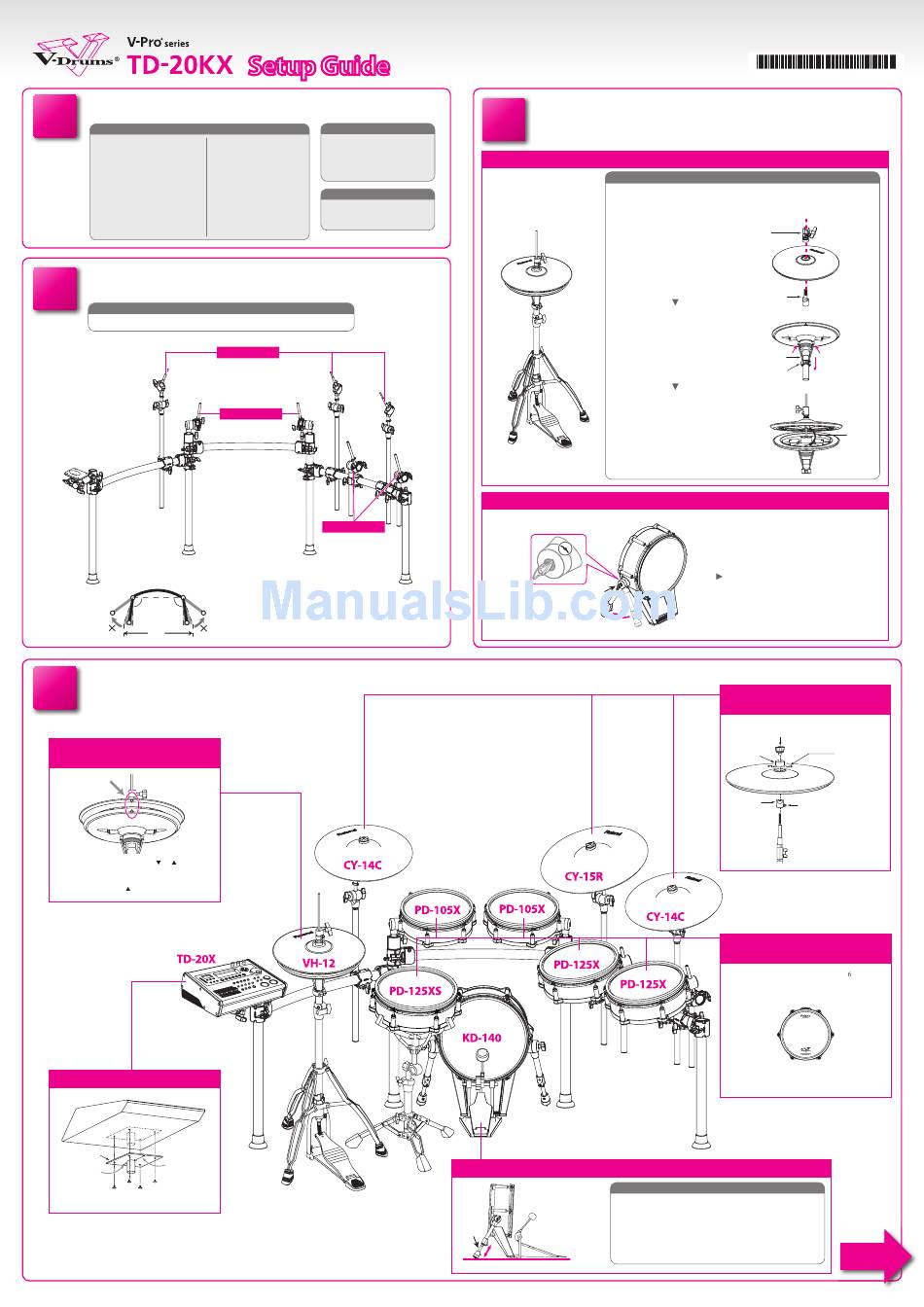

Roland TD-20KX Setup Manual

Check the included items
01
Box 1
Percussion Sound Module (TD-20X)
❑
V-Hi-Hat (VH-12)
❑
V-Cymbal Crash (CY-14C x 2)
❑
❑ V-Cymbal Ride (CY-15R)
Manual set
❑
TD-20KX Setup Guide (this document)
❑
VH-12 Owner's Manual
❑
CY-15R/CY-14C Owner's Manual
❑
KD-140 Owner's Manual
❑
PD-125XS/125X/105X Owner's Manual
❑
* The TD-20X owner's manual and MDS-25
owner's manual are in the respective
packing cartons.
Assemble the stand
02
* The explanation in this guide assumes that you're using the MDS-25 as your drum stand.
Assembly procedure
Assemble the stand using the procedure described in the MDS-25 Owner's Manual.
120˚
120˚
1.6 m
Attach the parts
04
For details, refer to the owner's manual for each component.
Align the markings on the hi-hat
(VH-12)
During performance, the markings ( and ) on
the top hi-hat and bottom hi-hat must always be
aligned as shown in the illustration. If these marks
are not aligned, the system may not function
correctly. Position the " " mark so it's facing the
performer.
Attach the sound module (TD-20X)
Sound module
mounting plate
Wide
Narrow
* The sound module mounting plate is included
with the stand (MDS-25).

Setup Guide

* This package does not include a kick pedal, snare stand, or hi-hat
stand. These commercially available items need to be obtained
separately.
Box 2
Set of items included with the V-Kick (KD-140)
❑ ❑
V-Cymbals
V-Pad for snare (PD-125XS)
❑
Wing nut x 3
❑
V-Pad for tom (PD-105X x 2)
❑
Felt washer x 3
❑
❑ V-Pad for tom (PD-125X x 2)
❑ Stop per x3
Plastic beater
❑
Set of items included with the
❑
V-Hi-Hat
MDS-25
Special VH-12 clutch
❑
Clamp
❑
* When checking the items included with
Holder (3 types)
❑
the MDS-25, refer to the MDS-25 owner's
Link cable
❑
manual.
Drum key
❑
Cymbal mounts
Pad mounts
Pad mounts
* Do not open the stand wider than 120 degrees outward. Be
sure the two pipes at the ends tare no more than 1.6 meters
apart. Doing so can damage the cables inside the stand or
cause the stand to fall over.
Copyright © 2009 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any
form without the written permission of ROLAND CORPORATION.
Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES." These sections provide
important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp
of every feature provided by your new unit, Setup Guide should be read in its entirety. Setup Guide should be saved and kept on hand as a
convenient reference.
Assemble the hi-hat (VH-12) and kick (KD-140)
03
For details, refer to the owner's manual for each component.
Allign the knotches
Knob that fastens leg
Adjust the angle of the leg
Rod
Entire bottom of the kick pedal contacts the floor
*
Assemble the hi-hat (VH-12)
Assembly procedure
Assemble the stand using the procedure described in the VH-12 Owner's Manual.
1. Assemble the top hi-hat using the
Special
dedicated VH-12 clutch (included).
VH-12 clutch
Special VH-12
clutch (stopper)
2. Fasten the bottom hi-hat to the
hi-hat stand.
3. Use the included link cable to con-
nect the top hi-hat and bottom
hi-hat.
Assemble the kick (KD-140)
Mounting the kick pedal
Attach the crash cymbal (CY-14C) and
ride cymbal (CY-15R)
(Tighten it to obtain the desired movement)
Felt washer
Stopper
(Be sure to orient
it correctly)
Adjust the head tension of the snare
(PD-125XS) and toms (PD-125X/105X)
Before playing you must adjust the pad tension rst. You can
tune/adjust the head tension as you would with an acoustic
drum, to get the same dynamic "feel. "
Adjust each tuning bolt little by little, across the head as
indicated in the illustration. This assures even tensioning.
Adjust the kick (KD-140)
Adjusting the head tension
Adjust the head tension before you perform. A slightly looser tuning will
make the beater response and rebound similar to that of an acoustic bass
drum.
Adjust each tuning bolt little by little, across the head.
This assures even tensioning.
5 1 0 0 0 0 7 5 9 6 - 0 1 *
Holder
Pull down and
tighten
Clamp
Link cable
Wing nut
Position the Roland
logo on the opposite
side of the playing
area.
Tighten the nut
with a drum key
4 6
2 1
5 3
Other side
