Carrier
Heating & Cooling

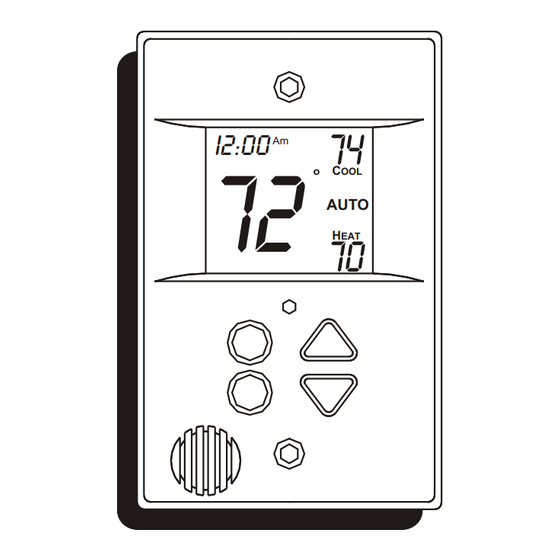

I2:00
72
Heat Pump & Heat Cool
NOTE TO INSTALLER: THIS MANUAL MUST BE LEFT WITH THE EQUIPMENT USER.
T S T A T C C P F 1 0 1
D I G I T A L T H E R M O S T A T
USER INFORMATION MANUAL FOR THE OPERATION AND
MAINTENANCE OF YOUR NEW THERMOSTAT
74
Am
C
OOL
AUTO
70
H
EAT
P R O G R A M M A B L E
PROGRAMMABLE DIGITAL
THERMOSTAT
Mounts Flush to the Wall
1 Day Programmable or
Non-Programmable
4 Time Periods per Day
Auto Changeover
Large, Easy To Read Display
Thermoglow
Dual or Single Setpoint
No Batteries Required
Outdoor Temperature
Sensor Available
Meets California Title 24 Residential
Backlight
Advertisement
Related Manuals for Carrier TSTATCCPF101
Summary of Contents for Carrier TSTATCCPF101
-
Page 1: Auto Changeover
P R O G R A M M A B L E D I G I T A L T H E R M O S T A T Carrier USER INFORMATION MANUAL FOR THE OPERATION AND MAINTENANCE OF YOUR NEW THERMOSTAT Heating &... -
Page 2: Basic Operation
4 Time Periods ADVANCED SETUP ABOUT ADVANCED OPERATION WARRANTY CAUTION Follow Installation Instructions before proceeding. SET THERMOSTAT TO MODE “OFF” PRIOR TO CHANGING SETTINGS IN SETUP OR RESTORING FACTORY DEFAULTS. Residential Light Commercial Systems Carrier Corporation 4/01 TSTATCCPF101 Page 1... - Page 3 Front Panel Liquid Crystal Display with Thermoglow Up/Down Buttons Mode Button Fan Button Heat or Cool Indicator Heat = Red, Cool = Green Temperature Sensor Bubble Page 2...
- Page 4 Display I8:88 Night Setup AUTO Outside Locked ONOFF Program Morning D ay Evening Fan On Mode Indicators Selects the operation mode of the equipment. HEAT - indicates the heat mode. COOL - indicates the air conditioning mode. AUTO - indicates the system will automatically changeover between heat and cool modes as the temperature varies.
- Page 5 Display Outside Indication Indicates the temperature displayed is from the optional outside sensor. Page 19. Morning, Day, Evening & Night Indication Indicates the program time period. Page 8-10. Setup Indication Indicates the thermostat is in the Advanced Setup mode. Page 11. Fan Operation Indication Fan On - indicates constant, continuous fan operation.
- Page 6 Quick Start Set the Clock and Go Press the Mode button. While holding the Mode, MODE press the Fan button for 2 seconds to enter Setup screens. Pressing the Up and Down buttons will modify the flashing I2:00 selection. To adjust the clock use Press both Mode and MODE...
- Page 7 Basic Operation I2:00 Select Mode The HEAT setting indicates the temperature the room has to reach before the furnace will Press turn on to heat the room. MODE I2:00 The COOL setting indicates the temperature the room has to reach before the air conditioner will turn on to cool the room.
-
Page 8: Select Desired Temperature
Basic Operation Select Desired Temperature In any mode, adjust the I2:00 desired Set Temperature with AUTO buttons. Pressing the Up or Down buttons in Auto mode will adjust both the heat and cool set temperatures simultaneously. Pressing the Up or Down buttons in Heat or Cool modes will adjust only the Heat or Cool set temperature. - Page 9 Programming 4 Time Periods Press the Mode button. While holding the Mode, press the Up button for 2 seconds to enter time period programming. MODE IMPORTANT NOTE: If the thermostat is configured for single setpoint operation, there will be a prompt to enter only one setpoint. 7:30 Adjust the start time for Morning.
- Page 10 Programming 4 Time Periods I0:30 Adjust the start time for Day. Press MODE I0:30 Adjust the cooling setpoint for Day. (35 - 99 ) Press MODE I0:30 Adjust the heating setpoint for Day. (35 - 99 ) Press MODE 5:30 Adjust the start time for Evening.
- Page 11 Programming 4 Time Periods 5:30 Adjust the heating setpoint for Evening. (35 - 99 ) Evening Press MODE I i:30 Night Adjust the start time for Night. Press I i:30 MODE Night Adjust the cooling setpoint for Night. (35 - 99 ) Press MODE I i:30...
- Page 12 Advanced Setup Press the Mode button. MODE While holding the Mode, NOTE: Each step # is located at press the Fan button the top right corner of the for 10 seconds to enter Setup display for easy reference. screens. I2:00 Setup Adjust the time of day clock.
- Page 13 Advanced Setup Setup Select residential Heat Pump, On or Off. Press MODE Setup Select the reversing valve polarity for Heat Pump, O or B. (Step 5 only appears if heat pump is on in step 4) Press MODE Setup Select Electric Heat On or Off.
- Page 14 Advanced Setup Select the cycles per Setup hour limit. d=cycles per hour limit defeated. d1=d + defeat 5 min. Compressor lockout. Press (d, d1, 2 - 6) MODE Setup Select the display back- light always On, or Off after 8 seconds. Press MODE Setup...
-
Page 15: Advanced Setup Table
Advanced Setup Advanced Setup Table Step # Description Range Factory Default Time of day clock set 24 hour 12:00 Am Time Period Programmable Off / On Display Mode 1 / 2 Heat Pump Off / On Reversing Valve polarity O / B Electric Heat Off / On Deadband or Temperature swing... - Page 16 About Advanced Features & Operation MEMORY BACKUP - In the event of a power loss, the thermostat will retain the stored program settings without external power or batteries. 2 STAGE OPERATION - The 2nd Stage of heat or cool is turned on when (1) the 1st Stage has been on for a minimum of two minutes, and (2) the temperature spread from the setpoint is equal to or greater than: the setpoint...
- Page 17 About Advanced Features & Operation EMERGENCY HEAT - Is a feature available to Heat Pump installations. To turn on Emergency Heat press in the Fan button. While holding the Fan button press Up button for 2 seconds. The Cool setpoint display will read ‘EH’.
- Page 18 About Advanced Features & Operation KEYPAD LOCK - T o prevent unauthorized use of the thermostat, the front panel buttons may be disabled. To disable, or ‘lock’ the keypad, press and hold in the Mode button. While holding the Mode button in, press the Up and Down buttons in together.
- Page 19 About Advanced Features & Operation DUAL SETPOINT BEHAVIOR - The adjustable setpoint range is: 35 - 99 degrees in Fahrenheit and 7 - 35 degrees in Centigrade. When in the modes Heat or Cool, this adjustable range is unhampered. When adjusting any Auto mode, including programming 4 Time periods, the thermostat will not allow the Heat setpoint to get closer to the Cool setpoint...
- Page 20 About Advanced Features & Operation OUTSIDE SENSOR (Optional Accessory) - When connected to terminals RS+5, RS, & GND on the back of the thermostat, the thermostat will read the temperature from the Outside Sensor when asked to. This thermostat will not control to this sensor, it is only to read outside temperature.
- Page 21 Warranty Five-Year Warranty - This Product is warranted to be free from defects in material and workmanship. If defect appears within five years from the date of original installation, whether or not actual use begins on that date, then the product does meet this warranty. A new or remanufactured part, at the manufacturer’s sole option, to replace any defective part will be provided without charge for the part itself;...
