Page 1: User Manual

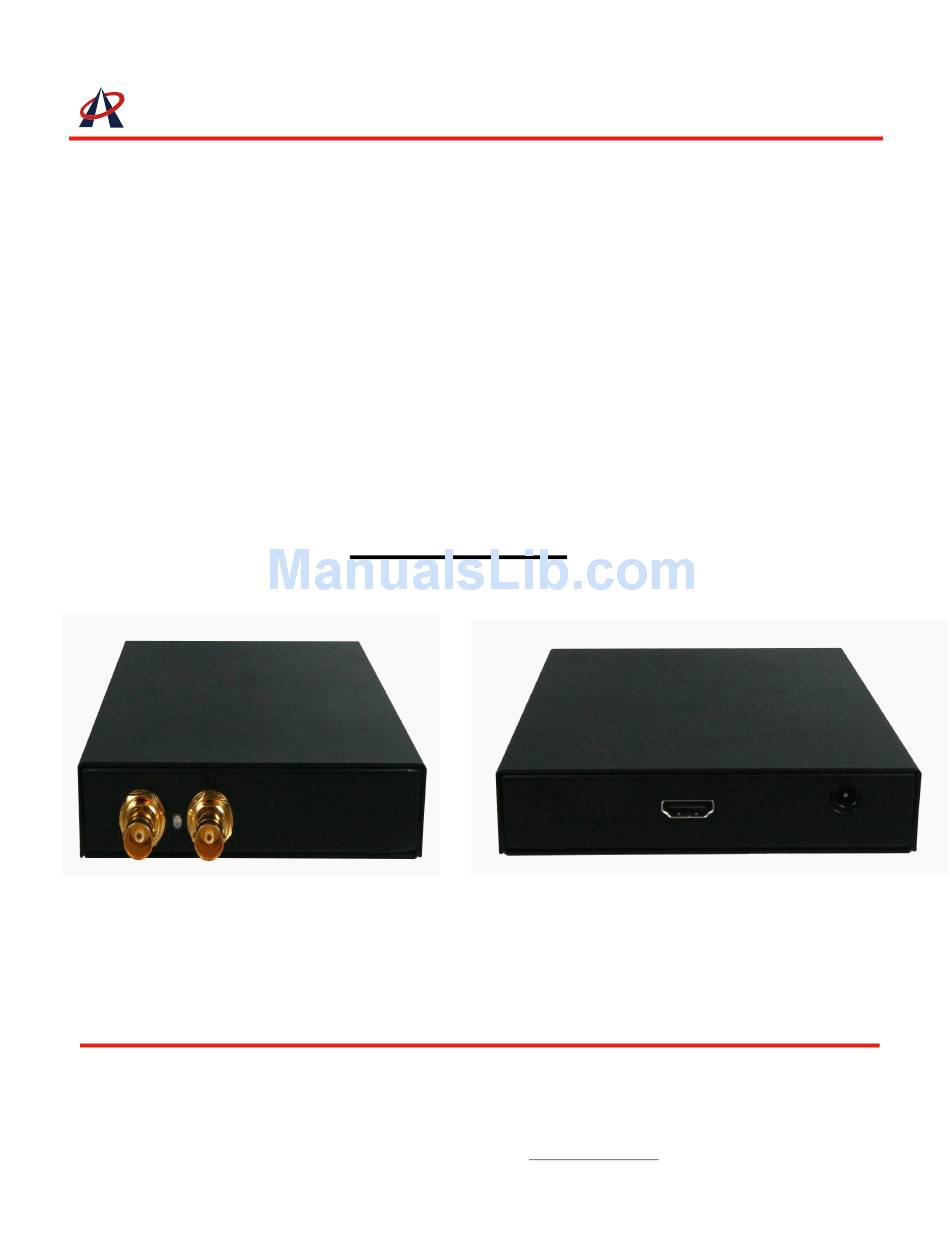

ACE PLUS CORP. EX-G066 HDMI to 3G/HD/SD-SDI Converter User Manual Page 1 of 8 Headquarters : 9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian, Taipei, Taiwan 231 TEL: +886-2-2912-4201 FAX: +886-2-2912-3164 Website: www.ace-plus.com... -
Page 2: Safety And Notice
However, like all electronic equipments, the EX-G066 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The EX-G066 also provides 2 low jitter SDI outputs for daisy chain or multiple monitors. With the use of EX-G066, the most popular uncompressed video interface in the consumer world is readily...
- Page 4 ACE PLUS CORP. Specifications & Package Contents Model Name EX-G066 Technical SDI standards SD-SDI, HD-SDI & 3D-SDI Auto 3G/HD/SD-SDI detection Video bandwidth 2.970Gpbs, 2.970/1.001Gbps [3G] – 1080p @50/59.94/60Hz (4:2:2), 1080p @24/25/30Hz (4:4:4), 1080i @50/59.94/60Hz (4:4:4), 720p @24/25/50/59.94/60Hz (4:4:4) [HD] – 720p @50/59.94/60Hz, 1035i @50/59.94/60Hz, 1080i Video support @50/59.94/60Hz,...
-
Page 5: Supported Resolutions
ACE PLUS CORP. Supported Resolutions 3G OUTPUT 1080p @ SMPTE 425M (4:2:2) 60/59.94/50Hz 1080p @ 30/25/24Hz SMPTE 425M (4:4:4) 1080i @ 60/59.94/50Hz SMPTE 425M (4:4:4) 720p @ 60/59.94/50Hz SMPTE 425M (4:4:4) HD OUTPUT 525p @ 59.94Hz SMPTE 293M, ITU-BT.1358 625p @ 50Hz ITU-BT.1358... -
Page 6: Panel Descriptions
ACE PLUS CORP. Panel Descriptions Front Panel 1. HDMI input 2. Interlocked +5V power jack Rear Panel 3. 3G/HD/SD-SDI output #1 4. Lock LED 5. 3G/HD/SD-SDI output #2 Bottom Panel A 4-pin DIP switch is used for user interface, and users can access this switch from the bottom of the unit. -
Page 7: Edid Learning
1 year from the date of purchase from Ace Plus or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, Ace Plus , at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges. - Page 8 NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the EX-G066 features and specifications is subject to change without further notice.
