Page 1: User Manual

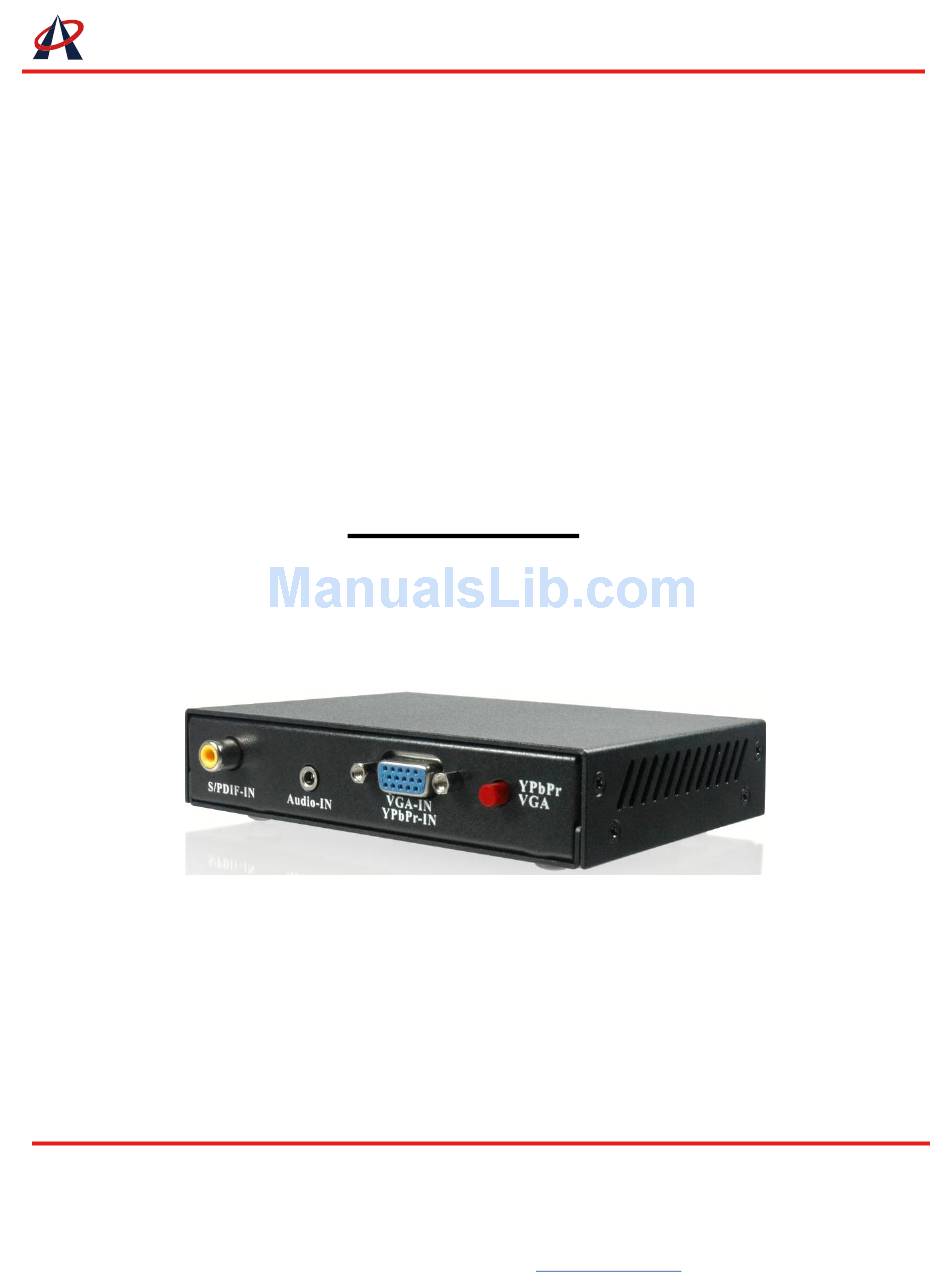

ACE PLUS CORP. EX-G037 VGA/YPbPr & Audio to HDMI Converter User Manual Page 1 of 9 Headquarters : 9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian, Taipei, Taiwan 231 TEL: +886-2-2912-4201 FAX: +886-2-2912-3164 Website: www.ace-plus.com... -
Page 2: Safety And Notice
ACE PLUS CORP. Safety and Notice The EX-G037 VGA/YPbPr & Audio to HDMI Converter has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, EX-G037 should be used with care. - Page 3 ACE PLUS CORP. Introduction This EX-G037 offers an easy and instant approach for converting analog PC video (VGA) and component video (YPbPr) with either digital audio (S/PDIF) or analog stereo audio to digital HDMI. With this module, VGA based devices such as PC with S/PDIF or analog stereo audio can readily connect to your HDMI TV.
-
Page 4: Package Content
ACE PLUS CORP. Package Content 1x EX-G037 1x VGA to YPbPr breakout cable 1x 5V 4A power adapter 1x User Manual Technical Specifications Video Bandwidth: 165 MHz Input Video Signal: 1.2 volts p-p Output DDC Signal: 5 volts p-p (TTL) -
Page 5: Resolution Support
ACE PLUS CORP. Resolution Support PC video (VGA) VESA 1280x960 VESA 640x400 @85Hz VESA 1024x768 @60Hz @85Hz VESA 1280x1024 VESA 720x400 @85Hz VESA 1024x768 @75Hz @60Hz VESA 1280x1024 VESA 640x480 @72Hz VESA 1024x768 @85Hz @85Hz VESA 1360x768 VESA 640x480 @75Hz... -
Page 6: Dip Switch
ACE PLUS CORP. Component Video (YPbPr) EIA 720x480p @59.94(60)Hz EIA 720x576p @50Hz EIA 1280x720p @59.94(60)Hz EIA 1920x1080i @59.94(60)Hz EIA 1920x1080p @59.94(60)Hz 712x484 (NTSC) 702x574 (PAL) DIP Switch Mode 2: Off Analog audio input 2: On S/PDIF audio input 1: Off Write back default factory EDID into flash 1: On Learn monitor’s EDID and save into flash... -
Page 7: Panel Descriptions
ACE PLUS CORP. Panel Descriptions Front Panel 1. S/PDIF Input 2. Audio Input 3. VGA/YPbPr Input 4. YPbPr/VGA Switch Button Rear Panel +5V DC 5. Mode Switch 6. HDMI Detection 7. HDMI Output 8. Power Indicator 9. 5V DC Page 7 of 9 Headquarters : 9F-2., No. -
Page 8: Hardware Installation
4. Power up the EX-G037. EDID Learning 1. Power up the EX-G037. Connect display to HDMI Output. 2. To learn EDID from HDMI display, pull down the DIP switch 1 to ON, the green light will be dark and bright to indicate the EDID learning process is complete. You DON’T NEED to pull up the DIP switch again unless you want to learn another EDID by pulling DIP switch 1 up and down. -
Page 9: Limited Warranty
ACE PLUS CORP. Limited Warranty The SELLER warrants the EX-G037 VGA/YPbPr & Audio to HDMI Converter to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working...
