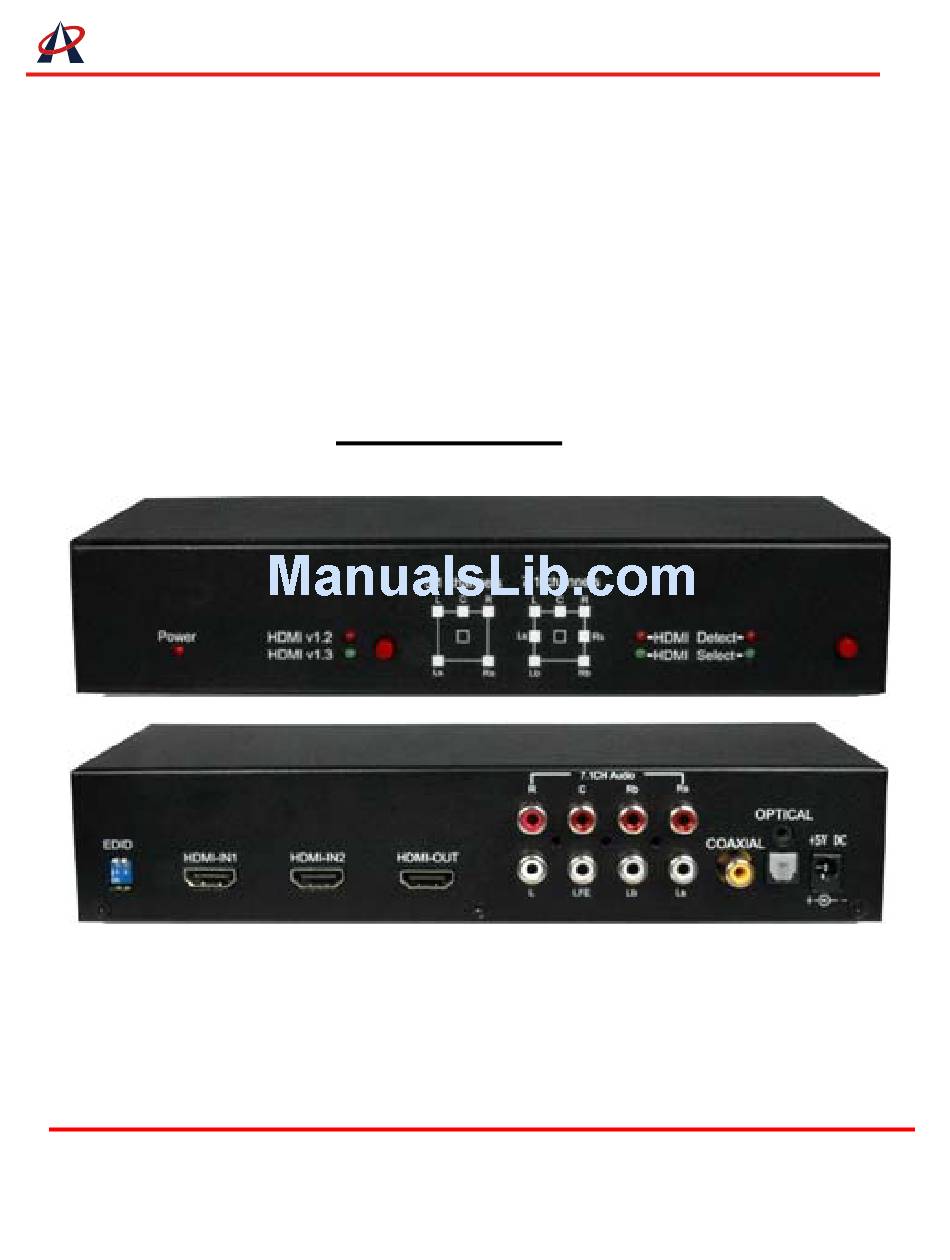

ACE PLUS CORP. EX-G040 2x1 HDMI 1.3 Switch & 7.1ch Audio Decoder User Manual Headquarters : Page 1 of 8 9F.-2, No.190, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan FEB 11 / 2011 Tel : +886-2-2912-4201 Fax : +886-2-2912-3164 Version 1.0... - Page 2 ACE PLUS CORP. Features State-of-the-art Silicon Image chipset embedded HDMI 1.3c compliant HDCP compliant Built-in 2x1 HDMI switch HDMI video supports up to 1080p@36 bit RGB/YCbCr Scalable HDMI 1.2/1.3 output with HDMI 1.3 input Maximum output bus width 36 bit Loop though HDMI output 7.1-channel analog audio output...
-
Page 3: Specifications & Package Contents
ACE PLUS CORP. Specifications & Package Contents Model Name EX-G040 Technical HDMI compliance HDMI 1.3c [Deep Color, xvYCC color space supported] HDCP compliance Video bandwidth Single-link 340MHz [10.2Gbps] Maximum resolution 1080p60 / 1920x1200@60 [36-bit RGB/YCbCr] DTS-HD Master Audio, Dolby TrueHD... -
Page 4: Front Panel
ACE PLUS CORP. Panel Descriptions Front Panel 1. Power indicator 5. Detection indicator for HDMI input-2 2. HDMI 1.2 output 6. Channel indicator for HDMI input-2 3. HDMI 1.3 output 7. Channel indicator for HDMI input-1 4. Push button 8. Detection indicator for HDMI input-1 9. - Page 5 7.1-Channel Audio Layout and Speaker Setup 5.1-Channel Audio Layout and Speaker Setup Headquarters : Page 5 of 8 9F.-2, No.190, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan FEB 11 / 2011 Tel : +886-2-2912-4201 Fax : +886-2-2912-3164 Version 1.0 E-Mail: marketing@ace-plus.com Technical Support: vincent@ace-plus.com...
-
Page 6: Hardware Installation
5. Power up the EX-G040. EDID Learning 1. Power up the EX-G040. Connect display to HDMI Output. 2. To learn EDID for HDMI Input #1 source, pull up-and-down the DIP switch 1 to ON to complete the EDID learning process. You DON’T NEED to pull up the DIP switch again unless you want to learn another EDID by pulling DIP switch 1 up and down once more. -
Page 7: Limited Warranty
ACE PLUS CORP. Limited Warranty The SELLER warrants the EX-G040 2x1 HDMI 1.3 Switch & 7.1ch Audio Decoder to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty... -
Page 8: Safety And Notice
Furthermore, stereo S/PDIF with Toslink and RCA connectors are also seamlessly integrated into this adapter. EX-G040 is designed to enrich your full digital video and audio experiences at the least expense in a smoothest way. With built-in HDMI switch, this adapter is able to easily switch between HDMI home theater devices and PC DVI devices.
