Summary of Contents for Osaki OS5000

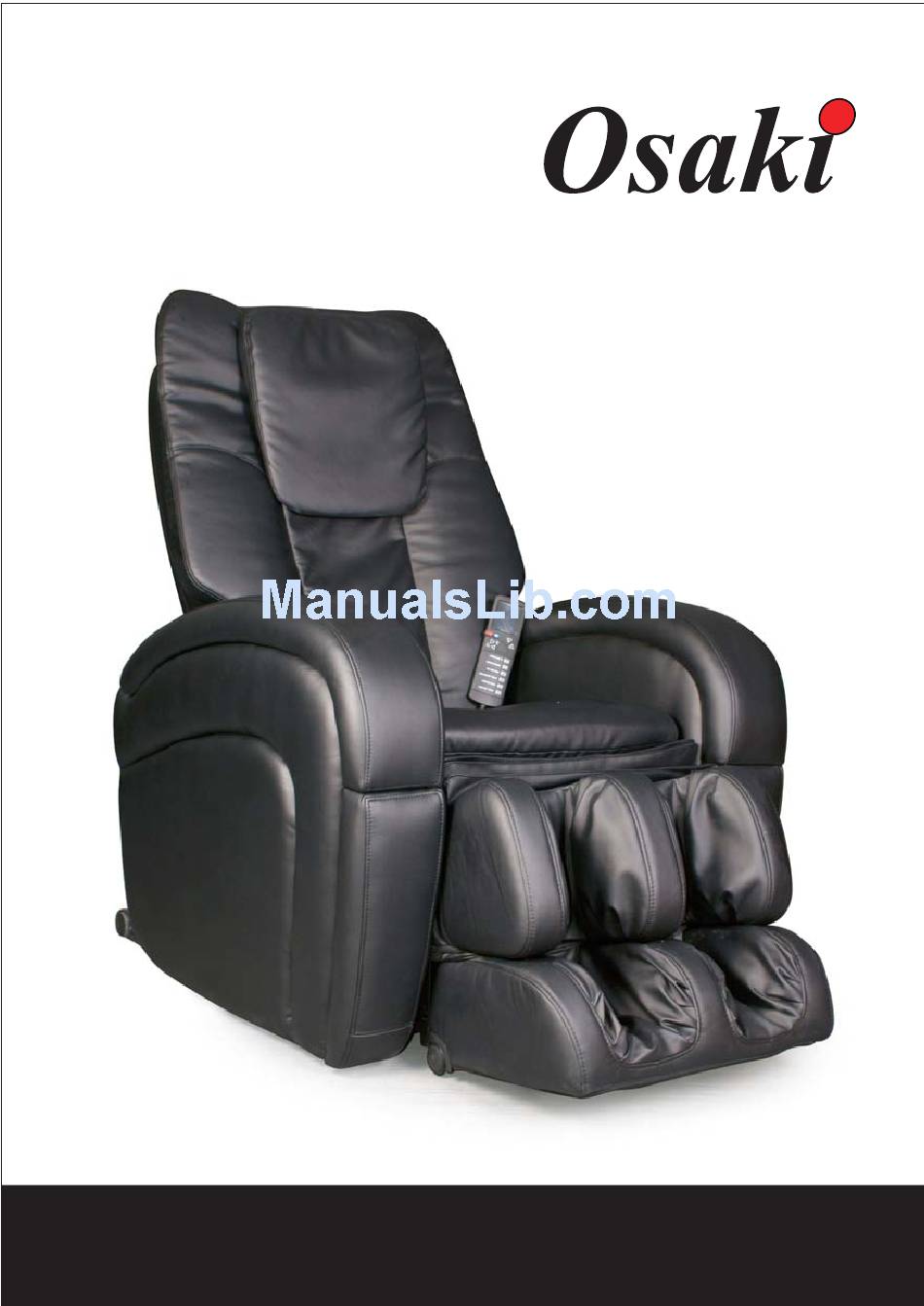

- Page 1 Instruction Manual OS5000...
-
Page 2: Table Of Contents
Thank you for purchasing OS5000 Massage chair. Before using your massage chair, please read the contents of this instruction manual and refer to it when needed. Table of Contents Features ............... 2 Safety Precautions ..........3-7 Chair Components ..........8 Chair Installation &... -
Page 3: Features

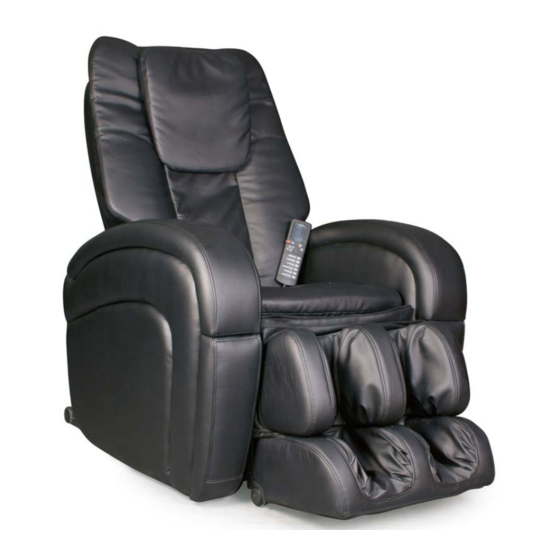

OS5000 Massage Chair The Massage Chair is controlled by a microcomputer that performs a variety of intelligent massage techniques and combinations that are designed to soothe sore muscles, alleviate stress and fatigue, increase metabolism and energy, and improve blood circulation. -
Page 4: Safety Precautions
Safety Precautions IMPORTANT SAFETY INSTRUCTIONS When using the massage chair, basic precautions should always be followed, including the following: Read all instructions before using this massage chair. DANGER -To reduce the risk of electric shock: ● Always unplug this massage chair from the electrical outlet immediately after using and before cleaning. - Page 5 ● To disconnect, turn all controls to the off position, then remove the plug from the outlet. ● Do not stand on or in the massage chair. Use only while seated. ● The product is not intended for use by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
-
Page 6: Safety Precautions
Caution ● This massage chair is to be used indoors only. ● If you use the massage chair in a cold room, do not increase the room temperature abruptly. It is recommended that you increase the temperature gradually to a normal level. ●... - Page 7 3. People with Medical Conditions Consult your doctor before use if you: ● are under medical rest as ordered by a doctor. ● have spinal disorders, an abnormal spinal condition or have suffered a spinal injury. ● have back problems. ●...
- Page 8 4. Instances When the Massage Chair Should Not Be Used In the following events, please switch off the main power switch immediately and disconnect the power cord from the electrical outlet: ● If water is accidentally spilled onto the massage chair. This may result in electric shock or malfunction.
-
Page 9: Chair Components
Chair components Pillow Pad Backrest Backrest Pad Spare Pad Armrest Seat Pad Calves Rest Legrest Footrest Wheels... -
Page 10: Chair Installation & Moving
Chair Installation Step 1: When positioning the chair, make sure there is at least three feet of space behind the backrest and three feet of space in front of the footrest. at least 3 ft. at least 3 ft. Step 2: Lift the backrest, then lower the backrest into the seat brackets, Securely lock the flat head bolts into sides of the seat. - Page 11 Attach the connecting rod and the U stay fork of the reclining actuator with the flat head rivet, and secure with a split pin as demonstrated in PIC 1 and PIC 2. A. Connecting rod (on the backrest) B. U stay fork of reclining actuator (on the seat) C.
- Page 12 Step 4: Attach the backrest pad and the pillow pad with hook and loop fasteners. Step 5: (optional) Remove the back massage strength-control pad from the backrest cover for a deeper massage. Front Back Back Massage Strength-Control Pad...
-
Page 13: Moving The Chair
Moving the chair 1. Restore the footrest to its original position. 2. Recline the chair to tilt approximately 45 degrees. Move the chair using the wheels as the fulcrum. Note: 1. Always return the footrest to its original length and restore it to its original position before moving the chair. -
Page 14: Grounding Instructions
Grounding Instructions This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for the electric current to reduce the risk of electric shock. This product is equipped with a cord with an equipment-grounding conductor and a grounding plug. -
Page 15: Chair Specifications
Chair Specifications Specifications Description Model No. OS5000 120V ~ Rated Voltage Rated Frequency 60Hz 250W Rated Power Consumption Timer 15 minutes Shipping dimention: 52" x 35.4" x 34.3" Dimensions(LxWxH) Reclined dimention: 81.5" x 33.8" x 34.3" Upright dimentions: 56.3" x 33.8" x 49.2"... -
Page 16: Operation Guide
Operation Guide... - Page 17 Press this key again, the massage chair stops operating and resets automatically to enter into a standing mode. 2. DEMO Press this button for a brief demonstration of the features of the OS5000 Massage Chair. 3/4/5/6. Recline/Rise Leg rest and backrest Massage Angle Adjustment Control Buttons When plugging in, the massage chair enters into ready state.
- Page 18 Manual Back Massage Program 15. KNEADING &TAPPING Kneading &Tapping Function Start/Stop Control Button Press this key once to activate the Kneading &Tapping for a full back massage at medium speed. Press this Button again to exit this function. Press the speed button to adjust the speed of massage while the Kneading &Tapping function is activated.
- Page 19 19/20. SPEED Speed Adjustment Buttons Press these two keys to activate the intensity adjustment function when kneading & Tapping, kneading and Tapping are achieved. Press these two keys to switch from fast to slow or slow to fast. 21/22/23. WIDTH Width Adjustment Buttons Under the mode of Tapping and Rolling, press referring key once to switch massage width within Wide/Medium/Narrow to satisfy different users' demands.
- Page 20 SETTING AIR SQUEEZE 29. AUTO Auto Air Squeeze Control Button Press this button once to activate seat, feet and calves auto air squeeze function. Press the button again to stop the auto air squeeze function. 30. SEAT Seat Air Squeeze Control Button Press this key to activate seat air squeezing key for comfortable waving massage.
-
Page 21: Troubleshooting
Troubleshooting & Product Maintenance This massage chair is controlled by a microcomputer and is susceptible to power surges of +10 to –15%. The following situations may display in the event of a power surge: Situation Solution 1. Check to see that the plug is well The massage chair is connected connected and working. -
Page 22: Product Care And Storage
Product Care and Storage 1. Storing the Massage Chair ● Wipe off dust and dirty from the massage chair with a dry, soft, clean cloth after use. ● Keep the massage chair clean and away from places of high humidity. ●... - Page 23 3. Cleaning the Controller ● Use only a clean, dry cloth to clean the controller Caution ● Do not use a wet cloth to clean the controller. This may result in malfunction.
