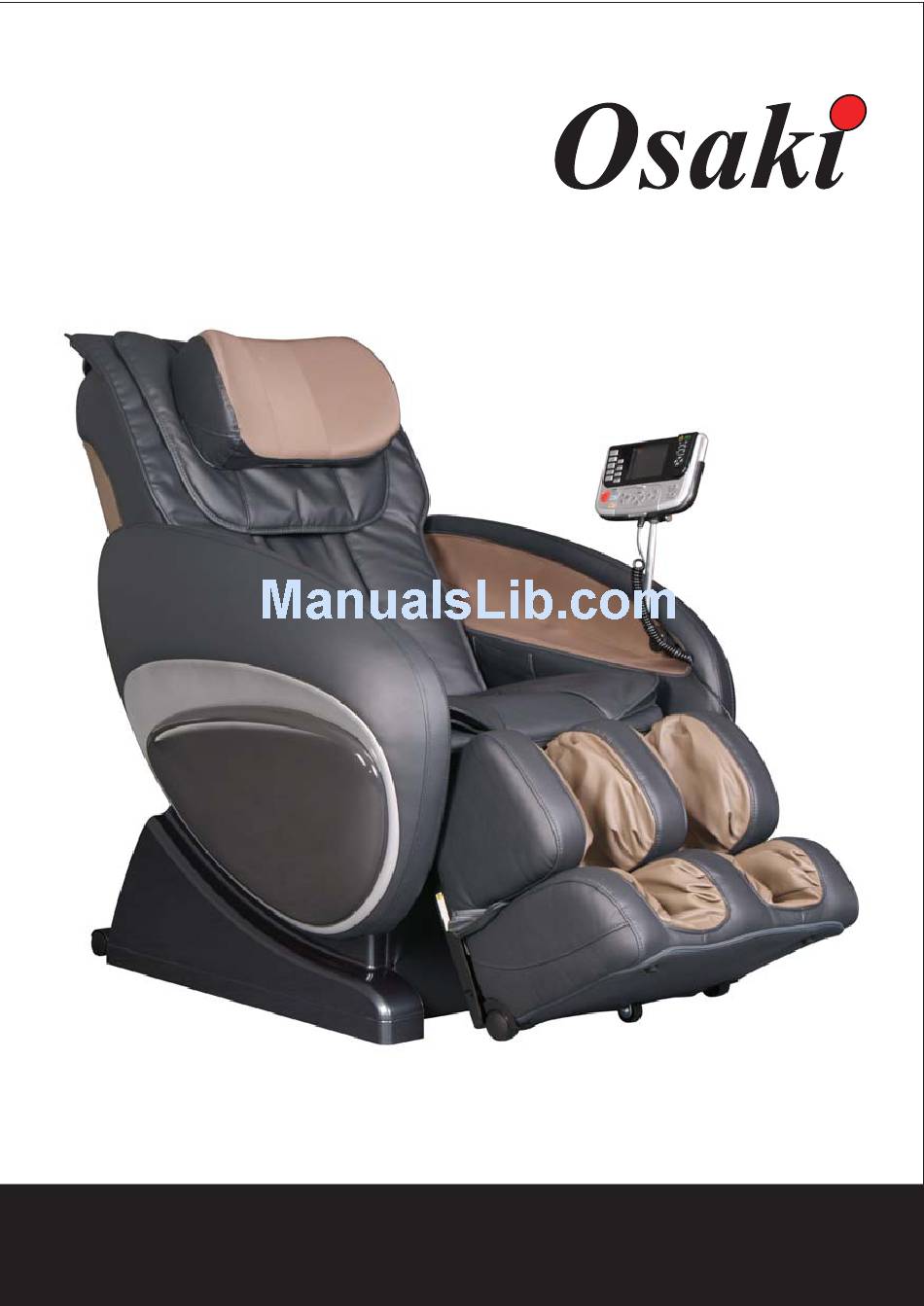

INSTRUCTION MANUAL
MODEL NO.: OS-3000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OS-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Osaki OS-3000

Summary of Contents for Osaki OS-3000

  • Page 1 INSTRUCTION MANUAL MODEL NO.: OS-3000...

  • Page 2: Table Of Contents

    Table of Contents Safety Instructions ..............2-3 Chair Specifications ............... 4 Parts of the Chair ..............5-6 Chair Installation ..............7-8 Moving the Chair ..............9 Controller Diagram ..............10 Operation Guide ..............11-16 Features ................. 17 Troubleshooting ..............18 Product Maintenance and Precautions ........

  • Page 3: Safety Instructions

    Safety Instructions The plug must be fully inserted into an appropriate outlet. Improper connection of the equipment-grounding conductor can result in the risk of electric shock. Check with a qualified electrician or service technician, if you are in doubt as to whether the product is properly grounded.
  • Page 4 ● DO NOT move the massage chair by pulling the power supply cord. ● Ensure that there are no persons (children in particular), pets or obstacles underneath the massage chair prior to lowering the leg rest/backrest. ● Always check whether the surface of the massage chair is torn or ripped before usage. If you find any unfamiliar rips in any area of the cloth in the backrest do not use the massage chair.

  • Page 5: Chair Specifications

    Chair Specifications Description Specification Product Name Luxury Massage Chair Model number of the Product OS-3000 Power source ~120V Alternating current 60Hz Power consumption 220W Timer 5/10/15/20/25/30 minutes Maximum operating period 30 minutes Product carton: 1320 x 770 x 870(mm) Shiping dimension...

  • Page 6: Parts Of The Chair

    Parts of the Chair Armrest Pillow Pad Controller Backrest Calvesrest Legrest Backrest Pad Wheel Footrest Seat Pad...
  • Page 7 Massaging Position...

  • Page 8: Chair Installation

    Chair Installation Step 1: When positioning the massage chair, please leave 80cm of space behind the backrest to allow free reclining of the backrest, and 80cm of space in front of the footrest to allow free lift of the footrest. Step 2: Insert and connect the backrest to the bottom seat, and fasten the backrest into the allocted slot.
  • Page 9 Step 3: Connect the wire plugs to the corresponding place in the seat according to the marks given. Step 4: Unfold the backrest until you hear it click into place as shown in the diagram below.

  • Page 10: Moving The Chair

    Moving the Chair 1. Lift up the calves rest. 2. Then recline the chair to approximately to 45 degrees, so that you can easily move the chair around the house with a slight pull or push. Caution: 1) Before you move the chair, please put the footrest back into the original position first. Otherwise, injuries might occur in the process of moving.

  • Page 11: Controller Diagram

    Controller Diagram Full Body Auto Localised Auto Programme Programme...

  • Page 12: Operation Guide

    Operation Guide Connect to the power supply, and turn the switch to “I” position. The chair is now in idle mode. During idle mode, there are only seven funtions: ON/OFF, Foot Extend, Pause, Recline, Sit Up, Lift Leg or Recline Leg that can be operated. CONTROL BUTTONS FOR THE MASSAGE CHAIR 1.
  • Page 13 8. Length Auto Adjustment Control Button It’s equipped with an Auto Function that length of footrest can be adjusted according to the user’s leg length for a more effective massage. Every time the button is pressed, the auto function will detect the best massage length. 9.
  • Page 14 16. Circulation The Backrest and Footrest will resume original position when this Auto Programme is about to end. B. Localised Auto Programme This programme gives precise massage at the exact part of the body for better localized-massage effect. 17. Neck/Shoulder Neck/Shoulder Auto Programme Start/Stop Control Button.
  • Page 15 Press this button once to active the shiatse function for a full back massage at medium intensity. Press the button again, to stop the shiatsu massage function. 24. Rolling Rolling function Start/Stop Control Button- 3 sizes of width. Press this button once and it will activate the Rolling function for full back massage. Press again to stop the function.
  • Page 16 Setting Spot or Localised Back Massage 30. Spot The Spot or Localised Back massage This button allows user to select Spot massage for any part on the back. Press this button once to activate spot massage while the original massage mode continues to run at the original position.
  • Page 17 35. Auto Auto Air Squeeze function Start/Stop Button- 5 levels of intensity to be adjusted Press once to activate pre-programmed Air-pressure Massage Mode to enjoy rhythmic air-pressure massage. Press again to stop the function. 36. Intensity The Intensity Adjustment Button for Air-pressure, Auto or Manual- 5 levels of intensity to be chosen.

  • Page 18: Features

    Features The operation of massage chair is controlled by a microcomputer that performs various intelligent massage methods and combinations, like Kneading, Tapping, Clapping, Shiatsu, Rolling, Vibration and Air Massage. All these methods massages acupressure points accurately to effectively alleviate fatigue, promote metabolism and improve blood circulation.

  • Page 19: Troubleshooting

    Troubleshooting This massage chair is controlled by microcomputer and is susceptible to power surge even by +10% or -15%. The massage chair will show the following strange circumstances: Situations Solution 1. Check whether the plug is well connected The Massage Chair cannot operate even though and working well.
