Introduction

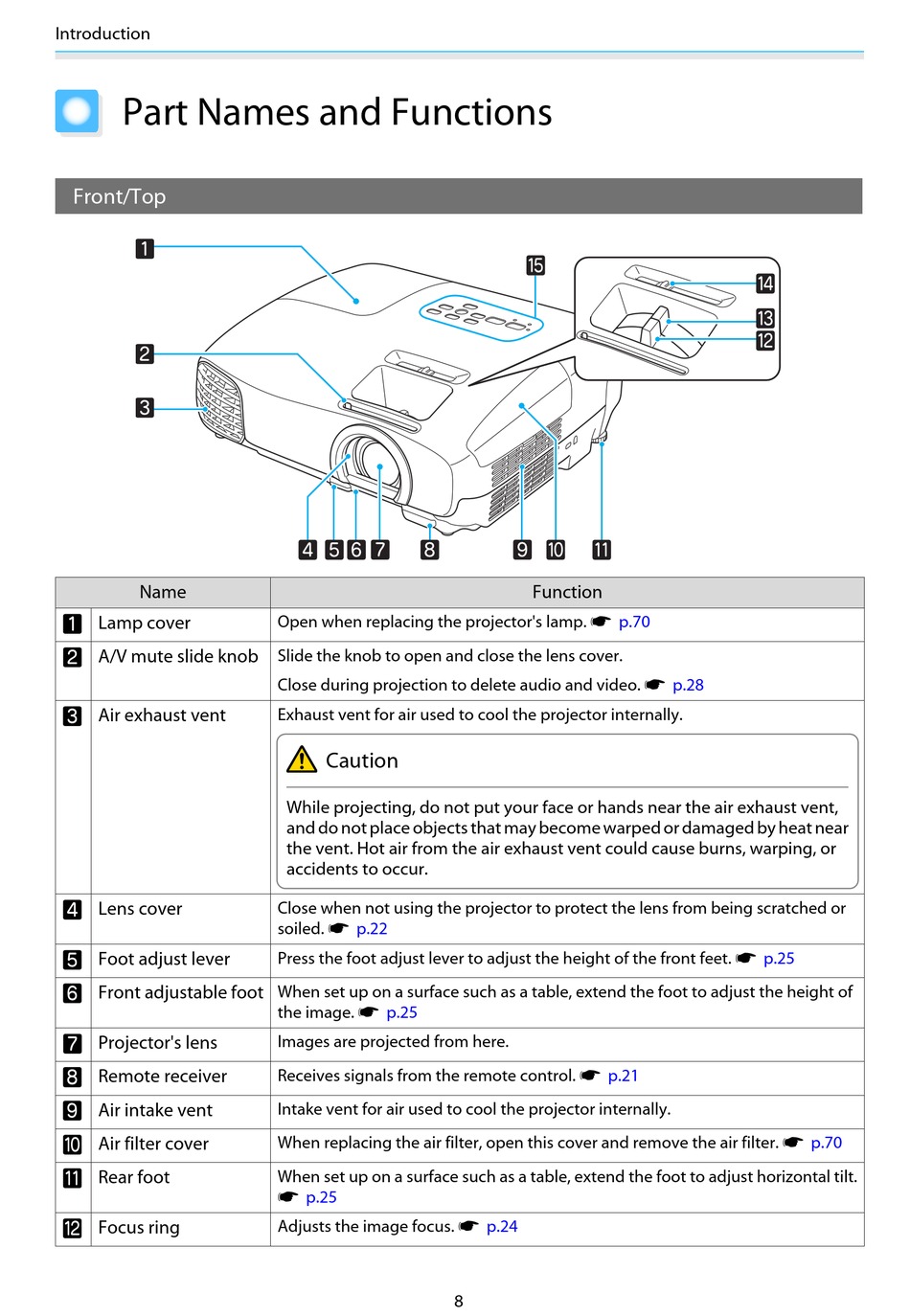

Part Names and Functions

Front/Top

Name
a Lamp cover
b A/V mute slide knob
c Air exhaust vent
d Lens cover
e Foot adjust lever
f Front adjustable foot
g Projector's lens
h Remote receiver
i Air intake vent
j Air filter cover
k Rear foot
l Focus ring
Open when replacing the projector's lamp.
Slide the knob to open and close the lens cover.
Close during projection to delete audio and video.
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands near the air exhaust vent,
and do not place objects that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could cause burns, warping, or
accidents to occur.
Close when not using the projector to protect the lens from being scratched or
soiled. p.22
s
Press the foot adjust lever to adjust the height of the front feet.
When set up on a surface such as a table, extend the foot to adjust the height of
the image. p.25
s
Images are projected from here.
Receives signals from the remote control.
Intake vent for air used to cool the projector internally.
When replacing the air filter, open this cover and remove the air filter.
When set up on a surface such as a table, extend the foot to adjust horizontal tilt.
p.25
s
Adjusts the image focus.
Function
p.70
s
p.21
s
p.24
s
8
p.28
s
p.25
s
p.70
s
