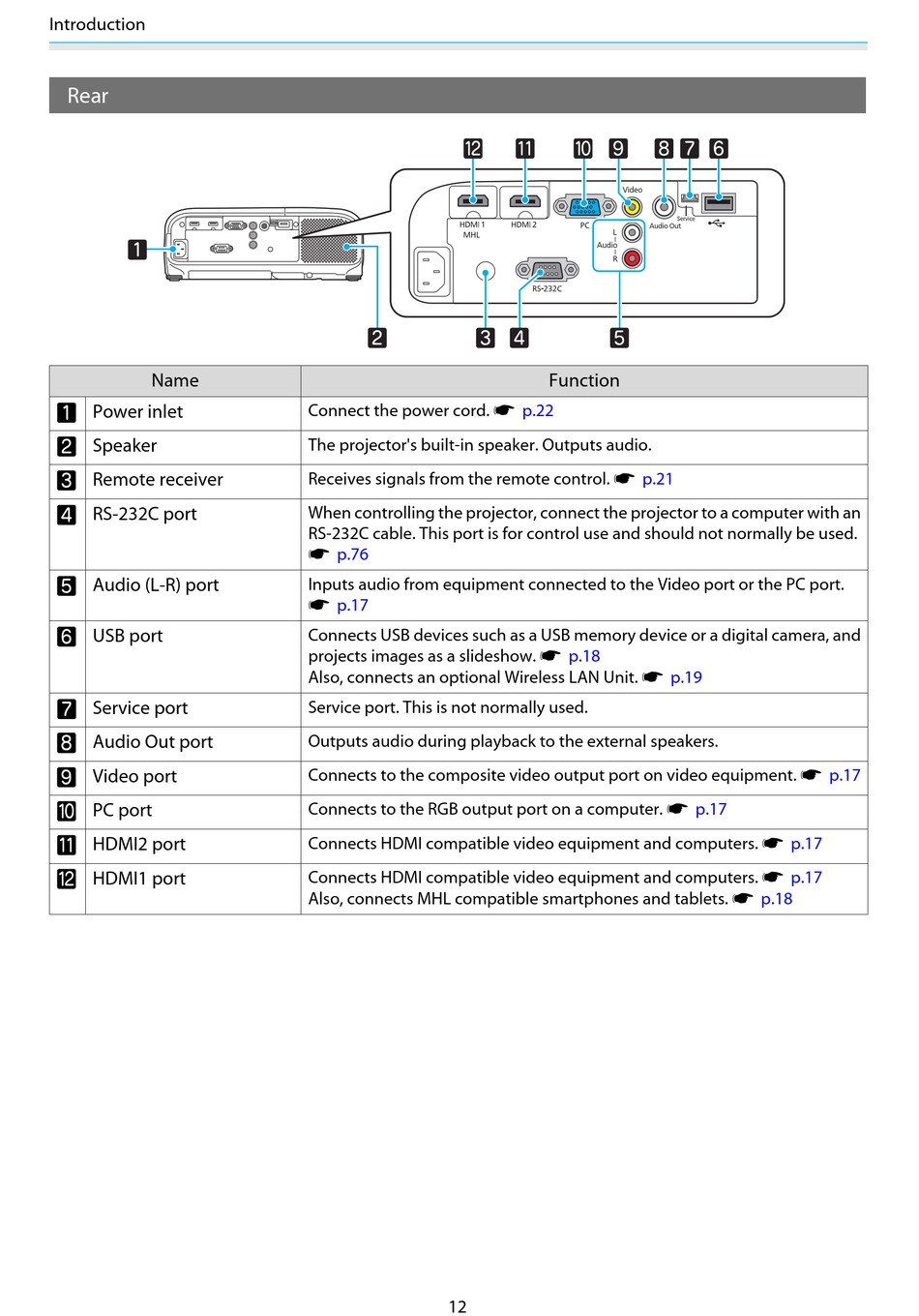

Introduction
Rear
Name
a Power inlet
b Speaker
c Remote receiver
d RS-232C port
e Audio (L-R) port
f USB port
g Service port
h Audio Out port
i Video port
j PC port
k HDMI2 port
l HDMI1 port
Connect the power cord.
The projector's built-in speaker. Outputs audio.
Receives signals from the remote control.
When controlling the projector, connect the projector to a computer with an
RS-232C cable. This port is for control use and should not normally be used.
p.76
s
Inputs audio from equipment connected to the Video port or the PC port.
p.17
s
Connects USB devices such as a USB memory device or a digital camera, and
projects images as a slideshow.
Also, connects an optional Wireless LAN Unit.
Service port. This is not normally used.
Outputs audio during playback to the external speakers.
Connects to the composite video output port on video equipment.
Connects to the RGB output port on a computer.
Connects HDMI compatible video equipment and computers.
Connects HDMI compatible video equipment and computers.
Also, connects MHL compatible smartphones and tablets.
12
Function
p.22
s
p.21
s
p.18
s
s
p.19
p.17
s
p.17
s
p.17
s
p.17
s
p.18
s
