Altman Smart-Track User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

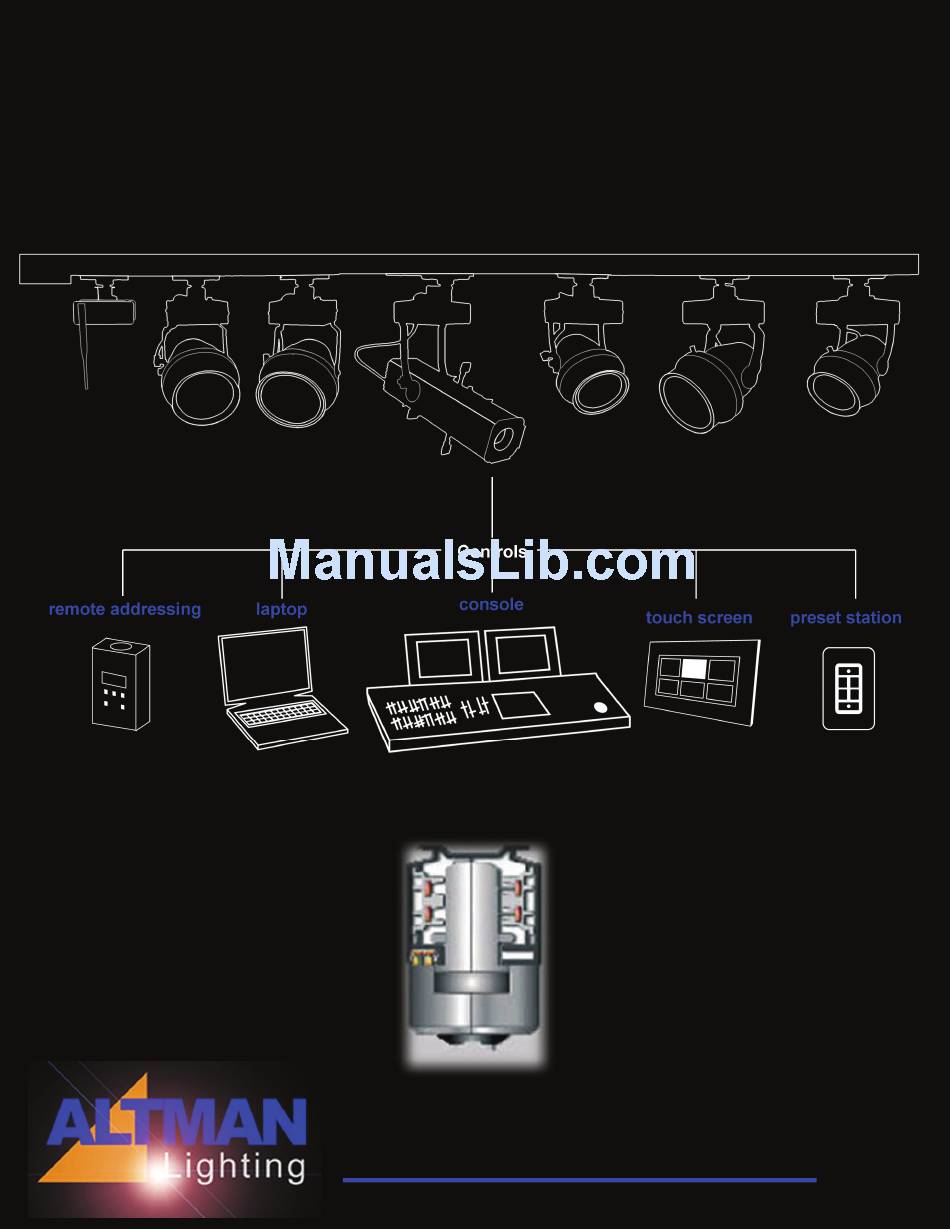

Altman Lighting
Smart-Track®
Lighting System
User Manual
www.altmanlighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart-Track and is the answer not in the manual?

Questions and answers

Related Manuals for Altman Smart-Track

Summary of Contents for Altman Smart-Track

  • Page 1 Altman Lighting Smart-Track® Lighting System User Manual www.altmanlighting.com...

  • Page 2: Table Of Contents

    Altman Lighting 2 Circuit Smart Track Table of Contents Smart Track Introduction Smart Track Part and Accessories Smart Track Planning Aid Smart Track Lighting & Track Specifications 16 Safety & Installation Instructions Smart Track LED Fixture Settings Smart Track Quartz & HID Settings...

  • Page 3: Smart Track

    Altman Lighting 2 Circuit Smart Track Introduction Smart Track Altman Architectural/ Theatrical Smart Track Lighting Systems is a revolutionary way to bring digital control signals to addressable architectural/ theatrical lumanaires without the need for dimmer packs and bulky cable runs.

  • Page 4: Smart Track Part And Accessories

    Add the following codes to finish: 3-1 for Silver 2-2 for Black 1-3 for White Smart Track 2 Circuit/ 2 Neutral surface track with DMX/ data bus offers the ability to control individual Altman Lighting luminaries with addressable on board DMX dimmers, HID on/ off relay or LED color changers. Part numbers ASL-23310-* 4’’...
  • Page 5 Altman Lighting 2 Circuit Smart Track Parts & Accessories All part numbers ending in -* are available in white, black or silver. Add the following codes to finish: 3-1 for Silver 2-2 for Black 1-3 for White Live End Feeds With gold plated DMX/data bus contacts &...
  • Page 6 Altman Lighting 2 Circuit Smart Track Parts & Accessories All part numbers ending in -* are available in white, black or silver. Add the following codes to finish: 3-1 for Silver 2-2 for Black 1-3 for White L Coupler L-Coupler with DMX/ data contacts. Can be uses as a feed for either DMX/ data or AC.
  • Page 7 Altman Lighting 2 Circuit Smart Track Parts & Accessories All part numbers ending in -* are available in white, black or silver. Add the following codes to finish: 3-1 for Silver 2-2 for Black 1-3 for White DMX Track Terminator Smart Track adapter with 100 ohm resistor wired across data positive and data negative for ending a single DMX/ data run.
  • Page 8 Altman Lighting 2 Circuit Smart Track Parts & Accessories All part numbers ending in -* are available in white, black or silver. Add the following codes to finish: 3-1 for Silver 2-2 for Black 1-3 for White Pendant H-Profile Housing for Smart Track for aircraft cable or stem mounting where a wire way may be needed or a strengthened support.

  • Page 9: Smart Track Planning Aid

    Planning Aid For Track, Components & DMX Contacts The Altman 2 Circuit Smart Track incorporates a 2 contact DMX/track bus running along the inside of the track profile. When Planning the layout make sure the course of the DMX/Data Bus is continuous. For example: without change or intersection.
  • Page 10 Planning Aid For Track, Components & DMX Contacts Example 1 Example 2 Example 3 Single Smart Track Single Smart Track Straight Run w/ 2 Tracks & Straight Run-Feed Right Straight Run-Feed Left Middle Joiner AC & DMX Data Feed In AC &...
  • Page 11 Planning Aid For Track, Components & DMX Contacts DMX Jumped Out DMX Jumped In AC Feed In Data Data Negative Positive Example 4 2 x Independent Tracks Sharing DMX Data AC Feed Separate AC & DMX Data Feed In: Power can be fed at bottom right w/ the use of ASL-99802* and Terminator &...
  • Page 12 Planning Aid For Track, Components & DMX Contacts Example 5 2 x Straight Runs of Smart Track With One L Turn AC & DMX Data Feed In: Power can be fed at the top right w/ the use of ASL-99803* w/ Terminator & Dead End Cap moving to bottom left.
  • Page 13 Planning Aid For Track, Components & DMX Contacts Example 6 3 x Straight Runs of Smart Track With Two Opposite L Turns AC & DMX Data Feed In: Power can be fed at the top right w/ the use of ASL-99803* w/ terminator &...
  • Page 14 Planning Aid For Track, Components & DMX Contacts Example 7 Closed Square or Rectangle Grid Break DMX jumper inside the L to be fed DMX. DMX needs to run linear on Smart Track. AC can be fed at any of the four L connectors.
  • Page 15 Planning Aid For Track, Components & DMX Contacts Flex from Example 8 30° -330° 2 x Straight Runs of Smart Track w/ Flex Joiner AC & DMX Data Feed In: Power can be fed at the top right w/ the use of ASL-99803* w/ Terminator &...

  • Page 16: Smart Track Lighting & Track Specifications

    Altman Lighting 2 Circuit Smart Track Specifications Smart-Track® 2-circuit specification The Track Lighting System shall consist of high quality aluminum extruded lighting track with integral data distribution, rugged multi adapters to support fixtures & transfer power/ data from the track to controllable devices such as lighting fixtures. It shall be possible to field cut Track Sections to necessary lengths for each project and location.

  • Page 17: Safety & Installation Instructions

    6. Do not use this track with a power supply cord or convenience receptacle adaptor. 7. The Altman Smart-Track System is intended for use only with Altman Smart Track com- ponents and fixtures marked for use with the Altman Smart Track System. To reduce the risk of fire and electric shock, do not use other components as part of this system.

  • Page 18: Smart Track Led Fixture Settings

    Altman Lighting 2 Circuit Smart Track Fixture Settings LED CONTROL INSTRUCTIONS FOR FIXTURES WITH SMART-LED™™ INSTALLED There are four different selectable modes of control. Switches are located under the moveable access door on the side of the electronics box. The single RED (S1) 2-position binary DIP switch sets each mode of control.
  • Page 19 Altman Lighting 2 Circuit Smart Track Fixture Settings Switch settings 610-619 Red Green Blue DATA .233,.254,.000 ;610 ;#10 MED YELLOW DATA .254,.234,.086 ;611 ;#11 LT STRAW DATA .231,.246,.026 ;612 ;#12 STRAW DATA .255,.221,.130 ;613 ;#13 STRAW TINT DATA .255,.203,.018 ;614 ;#14 MED STRAW DATA .255,.186,.000 ;615 ;#15 DEEP STRAW...
  • Page 20 Altman Lighting 2 Circuit Smart Track Fixture Settings Switch settings 690-699 Red Green Blue DATA .000,.086,.037 ;690 ;#90 DARK YELLOW GREEN DATA .000,.054,.045 ;691 ;#91 PRIMARY GREEN DATA .000,.193,.189 ;692 ;#92 TURQUOISE DATA .000,.134,.153 ;693 ;#93 BLUE GREEN DATA .000,.131,.106 ;694 ;#94 KELLY GREEN DATA .000,.086,.133 ;695 ;#95 MED BLUE GREEN...

  • Page 21: Smart Track Quartz & Hid Settings

    Altman Lighting 2 Circuit Smart Track Fixture Settings QUARTZ CONTROL INSTRUCTIONS FOR FIXTURES WITH SMART-DIMMER™™ INSTALLED There are four different selectable modes of control. Switches are located under the moveable access door on the side of the electronics box. The single RED (S1) 2-position binary DIP switch sets each mode of control.

  • Page 22: Smart Track Fixture Installation

    Altman Lighting 2 Circuit Smart Track Fixture Settings FIXTURE INSTALLATION PROCEDURE PLEASE REFER TO THE DIAGRAMS BELOW OF THE ® ALTMAN SMART-TRACK ADAPTOR 2-CIRCUIT SMART TRACK ADAPTOR 1. Before installing the fixture to the Smart Track lighting track, set the control mode and/or fixture ad- dresses as outlined above.

  • Page 23: Smart Track Maximum Weight Loads

    Altman Lighting 2 Circuit Smart-Track® Important: Smart-Track and Smart Lighting Fixtures are NOT designed for vertical or sideways mounting! Smart-Track must be installed with opening facing down in all circumstances. Installations not adhering to this warning will void the warranty and may compromise the integrity of the luminaries and the DMX signal.

  • Page 24: Smart Track Fixture Rdm Features

    Infogate is the software at the heart of the RDM-based InfoTrace system. In order for the Altman Smart-Track system to work with the Wybron Infotrace system, the PC, hub, InfoTrace software, InfoTrace gateway, and luminaires have to be setup properly. Please refer to the Wybron setup manuals and Altman Smart-Track instructions on page18-21.

  • Page 25: Alexander St., Yonkers, Ny

    Altman Lighting 2 Circuit Smart Track Fixture RDM Features The Tracking of Quartz Lamp Hours Under the parameters section of the discovery screen, you will be able to see the lamp hours for each quartz unit in the system. There is a built-in default of 30 minutes in the lamp hour time count even after a reset of the counter.

  • Page 26: Rad (Remote Authorization Device)

    Altman Lighting 2 Circuit Smart Track Fixture RDM Features RAD (Remote Addressing Device) Altman Part # 61-0265 Operating Instructions Overview: The RAD is used to set the DMX address of any RDM enabled device. It uses bi-directional data and the RDM protocol to perform this function.
