Do you have a question about the PEGASUS 6” and is the answer not in the manual?

Questions and answers

Summary of Contents for Altman PEGASUS 6”

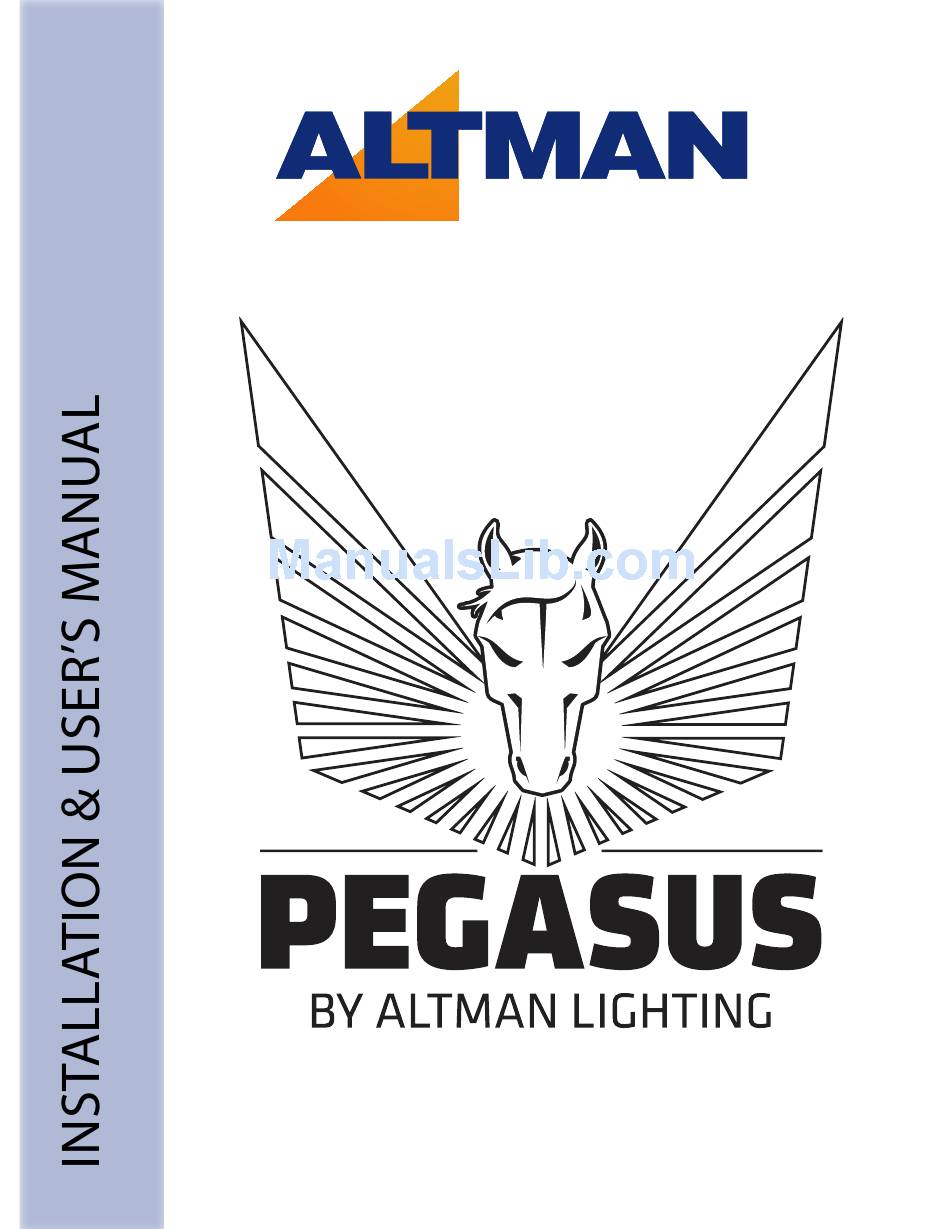

  • Page 1 Lighting Lighting BRINGING IMAGINATION TO LIGHT BRINGING IMAGINATION TO LIGHT 20160601 Pegasus Installation Manual...
  • Page 2 Pour tous commentaires ou suggestions concernant des corrections et/ou les mises à jour de ce manuel, veuillez s’il vous plait contacter le bureau de Altman Lighting le plus proche. Note: Information contained in this document may not be duplicated in full or in part by any person without prior written approval of Altman Lighting Its sole purpose is to provide the user with conceptual information on the equipment mentioned.
  • Page 3: Important Information

    PEGASUS 6” and 8” Fresnel Installation & User’s Manual IMPORTANT INFORMATION When using electrical equipment, basic safety precautions should always be followed including the following: a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. b. Do not use outdoors. c. Do not mount near gas or electric heaters. d.
  • Page 4: Fcc Notice , Dmx Resources, Altman Standard Warranty

    Altman Lighting, Inc., a subsidiary of Altman Stage Lighting Company, Inc., herein referred to as Altman, war- rants each new product (except for spare parts or products Altman does not manufacture) for a period of TWO (2) years from date of shipment to correct by repair or replacement any part defect due to faulty material or workmanship.
  • Page 5: Table Of Contents

    PEGASUS 6” and 8” Fresnel Installation & User’s Manual TABLE OF CONTENTS Important Information FCC Notice , DMX Resources, Altman Standard Warranty Table of Contents - this page About this Manual Product Descriptions - Part Number Ordering Accessories Luminaire Overview...
  • Page 6: About This Manual

    PRODUCT DESCRIPTIONS Altman Pegasus Fresnels are 6” and 8” white output LED Fresnel Family that are both Mains Dimmable and DMX controlled all in one luminaire. Pegasus replicates the soft light output that is expected from a theatrical or Studio Fresnel. Under 150 Watts the 6” Pegasus Fresnel far surpasses the output of its 500 watt incandescent counterpart, where the 8”...
  • Page 7: Luminaire Overview

    PEGASUS 6” and 8” Fresnel Installation & User’s Manual PEGASUS FRESNEL LUMINAIRE OVERVIEW SAFETY CABLE ANCHOR POINT MAINS DIM CURVE DMX/MAINS DIM SWITCH 120V/240V SWITCH DMX - Control Interface DMX/RDM IN DMX/RDM THRU Power CON THRU Power CON IN Beam Adjustment Knob SPOT/FLOOD WARNING: Supporting mechanism and structure must be capable of supporting the weight of the Pegasus Fresnel.
  • Page 8 PEGASUS 6” and 8” Fresnel Installation & User’s Manual PEGASUS FRESNEL LUMINAIRE OVERVIEW STEEL YOKE ASSEMBLY LOCKING COLOR FRAME RETENTION CLIP T-HANDLE TILT LOCK 7.5” X 7.5” COLOR FRAME HOLDER WARNING: Supporting mechanism and structure must be capable of supporting the weight of the Pegasus Fresnel. For product technical information (including weight), refer to "TECHNICAL SPECIFICATIONS"...
  • Page 9: Installation And Setup

    POWER CONNECTION - DMX CONTROL MODE: The PEGASUS Luminaire should be connected to either a constant circuit or relay device when in DMX mode. Note: Altman Lighitng recommends that all Non-Dim circuits powering solid state luminaires are routinely powered down to both conserve energy and maximize luminare performance.
  • Page 10: Set Up For Dimming System Use

    PEGASUS 6” and 8” Fresnel Installation & User’s Manual CONNECTING PEGASUS TO A DIMMING SYSTEM Power daisy chain Power Feed from to next luminaire Phase Cut Dimming system via powerCON thru (forward or reverse phase) connection. DO NOT CONNECT MORE THAN FOUR (4) UNITS TO A DIMMER.
  • Page 11: Set Up For Dmx Control

    PEGASUS 6” and 8” Fresnel Installation & User’s Manual LUMINAIRE WIRING DMX Connector Wiring -DMX/RDM DMX 512 XLR and RJ45 Connections DMX 512 Signal XLR Pin RJ45 Pin Common (Drain) DMX 512 Minus (-) DMX 512 Plus (+) Note: Remaining pins on each connector are not used DMX NETWORK CONNECTIVITY Basic DMX512 installation consists of connecting multiple Pegasus Luminaires together (up to 32 Total devices per DMX string) in “daisy-chain”...
  • Page 12: Luminaire Controls

    PEGASUS 6” and 8” Fresnel Installation & User’s Manual LUMINAIRE CONTROLS - INFO DISPLAY SEQUENCE Once in DMX CONTROL, the Pegasus Fresnel luminaire’s three digit control system provides set up and local control for accessing all of the luminaires menu options and settings. Upon Power-up, the three digit display will sequence: Firmware Version: (vXX) where XX = Verson number Displays for 2 seconds, Absence of DMX: (oFF, HLd, PrE, FuL) [ Default: oFF ] Displays for 2 seconds,...
  • Page 13 PEGASUS 6” and 8” Fresnel Installation & User’s Manual LUMINAIRE CONTROLS -OPERATING MODES 1. DMX mode (rEC): The Pegasus Luminaire’s dimming level is set via a DMX controller. This controller controls the luminaire via DMX 512a. This address can be from 001 - 512. To programming a different DMX address: 1.
  • Page 14: Operation And Programming

    PEGASUS 6” and 8” Fresnel Installation & User’s Manual OPERATION AND PROGRAMMING -DMX CONTROL MODE Absence of DMX: When connected to a DMX network, if there is a loss of signal the following settings will effect the behavior of the Pegaus Luminaire upon signal loss. This mode can be programmed by entering a number greater than 900.
  • Page 15 PEGASUS 6” and 8” Fresnel Installation & User’s Manual OPERATION AND PROGRAMMING - DIMMING CURVE AND DMX TERMINATION DIMMING CURVE: Pegasus will replicate one of three programmed dimming curves replicating linear and incandescent dim- ming. SETTING DISPLAY [RDM] DESCRIPTION P01 [0] Linear P02 [1] Incandescent Fade 1...
  • Page 16: Cleaning And Care

    Step 4. Using a second lint-free lens tissue, wipe off any alcohol residue. 3. Service and Maintenance For all other service and maintenance issues, please contact your local Altman Lighting offices or an Authorized Service Center. SPECIAL NOTE: The light source contained in this luminaire shall only be replaced by the manufacturer or an Authorized service agent or a similar qualified person.
  • Page 17: Trouble Shooting

    PEGASUS 6” and 8” Fresnel Installation & User’s Manual TROUBLE SHOOTING WARNING! Any service and maintenance (including troubleshooting), other than described herein should be performed by an Authorized Altman Lighting Dealer or Service Center. Possible Cause / Remedy Description Symptom...
  • Page 18: Technical Specifications

    PEGASUS 6” and 8” Fresnel Installation & User’s Manual TECHNICAL SPECIFICATIONS: Source: 120 Watt Fixed White LED emitter Light : Output Pegasus 6: >9,300 Lumens; LED color temperature dependent Output Pegasus 8: >11,620 Lumens; LED color temperature dependent Materials: Corrosion-resistant materials and hardware Light Engine: Available in 2700K, 3000K, 4000K, 5000K White Power Consumption:...
  • Page 19: Technical Specifications

    PEGASUS 6” and 8” Fresnel Installation & User’s Manual TECHNICAL SPECIFICATIONS: Cooling: Active Silent Cooling (<19dBa) @.5M Ambient Temperature: 0 to 40 Degrees C (32 to 104 Degrees F), Ta Max 25C, Tc Max 220C 5 Minutes: 31C Steady State: 52C Beam Angle: Pegasus 6: Spot (15 Degrees) to Flood (85 Degrees) Pegasus 8: Spot (15 Degrees) to Flood (70 Degrees)
  • Page 20 BRINGING IMAGINATION TO LIGHT BRINGING IMAGINATION TO LIGHT Corporate Offices: 57 Alexander Street Yonkers, NY 10701 (914)-476-7987 www.altmanlighting.com Document Number: 49-0240 Version as of: 20160601 PEGASUS Luminaire Installation & User’s Manual ©2016 Altman Stage Lighting Co. Inc., All rights reserved.
