Land Pride RCF2084 Operator's Manual

Land Pride RCF2084 Operator's Manual

Rotary cutters
Hide thumbs Also See for RCF2084:

Advertisement

Quick Links

Rotary Cutters
RCF2084

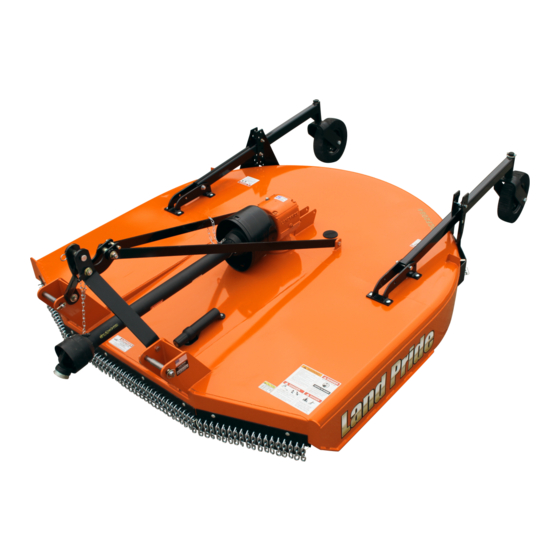

RCF2084 With Dual Tailwheels and
Front & Rear Chain Guard Options
33007
Table of Contents
RCF2084 With Single Tailwheel and
Front Rubber Guard Option
!
Operator's Manual
Read the Operator's Manual entirely. When you
see this symbol, the subsequent instructions and
warnings are serious - follow without exception.
Your life and the lives of others depend on it!
Cover illustration may show optional
equipment not supplied with standard unit.
© Copyright 2014
Printed
326-461M
1/29/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the RCF2084 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Land Pride RCF2084

  • Page 1 Table of Contents Rotary Cutters RCF2084 RCF2084 With Dual Tailwheels and Front & Rear Chain Guard Options 33007 RCF2084 With Single Tailwheel and Front Rubber Guard Option 326-461M Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception.
  • Page 2: Table Of Contents

    Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
  • Page 3 Land Pride products. Download the appropriate App on your Refer to Parts Manual QR smart phone, open the App, point your Locator on this page for phone on the QR code and take a picture. detailed instructions. 1/29/14 RCF2084 Rotary Cutters 326-461M...
  • Page 4 Allow only performing maintenance. enough slack in the chain to permit turning. Do not use safety chain for towing. RCF2084 Rotary Cutters 326-461M 1/29/14...
  • Page 5 Never allow children to operate such as safety shoes, safety equipment. safety cage if available. glasses, hard hat, and ear plugs When removing and installing is highly recommended. wheels, use wheel handling equipment adequate for the weight involved. 1/29/14 RCF2084 Rotary Cutters 326-461M...
  • Page 6 Spray soapy water on the surface where the label is to all damaged or missing labels. Order new labels from your be placed. nearest Land Pride dealer. To find your nearest dealer, Peel backing from label. Press firmly onto the surface. visit our dealer locator at www.landpride.com.
  • Page 7 Important Safety Information 818-142C Danger: Rotating Driveline 33020 818-556C Danger: Thrown Object 33021 818-564C 33021 Danger: Rotating Blades 818-230C 1 11/16 x 2 13/16" Red Reflector (2 places) 838-614C 33021 2" x 9" Red Reflector (2 places) 1/29/14 RCF2084 Rotary Cutters 326-461M...
  • Page 8 Table of Contents Important Safety Information ROTATING DRIVELINE KEEP AWAY! 818-552C Danger: Rotating Driveline 24597 818-540C Danger: Guard Missing 24597 818-681C Notice: 20 MPH Max. 33016 33020 818-543C Danger: Guard Missing (2 places) 33021 RCF2084 Rotary Cutters 326-461M 1/29/14...
  • Page 9 Table of Contents Introduction Introduction Land Pride welcomes you to the growing family of new Owner Assistance product owners. The Online Warranty Registration should be completed by the dealer at the time of purchase. This information is This Rotary Cutter has been designed with care and built necessary to provide you with quality customer service.
  • Page 10 Operator’s Manual. Remove temporary solid plug from WARNING top of gearbox and replace with vented dipstick. See your nearest Land Pride dealer if dipstick is missing. Ballast weights may need to be added to your tractor to maintain steering control. Refer to your tractor’s operator’s Remove manual to determine proper ballast requirements.
  • Page 11 (#16), hinge plates (#2), 1 5/8" long bushing (#3), hinge plates (#2), machine washer (#16), right hitch strap (#5), and hex flange lock nut (#11). b. Draw locknut (#11) up snug and then back-off 1/4 turn. 1/29/14 RCF2084 Rotary Cutters 326-461M...
  • Page 12 1. Install front chain guards (#1 & #2) as shown with 3/8"-16 x 1" GR5 carriage bolts (#3), and hex whiz nuts (#4). 2. Tighten nuts to the correct torque. 33008 Front Single Chain Guard Option Figure 1-4 RCF2084 Rotary Cutters 326-461M 1/29/14...
  • Page 13 Optional Rear Guards DANGER Do not operator cutter without a rear guard. Do not remove rear guard unless it is replaced by an approved Land Pride guard. Serious body injury or loss of life can result without an attached rear guard.
  • Page 14 8. Repeat steps 1 thru 7 for the right-hand tailwheel. 9. Final tailwheel height adjustment will be made later. Rear Holes Front Holes 33133 Front Tail Wheel Assembly Holes Figure 1-8 Rear Holes 33134 Tail Wheel Assembly Figure 1-9 RCF2084 Rotary Cutters 326-461M 1/29/14...
  • Page 15 NOTE: Land Pride’s QH15 Category I or QH20 Category II Quick-Hitch can be attached to the tractor to provide quick and easy 3-point hook-up DANGER and detachment.
  • Page 16 PTO shaft. Release pull collar less than 1", then shorten driveline using instructions and continue to push driveline yoke forward until pull provided on the next page. collar locks in place. RCF2084 Rotary Cutters 326-461M 1/29/14...
  • Page 17 2. Assemble the two driveline profiles together with just 1/2 overlapping of the profile tubes as shown. Once 24872 assembled, measure and record maximum allowable Maximum PTO Driveline Movement During Operation length here. ________ Figure 1-14 3. Continue with “Check Driveline Interference”. 1/29/14 RCF2084 Rotary Cutters 326-461M...
  • Page 18 If needed, see “Tailwheel Height Figure 3-1 Adjustment” instructions on page 17. 33019 Set Front Blade Tip Set Rear Blade Tip Slightly Blade Tip Blade Tip At Cutting Height Higher Than Cutting Height Cutting Height Figure 3-2 RCF2084 Rotary Cutters 326-461M 1/29/14...
  • Page 19 2. Adjust length of center 3-point link until upper center hitch pin is vertically above lower 3-point hitch pins. This arrangement allows for optimum ground contour 33014 following performance. Center 3-Point Link Adjustment 3. Lock center 3-point link in this position. Figure 3-5 1/29/14 RCF2084 Rotary Cutters 326-461M...
  • Page 20 Stop operate cutter in the raised position. The cutter can discharge blade rotation if a bystander is within several hundred feet. objects at high speeds resulting serious injury or death. RCF2084 Rotary Cutters 326-461M 1/29/14...
  • Page 21 1. Make sure driveline does not contact tractor or cutter when raising cutter to transport position. 4. Inspect cutter safety equipment to make sure it is installed and in good working condition. 1/29/14 RCF2084 Rotary Cutters 326-461M...
  • Page 22 However, it is best to avoid 8. Support collapsed driveline off the ground by striking obstacles to extend cutter and blade life. hooking its safety chain in the driveline chain clip. RCF2084 Rotary Cutters 326-461M 1/29/14...
  • Page 23 With a little practice you will be Position the adjustable stops on the tractor’s hydraulic lift pleased with what you and your Land Pride Rotary Cutter can do. Whether you are done mowing, need to take a lever so the cutter can be consistently returned to the same cutting and transport height.
  • Page 24 9. Carefully check cutting edges of blades in relation to IMPORTANT: Replace cutting blades with genuine blade carrier rotation to ensure correct blade Land Pride blades only. Blades must be replaced in placement. Blade rotation is counterclockwise with mating pairs. Not replacing both blades will result in cutting edge leading.
  • Page 25 Clutch Run-In Refer to Refer to Figure 5-2: Land Pride Cutter Blade Parts Item Part No. Part Description 318-586A BLADE BOLT KIT (items 1, 2, & 3 below) 1 802-277C BLADE BOLT 1 1/8-12 x 3 7/16 WITH KEY...
  • Page 26 Always replace skid shoes at the first sign of wearing thin. There are skid shoes mounted on the cutter sides. Check both skid shoes for wear and replace if necessary. Order only genuine Land Pride parts from your local Land Pride dealer. 30933 1.
  • Page 27 4. Repaint parts where paint is worn or scratched to prevent rust. Ask your dealer for Land Pride aerosol touch-up paint. Paint is also available in touch-up bottles with brush, quarts, and gallon sizes by adding TU, QT, or GL to the end of the aerosol part number.
  • Page 28 Type of Lubrication: 80-90W EP Gear Lube Land Pride dealer. Please see your Land Pride dealer Quantity = Fill until oil reaches top mark on dipstick or if vented dipstick was not included.
  • Page 29 Hours Driveline Shield Bearings Type of Lubrication: Grease Quantity = 6 pumps 33050 Hours Driveline Profiles Quantity = Clean & coat inner tube of driveline with a light film of grease and then reassemble. 14618 1/29/14 RCF2084 Rotary Cutters 326-461M...
  • Page 30 Welded A-arm and caster fork with 360 degree swivel Tailwheel 4" x 8" x 15" Laminated tire with cast iron hub Front Guard Optional Rubber Belting Optional Single Chain Guard Rear Guard Standard Metal Band Optional Single Chain Guard RCF2084 Rotary Cutters 326-461M 1/29/14...
  • Page 31 Table of Contents Section 5: Specifications & Capacities 33017 1/29/14 RCF2084 Rotary Cutters 326-461M...
  • Page 32 Section 6: Features & Benefits RCF2084 Model Features Benefits Surpassed rugged All Land Pride Cutters have been designed and tested and meet rigorous voluntary industry standards testing procedures specified by ANSI. 5 Year gearbox warranty Shows our confidence in the gearbox integrity.
  • Page 33 Replace both blades High torque start-up Disassemble and inspect driveline for incorrectly located needles or damaged bearing cap. Tailwheel support failing Lowering too fast Adjust rate of drop Hitting objects when turning Reduce speed on turns 1/29/14 RCF2084 Rotary Cutters 326-461M...
  • Page 34 2970 2190 4820 3560 Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. Additional Torque Values Blade Carrier Hub Nut 450 ft-lbs Minimum Blade Bolt Locknut 450 ft-lbs RCF2084 Rotary Cutters 326-461M 1/29/14...
  • Page 35 This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
  • Page 36 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
