Land Pride RCG3715 Operator's Manual

Rotary cutters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

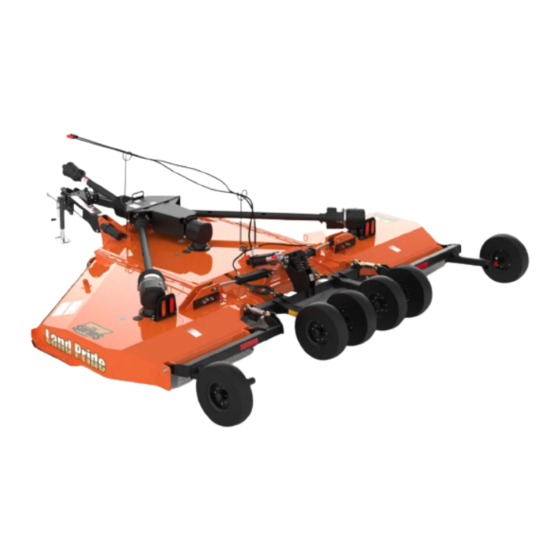

Rotary Cutters
RC(M)3715 & RCG(M)3715
Table of Contents
!

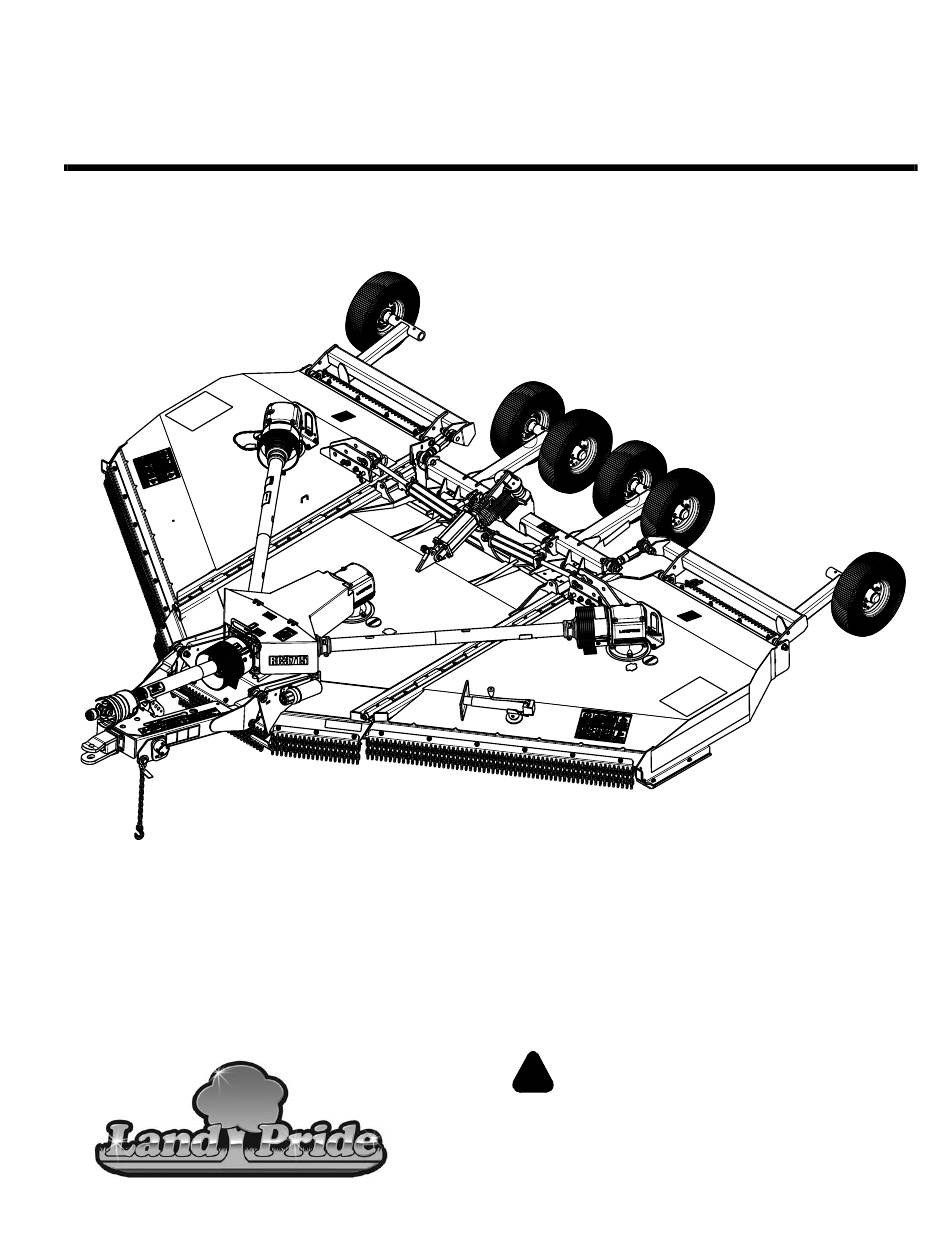

Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
334-114M
Operator's Manual
Printed 1/26/21
74881
