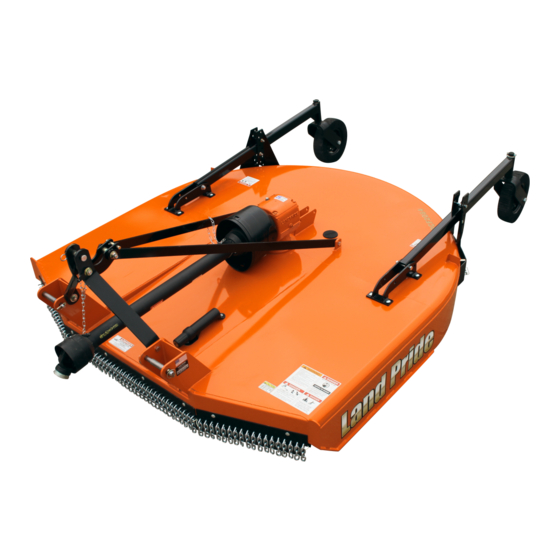

Land Pride RCF2084 Operator's Manual

Rotary cutters
Hide thumbs Also See for RCF2084:
Table of Contents

Advertisement

Quick Links

Download this manual
Rotary Cutters
RCF2084
RCF2084 With Dual Tailwheels and
Front & Rear Chain Guard Options
33007
Table of Contents
RCF2084 With Single Tailwheel and
Front Rubber Guard Option
Operator's Manual
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
326-461M
Printed 11/14/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCF2084 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Land Pride RCF2084

Summary of Contents for Land Pride RCF2084

  • Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Land Pride dealer. Printed 11/14/18...

  • Page 2: Machine Identification

    Model Number Serial Number Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov RCF2084 Rotary Cutters 326-461M 11/14/18...
  • Page 3 Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
  • Page 4 Land Pride products. Download the appropriate App on your Refer to Parts Manual QR smart phone, open the App, point your Locator on this page for phone on the QR code and take a picture. detailed instructions. RCF2084 Rotary Cutters 326-461M 11/14/18...

  • Page 5: Important Safety Information

     Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol Careful operation is your best The SAFETY ALERT SYMBOL indicates there is a assurance against an accident.

  • Page 6: Tire Safety

     Lower implement to the ground and  Replace parts on this implement implement. follow all shutdown procedures with genuine Land Pride parts only.  Attach the chain to the tractor before leaving the operator’s seat to Do not alter this implement in a way drawbar support or other specified perform maintenance.
  • Page 7 Use Seat Belt and ROPS signals are recommended Keep Riders Off whenever driving on public roads. Machinery  Land Pride recommends the use of a CAB or roll-over-protective-  Never carry riders on tractor or structures (ROPS) and seat belt implement.

  • Page 8: Safety Labels

    Spray soapy water onto the cleaned area. all damaged or missing labels. Order new labels from your Peel backing from label and press label firmly onto the nearest Land Pride dealer. To find your nearest dealer, surface. visit our dealer locator at www.landpride.com.
  • Page 9 Table of Contents Important Safety Information 818-142C Danger: Rotating Driveline 33020 818-556C Danger: Thrown Object 33021 818-564C 33021 Danger: Rotating Blades 838-614C 33021 2" x 9" Red Reflector (2 places) 11/14/18 RCF2084 Rotary Cutters 326-461M...
  • Page 10 Table of Contents Important Safety Information 818-552C Danger: Rotating Driveline 24597 818-540C Danger: Guard Missing 24597 818-681C Notice: 20 MPH Max. 33016 33020 818-543C Danger: Guard Missing (2 places) 33021 RCF2084 Rotary Cutters 326-461M 11/14/18...

  • Page 11: Using This Manual

    Table of Contents Introduction Introduction Land Pride welcomes you to the growing family of new Owner Assistance product owners. This Rotary Cutter has been designed The dealer should complete the Online Warranty with care and built by skilled workers using quality Registration at the time of purchase.

  • Page 12: Section 1: Assembly & Set-Up

    See your Refer to “Torque Values Chart for Common Bolt Sizes” on nearest Land Pride dealer if dipstick is missing. page 34 to determine correct torque values for common bolts. See “Additional Torque Values” at bottom of chart Remove for exceptions to standard torque values.

  • Page 13: Point Hitch Assembly

    5/8"-11 x 1 3/4" nuts (#12) until floating top link (#11) rotates freely. GR5 bolts (#14) and hex flange locknuts (#15). Draw locknuts (#15) up snug and then back off 1/4 turn. 11/14/18 RCF2084 Rotary Cutters 326-461M...
  • Page 14 Install front chain guards (#1 & #2) as shown with 3/8"-16 x 1" GR5 carriage bolts (#3), and hex whiz nuts (#4). 2. Tighten nuts to the correct torque. 33008 Front Single Chain Guard Option Figure 1-4 RCF2084 Rotary Cutters 326-461M 11/14/18...
  • Page 15 Skid Shoe Kit (Includes 2 skid shoes & mounting hardware) Replaceable skid shoes can be purchased from your nearest Land Pride dealer. They bolt to the weld-on skid shoes and help protect weld-on skid shoes and side skirts from wear.

  • Page 16: Single Tailwheel Assembly

    8. Repeat steps 1-7 for the right-hand tailwheel. 9. Final tailwheel height adjustment will be made later. Rear Holes Front Holes 33133 Tail Wheel Assembly Front Figure 1-8 Holes Rear Holes 33134 Tail Wheel Assembly Figure 1-9 RCF2084 Rotary Cutters 326-461M 11/14/18...

  • Page 17: Driveline Installation

    Remove rubber protective sleeve (#4) from gearbox input shaft and discard. 2. Unsnap one end of access doors (#5) on gearbox shield and rotate doors open. 3. Remove M12 x 1.25 x 65mm GR8 bolt (#2) from end of driveline (#1). 11/14/18 RCF2084 Rotary Cutters 326-461M...

  • Page 18: Tractor Hook-Up

    Hitch Pins 35391 NOTE: Land Pride’s QH15 Category I or QH20 Category II Quick Hitch can be attached to the 3-Point Hitch Pin Configuration For Cat. l Hitch tractor to provide quick and easy 3-point hook-up Figure 1-12 and detachment.

  • Page 19: Check Clearances

    Collapse driveline (#3) by pushing tractor end of driveline toward the gearbox. IMPORTANT: Skip to “Check Driveline Collapsible 33049 Length” if driveline is too long to start onto tractor Check Collapsible Length power take-off shaft. Figure 1-14 11/14/18 RCF2084 Rotary Cutters 326-461M...

  • Page 20: Shorten Driveline

    2. Assemble the two driveline profiles together with just 1/2 overlapping of the profile tubes as shown. Once 24872 assembled, measure and record maximum allowable length here. ________ Maximum Driveline Movement During Operation Figure 1-17 3. Continue with “Check Driveline Interference”. RCF2084 Rotary Cutters 326-461M 11/14/18...

  • Page 21: Section 2: Adjustments

    3-point arms are adjusted properly. surface. 33019 Set Front Blade Tip Set Rear Blade Tip Slightly Blade Tip Blade Tip At Cutting Height Higher Than Cutting Height Cutting Height Figure 3-2 11/14/18 RCF2084 Rotary Cutters 326-461M...

  • Page 22: Single Tailwheel Height Adjustment

    1/2" cap screw (#1) and hex flange locknut (#2). Tighten locknut to the correct torque. 33013 5. Readjust tractor’s lower 3-point lift arms as needed. Tailwheel Height Adjustment See “Deck Cutting Height” instructions on page 17. Figure 3-4 RCF2084 Rotary Cutters 326-461M 11/14/18...
  • Page 23 3-point hitch pins. This arrangement allows for Figure 2-2 optimum ground contour following performance. 3. Lock tractor center link in this position once correct length is achieved. Adjustment on center 3-point link can be made depending on customer’s preference. 11/14/18 RCF2084 Rotary Cutters 326-461M...

  • Page 24: Operating Checklist

    Rotary Cutter and Exceeding rated cutting capacity can damage drive tractor hydraulic system. components, cutter blades, and deck components. • All guards and shields must be installed and in good working condition while operating the implement. RCF2084 Rotary Cutters 326-461M 11/14/18...

  • Page 25: Section 3: Operating Instructions

    6. Check driveline guards to make certain they are in good condition and in place. Carefully raise and lower implement to ensure that the drawbar, tires, and other equipment on the tractor do not contact cutter frame or driveline. 11/14/18 RCF2084 Rotary Cutters 326-461M...

  • Page 26: Blade Engagement & Disengagement

    2. Engage tractor park brake, shut tractor engine off, 8. For additional information, see “General Operating and remove switch key. Stay on tractor until blades Instructions” on page 23. have come to a complete stop. RCF2084 Rotary Cutters 326-461M 11/14/18...

  • Page 27: Unhooking The Rotary Cutter

    With a little practice you will be speed of 540 rpm. If everything is still running smoothly, pleased with what you and your Land Pride Rotary Cutter once more raise cutter to cutting height to check for can do.

  • Page 28: Section 4: Maintenance & Lubrication

    Always placement. Blade rotation is counterclockwise with replace blades with new Land Pride blades to assure safety. cutting edge leading. Airfoil (lift) must be oriented •...

  • Page 29: Clutch Run-In

    Slip-Clutch Figure 5-2 Using a pencil or other marker, scribe a line across the Land Pride Cutter Blade Parts exposed edges of the clutch plates and friction discs. 2. Carefully loosen each of the 8 spring retainer nuts by Item Part No. Part Description exactly 2 revolutions.
  • Page 30 Always replace skid shoes at the first sign of wearing thin. There are skid shoes mounted on the cutter sides. Check both skid shoes for wear and replace if necessary. Order only genuine Land Pride parts from your local Land Pride dealer. 30933 Remove 3/8"...

  • Page 31: Long Term Storage

    4. Repaint parts where paint is worn or scratched to prevent rust. Ask your dealer for Land Pride aerosol touch-up paint. Paint is also available in touch-up bottles with brush, quarts, and gallon sizes by adding TU, QT, or GL to the end of the aerosol part number.
  • Page 32 Quantity = Fill until oil reaches top mark on dipstick or dipstick was not included. begins to flow out side plug hole in gearbox. NOTE: Use a suction or siphon pump to drain gearbox of oil when there is not an oil drain plug. RCF2084 Rotary Cutters 326-461M 11/14/18...
  • Page 33 Hours Driveline Shield Bearings Type of Lubrication: Grease Quantity = 6 pumps 33050 Hours Driveline Profiles Quantity = Clean & coat inner tube of driveline with a light film of grease and then reassemble. 14618 11/14/18 RCF2084 Rotary Cutters 326-461M...

  • Page 34: Section 5: Specifications & Capacities

    Welded A-arm and caster fork with 360 degree swivel Tailwheel 4" x 8" x 15" Laminated tire with cast iron hub Front Guard Optional Rubber Belting Optional Single Chain Guard Rear Guard Standard Metal Band Optional Single Chain Guard RCF2084 Rotary Cutters 326-461M 11/14/18...
  • Page 35 Table of Contents Section 5: Specifications & Capacities 33017 11/14/18 RCF2084 Rotary Cutters 326-461M...

  • Page 36: Section 6: Features & Benefits

    Section 6: Features & Benefits RCF2084 Model Features Benefits Surpassed rugged All Land Pride Cutters have been designed and tested and meet rigorous voluntary industry standards testing procedures specified by ANSI. 5 Year gearbox warranty Shows our confidence in the gearbox integrity.

  • Page 37: Section 7: Troubleshooting

    Replace both blades Disassemble and inspect driveline for incorrectly High torque start-up located needles or damaged bearing cap. Lowering too fast Adjust rate of drop Tailwheel support failing Hitting objects when turning Reduce speed on turns 11/14/18 RCF2084 Rotary Cutters 326-461M...

  • Page 38: Torque Values Chart For Common Bolt Sizes

    2190 4820 3560 Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. Additional Torque Values Blade Bolt Lock Nut 450 ft-lbs Blade Carrier Hub Nut 450 ft-lbs Minimum RCF2084 Rotary Cutters 326-461M 11/14/18...

  • Page 39: Warranty

    This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
  • Page 40 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
